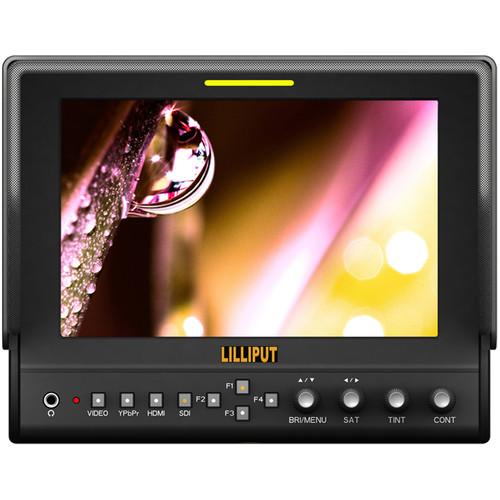

Product description The 663/O 7" Camera-Top Monitor from Lilliput is an on-camera monitor offering 1280 x 800 resolution with 400 nit brightness and an 800:1 contrast ratio. The 800:1 contrast ratio produces colors that are vivid, rich, and accurate. This monitor also includes a HDMI-output feature which allows you to duplicate the video content onto a second monitor. - 7" Monitor with Wide Screen Aspect Ratio
- The Lilliput 663/O monitor has a 1280 × 800 resolution, 7" IPS panel which is the perfect combination. It also fits neatly in a camera bag
- Optimized for DSLR Cameras
- Compact size and peaking functionality are the perfect complements for your DSLR camera's features

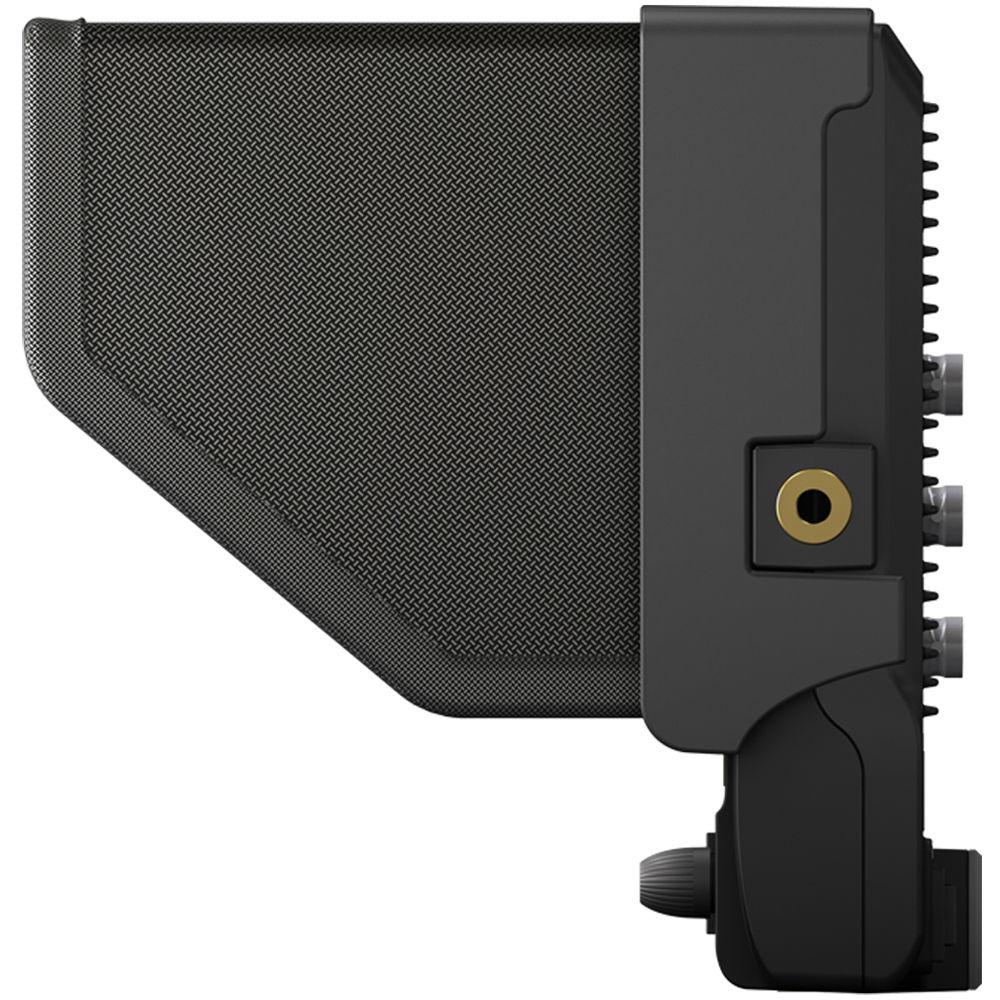

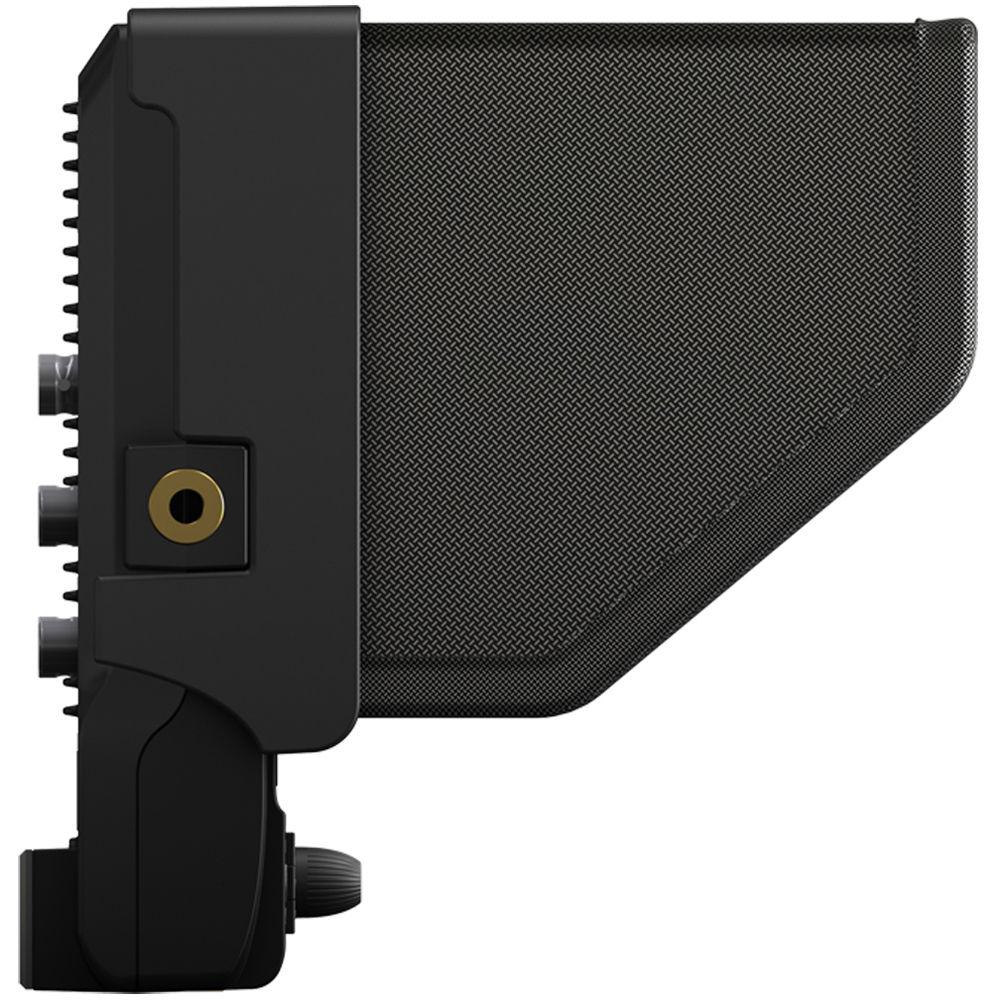

- Foldable Sun Hood Becomes Screen Protector
- The 663/O's smart screen protector folds out to become a sun hood. This solution provides protection for the LCD and saves space in your camera bag
- HDMI Video Output
- 663/O includes an HDMI-output feature which allows you to duplicate the video content onto a second monitor without the need for additional HDMI splitters. The second monitor can be of any size and picture quality will not be affected
- High Resolution
- The Lilliput 663/O monitor uses LED-backlit display IPS panels that feature higher physical resolutions. This provides higher levels of detail and image accuracy
- High Contrast Ratio
- The 800:1 contrast ratio produces colors that are vivid, rich, and accurate
- Configurable to Suit your Style
- You can customize the 4 programmable function buttons (namely F1, F2, F3, F4) for shortcut operation according to different needs
- Wide Viewing Angles
- With a 178° viewing angle both vertically and horizontally, you can get the same vivid picture from wherever you are standing
In the Box Lilliput 663/O 7" Camera-Top Monitor Sun Shade F-970 Battery Plate LP-E6 Battery Plate HDMI A/C cable Power & Tally Shoe Mount 12 VDC Adapter Suitcase Adapter Panel Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput 663 O 7" Camera-Top Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

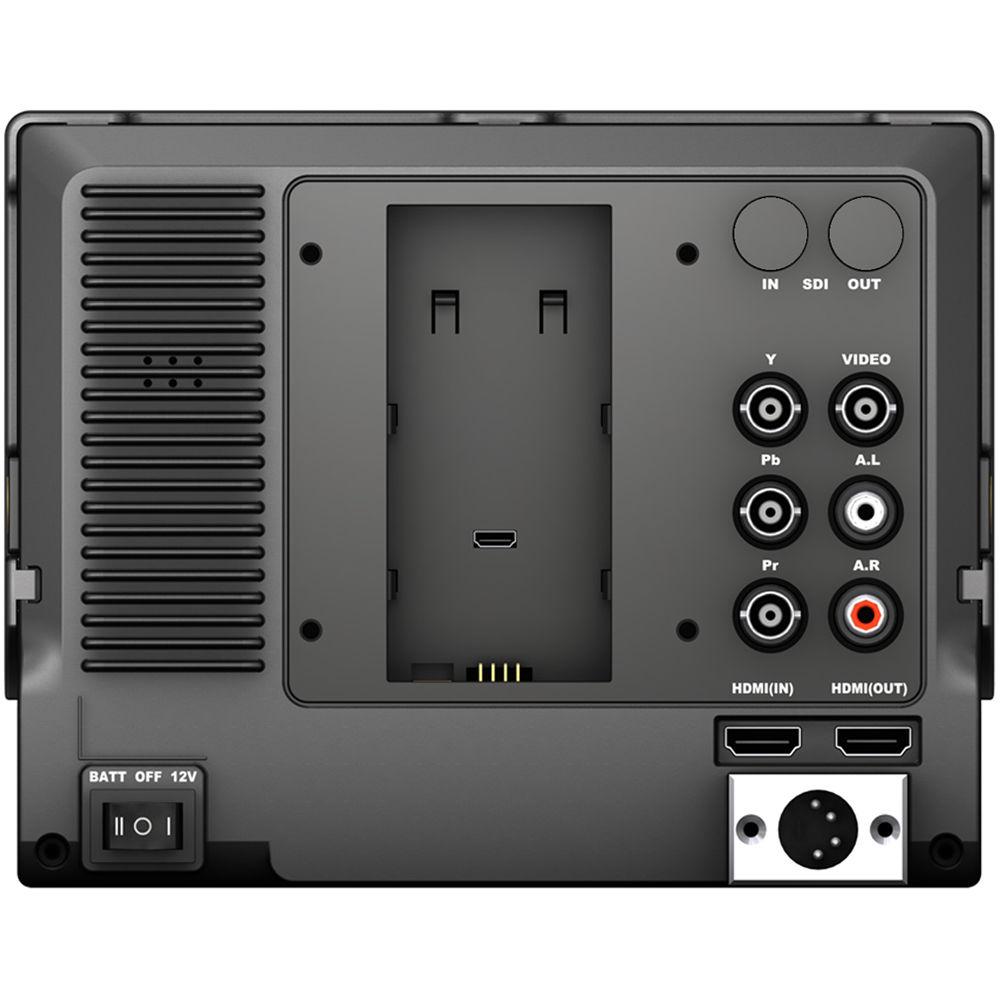

Technical parametersLilliput 663/O Specs | LCD Size | 7.0" (17.8 cm) | | Display Resolution | 1280 × 800 | | Active Area | H x V: 5.9 x 3.7" (149.76 x 93.6 mm) | | Dot Pitch | H x V: 0.117 x 0.117 mm | | Aspect Ratio | 16:10 | | Brightness | 400 cd/m² | | Contrast Ratio | 800:1 | | Light Source | LED | | Surface Treatment | 3H | | Response Time | Typical: Tr: 14 ms, Tf: 11 ms
Maximum: Tr: 17 ms, Tf: 14 ms | | View Angle | 89/89° (Left/Right) and 89/89° (Up/Down) | | Input Connector | 1 x HDMI
1 x YPbPr
1 x Composite
1 x Tally
1 x Audio L&R | | Output Connector | 1 x HDMI | | Power | 7 to 24 VDC (XLR connector) | | Power Consumption | ≤10 W | | Control | Basic: Video, YPbPr, power, HDMI buttons, SDI (no use), F1-F4 F1-F4 user-definable buttons, BRI/Menu knob, SAT knob, TINT knob, CONT knob
Advanced: Brightness, contrast, saturation, sharpness, color temperature, center marker, screen markers, aspect ratio, H/V delay, check field, pixel-to-pixel, underscan, zoom, image flip, freeze input, PIP, camera, volume, language, input format OSD, logo, manufacturer default, back light, IPS | | Speaker | Built-in 1 W | | Menu Language | English / Chinese | | Operation Temperature | -4 to 140°F (-20 to +60°C)
At High Temperature: 140°F (60°C) | | Operating Humidity | 80% RH maximum | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Dimensions | With Cover: 7.5 x 6.0 x 5.6" (19.1 x 15.2 x 14.1 cm)
Without Cover: 7.5 x 6.0 x 1.2" (19.1 x 15.2 x 3.1 cm) | | Weight | With Cover: 33.1 oz (938 g)
Without Cover: 26.8 oz (760 g)
With Suitcase: 76.2 oz (2.1 kg) | | | | Package Weight | 6.1 lb | | Box Dimensions (LxWxH) | 12.7 x 10.8 x 4.8" |
