User Manual for Lilliput 663 O P2 7" LCD On-Camera HDMI Monitor Click to enlarge the picture
Contents of the user manual for the Lilliput 663 O P2 7" LCD
- Product category: On Camera Monitors Lilliput
- Brand: Lilliput
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lilliput On Camera Monitors
 |
User manual for the Lilliput 663 O P2 7" LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lilliput product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lilliput user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lilliput product will considerably shorten its lifespan!
|
Product description Lilliput's 663/O/P2 7" LCD On-Camera HDMI Monitor is an on-camera monitor offering 1280 x 800 resolution with 400 nit brightness and an 800:1 contrast ratio. The monitor allows you to analyze focus, exposure, and other characteristics with False Color, Pixel-to-Pixel, and Histogram. It supports both NTSC and PAL compatible signals with HDMI, Component, and Composite inputs. This monitor also features an HDMI output, allowing you to feed the monitor and send the video signal along an HDMI infrastructure. It also features both a built-in speaker and headphone jack.

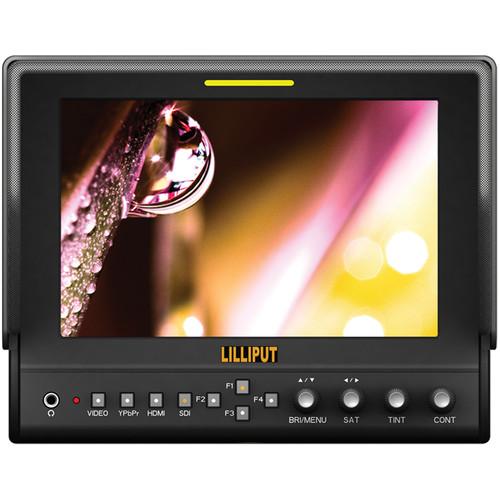

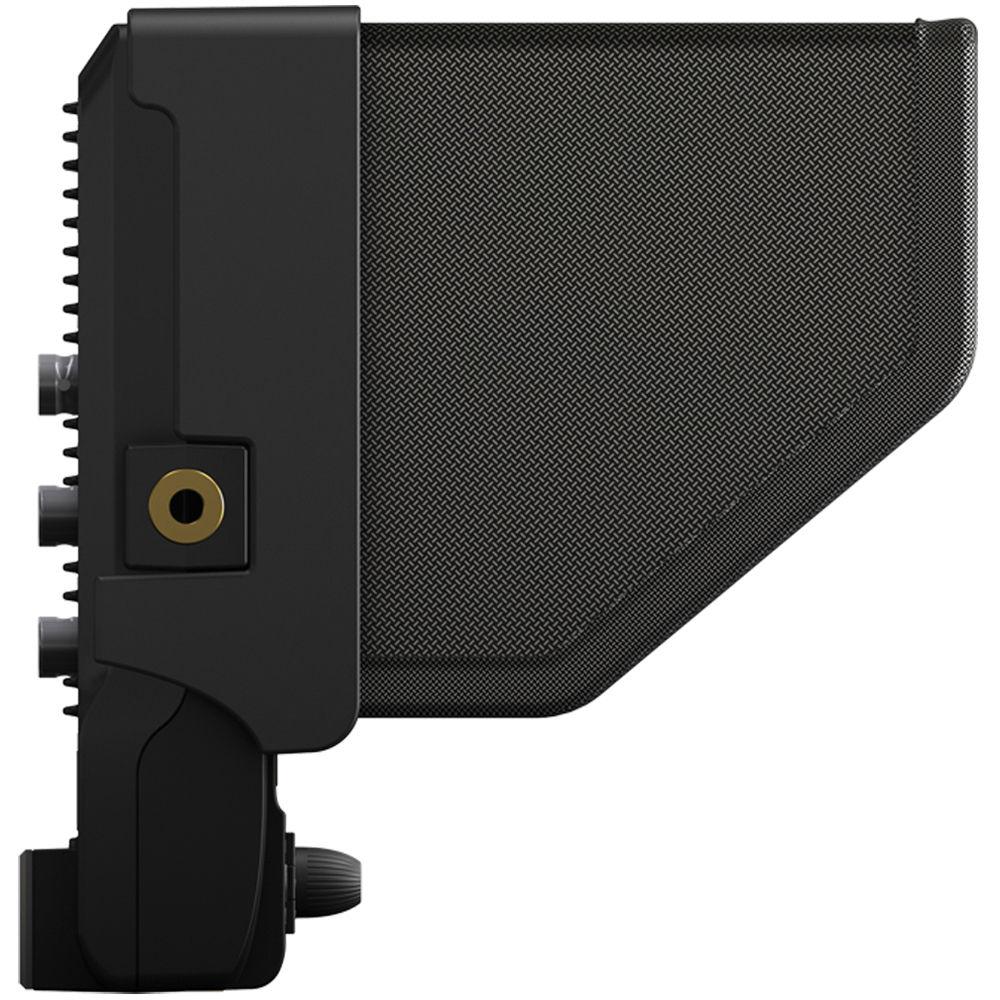

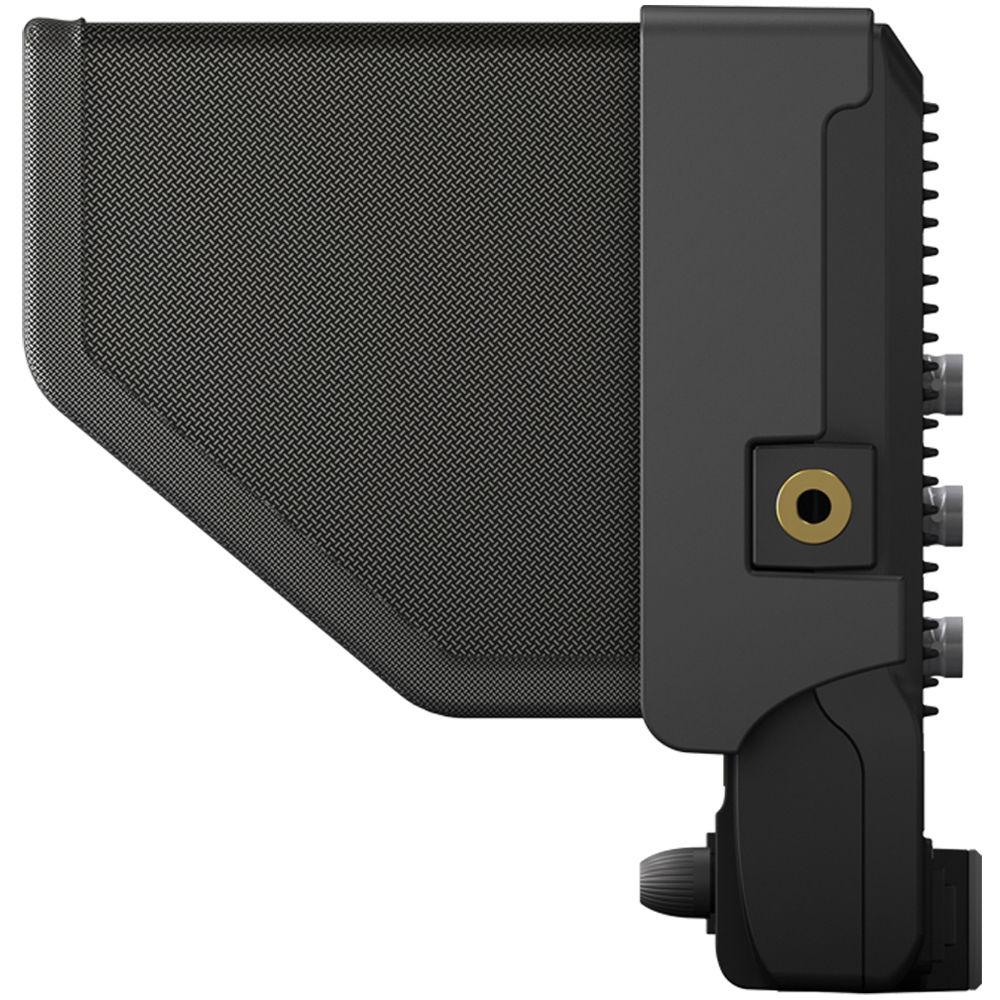

The four front panel buttons and four rotating knobs can be assigned to specific functions that allow you to call up often-used menu functions. You can power the monitor by using the included battery plates or the 4-pin XLR connector. The included 4-pin XLR power cable features a barrel connector and three pigtail cables for connecting to a tally system. The monitor features a tally indicator on the front of the monitor. An assortment of supplied accessories includes a Sony L-type and Canon LP-E6-type battery plates. The monitor incorporates a 1/4"-20 threaded mounting hole on the bottom and on each side, and the included sun hood attaches via hook and loop fastener to a removable sun hood attachment frame. A V-mount and Gold mount plate adapter allows you to mount optional V-mount or Gold mount battery plates. - Assignable Function Buttons & Knobs
- The front panel buttons and knobs can be customized to call up often-used menu functions.
F1 to F4 Buttons:
- Center Marker
- Check Field
- Color Bar
- Camera (format selection)
- PIP
- Flip
- Zoom
- Pixel-to-Pixel
- Freeze
- Input
- Underscan
- H/V Delay
- Peaking
- False Color
- Exposure
- Histogram
R1 to R4 Knobs
- Contrast
- Brightness
- Saturation
- Tint
- Volume
- Sharpness
- Back Light
- Monitoring Features
-
- Histogram
- 1:1 Pixel-to-Pixel
- Picture-in-Picture (for when the HDMI and Composite inputs are used simultaneously)
- H/V Delay
- Underscan
- Center Marker
- Zoom (up to 8x)
- False Color
- Peaking
- Color Bar
- Image Flip
- Freeze Input
- Adjustable color temperature
- Peaking
- Peaking highlights the sharpest (most in focus) areas of the image with a color outline. The monitor features two modes, monochrome, and color. The monochrome mode shows the image in black and white with the red peaking outline, and the color peaking mode shows the image in color with a red peaking outline.
- False Color
- The False Color feature provides under/over luminance warning by presenting the image as a series of color values representing exposure.
- Waveform
- The waveform provides an objective evaluation of your video signal. It displays the brightness of your image on an IRE scale, allowing you to see if your image will clip, and where your black levels are.
- Histogram
- The Histogram provides a graphic depiction of how many pixels in your image are at each level between black and white. This provides you exposure information so you can objectively judge how much of your image is clipping, falling into the shadows, or being captured faithfully.
- Vectorscope
- The vectorscope displays the signal on a graph so you can check the phase of your colors. The vectorscope function also verifies and checks the overall tint and hue of an image.
- 1:1 Pixel Mode
- 1:1 pixel-to-pixel mapping allows you to look at parts of your image without any scaling, so you can see the actual detail and not be fooled by scaling artifacts.
- H/V Delay
- This mode allows you to see the video signal outside the active picture area. Settings include Off, H/V Delay, H Delay, and V Delay.
- Underscan/Overscan
- Allows you to display an image with lower resolution than the screen with either a black border around the image or fill the screen entirely.
In the Box Lilliput 663/O/P2 7" LCD On-Camera HDMI Monitor Sun Shade LP-E6-Type Battery Plate F-970-Type Battery Plate HDMI A/C Cable Power & TALLY Cable Shoe Mount 12 VDC Adapter Suitcase Adapter Panel Gimbal Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput 663 O P2 7" LCD On-Camera HDMI Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput 663/O/P2 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 7.0" / 17.8 cm | | Active Area | 5.9 x 3.7" / 149.76 x 93.6 mm | | Screen Resolution | 1280 x 800 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 178° (89/89)

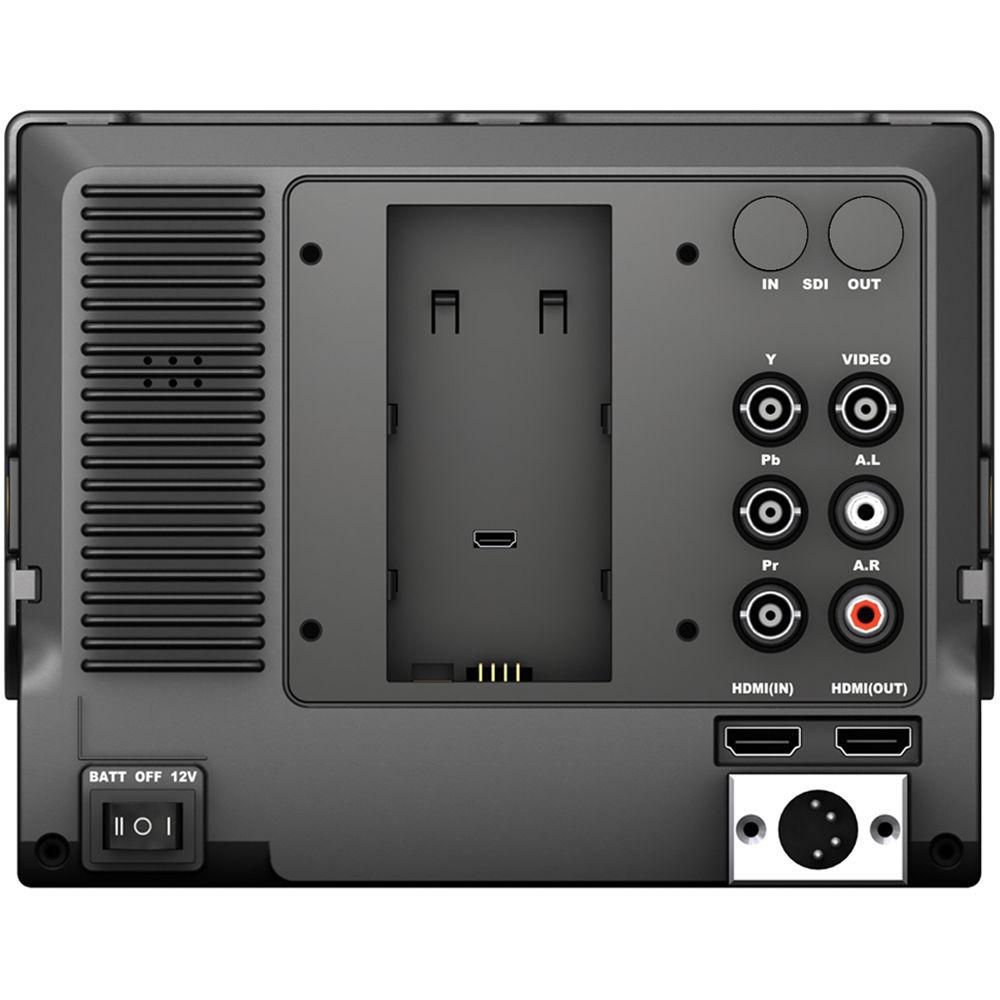

Vertical: 178° (89/89) | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 800:1 | | Dot Pitch | 0.117 x 0.117 mm | | Response Time | 15 / 20 ms (Rise / Fall) | | Image Controls | False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, Marker Color, Picture-in-Picture, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform | | | | Video | 1 x HDMI Type A Output
1 x BNC (Composite) Input
1 x 3BNC (Component) Input
1 x HDMI Type A Input | | Audio | 1 x RCA Input | | Built-In Speaker | 1 x 1 W | | Power | 1 x Barrel Input
1 x 4-Pin XLR Input | | Card Slot | None | | | | Video Format | HDMI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 24
1080i: 50/59.94/60
720p: 25/29.97/30/50/59.94/60
576p: 50
PAL
480p: 59.94/60
NTSC | | | | DC Input Power | 7 to 24 VDC | | Battery Type | None | | Power Consumption | 11 W (Maximum) | | | | Operating Humidity | 80% | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | | | Dimensions (W x H x D) | 7.5 x 6 x 1.2" / 191.5 x 152 x 31 mm
7.5 x 6 x 5.5" / 191.5 x 152 x 141 mm, Including Sun Hood | | Weight | 1.7 lb / 0.8 kg
2.1 lb / 0.9 kg, Including Sun Hood
4.8 lb / 2.2 kg, Including Case | | | | Package Weight | 6.125 lb | | Box Dimensions (LxWxH) | 12.7 x 11.1 x 4.85" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
