User Manual for Lilliput 664 O P 7" On-Camera Monitor with HDMI Input Output & Display Tools Click to enlarge the picture
Contents of the user manual for the Lilliput 664 O P 7" On-Camera
- Product category: On Camera Monitors Lilliput
- Brand: Lilliput
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lilliput On Camera Monitors
 |
User manual for the Lilliput 664 O P 7" On-Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lilliput product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lilliput user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lilliput product will considerably shorten its lifespan!
|

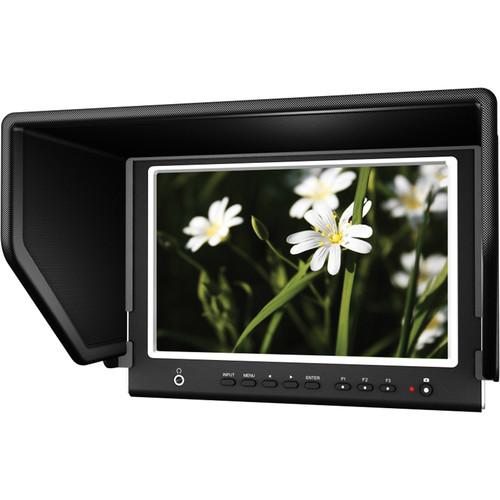

Product description The Lilliput 664/O/P 7" On-Camera Monitor has a slim design and features an IPS display with 178° wide viewing angle and 1280 x 800 resolution. The 664/O/P model offers HDMI and composite inputs, an HDMI output, and supports up to 1920 x 1080 resolution signals. It also features displays tools, including peaking and histogram, for checking focus, exposure, and other factors of your shot.
A built-in speaker and headphone jack are available for audio monitoring, and three user-assignable function buttons are provided on the front. The monitor comes with a variety of accessories, including interchangeable LP-E6 and L-series battery plates, Canon and Nikon shutter release cables, and a foldable sun hood that also works as screen protector when folded in. - Key Features
-
- Slim design
- HDMI and composite inputs
- HDMI output
- Supports up to 1920 x 1080 resolution signals
- IPS display with 178° viewing angle
- 1280 x 800 resolution

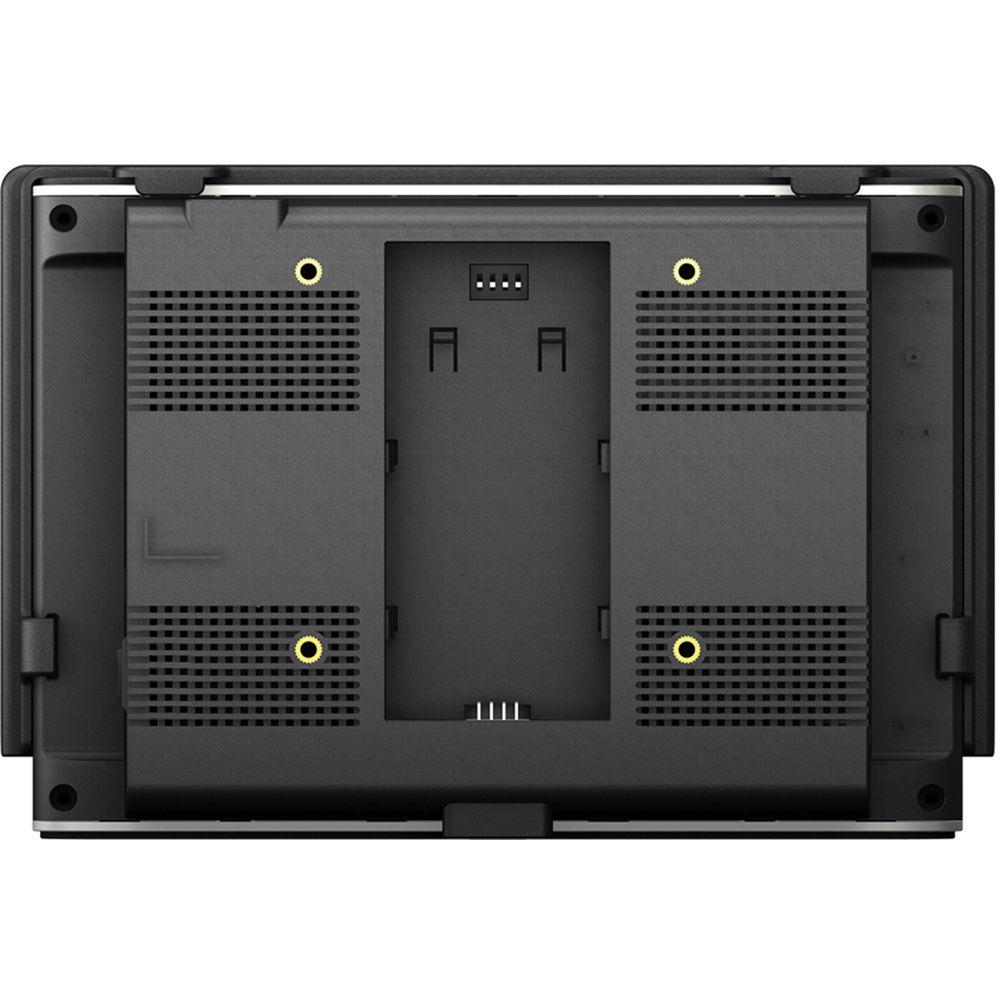

- Interchangeable LP-E6 and L-series battery plates

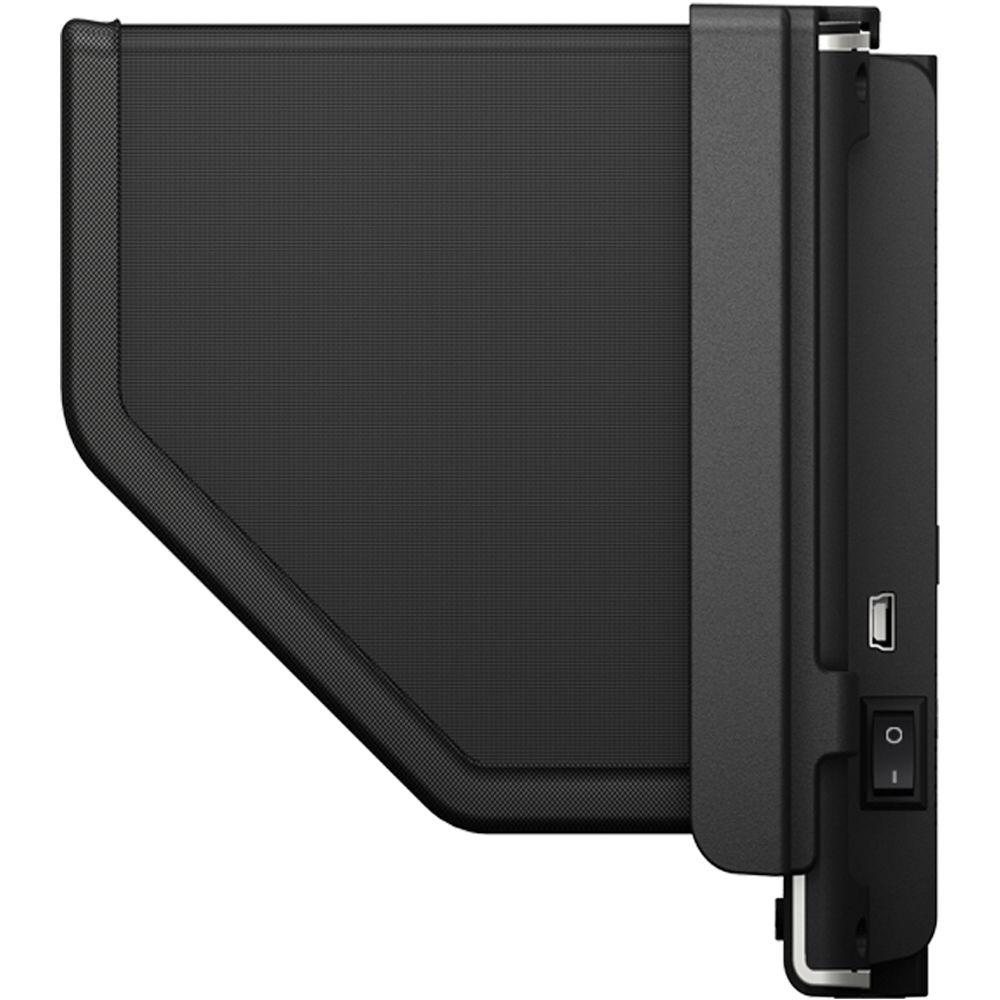

- Foldable sun hood
- Canon and Nikon shutter release cables
- Display Tools
-
- False color
- Peaking
- Exposure
- Histogram
- Level meter
- Pixel-to-pixel
- Underscan
- Color bar
- Zoom
- Image flip
- Freeze input
- Picture-in-picture
In the Box Lilliput 664/O/P 7" On-Camera Monitor with HDMI Input/Output & Display Tools Folding Sunshade HDMI Cable Composite Cable Canon Shutter Release Cable Nikon Shutter Release Cable Shoe Mount 12 VDC Adapter LP-E6 Battery Plate L-Series Battery Plate Battery Plate Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput 664 O P 7" On-Camera Monitor with HDMI Input Output & Display Tools in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput 664/O/P Specs | | | Panel Type | IPS-Type LCD | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1280 x 800 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 178° (89/89)

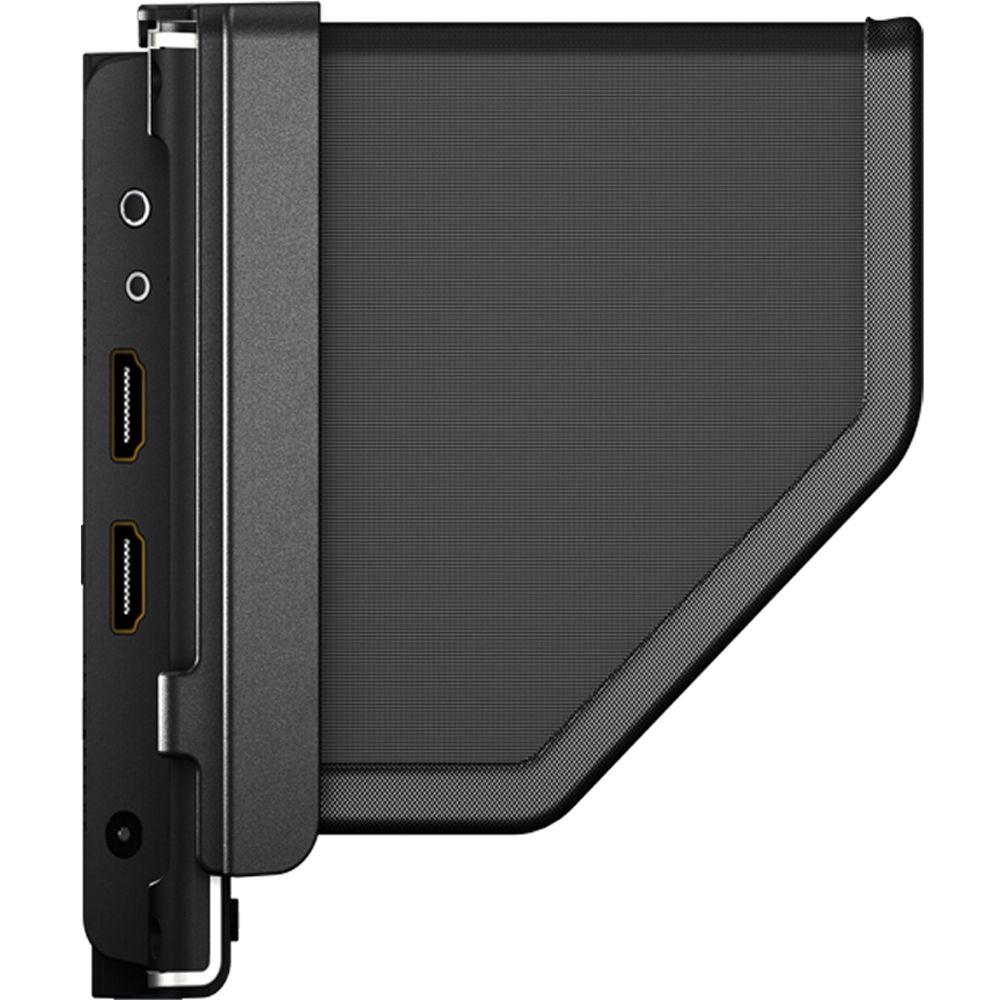

Vertical: 178° (89/89) | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 800:1 | | Image Controls | False Color, Focus Peaking | | | | Video | 1 x HDMI Type A Output
1 x HDMI Type A Input
1 x RCA (Composite) Input | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 | | Card Slot | None | | | | DC Input Power | 7 to 24 VDC | | Battery Type | 1 x LP-E6 or L-Series | | Operating Current | 960 mA | | Power Consumption | 12 W (Maximum) | | | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | | | Dimensions (W x H x D) | 7.2 x 5.1 x 0.9" / 18.5 x 13 x 2.3 cm | | Weight | 0.8 lb / 365 g | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 12.6 x 10.9 x 4.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
