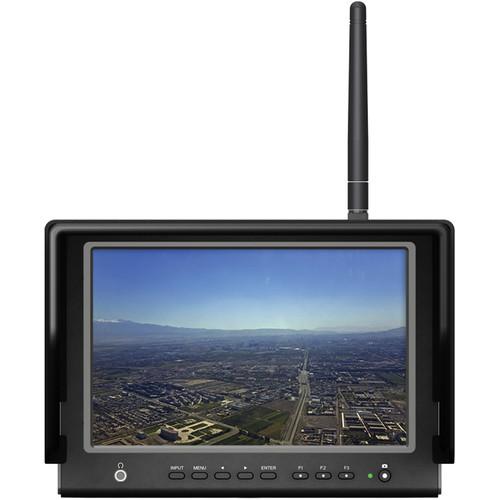

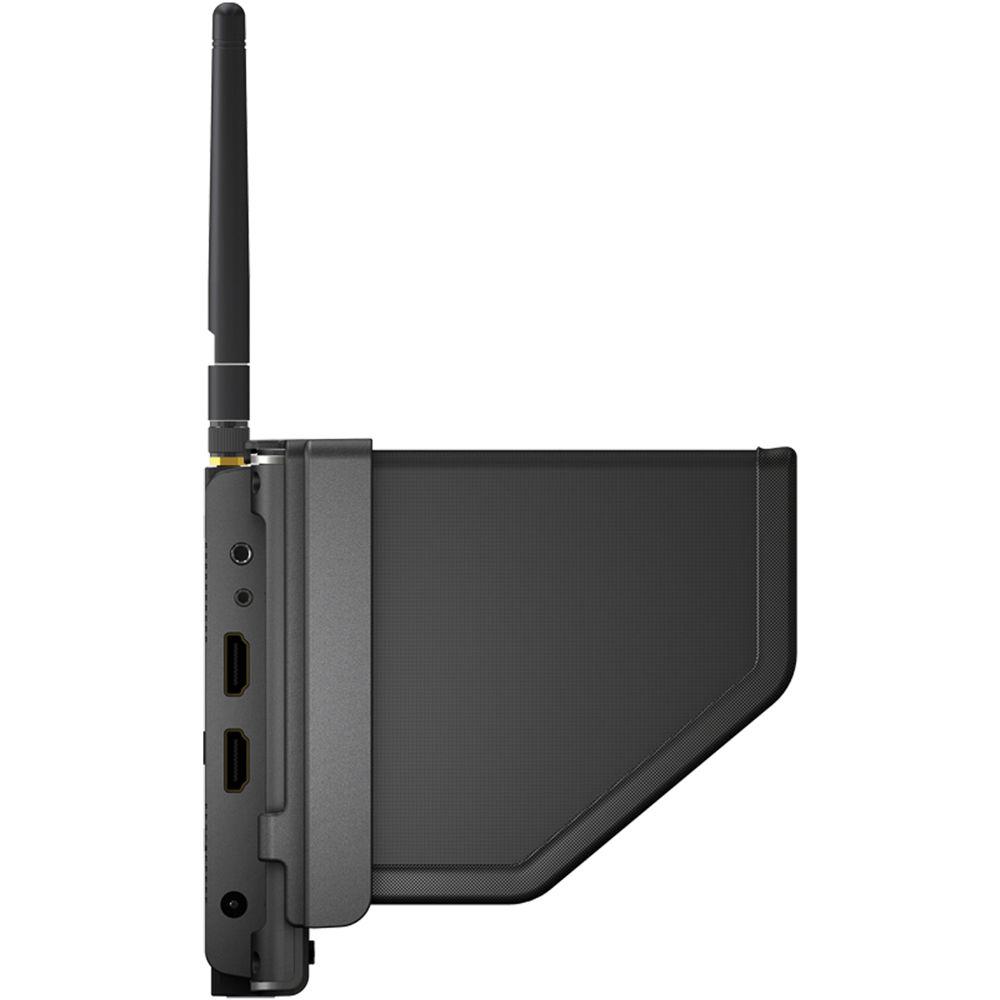

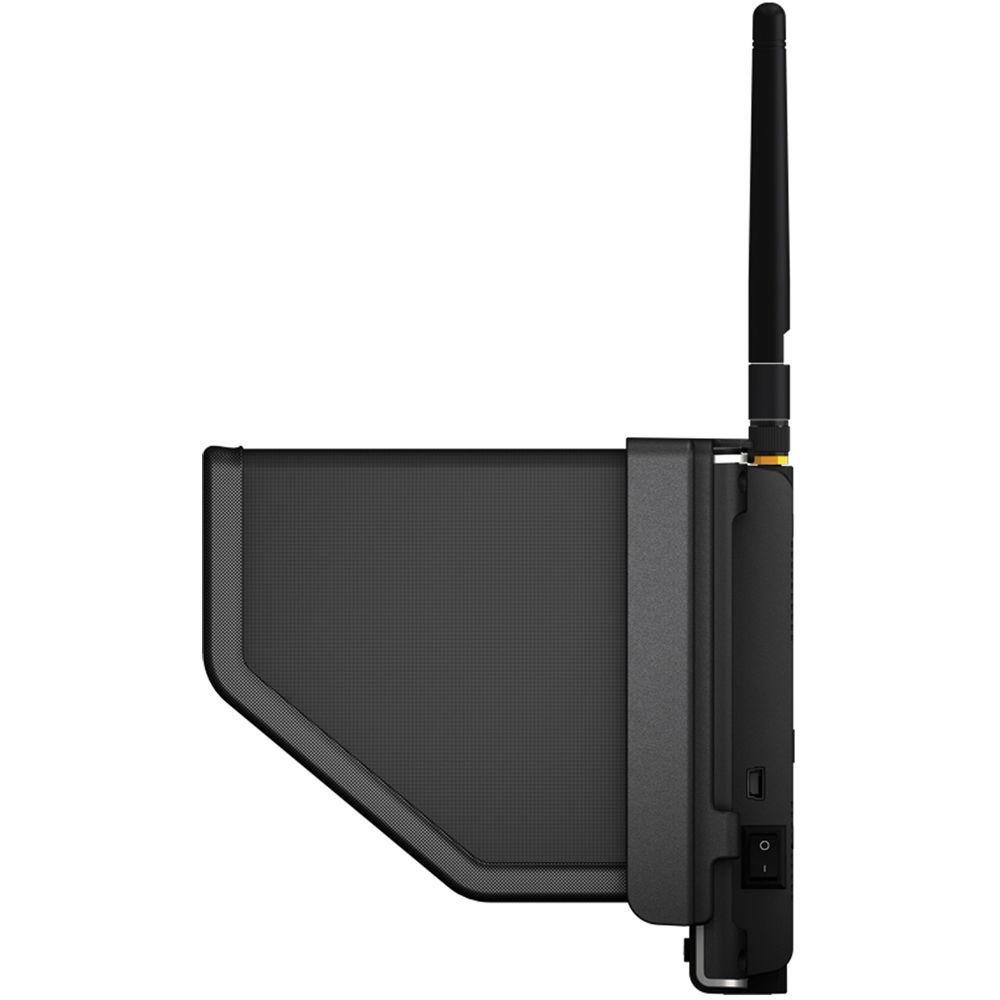

Product description The 664/W 7" FPV Monitor 5.8 GHz Wireless Receiver from Lilliput is built for first-person viewing (FPV) of the wireless AV feed. The monitor supports both NTSC and PAL signals and provides a composite AV input and wireless connectivity. The 7" IPS display has a resolution of 1280 x 800 and a high 400 cdm2 brightness for use in sunny conditions. The 5.8 GHz wireless receiver has a range of up to 6561.7'. - 7" FPV monitor supports resolutions up to 1280 x 800
- Features a built-in 5.8 GHz wireless receiver with a range of up to 6561.7'
- Offers screen brightness of 400 cd/m2 and a contrast ration of 800:1
- Supports PAL / NTSC signals with automatic switching, anti-black, anti-blue, and anti-flash
- Features composite video AV inputs
- Can be used with Li-ion batteries (not included)
- Suitable for use in outdoor photography applications
In the Box Lilliput 664/W 7" FPV Monitor with 5.8 GHz Wireless Receiver Sun Shade Power Adapter Battery Plate Bracket Composite Cable HDMI A/C Cable Shoe Mount LP-E6 Type Battery Plate F970 Type Battery Plate Suitcase Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput 664 W 7" FPV Monitor with 5.8 GHz Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput 664/W Specs | | | LCD Size | 7.0" (17.8 cm) IPS | | Display Resolution | 1280 x 800 | | Active Area | 149.76 (H) x 93.6 (V) mm | | Dot Pitch | 0.117 (H) x 0.117 (V) mm | | Aspect Ratio | 16:10 | | Brightness | 400 cd/m2 | | Contrast Ratio | 800:1 | | Surface Treatment | 3H | | Viewing Angle | 178°/178° | | | | Input Signal | Analog RGB | | Inputs | 1 x HDMI, 1 x Composite, 5.8 GHz Wireless AV, 1 x Shutter Port | | Input Connectors | HDMI, AV | | Wireless Channels | CH1: 5705 MHz, CH2: 5685 MHz, CH3: 5665 MHz, CH4: 5645 MHz, CH5: 5885 MHz, CH6: 5905 MHz, CH7: 5925 MHz, CH8: 5945 MHz | | | | Control | Basic: Power, Shutter shortcut button, F1-F3 User-definable buttons, Enter button, Left/right selection key, Menu, circularly switch | | Speaker | Built in, 1 W | | Language | English/Chinese | | Power Requirements | 12 VDC, 1500 mA | | Power Consumption | ≤ 12 W | | Temperature | Operating: -4 to 140°F (-20 to 60°C)
Storage: -22 to 158°F (-30 to 70°C) | | Dimensions (L x W x D) | 7.2 x 5.1 x 0.9" (18.5 x 13.1 x 2.3 cm) | | Weight | 0.9 lb (0.4 kg) | | | | Package Weight | 4.85 lb | | Box Dimensions (LxWxH) | 12.6 x 10.7 x 4.6" |
