User Manual for Lilliput 665 7" On-Camera HDMI Monitor Click to enlarge the picture
Contents of the user manual for the Lilliput 665 7" On-Camera HDMI Monitor
- Product category: On Camera Monitors Lilliput
- Brand: Lilliput
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lilliput On Camera Monitors
 |
User manual for the Lilliput 665 7" On-Camera HDMI Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lilliput product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lilliput user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lilliput product will considerably shorten its lifespan!
|

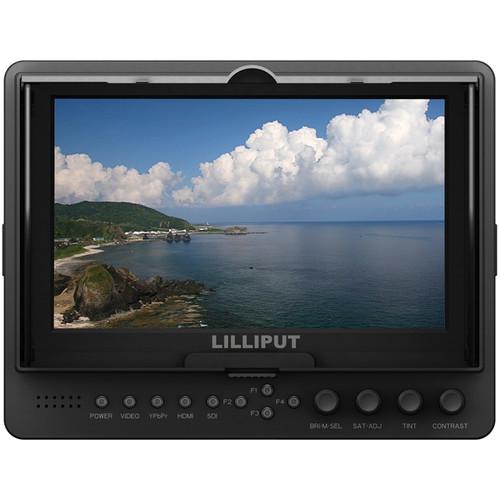

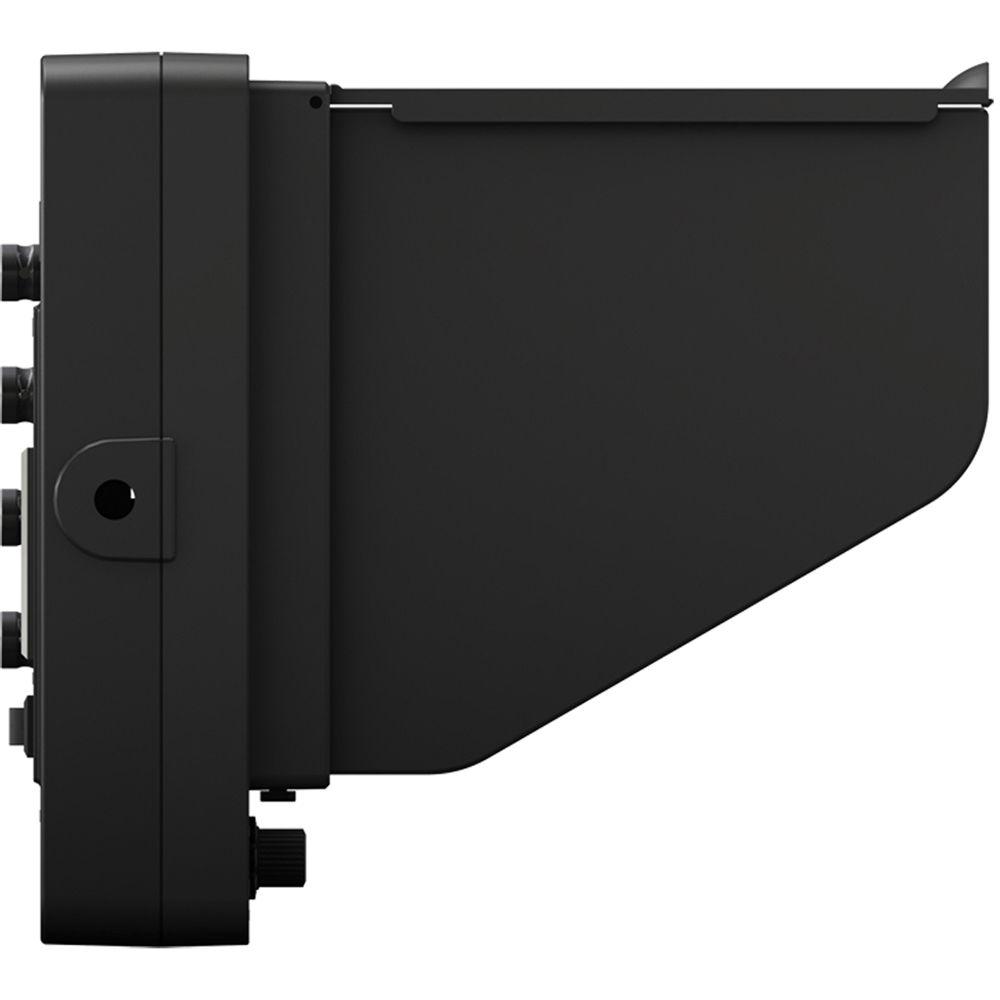

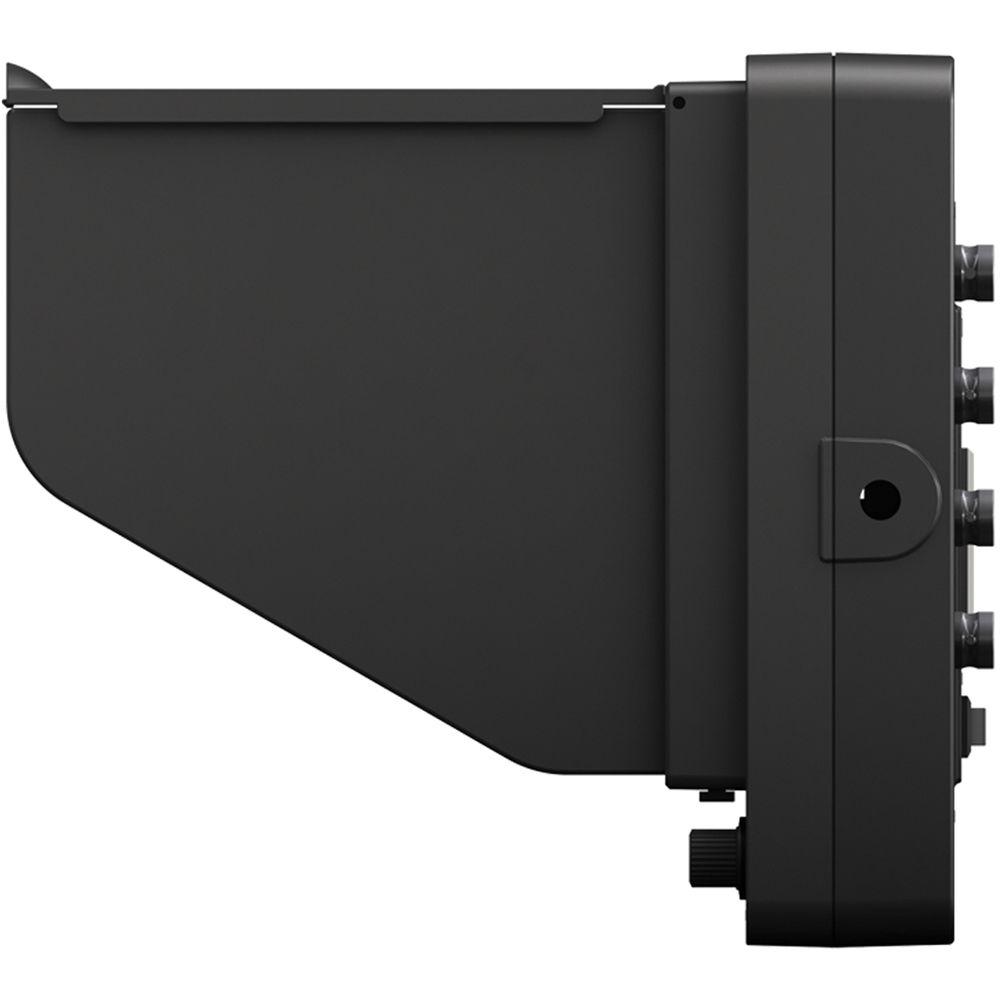

Product description Monitor HD or legacy SD sources with Lilliput's 665 7" On-Camera HDMI Monitor. The 7" LED-backlit 1024x600 display features a brightness of 250cd/m² and a contrast ratio of 800:1 for deep colors and black levels. Input signals up to 1080p in resolution are supported through compatible inputs. The rear panel sports HDMI, component, and composite inputs, as well as a composite output. The control knobs and custom function buttons on the front panel can be used to set up the monitor to look and operate to fit your production.In the box you'll find LP-E6 and L-Series battery plates for powering the monitor, a shoe mount for securing the monitor to a standard accessory shoe, an HDMI cable which terminates in a Mini HDMI plug, an AC adapter for connecting to mains power, and a folding sun hood which protects the screen when not in use. In the Box Lilliput 665 7" On-Camera HDMI Monitor Sun Shade L-Series Battery Plate LP-E6 Battery Plate HDMI to Mini HDMI Cable AC Adapter Shoe Mount Limited 1-Year Warranty User Manual PDF 622.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput 665 7" On-Camera HDMI Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput 665 Specs | | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1024 x 600 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160°
Vertical: 150° | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 800:1 | | | | Video | 1 x BNC (SDI) Input
1 x HDMI Type A Input
1 x 3BNC (Component) Input
1 x BNC (Composite) Input
1 x BNC (Composite) Output | | Audio | 1 x BNC Input | | Built-In Speaker | None | | Card Slot | None | | | | DC Input Power | 7 to 24 VDC | | Battery Type | None | | Power Consumption | 10 W (Maximum) | | | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | | | Dimensions (W x H x D) | 7.7 x 5.9 x 1.5" / 19.5 x 15 x 3.9 cm | | Weight | 1 lb / 480 g | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 12.6 x 10.0 x 3.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 86 owners. Add your rating and experience with the product.
