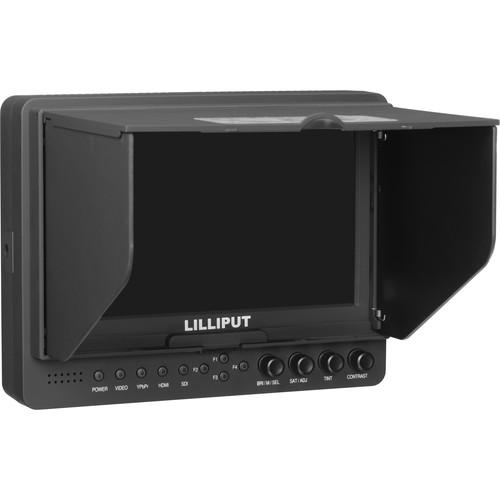

Product description Lilliput's 665/O/P Peaking Focus Video Monitor is an on-camera monitor offering 1024 x 600 resolution with 250 nit brightness and an 800:1 contrast ratio. The monitor allows you to analyze focus, exposure, and other characteristics with False Color, Pixel-to-Pixel, and Histogram. It supports both NTSC and PAL compatible signals with HDMI, Component, and Composite inputs. This monitor also features an HDMI output, allowing you to feed the monitor and send the video signal along an HDMI infrastructure. It also features both a built-in speaker and headphone jack.

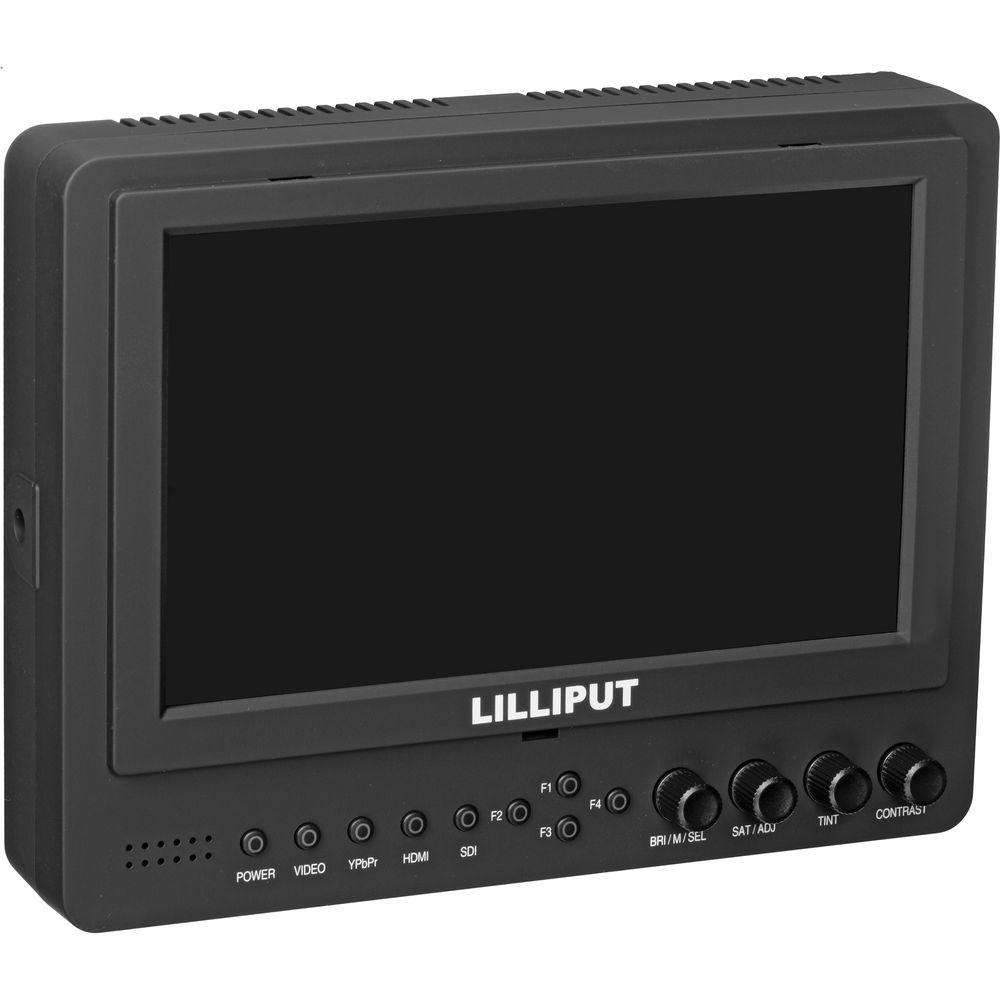

On the face of the monitor are a power button, four input select buttons, four front panel buttons, and four rotating knobs. The four input select buttons are from left to right Composite, Component, HDMI, and SDI; however, the SDI button is not active as the monitor does not feature an SDI input. The four front panel buttons and four rotating knobs can be assigned to specific functions that allow you to call up often-used menu functions. You can power the monitor by using the included battery plates or an optional 4-pin XLR connector. An assortment of supplied accessories includes a Sony L-Series type and a Canon LP-E6 type battery plate, a removable sun hood, a V-mount and Gold-mount plate bracket that allows you to mount optional V-mount or Gold-mount battery plates. - Assignable Function Buttons & Knobs
- The front panel buttons and knobs can be customized to call up often-used menu functions.
F1 to F4 Buttons:
- Center Marker
- Check Field
- Color Bar
- Camera (format selection)
- PIP
- Flip
- Zoom
- Pixel-to-Pixel
- Freeze
- Input
- Underscan
- H/V Delay
- Peaking
- False Color
- Exposure
- Histogram
R1 to R4 Knobs
- Contrast
- Brightness
- Saturation
- Tint
- Volume
- Sharpness
- Back Light
- Monitoring Features
-
- Histogram
- 1:1 Pixel-to-Pixel
- Picture-in-Picture (for when the HDMI and Composite inputs are used simultaneously)
- H/V Delay
- Underscan
- Center Marker
- Zoom (up to 8x)
- False Color
- Peaking
- Color Bar
- Image Flip
- Freeze Input
- Adjustable color temperature
- Peaking
- Peaking highlights the sharpest (most in focus) areas of the image with a color outline. The monitor features two modes, monochrome, and color. The monochrome mode shows the image in black and white with the red peaking outline and the color peaking mode shows the image in color with a red peaking outline.
- False Color
- The False Color feature provides under/over luminance warning by presenting the image as a series of color values representing exposure.
- Histogram
- The Histogram provides a graphic depiction of how many pixels in your image are at each level between black and white. This provides you exposure information so you can objectively judge how much of your image is clipping, falling into the shadows, or being captured faithfully.
- 1:1 Pixel Mode
- 1:1 pixel-to-pixel mapping allows you to look at parts of your image without any scaling, so you can see the actual detail and not be fooled by scaling artifacts.
- H/V Delay
- This mode allows you to see the video signal outside the active picture area. Settings include Off, H/V Delay, H Delay, and V Delay.
- Underscan/Overscan
- Allows you to display an image with lower resolution than the screen with either a black border around the image or fill the screen entirely.

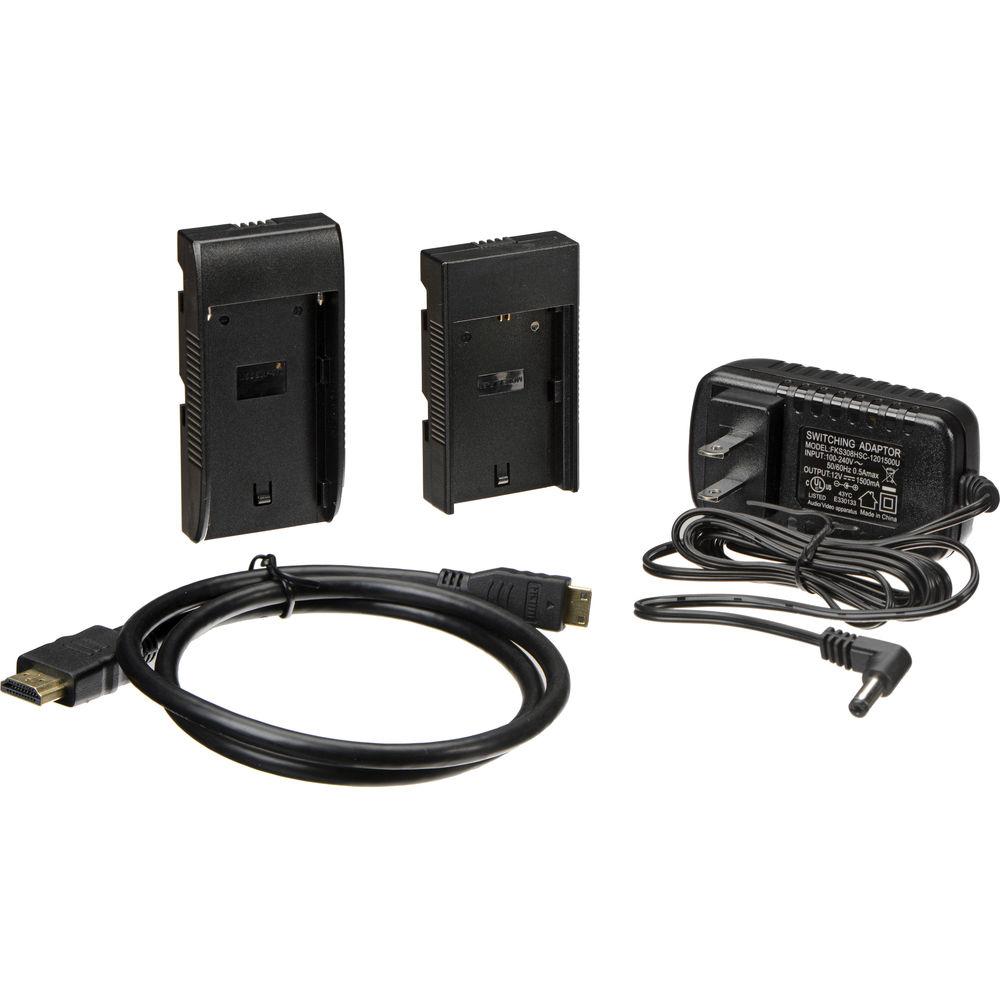

In the Box Lilliput 665/O/P Peaking Focus Video Monitor Folding Sunshade Ball Joint Shoe Mount LP-E6 Type Battery Plate Sony L-Series Type Battery Plate Pro Battery Mounting Bracket 4 x Mounting Plate Screws AC Power Supply HDMI Full to Mini Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput 665 O P Peaking Focus Video Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

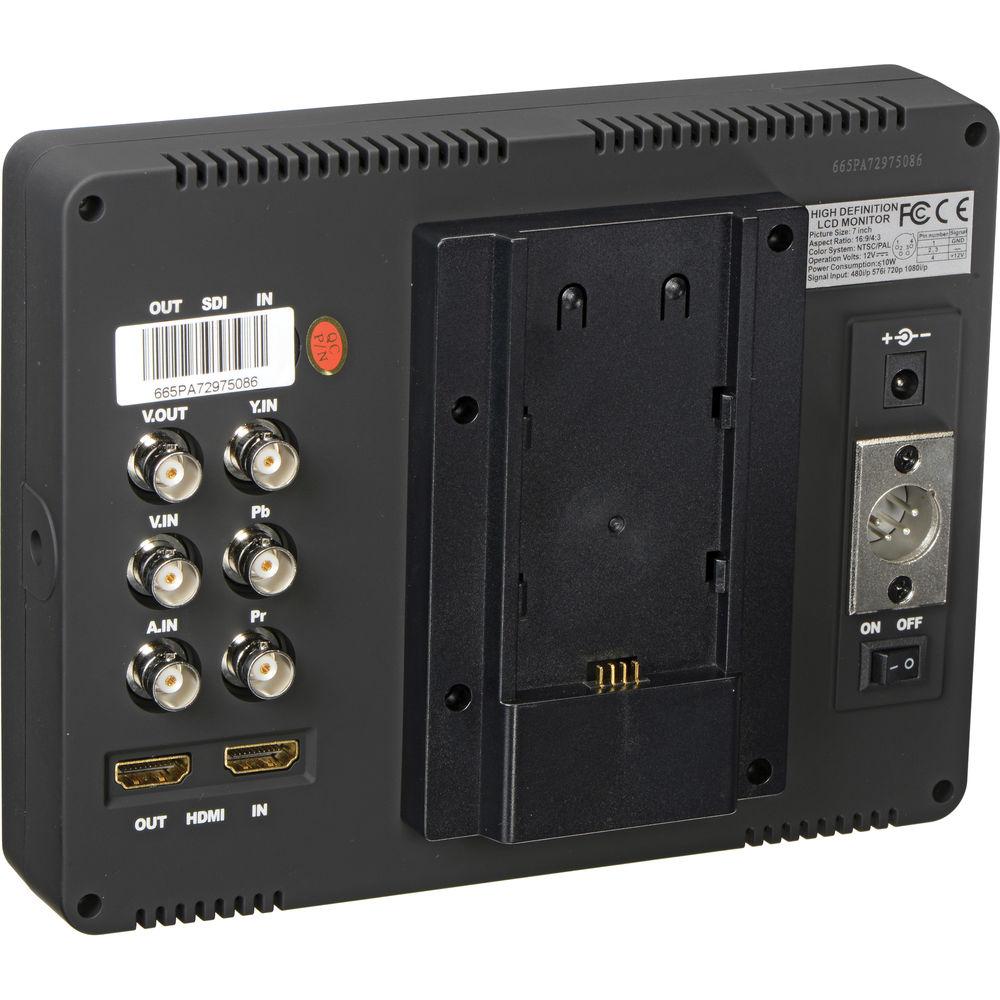

Technical parametersLilliput 665/O/P Specs | | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1024 x 600 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160°
Vertical: 150° | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 800:1 | | Image Controls | Focus Peaking | | | | Video | 1 x HDMI Type A Output
1 x BNC (Composite) Output
1 x HDMI Type A Input
1 x 3BNC (Component) Input
2 x BNC (Composite) Input | | Audio | 1 x BNC Input | | Built-In Speaker | 1 | | Power | 1 x 4-Pin XLR Input
1 x Coax Input | | Card Slot | None | | | | DC Input Power | 7 to 24 VDC at 900 mA | | Battery Type | None | | Power Consumption | 10 W (Maximum) | | | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | | | Dimensions (W x H x D) | 7.7 x 5.9 x 1.5" / 194.5 x 150 x 38.5 mm
7.7 x 5.9 x 6.2" / 194.5 x 150 x 158.5 mm, Including Sun Hood | | Weight | 1.1 lb / 480 g
1.4 lb / 640 g, Including Sun Hood | | | | Package Weight | 2.935 lb | | Box Dimensions (LxWxH) | 12.5 x 10.3 x 3.45" |
