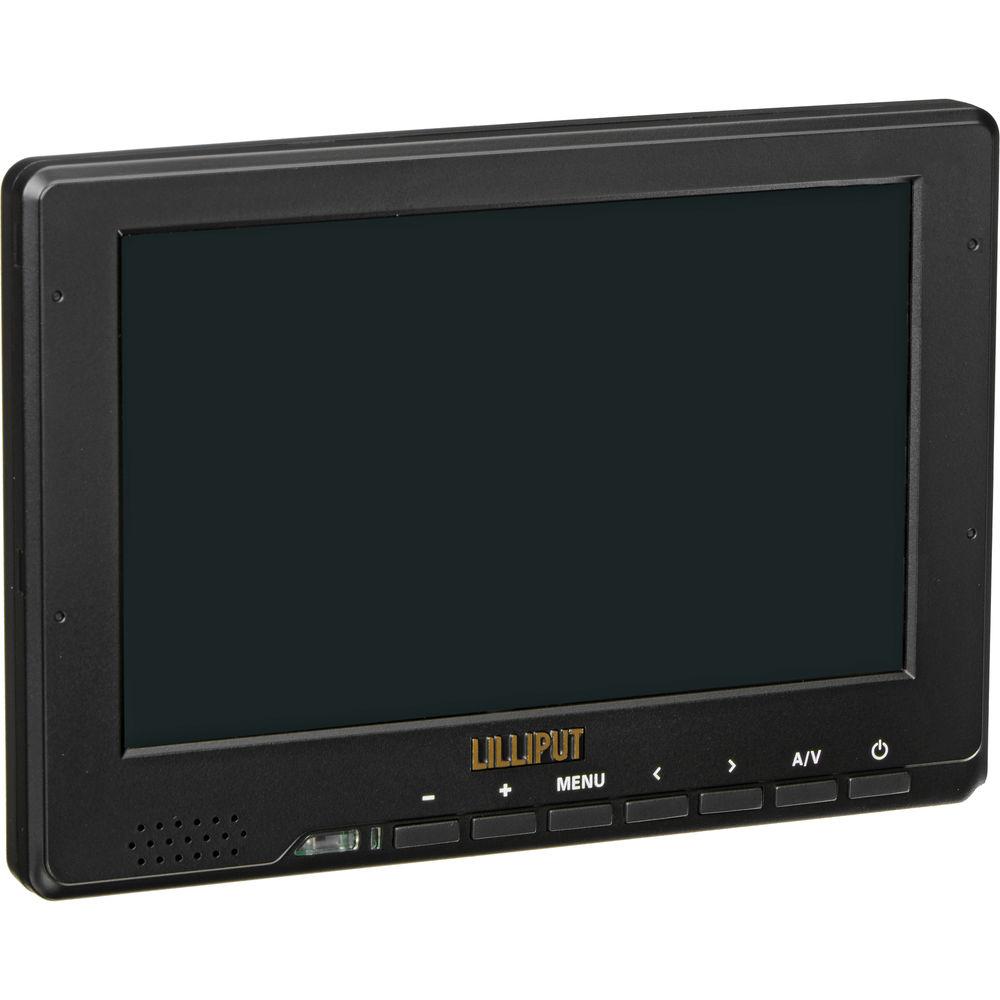

Product description Lilliput's 667GL70NP/H/Y On-Camera Video Monitor provides 800 x 480 resolution with 400 nit brightness and an 500:1 contrast ratio. It supports NTSC and PAL compatible signals and features HDMI, Component, and Composite inputs. It features a built-in speaker, a sun hood, and an IR remote control. On the face of the monitor are the IR receiver, a battery power indicator, volume up and down buttons, a menu button, left/right select buttons, input select and a power button.

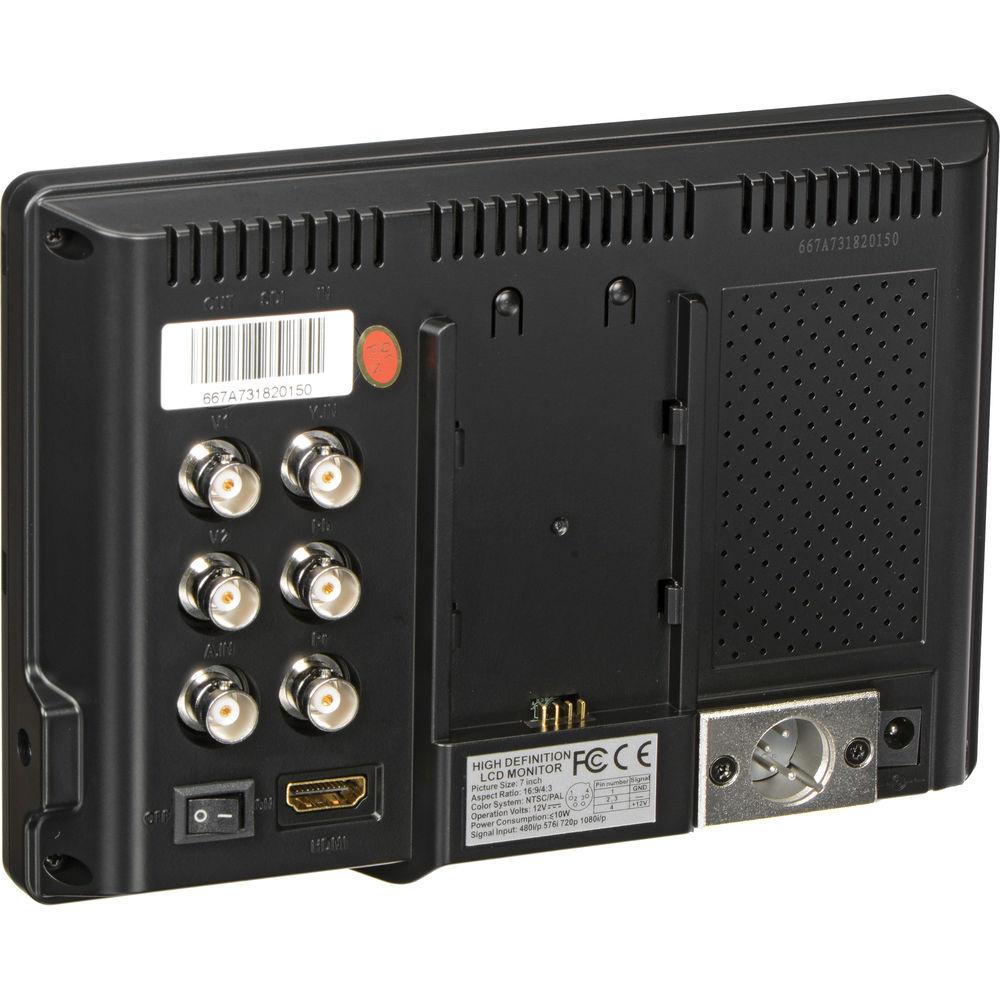

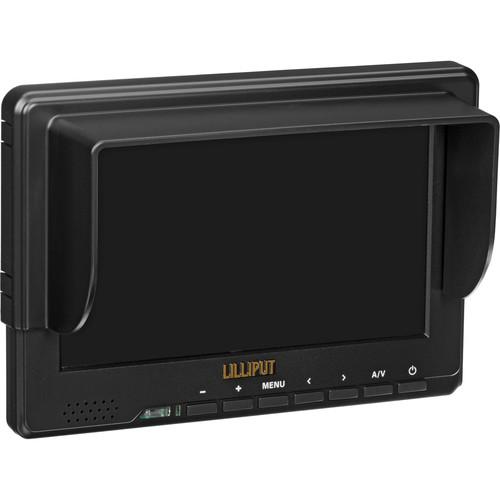

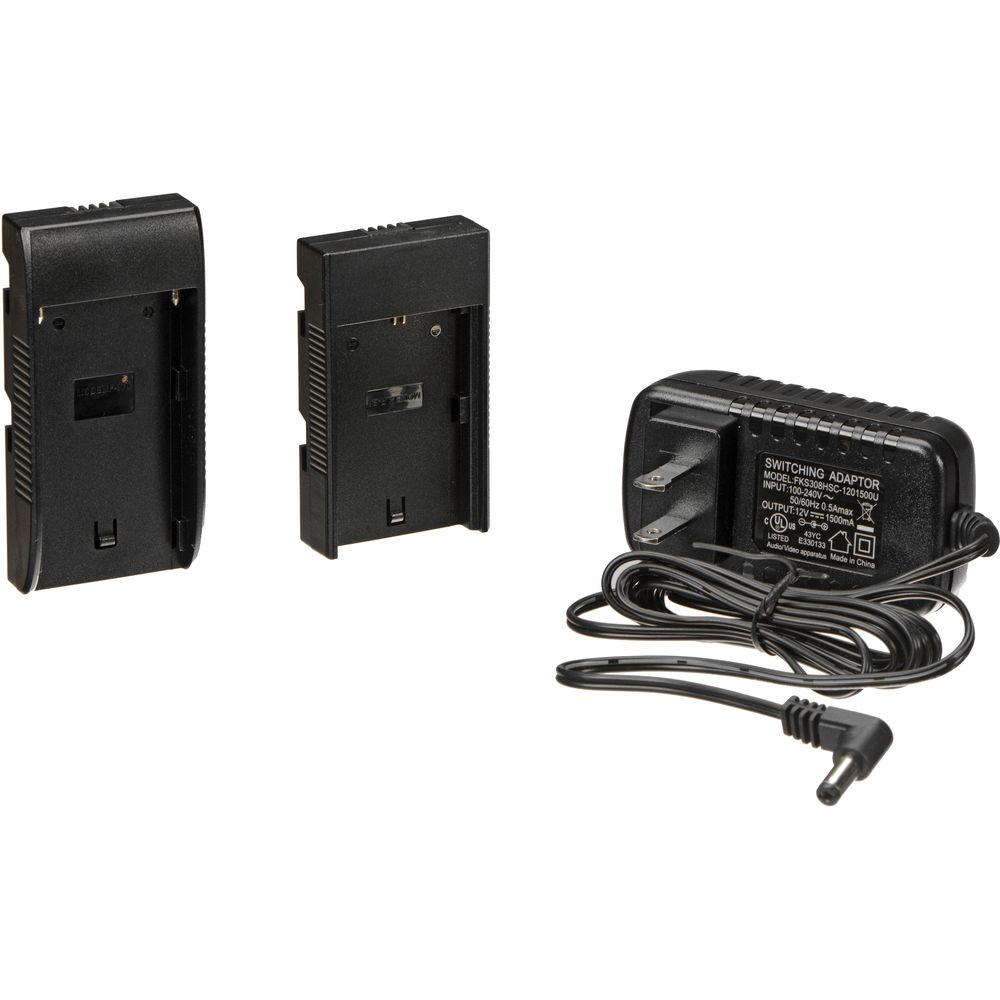

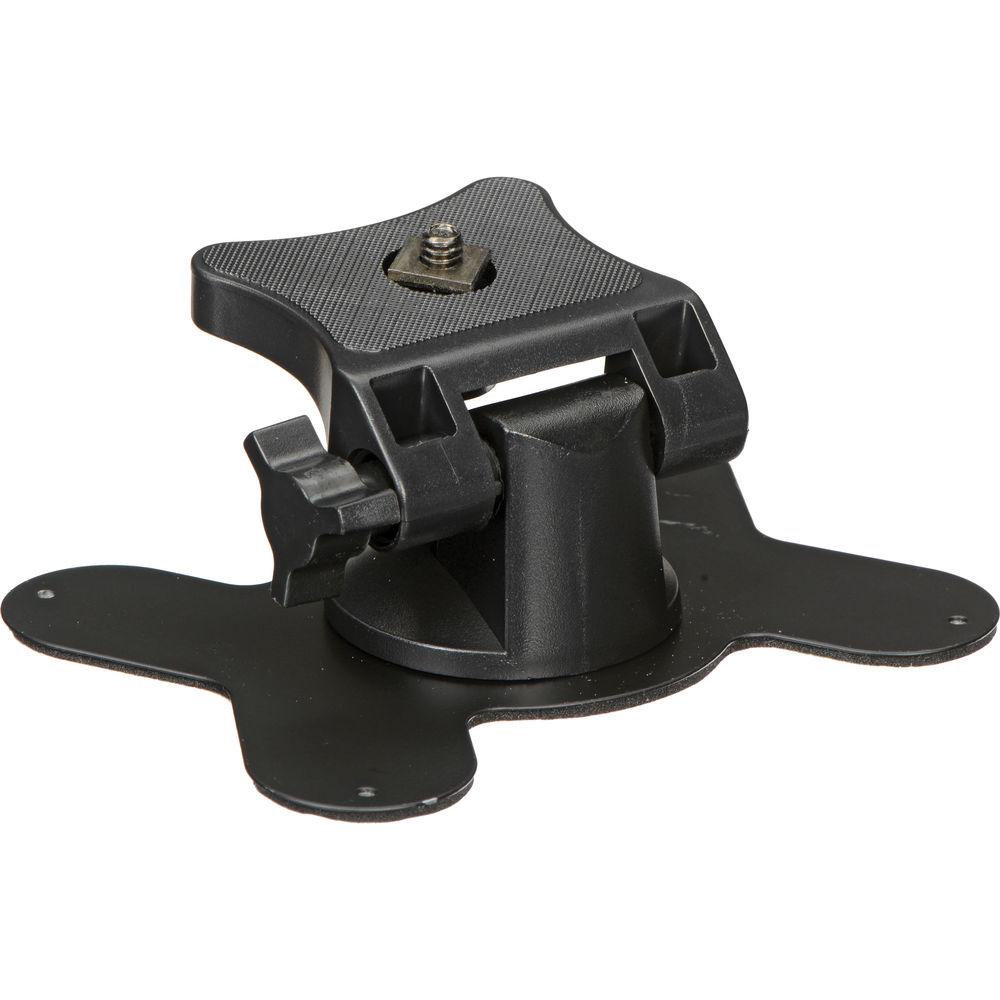

The monitor provides you control over the display's brightness, contrast, saturation, tint, and color temperature. You can power the monitor by using the included battery plates, an optional 4-pin XLR connector, or the built-in coax connector. An assortment of supplied accessories includes a Sony QM91D type and a Panasonic DU21 type battery plate, and a removable sun hood. The included mounting bracket is designed to allow you to stand the monitor on a desk. For on-camera mounting, you will require an optional cold shoe adapter. In the Box Lilliput 667GL70NP/H/Y On-Camera Video Monitor IR Remote Control Snap-On Sunshade Table Top Mounting Bracket Panasonic DU21 Type Battery Plate Sony L-Series Type Battery Plate AC Power Supply Limited 1-Year Warranty User Manual PDF 5.2mbyabqufbftzeytuxv Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput 667GL70NP H Y On-Camera Video Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput 667GL-70NP/H/Y Specs | | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 800 x 480 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 140°
Vertical: 120° | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 500:1 | | Image Controls | Image Flip | | | | Video | 1 x HDMI Type A Input
1 x 3BNC (Component) Input
2 x BNC (Composite) Input | | Audio | 1 x BNC Input | | Built-In Speaker | 1 | | Power | 1 x 4-Pin XLR Input
1 x Coax Input | | Card Slot | None | | | | DC Input Power | 7 to 24 VDC | | Battery Type | None | | Operating Current | 650 mA (Typical)
50 mA (Standby) | | Power Consumption | 8 W (Maximum) | | | | Mounting | 3 x 1/4"-20 Female | | | | Dimensions (W x H x D) | 7.4 x 5.2 x 1.3" / 188 x 131 x 33 mm
7.6 x 5.3 x 2.9" / 194 x 134 x 73 mm, Including Sun Hood | | Weight | 1.1 lb / 510 g
1.5 lb / 668 g, Including Sun Hood | | | | Package Weight | 2.69 lb | | Box Dimensions (LxWxH) | 12.55 x 8.0 x 2.85" |
