User Manual for Lilliput 669GL-70NP C 7" Non-Touch Monitor with HDMI DVI VGA Composite In Click to enlarge the picture
Contents of the user manual for the Lilliput 669GL-70NP C 7" Non-Touch Monitor
- Product category: On Camera Monitors Lilliput
- Brand: Lilliput
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lilliput On Camera Monitors
 |
User manual for the Lilliput 669GL-70NP C 7" Non-Touch Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lilliput product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lilliput user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lilliput product will considerably shorten its lifespan!
|

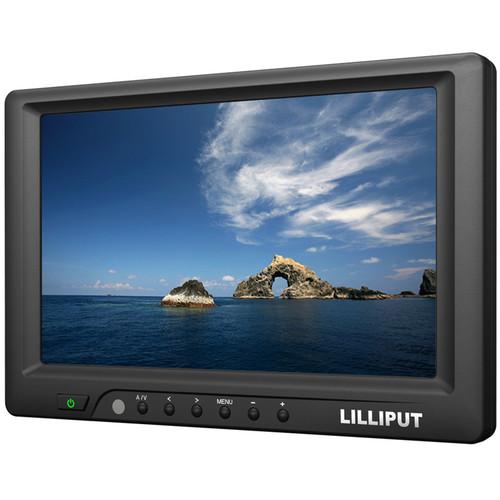

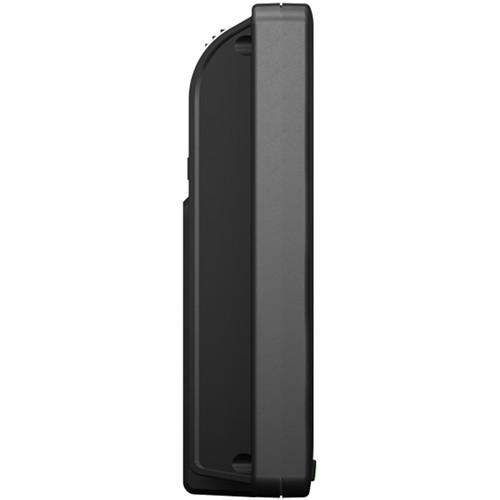

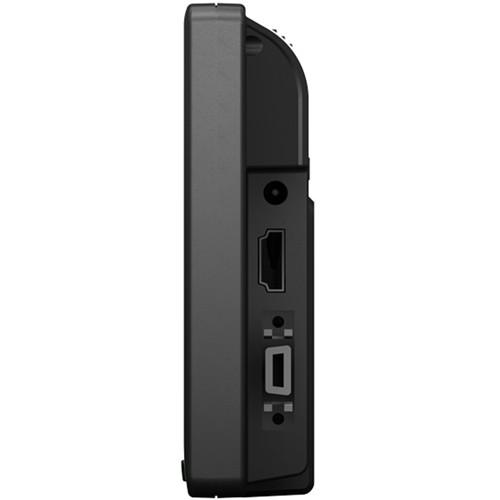

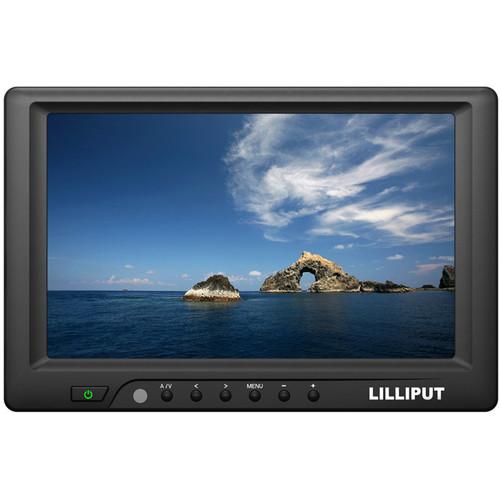

Product description The 669GL-70NP/C 7” Non-Touch Monitor from Lilliput is an on-camera monitor offering 800 x 420 native resolution with 450 cd/m² brightness and a 500:1 contrast ratio. It features DMI, DVI, VGA, and composite video inputs. The monitor provides a 1/4" BSW mounting thread and vertical slot mounting. Furthermore, it is powered by 12V, making it adaptable to run on batteries (adapter included). The front panel buttons can be used to control the functions of the monitor. - 7" Camera-top monitor with 16:9 aspect ratio
- 500:1 Contrast ratio produces rich visuals
- Enhanced 450 cd/m2 backlight produces a crystal clear picture with vivid colors
- HDMI, DVI, VGA, and composite video input
- Supports up to 1920 x 1080 by downscaling onto 800 x 480 LCD panel
In the Box Lilliput 669GL-70NP/C 7" Non-Touch Monitor with HDMI/DVI/VGA/Composite In HDMI Cable HDMI to DVI Cable VGA Cable 14-Pin SKS Cable Stand Remote Control Mounting Bracket 12V DC Adapter Power Cord Car Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput 669GL-70NP C 7" Non-Touch Monitor with HDMI DVI VGA Composite In in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput 669GL-70NP/C Specs | | | Size | 7" (18 cm) Diagonal | | Type | a-Si TFT active matrix | | Native Resolution | 800 x 3(RGB) x 480
Supports display up to 1920 x 1080 | | Active Area | W x H: 152.4 x 91.44 mm | | Dot Pitch | W x H: 0.0635 x 0.1905 mm | | Aspect Ratio | 16:9 | | Brightness | 450 cd/m2 | | Contrast Ratio | 500:1 | | Surface Treatment | Anti-glare | | Response Time | Turn On: 10 ms (typical); 20 ms (maximum)
Turn Off: 15 ms (typical); 30 ms (maximum) | | Viewing Angle | Left/Right: 70/70
Up/Down: 50/70 | | | | Video Input Signal | Composite RCA
HDMI or DVI (use adapter for DVI input) | | Inputs | 1 x VGA
2 x RCA video
1 x RCA audio
1 x HDMI or DVI input | | Input Connector | 15-Pin D-sub or component input, RCA A/V input, HDMI or DVI, DC plug | | | | Power | AC adapter to DC
Input: 100 to 240 V, 50/60 Hz, 0.60 A
Output: 12 V, 1200 mAh
DC: 12 V, 1200 mAh | | Power Consumption | < 8 W | | Control | Basic:
Power, auto adjustment, source, brightness up/down, four-level brightness by one button, OSD menu
Advance:
Adjust brightness, contrast, saturation, tint, sharpness, phase, clock, color temperature, H & V position, OSD language | | Speaker | Built-in, 1 W | | Remote Control | Infrared remote control | | Stand | Detachable, swivel, tilt | | Menu Language | English/French/Russian/German/Chinese | | Storage Temperature | -4 to 158°F (-20 to 70°C ) | | Operation Temperature | 14 to 140°F (-10 to 60°C) | | Operation | At High Temperature and Humidity: 104°F (40°C), 90% RH maximum | | Dimension | 7.3 x 5.0 x 1.3" (185.5 x 122.0 x 32.5 mm) Without stand | | Weight | 17.5 oz (495 g) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 11.2 x 9.4 x 3.2" |
