User Manual for Lilliput 7" Camera-Top Monitor Click to enlarge the picture
Contents of the user manual for the Lilliput 7" Camera-Top Monitor
- Product category: On Camera Monitors Lilliput
- Brand: Lilliput
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lilliput On Camera Monitors
 |
User manual for the Lilliput 7" Camera-Top Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lilliput product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lilliput user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lilliput product will considerably shorten its lifespan!
|

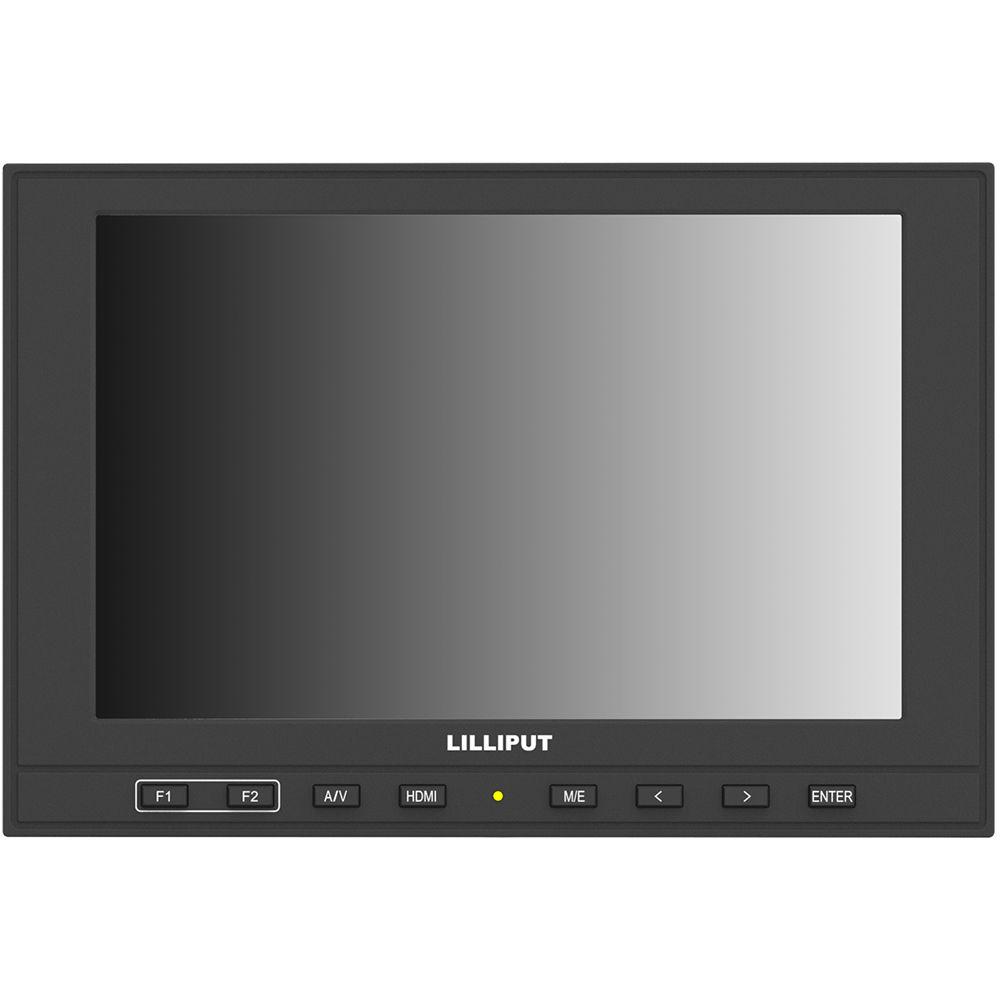

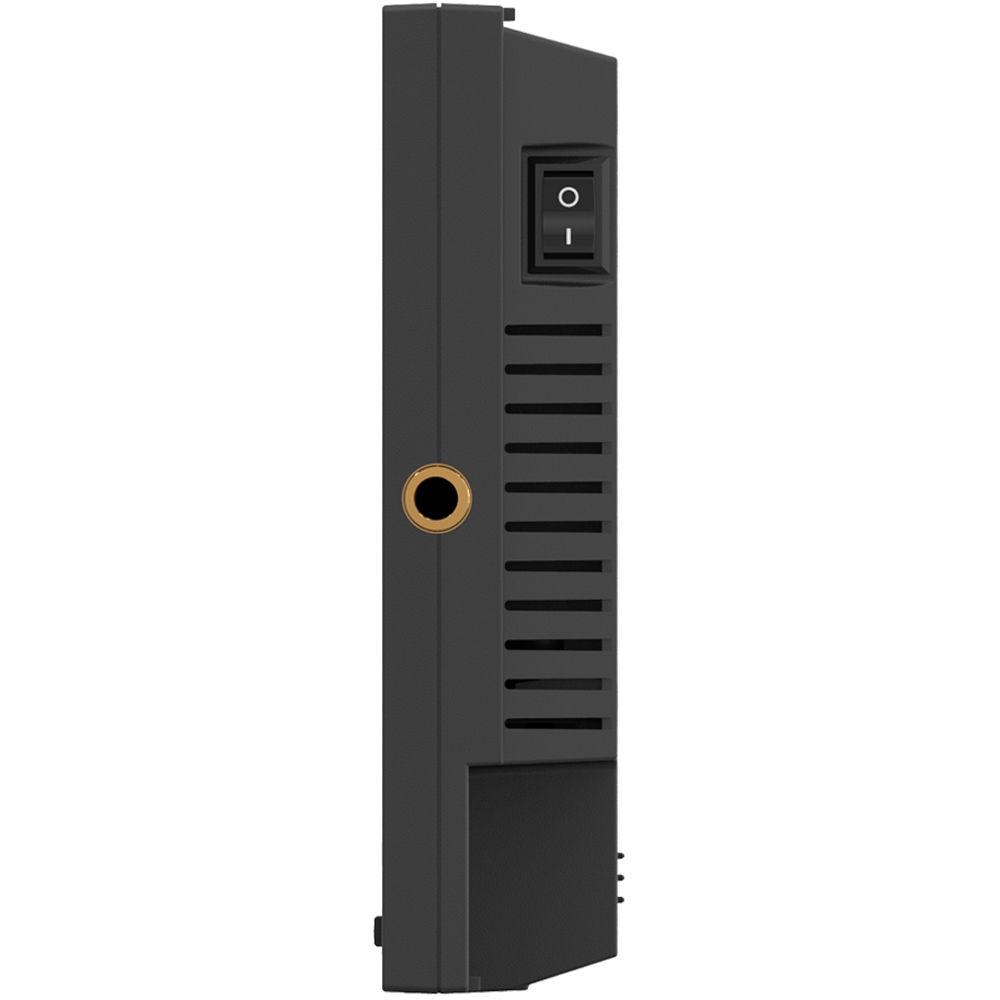

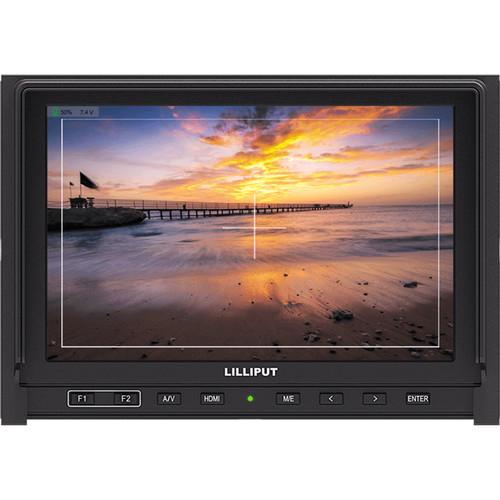

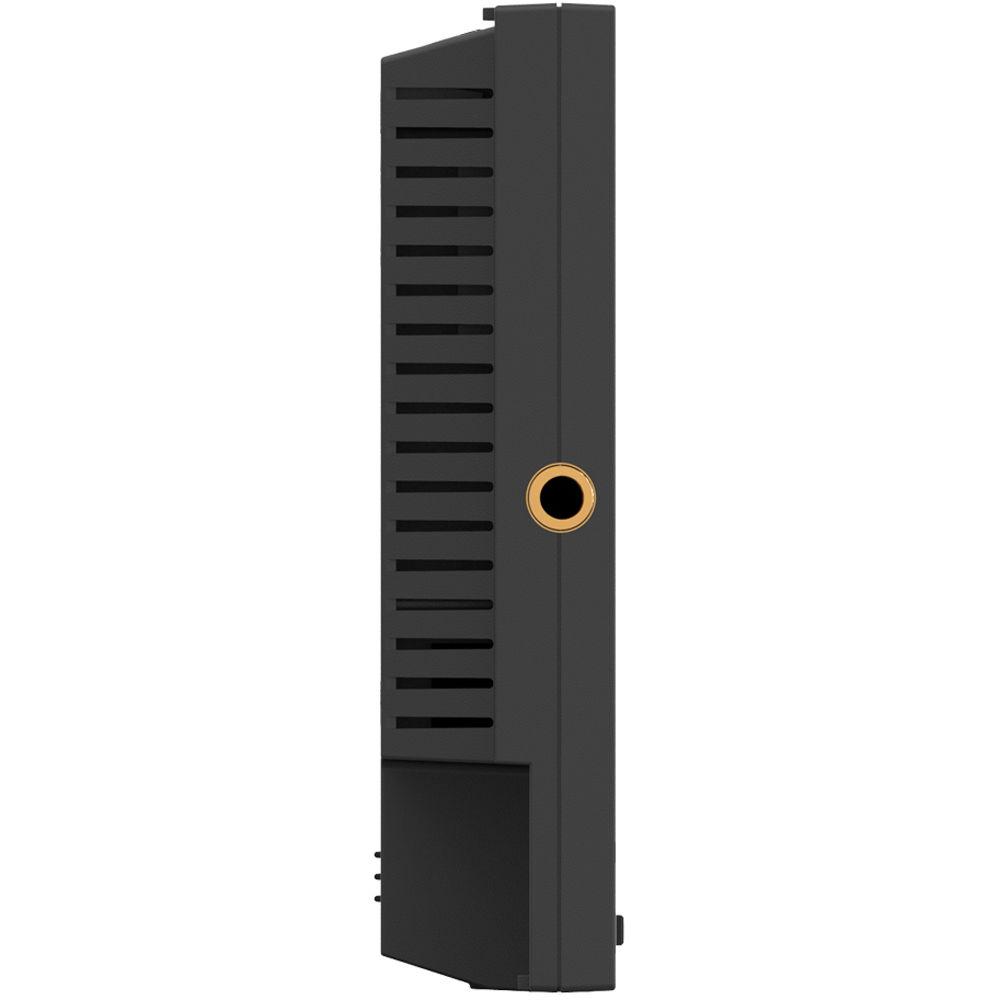

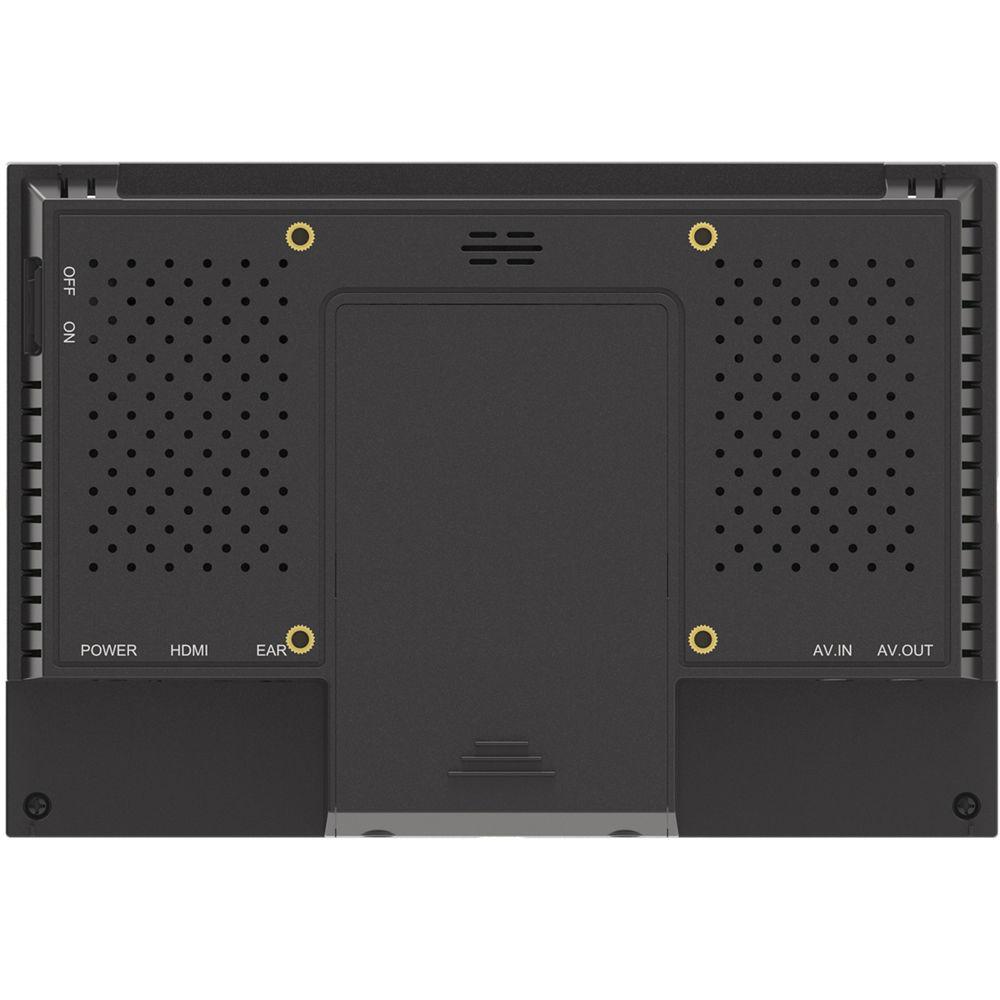

Product description The black 7" Camera-Top Monitor from Lilliput has a display resolution of 1280 x 800 with an aspect ratio of 16:9. The 800:1 high contrast ratio helps produce colors that are vivid, rich, and accurate. The built-in 2600mAh battery with battery level indicator supports up to 3 to 4 hours working time. It can ideally be used by filmmakers, photographers, enthusiasts, and DSLR camera users. - Camera Auxiliary Functions
-
- Camera mode
- Center marker
- Pixel-to-pixel
- Safety marker
- Aspect ratio
- Check field
- Color bar
- Underscan
- Overscan
- Freeze input
- H/V delay
- 8x zoom
- Image flip
- Excellent Display & Design
-
- It features 1280 x 800 high resolution, 400 cd/m² high brightness & 800:1 high contrast which produces colors that are vivid, rich, and accurate.
- Wide Viewing Angles (IPS Panel)
-
- 178° horizontal & vertical wide viewing angles allow people viewing from different angles to see the monitor with the same visual effect.
- Pro HD display solution for DSLR
-
- 7" broadcasting quality field monitor with HDMI & AV inputs. It can ideally be used by filmmakers, photographers, enthusiasts, and DSLR camera users.
- Built-in Battery & Battery Level
-
- Built-in 2600mAh battery with battery level indicator which supports up to 3 to 4 hours working time
In the Box Lilliput 7" Camera-Top Monitor (Black) Shoe Mount HDMI A/C Cable AV Output Cable AV Input Cable 2600mAh 7.4V Li-ion Battery Sunshade 12 VDC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput 7" Camera-Top Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput 339 Specs | | | Panel | 7.0" (17.8 cm) IPS, LED backlit | | Resolution | 1280 x 800 | | Active Area | H x V: 5.89 x 3.68" (149.76 x 93.6 mm) | | Dot Pitch | 0.117 (H) × 0.117 (V) mm | | Aspect Ratio | 16:10 | | Brightness | 400 cd/㎡ | | Contrast | 800:1 | | Surface Treatment | 3H | | Response Time | T On: Typical 14 msec, maximum 17 msec
T Off: Typical 11 msec, maximum 14 msec | | Viewing Angle | 89°/89° (Left/Right) and 89°/89° (Up/Down) | | Interface | AV input, AV output, HDMI input | | | | Basic | Power, AV button, HDMI , menu button, 2 x selection button F1-F2, enter button， Left/right selection key | | Advanced | Brightness, contrast, color, language, volume, U/D, L/R, zoom, S auto, C-sys, sleep, Time, OFF-time, ON-time | | | | Full HD 1080P | 1080p (60/59.94/50/30/29.97/25/24/23.98/23.976/24sF) | | HD | 1080i (60/59.94/50)
1035i (60/59.94)
720p (60/59.94/50/30/29.97/25) | | SD | 576p (50)
576i (50)
480p (60/59.94)
486i (60/59.94) | | | | Current | 12 VDC, 1500 mA | | Input Voltage | 7 to 24 VDC | | Battery | Built-in 2600 mAh battery | | Power Consumption | < 12 W | | | | Operating Temperature | -4 to 140°F (-20 to 60°C)
At high temperature and high humidity Ta= 140°F (60°C), 90% RH, 240 hours | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | | | Dimensions (L x W x D) | 7.5 x 5 x 1.2" (19 x 13 x 3 cm) | | Weight | 12.7 oz (360.0 g) | | | | Package Weight | 2.465 lb | | Box Dimensions (LxWxH) | 9.05 x 6.7 x 4.1" |
