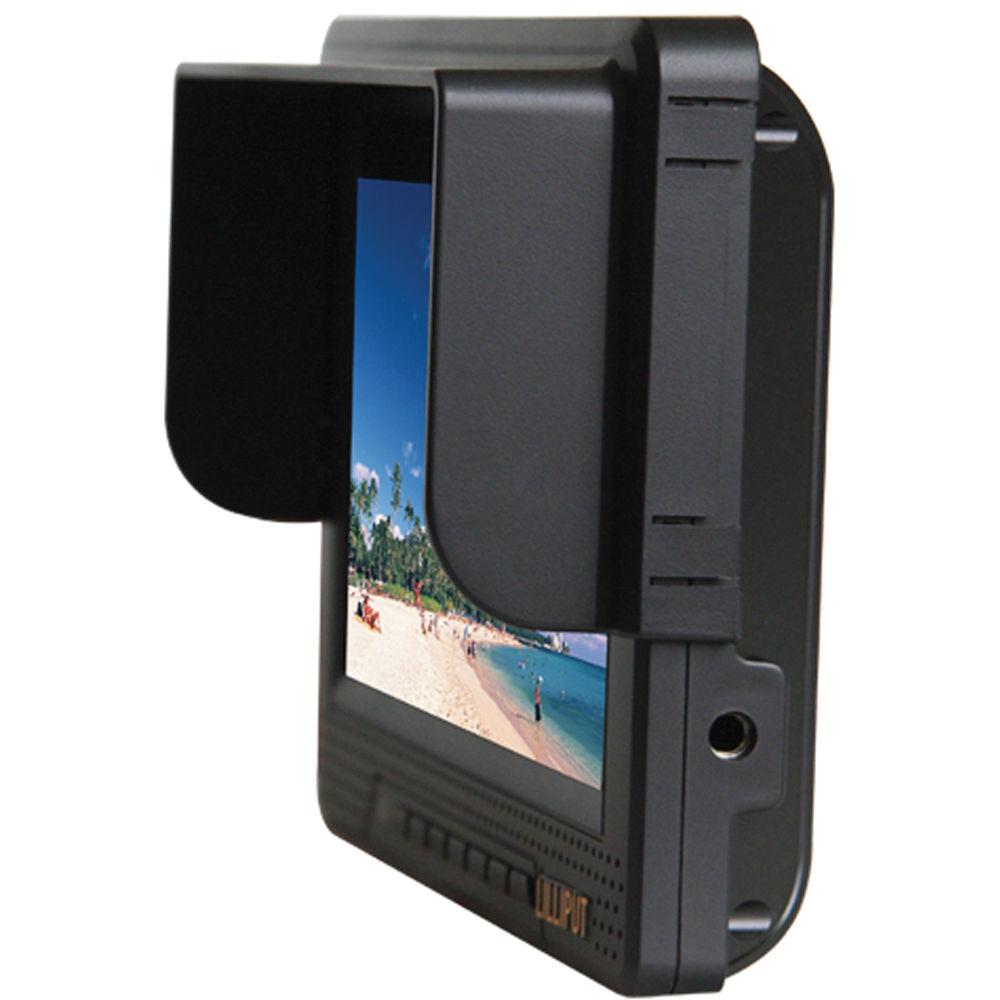

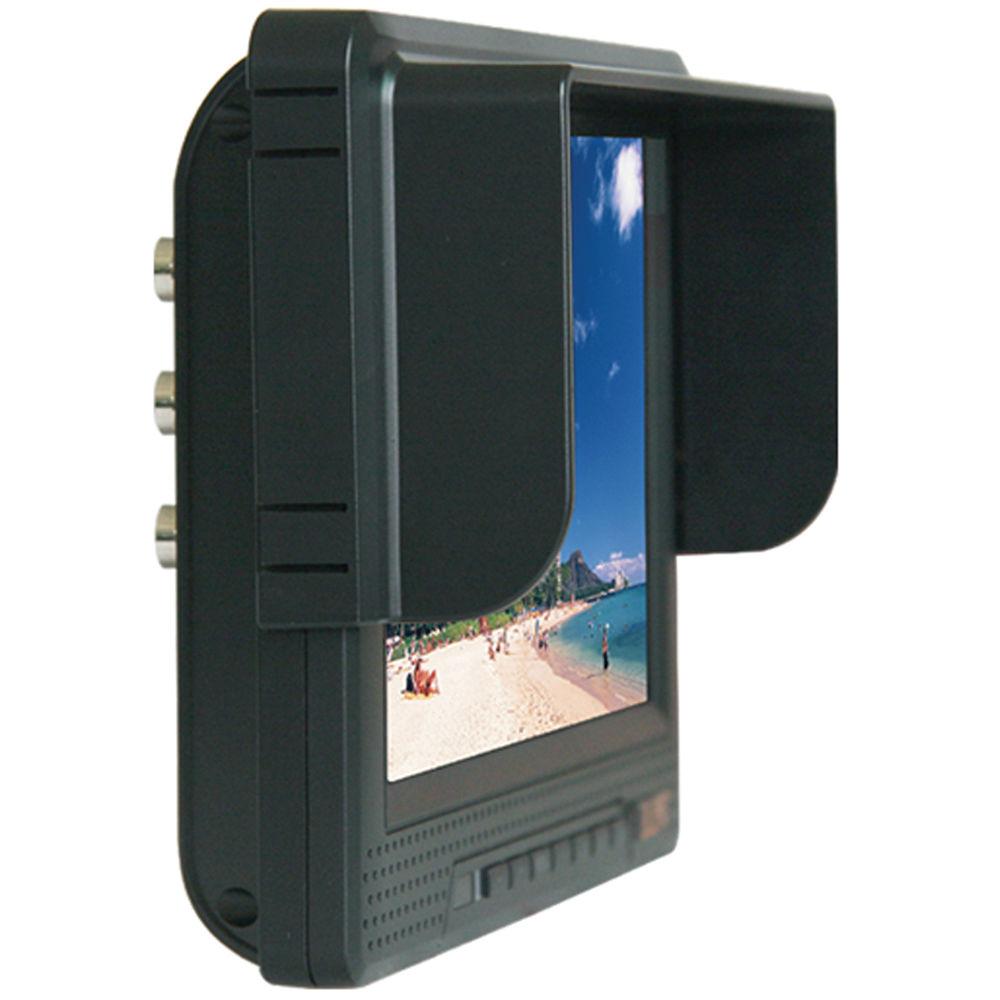

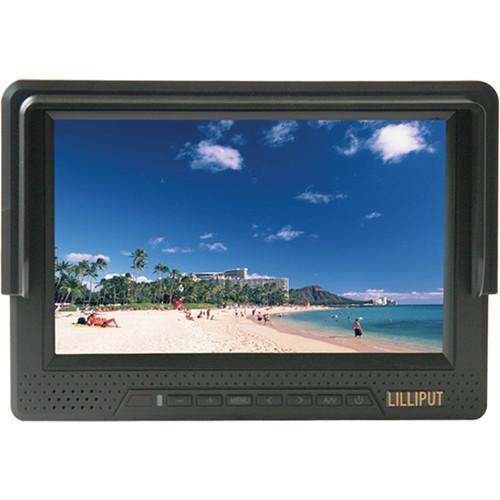

Product description With inputs supporting analog and digital sources, this 7" HDMI On-Camera Monitor from Lilliput provides an 800x480 pixel display for checking your image's focus and exposure. The display's 16:9 aspect ratio fits most signals output from HD camcorders without letterboxing or pillarboxing the image, ensuring the full screen resolution is used.On the rear panel, the HDMI input supports DSLR cameras and newer camcorders with HDMI outputs, up to 1080p resolution. For legacy cameras and analog equipment, a component YPbPr as well as dual composite video BNC inputs are also available.For wide viewing angles and accurate colors, this monitor features an IPS display with an anti-glare finish and a 500:1 contrast ratio for punchy images. A sun hood is included for preventing excess glare when outdoors. For power, a built-in battery can provide up to 3 hours of use on a full charge. Alternatively a 6-20 VDC power source can be input via the barrel jack. A ball mount is also included for securing the monitor atop a camera using an available shoe-mount. - 7" camera-top monitor with 16:9 aspect ratio
- 500:1 contrast ratio produces vivid and rich colors
- Enhanced 450 cd/m2 backlight produces a crystal clear picture and shows colors vividly
- IPS panel offers 130° horizontal and 120° vertical wide viewing angles
- Built-in 2,200mAh Li-ion battery
- Shoe mount adapter included
In the Box Lilliput 7" HDMI On-Camera Monitor Remote Control HDMI Cable Shoe Mount Sun Shade DC Adapter Limited 1-Year Warranty User Manual PDF 288kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput 7" HDMI On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

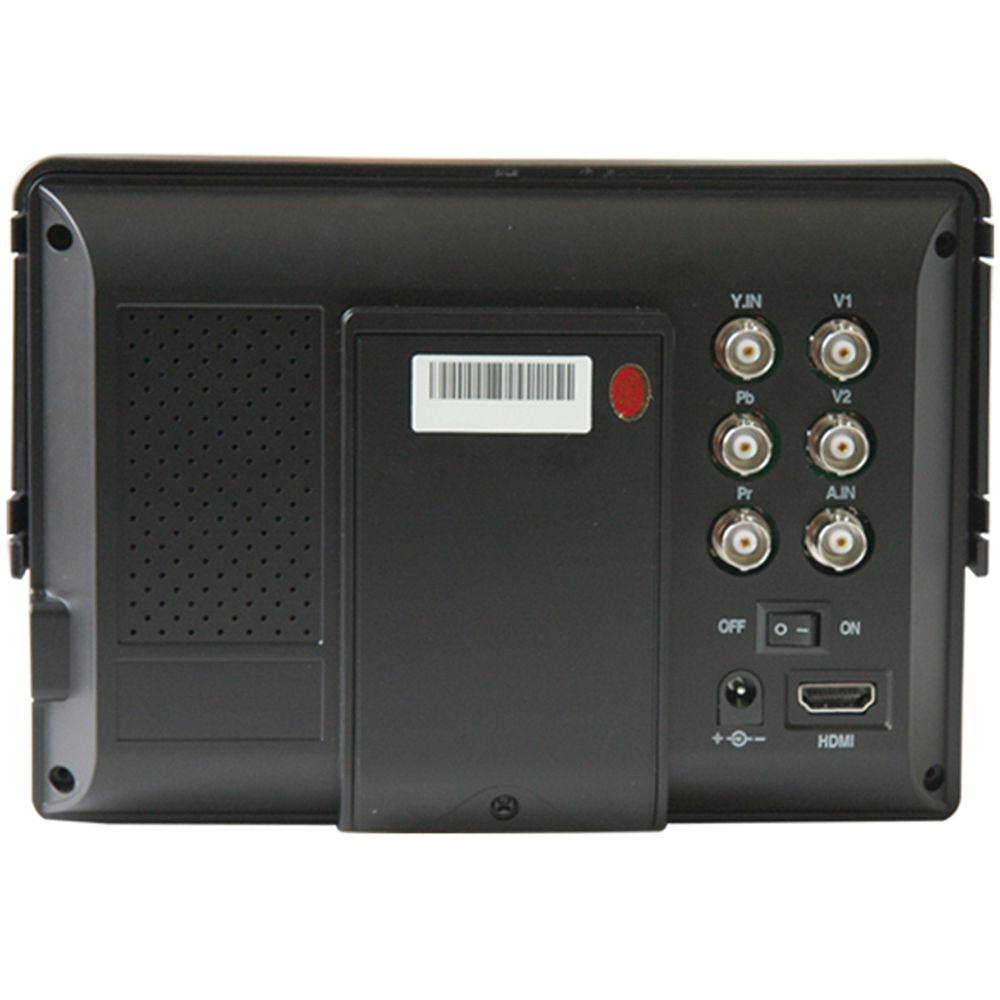

Technical parametersLilliput 668 Specs | | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 800 x 480 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 140° (70/70)
Vertical: 120° (50/70) | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 500:1 | | Finish | Matte | | | | Video | 1 x HDMI Type A Input
1 x 3BNC (Component) Input
1 x BNC (Composite) Input | | Audio | None | | Built-In Speaker | 1 x 1 W | | Power | 1 x Barrel Input | | Card Slot | None | | | | Video Format | HDMI
1080p: 50/59.94/60
1080i: 50/59.94/60
720p: 50/59.94/60
NTSC
PAL | | | | Battery Type | None | | Power Consumption | 8 W (Maximum) | | | | Operating Humidity | 90% | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | | | Dimensions (W x H x D) | 7.1 x 5.1 x 1.2" / 188 x 131 x 33 mm | | Weight | 2.8 lb / 1.3 kg | | | | Package Weight | 2.825 lb | | Box Dimensions (LxWxH) | 12.6 x 7.95 x 2.85" |
