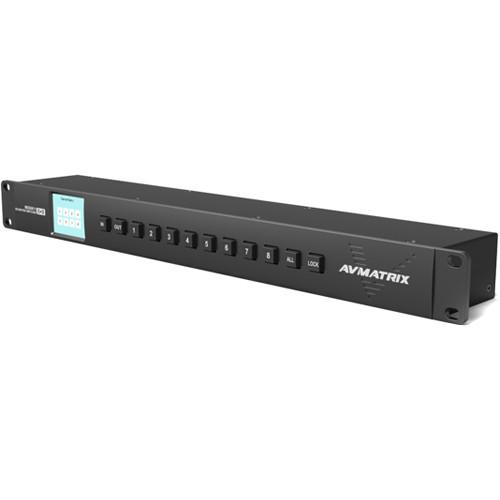

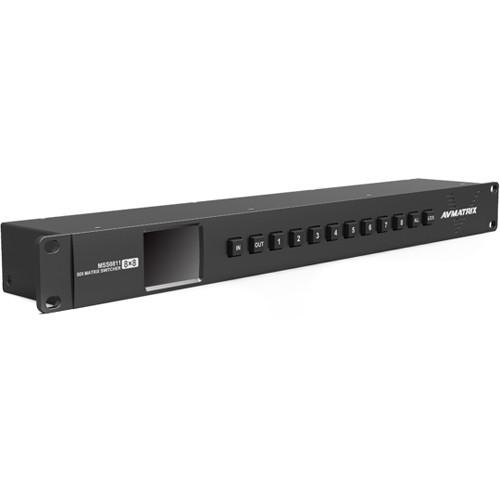

Product description The 1 RU 8 x 8 3G-SDI Matrix Switcher from Lilliput accepts eight channels of input, and can drive them to eight separate output feeds. It includes a multi-format technology that detects multiple video format sources of SD/HD/3G-SDI (level A&B) and DVB-ASI signals at the same time, and routes the multiple video destinations in 1080, 720, SD, NTSC, and PAL. It is controlled by manual switches on the front of the device and via RJ45 and RS-232 ports for software control as well as a USB Type-A port for keyboard control. Two 12 VDC power adapters are included to provide reduntant power. - Multi-format technology can auto detect multiple video format sources of SD/HD/3G-SDI (level A & B) and DVB-ASI signals at the same time and route the multiple video destinations in NTSC and PAL SD, 720p, 1080 at any frame rate.
- Full control from the front panel
- Current channel status can be viewed visually from the 2.2" LCD screen
- PC control software allows you to connect a computer via Ethernet or via the RS-232 serial port
In the Box Lilliput 8 x 8 3G-SDI Matrix Switcher (1 RU) 2 x 12 VDC, 2 A Power Adapters Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput 8 x 8 3G-SDI Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

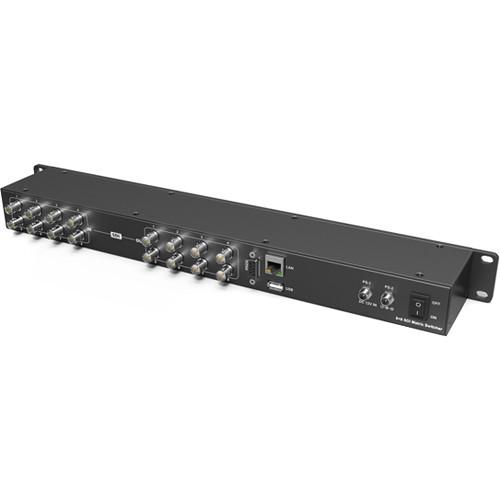

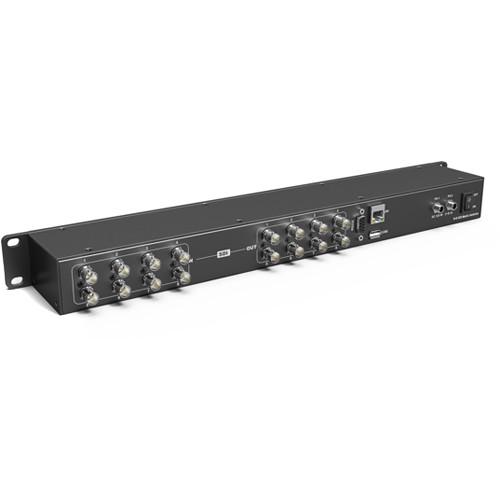

Technical parametersLilliput MSS0811 Specs | Connectors | 8 x BNC, SD/HD/3G-SDI/DVB-ASI Inputs
8 x BNC, SD/HD/3G-SDI/DVB-ASI Outputs
1 x RJ45, LAN Control Port, on Back Panel
1 x RS-232, Control Port, on Back Panel
1 x USB Type-A, Control Port, on Back Panel | | SDI Input Formats | 1080p at 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1080PsF at 30, 29.97, 25, 24, 23.98
1080i at 60, 59.94, 50
720p at 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
625i at 50, 525i, 59.94 | | SDI Video Rates | SD/HD/3G-SDI | | SDI Compliance | SMPTE 259M/292M/296M/372M/424M/425M | | SDI Color Precision | RGB 4:4:4 10/12-Bit, YUV 4:2:2/4:4:4 10/12-Bit | | SDI Auto Switching | Auto Selects SD, HD, and 3G-SDI on Input | | Power Connector | Threaded Locking Connector | | Voltage Range | 6-24 VDC | | Power Supply | PS-1, PS-2, Power Redundancy | | Power Consumption | 7 W | | Relative Humidity | 0 to 90% Non-Condensing | | Temperature | Operating: -4 to 140°F / -20 to 60°C

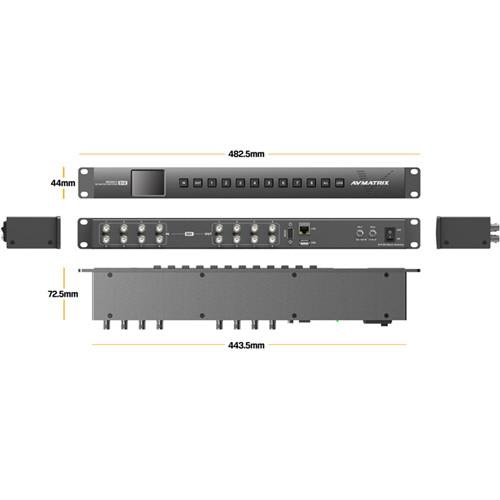

Storage: -22 to 158°F / -30 to 70°C | | Rackmount | 1 RU | | Dimensions | 19.0 x 1.75 x 2.85" / 482.5 x 44.0 x 72.5 mm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 3.77 lb | | Box Dimensions (LxWxH) | 21.8 x 7.8 x 3.4" |
