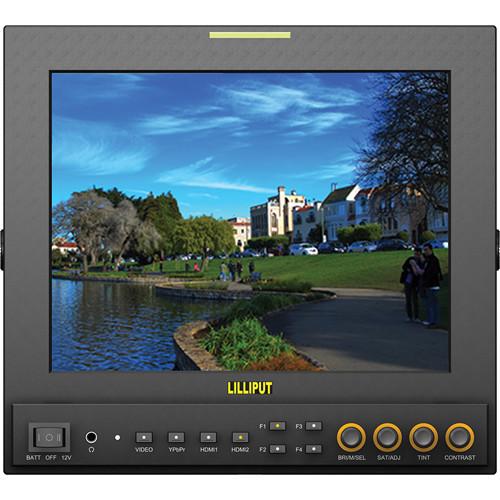

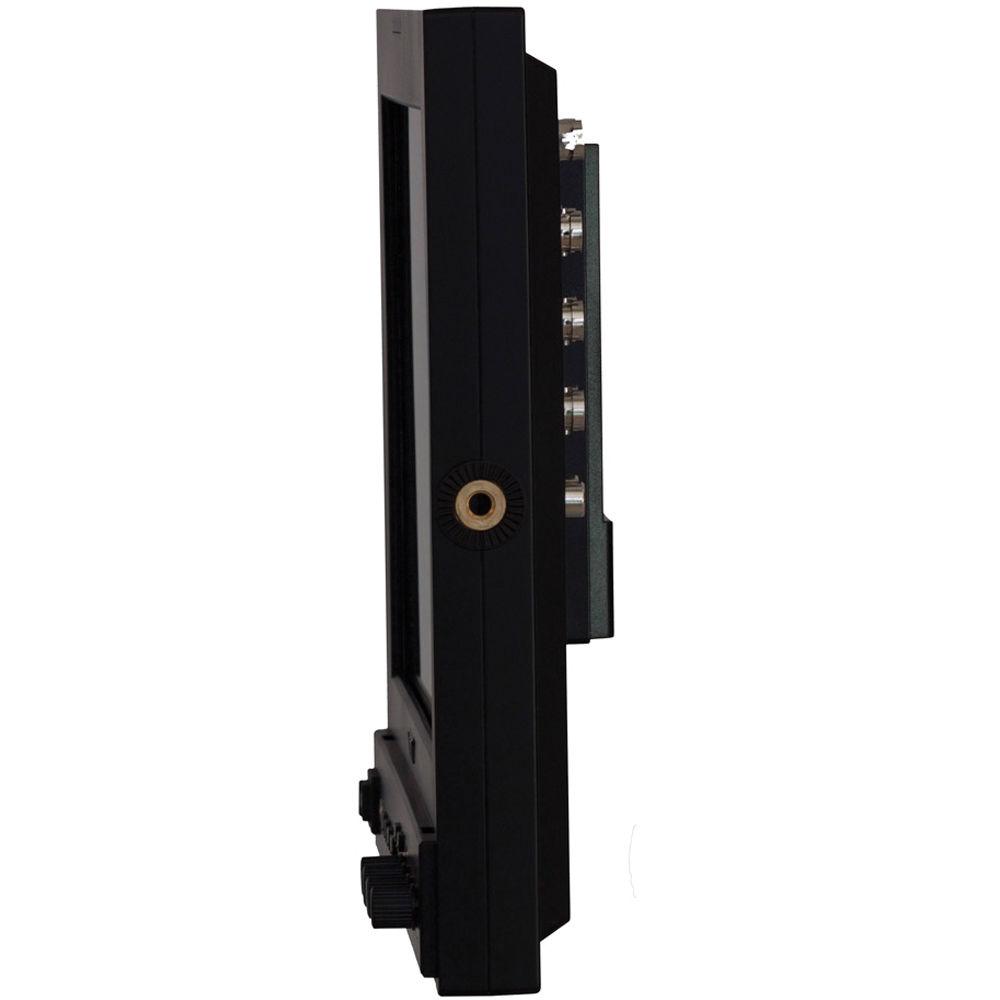

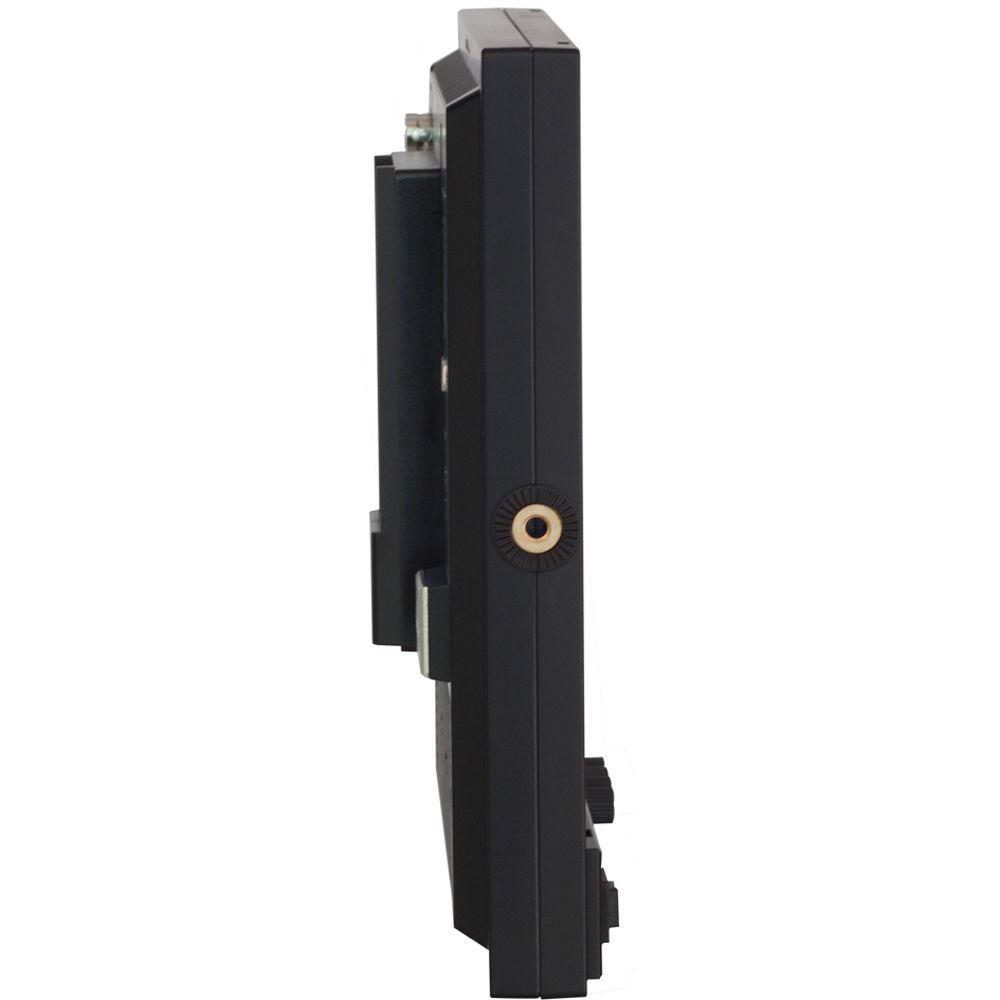

Product description The Lilliput 969A/O/P 9.7" Field Monitor is a 4:3 aspect ratio broadcast monitor featuring a slim design and supplied with a swiveling stand for desktop use. It has an IPS display with a 1024 x 768 resolution and supports up to 1920 x 1080 resolution signals. It offers a comprehensive set of connections consisting of dual HDMI inputs, an HDMI output, composite and component input/output on BNC connectors, L/R audio output, and a tally input. There's also a USB port for charging accessory devices while out in the field. The 969A/O/P also features a variety of display tools including peaking, false color, histogram, and picture-in-picture.
A built-in speaker and headphone jack are available for audio monitoring, and four user-assignable function buttons and easy-access adjustment dials are provided on the front. A folding sun hood is included that also protects the screen when it's folded in. Two interchangeable battery plates (LP-E6 and L-series) are included, and an XLR power adapter is supplied for continuous power. - Key Features
-
- IPS display with 178° viewing angle
- 1024 x 768 resolution
- Supports up to 1920 x 1080 resolution signals
- Dual HDMI inputs and an HDMI output
- Composite and component input/output on BNC connectors
- L/R audio output
- Tally input
- Foldable sun hood
- Interchangeable LP-E6 and L-series battery plates
- XLR power adapter
- Swiveling desktop stand
- Display Tools
-
- Peaking
- False colors
- Histogram
- Exposure
- Center marker
- Pixel-to-pixel
- Color bar
- Screen marker
- Aspect ratio
- Check field
- Underscan/overscan
- Freeze input
- H/V delay
- 8x zoom
- Picture-in-picture
In the Box Lilliput 969A/O/P 9.7" Field Monitor Folding Sunshade Swiveling Desktop Stand LP-E6 Battery Plate L-Series Battery Plate Battery Plate Bracket 12 VDC XLR Power Adapter Tally Connector HDMI Cable Limited 1-Year Warranty User Manual PDF 689.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput 969A O P 9.7" Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput 969A/O/P Specs | | | Panel Type | IPS-Type LCD | | Display Size | 9.7" / 24.6 cm | | Screen Resolution | 1024 x 768 | | Aspect Ratio | 4:3 | | Viewing Angle | Horizontal: 178° (89/89)

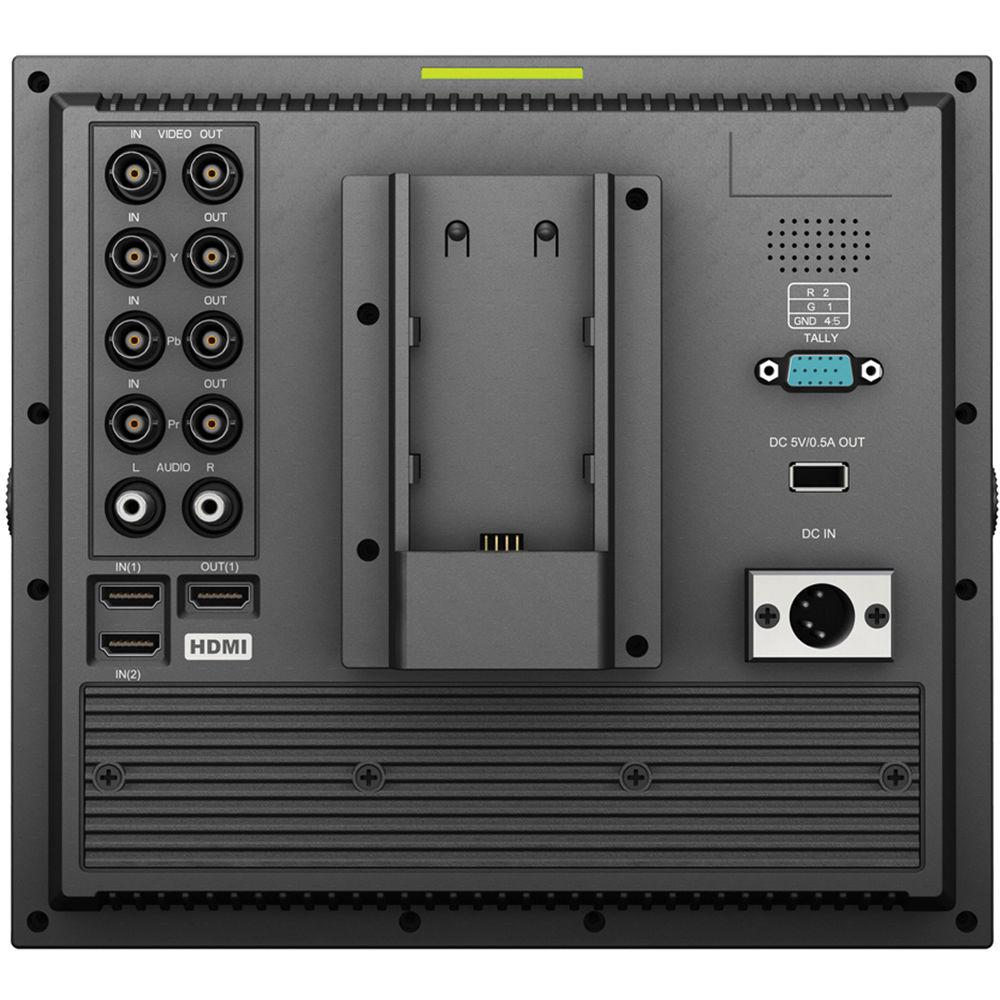

Vertical: 178° (89/89) | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 600:1 | | Image Controls | False Color, Focus Peaking | | | | Video | 1 x HDMI Type A Output
1 x 3BNC (Component) Output
1 x BNC (Composite) Output
2 x HDMI Type A Input
1 x 3BNC (Component) Input
1 x BNC (Composite) Input | | Audio | 2 x 3.5 mm Input
1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 | | Power | 1 x USB Type-A Input
1 x 4-Pin XLR Input | | Other I/O | 1 x Tally (DE-15/DB-15) | | Card Slot | None | | | | DC Input Power | 7 to 24 VDC | | Battery Type | 1 x LP-E6 or L-Series | | Operating Current | 1500 mA | | Power Consumption | 18 W (Maximum) | | | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | | | Dimensions (W x H x D) | 9.8 x 6.7 x 1.2" / 25 x 22 x 3 cm | | Weight | 2.4 lb / 1 kg | | | | Package Weight | 8.4 lb | | Box Dimensions (LxWxH) | 15.95 x 13.1 x 4.6" |
