User Manual for Lilliput 969A O P W 9.7" FPV Monitor Click to enlarge the picture
Contents of the user manual for the Lilliput 969A O P W 9.7"
- Product category: FPV (First Person View) Components Lilliput
- Brand: Lilliput
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lilliput FPV (First Person View) Components
|
User manual for the Lilliput 969A O P W 9.7" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lilliput product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lilliput user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lilliput product will considerably shorten its lifespan!
|

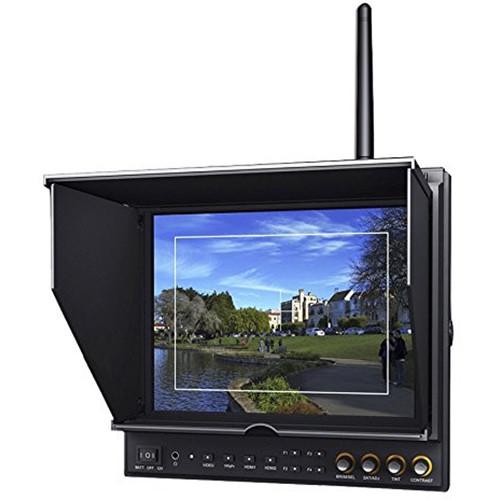

Product description Enjoy cable-free viewing with the 969A/O/P/W 9.7" FPV Monitor from Liliput. This monitor's 1024 x 768 IPS LCD display measures 9.7" diagonally across its 4:3 aspect ratio and offers 400 nits of brightness and a 600:1 contrast ratio. It connects remotely thanks to its 5.8 GHz receiver, which picks up 31 channels across four bands.
1:1 pixel mapping lets you maintain your camera's original resolution output while HDMI output enables video duplication at any size. Composite, component, and dual HDMI inputs provide plenty of options.
For precise color reproduction, the monitor has peaking, false color, histogram, and exposure tools to fine-tune your image. The 969A/O/P/W is IP52 rated for water and dust resistance and comes with a sun hood that folds down to protect the screen. In the Box Lilliput 969A/O/P/W 9.7" FPV Monitor 9.7" Sun Hood Battery Plate for Sony F-970 Battery Plate for Canon LP-E6 Battery Plate Bracket TALLY Connector HDMI A/A Cable 12V DC Adapter with XLR Connector Gimbal Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput 969A O P W 9.7" FPV Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput 969A/O/P/W Specs | | | Aspect Ratio | 4:3 | | Screen Size | Diagonal: 9.7" | | Screen Type | IPS LCD | | Resolution | 1024 x 768, supports up to 1920 x 1080 | | Brightness | 400 cd/m² (Nit) | | Contrast Ratio | 600:1 | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Inputs | 2 x HDMI
3 x BNC, YPbPr
1 x Video
1 x TALLY
2 x Audio, left/right | | Outputs | 1 x HDMI
3 x BNC, YPbPr
1 x Video
1 x USB, 5 V (charging) | | Wireless Connectivity | 5.8 GHz wireless, 4 bands, 31 channels | | | | Speaker | Yes, built in | | Earphone | 1 x slot | | | | Battery Plate | V-mount / Anton Bauer mount / F970 / QM91D / DU21 / LP-E6 | | Power Requirements | 7 to 24 VDC, 1500 mA (XLR) | | Power Consumption | ≤18 W | | IP Rating | IP52 | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Dimensions | Without Cover: 9.7 x 8.8 x 1.2" (246.0 x 224.0 x 31.0 mm)
With Cover: 9.7 x 8.8 x 6.6" (246.0 x 224.0 x 167.5 mm) | | Weight | Without Cover: 2.35 lb (1.07 kg)
With Cover: 3.06 lb (1.39 kg) | | | | Package Weight | 5.85 lb | | Box Dimensions (LxWxH) | 12.1 x 9.9 x 4.6" |
