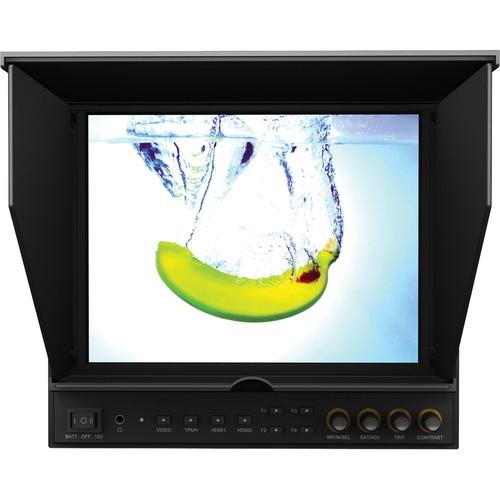

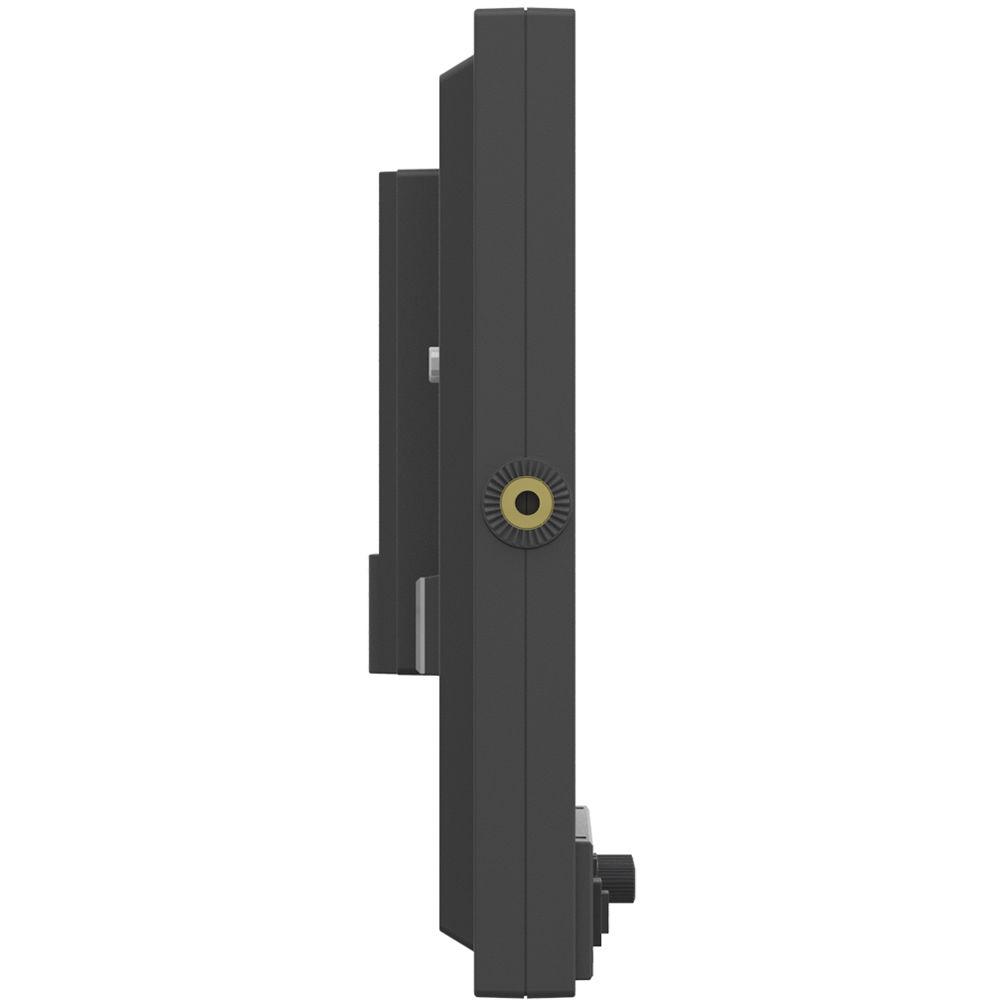

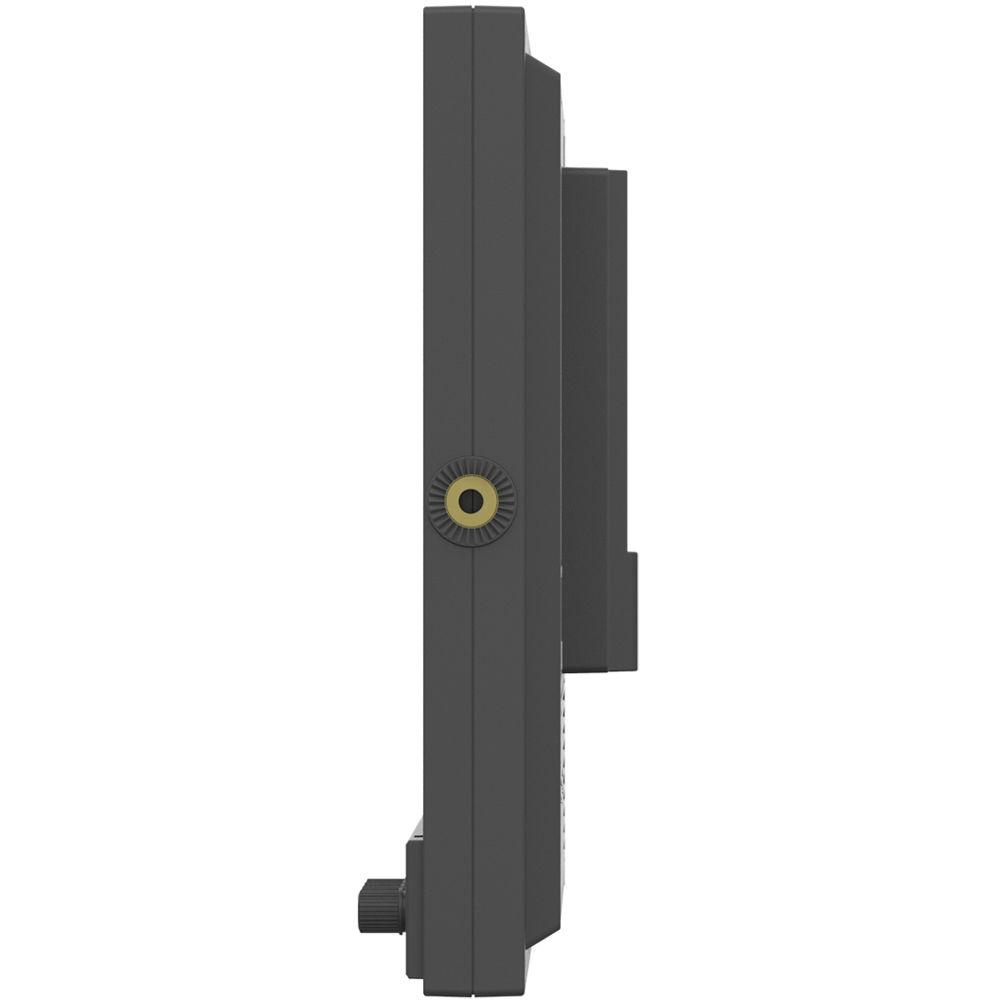

Product description The Lilliput 969B/O/P 9.7" Field Monitor is a 4:3 aspect ratio broadcast monitor featuring a slim design and supplied with a swiveling stand for desktop use. It has an IPS display with a 1024 x 768 resolution and supports up to 1920 x 1080 resolution signals. It offers dual HDMI inputs, an HDMI output, a tally input, and provides a USB port for charging accessory devices while out in the field. The 969B/O/P also features a variety of display tools, including peaking, false color, histogram, and picture-in-picture.
A built-in speaker and headphone jack are available for audio monitoring, and four user-assignable function buttons and easy-access adjustment dials are provided on the front. A folding sun hood is included that also protects the screen when it's folded in. Two interchangeable battery plates (LP-E6 and L-series) are included, and an XLR power adapter is supplied for continuous power. - Key Features
-
- IPS display with 178° viewing angle
- 1024 x 768 resolution
- Supports up to 1920 x 1080 resolution signals
- Dual HDMI inputs and an HDMI output
- Tally input
- Folding sun hood
- Interchangeable LP-E6 and L-series battery plates
- XLR power adapter
- Swiveling desktop stand
- Display Tools
-
- Peaking
- False color
- Histogram
- Exposure
- Center marker
- Pixel-to-pixel
- Color bar
- Screen marker
- Aspect ratio
- Check field
- Underscan/overscan
- Freeze input
- H/V delay
- 8x zoom
- Picture-in-picture
In the Box Lilliput 969B/O/P 9.7" Field Monitor Folding Sun Hood Swiveling Desktop Stand LP-E6 Battery Plate L-Series Battery Plate Battery Plate Bracket 12 VDC XLR Power Adapter Tally Connector HDMI Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput 969B O P 9.7" Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput 969B/O/P Specs | Display | 9.7" (24.6 cm) LED-backlit IPS display | | Display Resolution | 1024 x 768 | | Supported Resolution | 1920 x 1080 | | Aspect Ratio | 4:3 | | Brightness | 400 cd/m² | | Contrast | 600:1 | | Viewing Angle | 178/178° (H/V) | | Inputs | 2 x HDMI
1 x Tally | | Output | 1 x HDMI
1 x USB (5 V for charging) | | Speaker | Yes | | Headphone Jack | Yes | | Power Current | 1500 mAh | | Input Voltage | 7–24 VDC (XLR) | | Battery Plate | Interchangeable LP-E6 and L-series battery plates included | | Power Consumption | ≤18 W | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Dimensions | 9.8 x 6.7 x 1.2" (25 x 22 x 3 cm) | | Weight | 2.4 lb (1 kg) | | | | Package Weight | 5.4 lb | | Box Dimensions (LxWxH) | 12.1 x 9.7 x 4.7" |
