User Manual for Lilliput A12 12.5" 4K Monitor Click to enlarge the picture
Contents of the user manual for the Lilliput A12 12.5" 4K Monitor
- Product category: Production Monitors Lilliput
- Brand: Lilliput
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lilliput Production Monitors
 |
User manual for the Lilliput A12 12.5" 4K Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lilliput product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lilliput user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lilliput product will considerably shorten its lifespan!
|

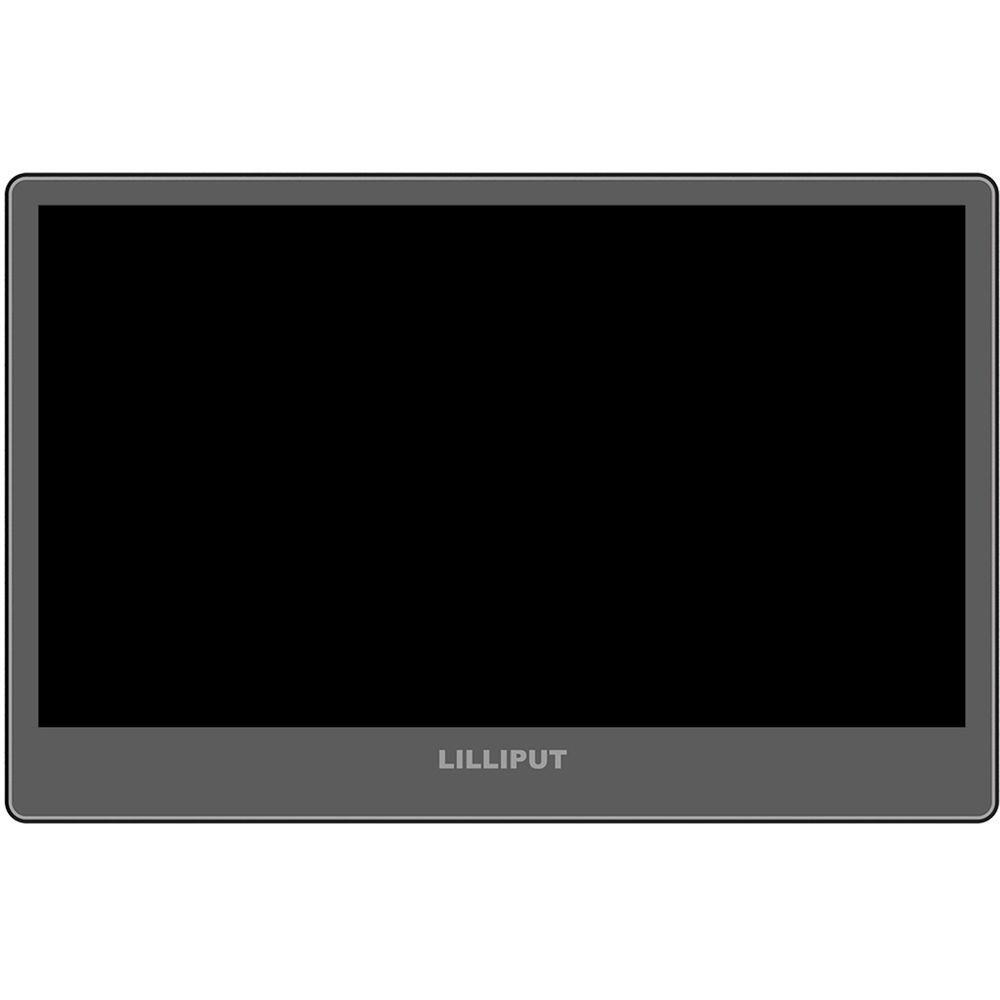

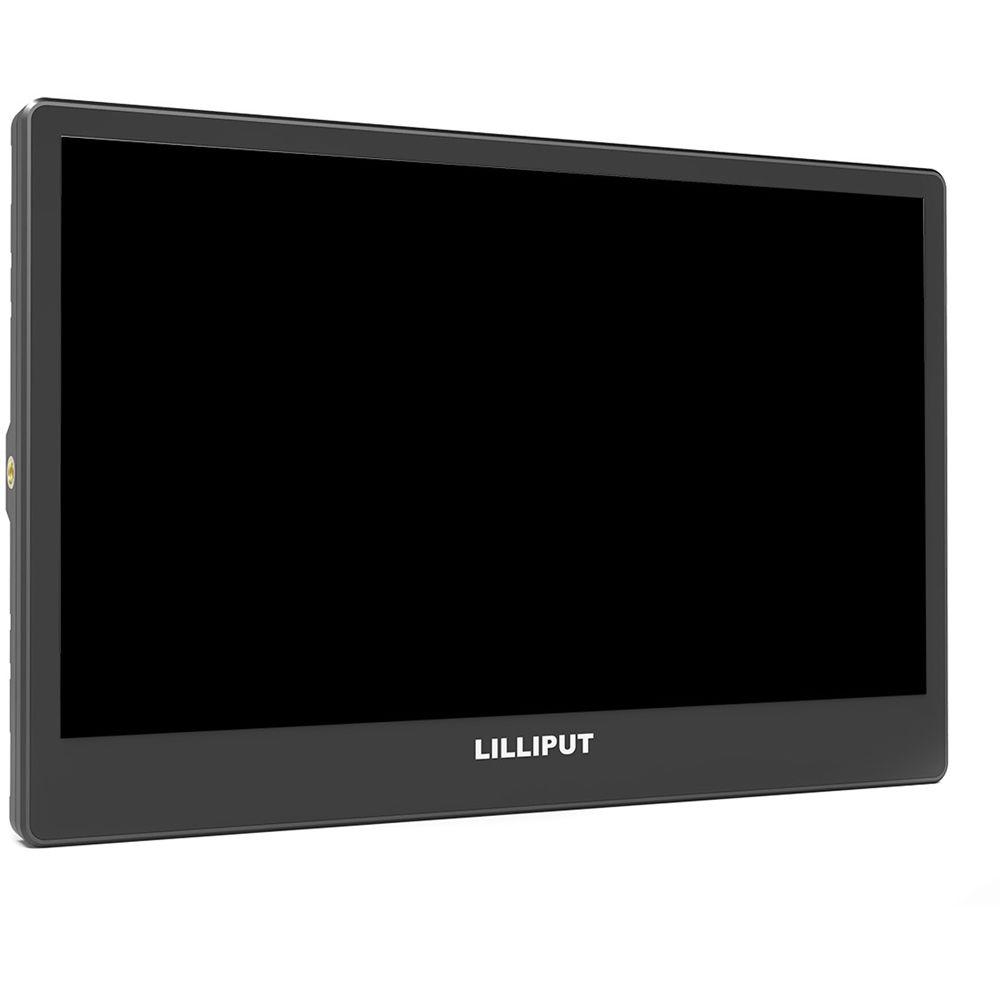

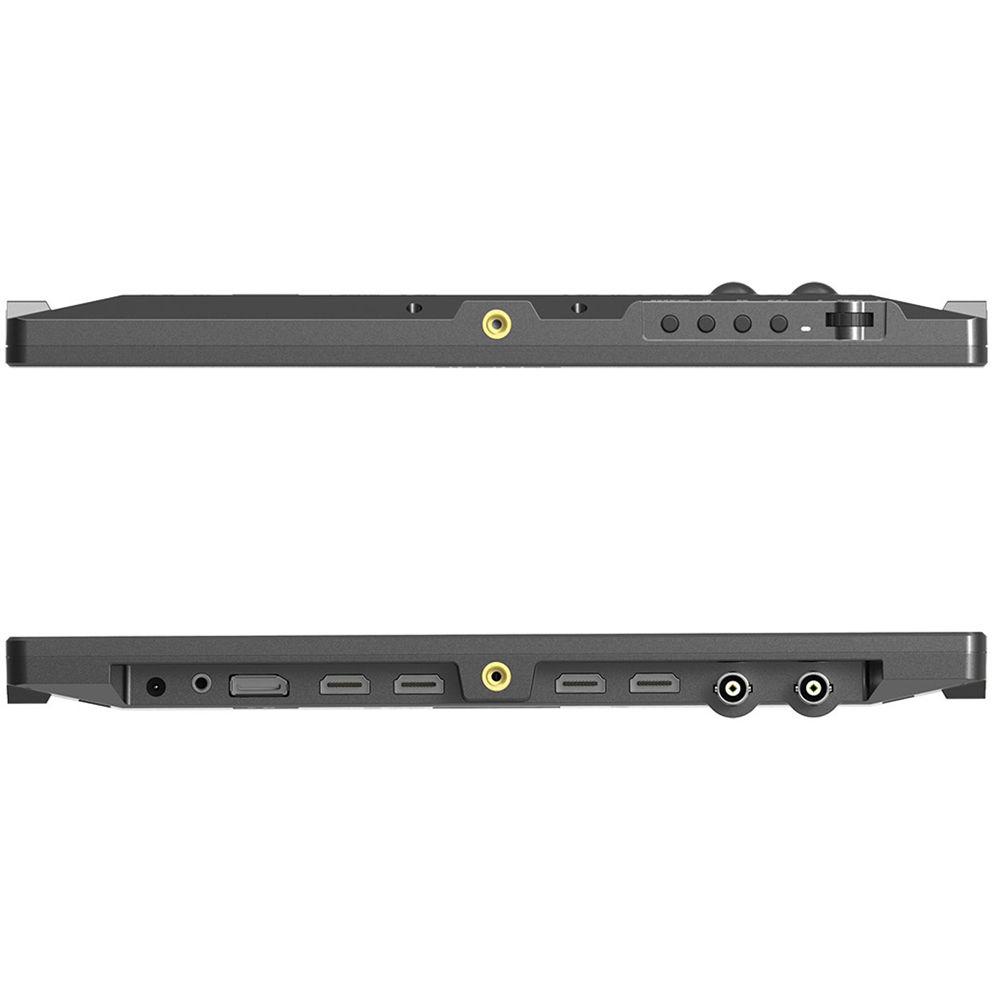

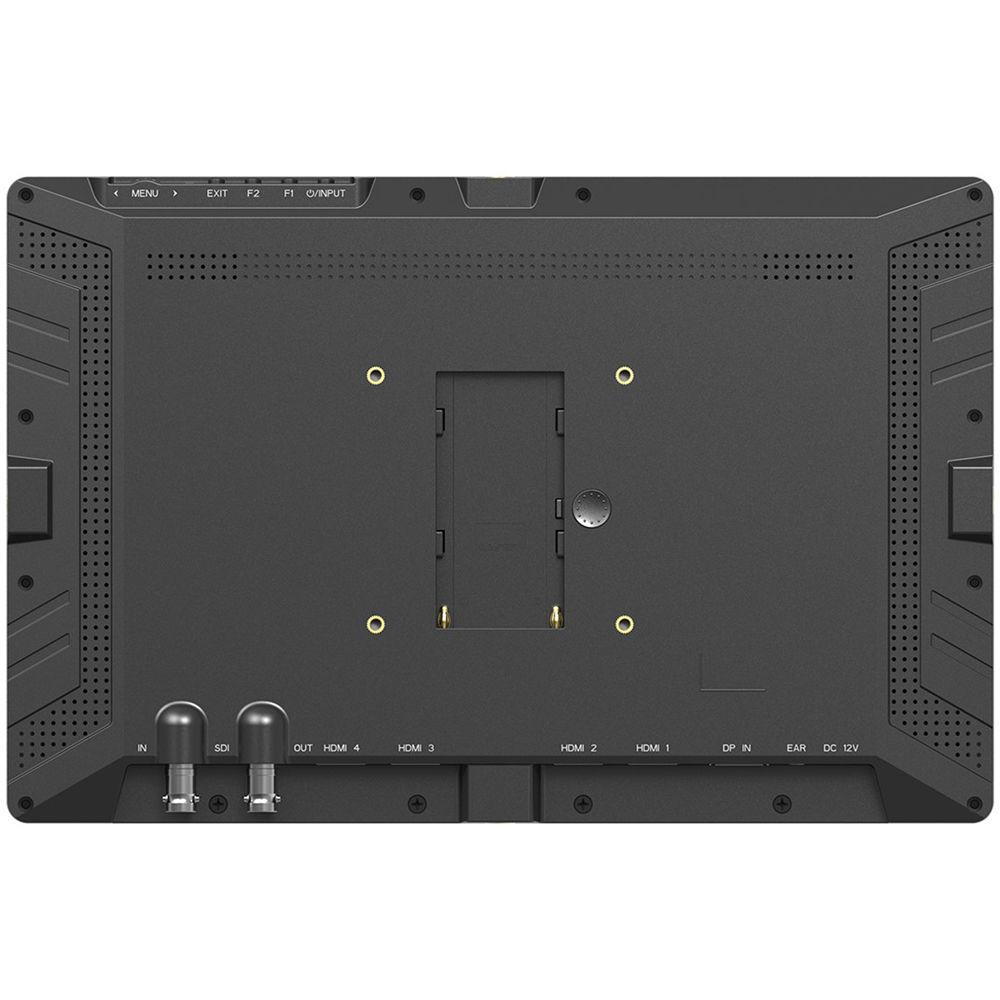

Product description The Lilliput A12 12.5" 4K Monitor is a portable video monitor for both HD and UHD 4K workflows. The slim design keeps the weight down, despite the large 12.5" IPS LCD panel with native UHD 4K 3840 x 2160 resolution. At the rear, three HDMI 1.4 inputs can accept 4K content at up to 30 fps, while one HDMI 2.0 input and the DisplayPort 1.2 input can accept 4K content at up to 60 fps. For connecting with professional HD equipment, a 3G-SDI input is available as well. Monitoring tools for focus, exposure, and framing will keep your images sharp and crisp during recording. If you wish to secure the A12 to your camera rig or studio equipment, four 1/4"-20 threads are located around the edge of the monitor, and 75mm VESA brackets can be attached to the rear. For power, a V-mount battery plate is included to attach large batteries for all-day power in the field. Monitoring Tools - Color temperature adjustment
In the Box Lilliput A12 12.5" 4K Monitor Sun Hood HDMI to Mini-HDMI Cable Ball Mount D-Tap Power Cable V-Mount Plate Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput A12 12.5" 4K Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput A12 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 12.5" / 31.8 cm | | Screen Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 170°
Vertical: 170° | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 1500:1 | | Image Controls | Blue Only, False Color, Focus Peaking, Image Flip, Screen Markers | | | | Video | 1 x BNC (3G-SDI) Output
1 x BNC (3G-SDI) Input
1 x HDMI Type A (HDMI 2.0) Input
3 x HDMI Type A (HDMI 1.4) Input
1 x DisplayPort (DisplayPort 1.2) Input | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 2 | | Card Slot | None | | | | DC Input Power | 7 to 20 VDC | | Battery Type | None | | | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | | | Dimensions (W x H x D) | 11.7 x 7.7 x 0.9" / 29.8 x 19.5 x 2.2 cm | | Weight | 2.1 lb / 960 g | | | | Package Weight | 5.2 lb | | Box Dimensions (LxWxH) | 16.25 x 10.25 x 3.2" |
