User Manual for Lilliput A7 7" Full HD Camera-Top Monitor Click to enlarge the picture
Contents of the user manual for the Lilliput A7 7" Full HD Camera-Top
- Product category: On Camera Monitors Lilliput
- Brand: Lilliput
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lilliput On Camera Monitors
 |
User manual for the Lilliput A7 7" Full HD Camera-Top contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lilliput product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lilliput user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lilliput product will considerably shorten its lifespan!
|

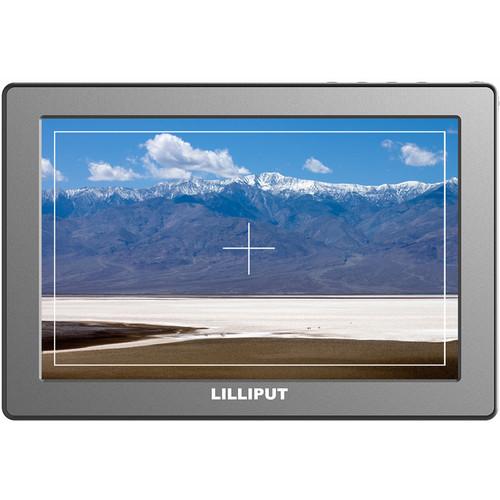

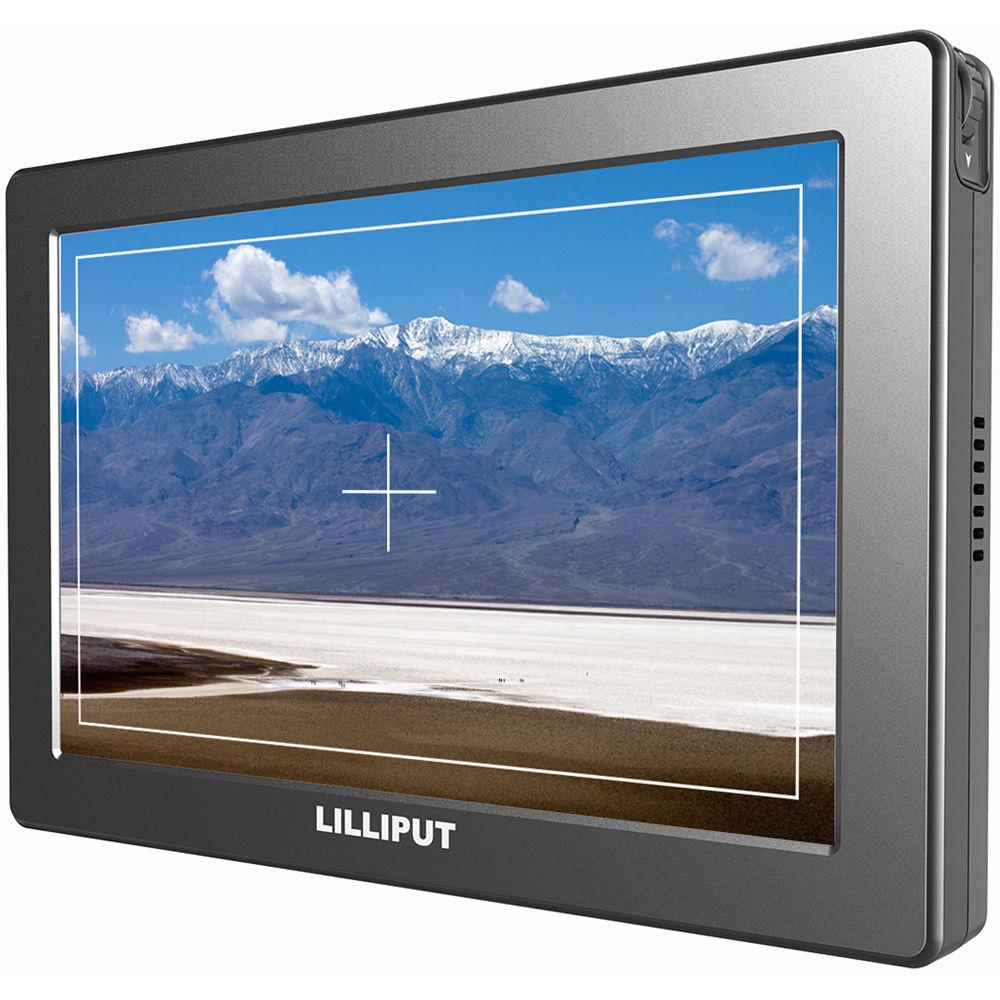

Product description The A7 7" Full HD Camera-Top Monitor from Lilliput features an 8-bit 16:10 IPS LCD panel that offers a maximum resolution of 1920 x 1200 for producing sharper and clearer images. It offers a brightness rating of 500 cd/m2, contrast ratio of 1000:1, and 170° wide viewing angles. The monitor provides various auxiliary functions such as pixel zoom, level meter, false color, peaking, exposure, check field, color bar, histogram, pixel-to-pixel, image flip, over/underscan, and center/screen marker. In addition, it also comes with dual user-definable function buttons (F1/F2). Design and Performance - F1-F2 user-definable buttons can be customized as shortcuts for peaking, underscan, overscan, check field, image flip, etc.

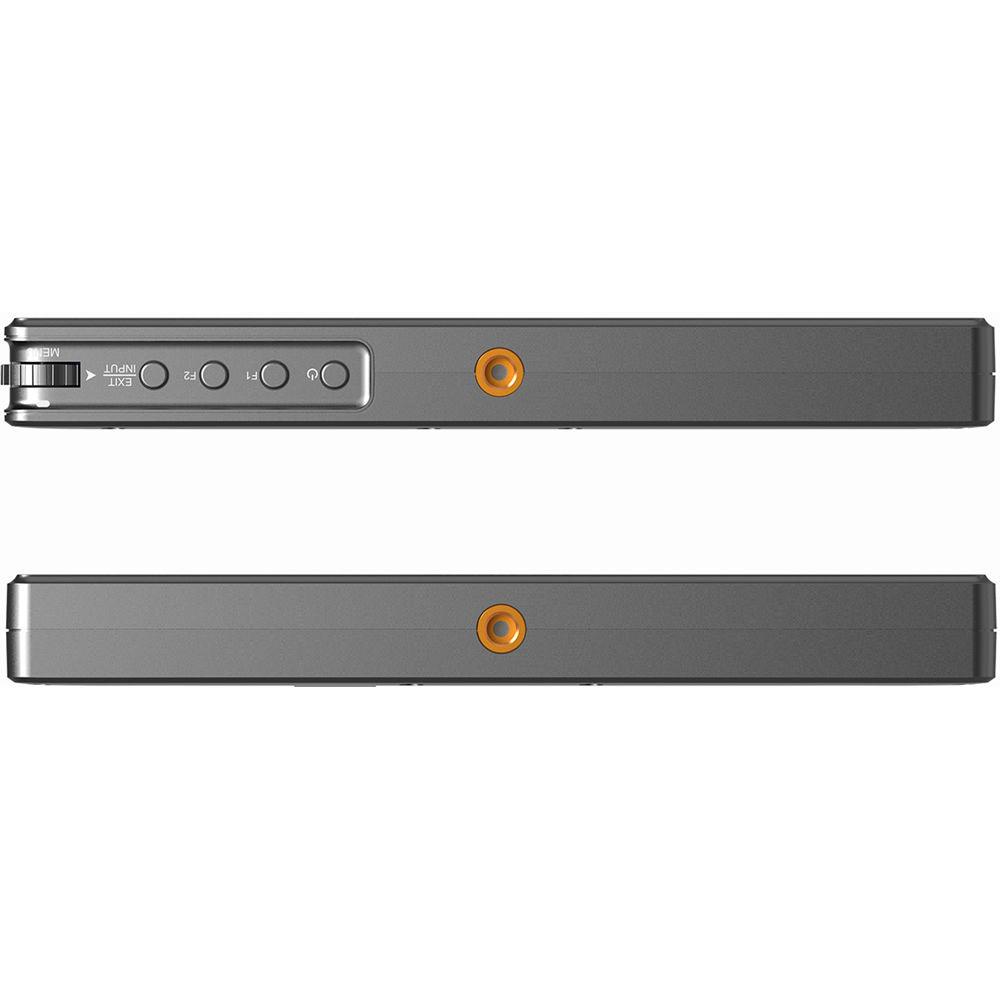

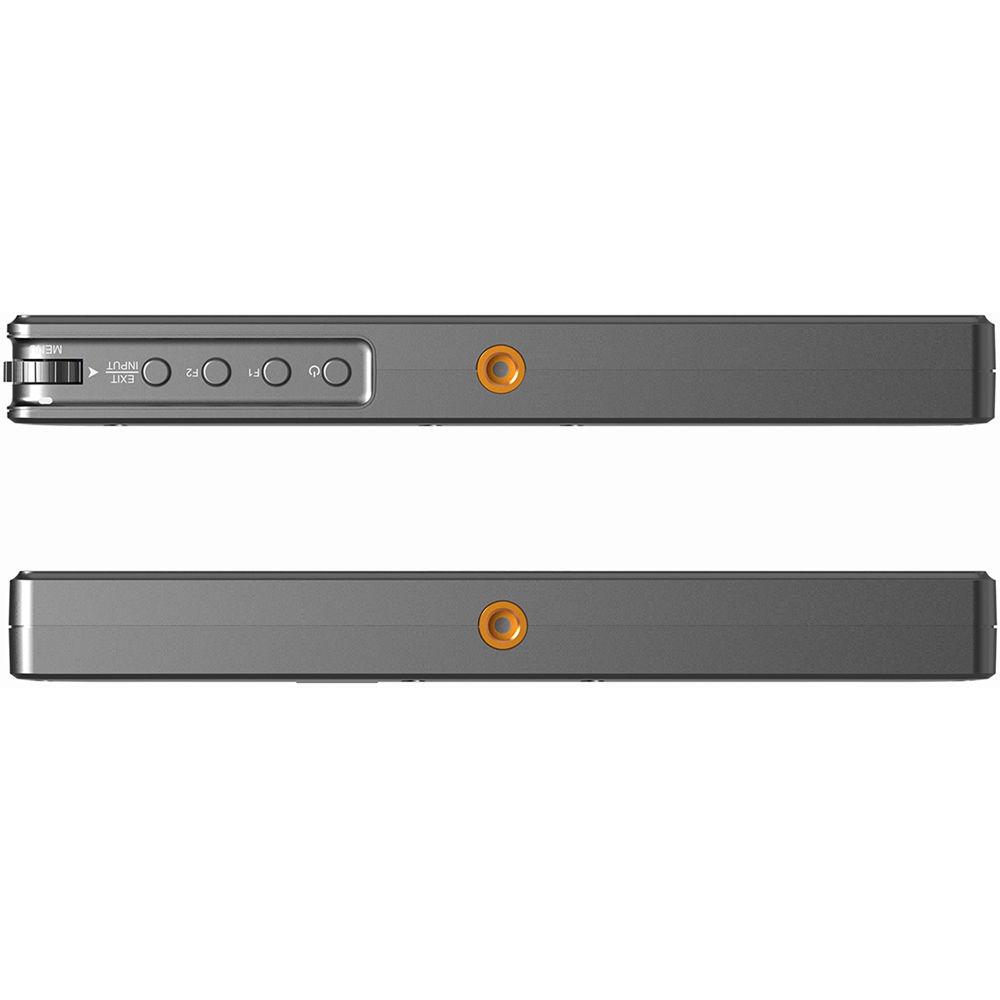

- 75mm VESA-mountable design.
- Includes a hot shoe mount for mounting the monitor on a DSLR camera or camcorder.
Peaking Filter - The Peaking filter is more effective when the subject is properly exposed and contains enough contrast to be processed. There are four alternative filter colors (red, green, blue, and white), and the peaking level ranges from 0 to 100.
Exposure (Zebras) - The exposure is used to assist in exposure adjustment in the mode of Zebra pattern. The exposure level ranges from 0 to 100.
False Color Filter - The False Color filter is used to aid in setting of camera exposure, which enables proper exposure to be achieved without external test equipment. The colors and values can be checked on the left side of image.
Aspect Marker - The Aspect Marker provides various aspect ratios such as 3:2. 4:3, 16:9, 2.35:1, and 1.85:1. The transparency of aspect mat also can be adjusted. Meanwhile, there are five alternative marker colors (red, green, blue, white, and black). Users can choose abundant ratios or colors according to different background colors when shooting.
Histogram - The Histogram consists of R68, Color and Luminance histograms, which makes users view visually the exposure of whole and each RGB channels. It has the full contrast range of video for easy color correction during post production.
Audio Level Meter - The Audio Level Meters provide numerical indicators and headroom levels. It can generate audio level displays to check audio phase and levels via speaker or audio outputs, which prevent errors from monitoring or recording synchronously.
In the Box Lilliput A7 7" Full HD Camera-Top Monitor Shoe Mount F970 Battery Plate LP-E6 Battery Plate Mount Plate Bracket HDMI A/C Cable Sun Shade 12 VDC Adapter Limited 1-Year Warranty User Manual PDF 441.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput A7 7" Full HD Camera-Top Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

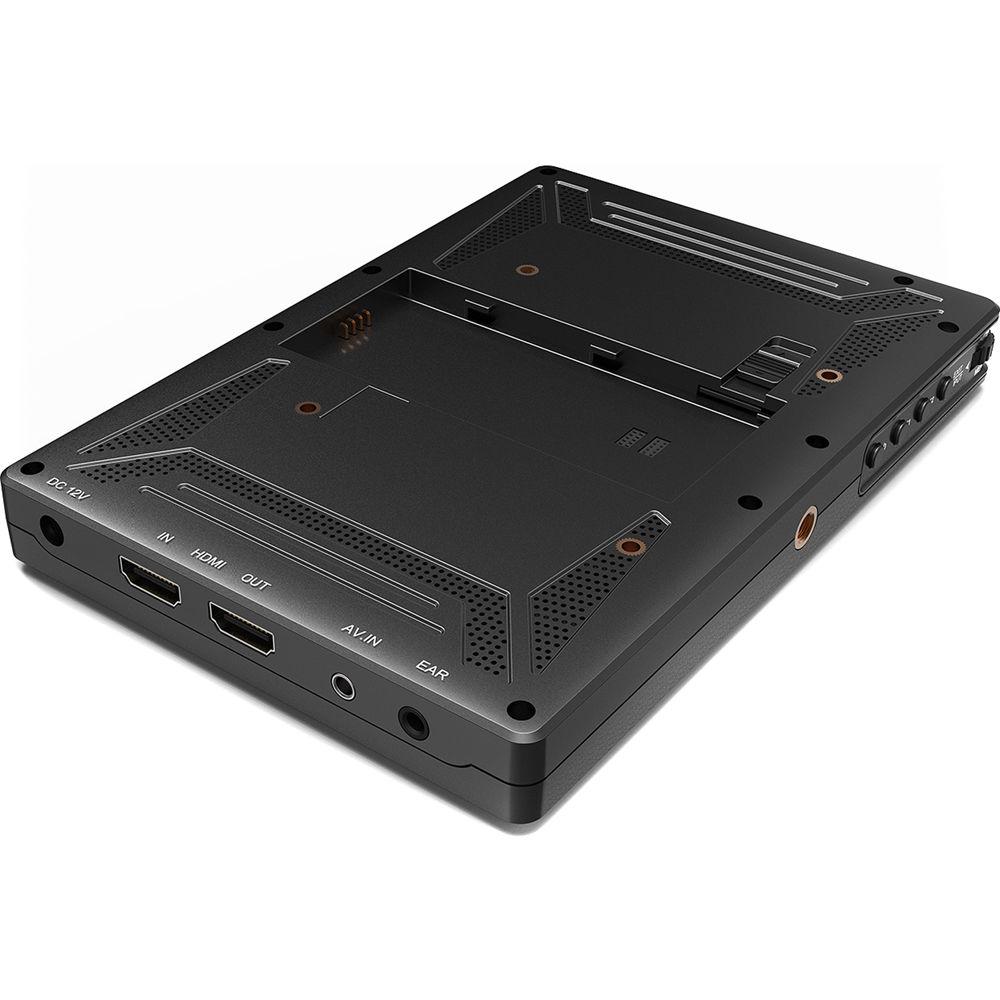

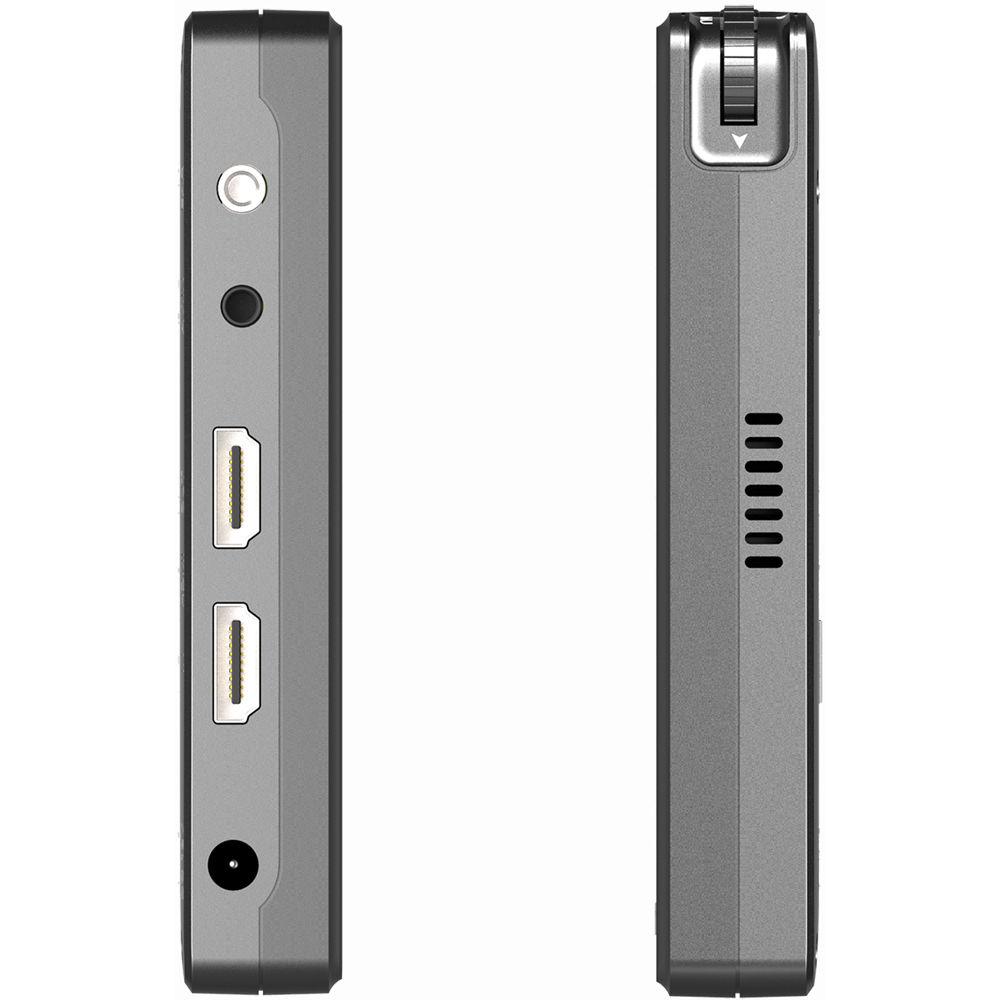

Technical parametersLilliput A7 Specs | Panel | 8-bit IPS | | LCD Size | 7" (17.78 cm) | | Video System | Not specified by the manufacturer | | Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Brightness | 500 cd/m2 | | Contrast | 1000:1 | | Viewing Angles | 170/170° (H/V) | | Formats | Full HD, SD 1080p, 1080i, 720p, 576p, 576i, 480p, 486i | | Input and Output Connectors | 1 x HDMI in
1 x HDMI out, 1 x speaker, 1 x Earphone jack | | Picture Controls | Pixel zoom, Level meter, Peaking, False color, Histogram, Exposure, Check Field, Color bar, Image flip, Pix to pix | | Power Requirements | Current: 1 A
Input Voltage: 7 to 24 VDC

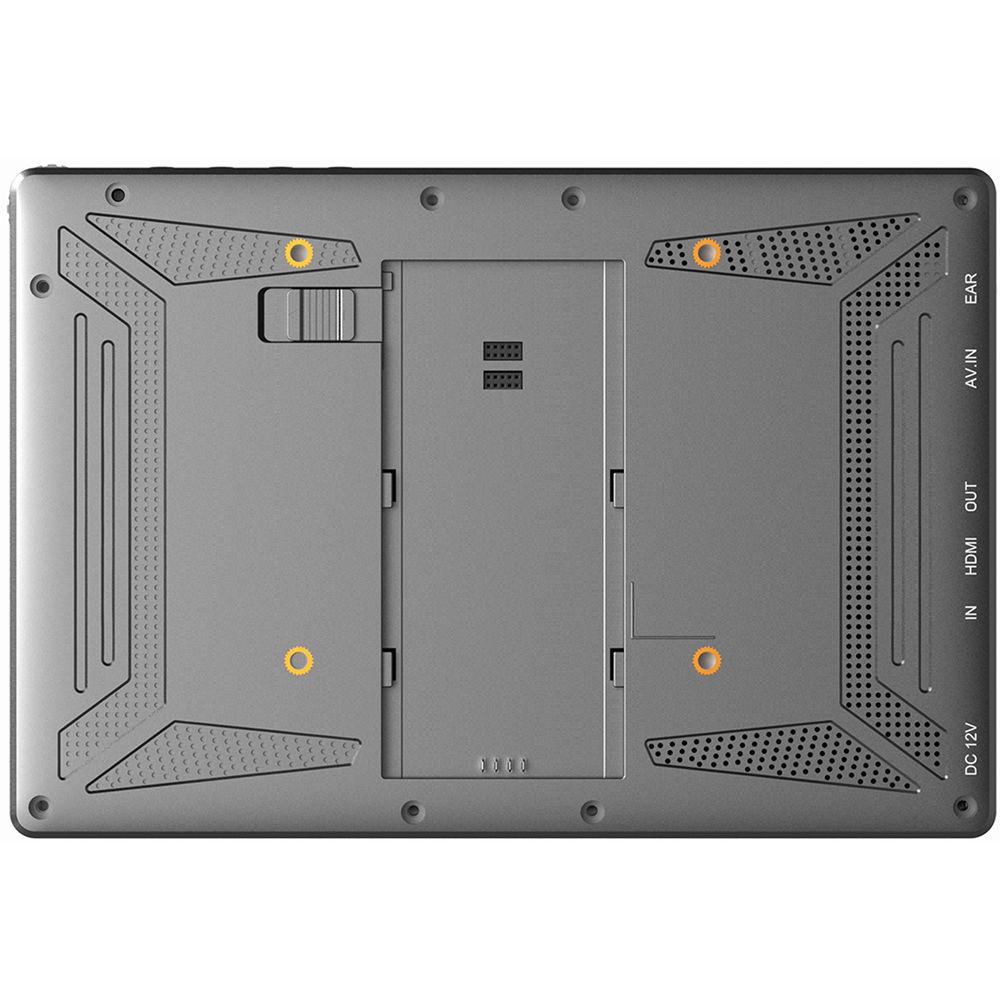

Battery Plate: Supports F970 / QM91D / DU21 / LP-E6 V-Mount / Anton Bauer mount (optional not included) | | Power Consumption | ≤12 W | | Operating Temperature | -4 to 140°F (-20 to 60℃) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Dimensions (L x W x D) | 7.16 x 4.8 x 0.8" (182.1 x 124 x 20.5 mm) | | Weight | 11.28 oz (320 g) | | | | Package Weight | 2.77 lb | | Box Dimensions (LxWxH) | 8.8 x 5.95 x 4.4" |
