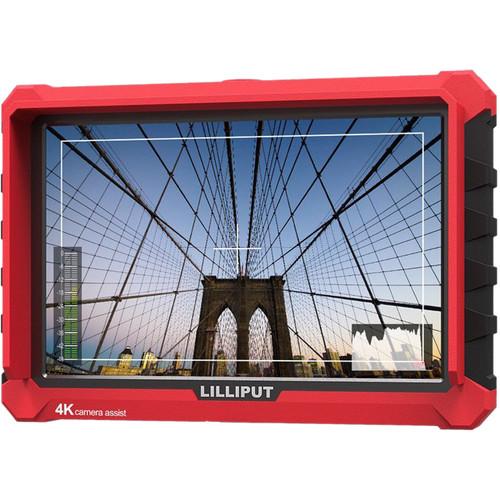

User Manual for Lilliput A7S 7" Full HD Monitor with 4K Support Click to enlarge the picture
Contents of the user manual for the Lilliput A7S 7" Full HD Monitor
- Product category: On Camera Monitors Lilliput
- Brand: Lilliput
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lilliput On Camera Monitors
 |
User manual for the Lilliput A7S 7" Full HD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lilliput product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lilliput user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lilliput product will considerably shorten its lifespan!
|

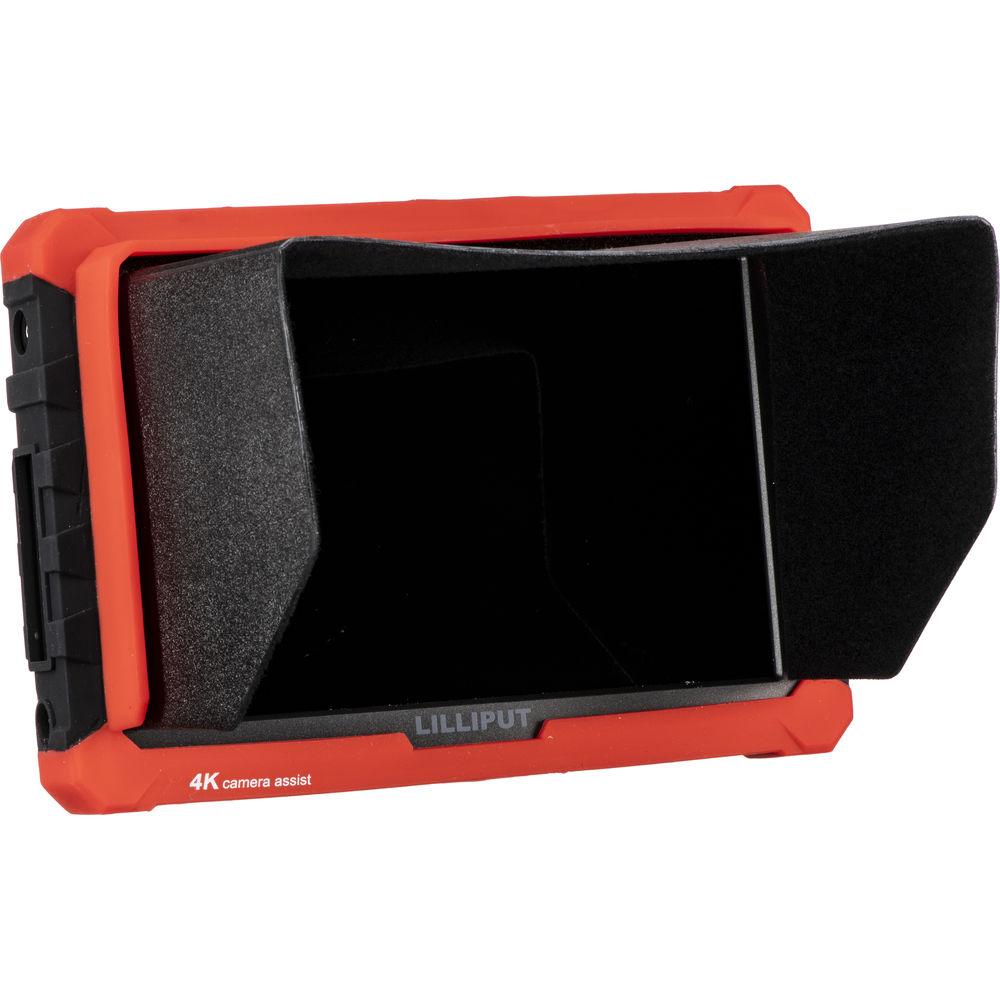

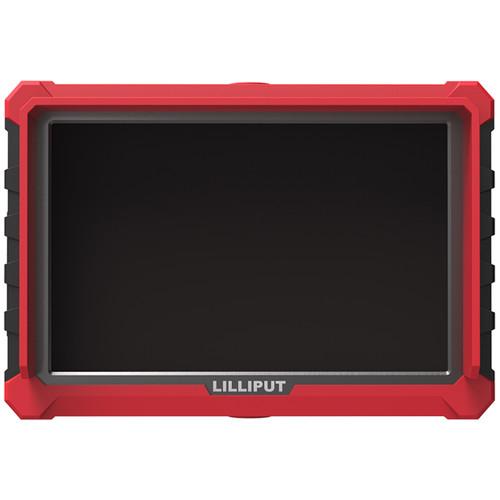

Product description The A7S 7" Full HD Monitor with red rubber case from Lilliput features an HDMI 1.4 input, making it suitable for UHD 4K filmmaking and photography. With a 16:10 aspect ratio and 1000:1 contrast ratio, the LCD panel displays Full HD images. The HDMI loop-through function allows you to output via HDMI to any other compatible device.

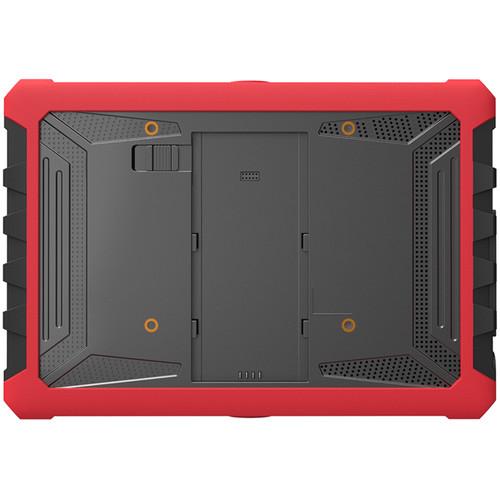

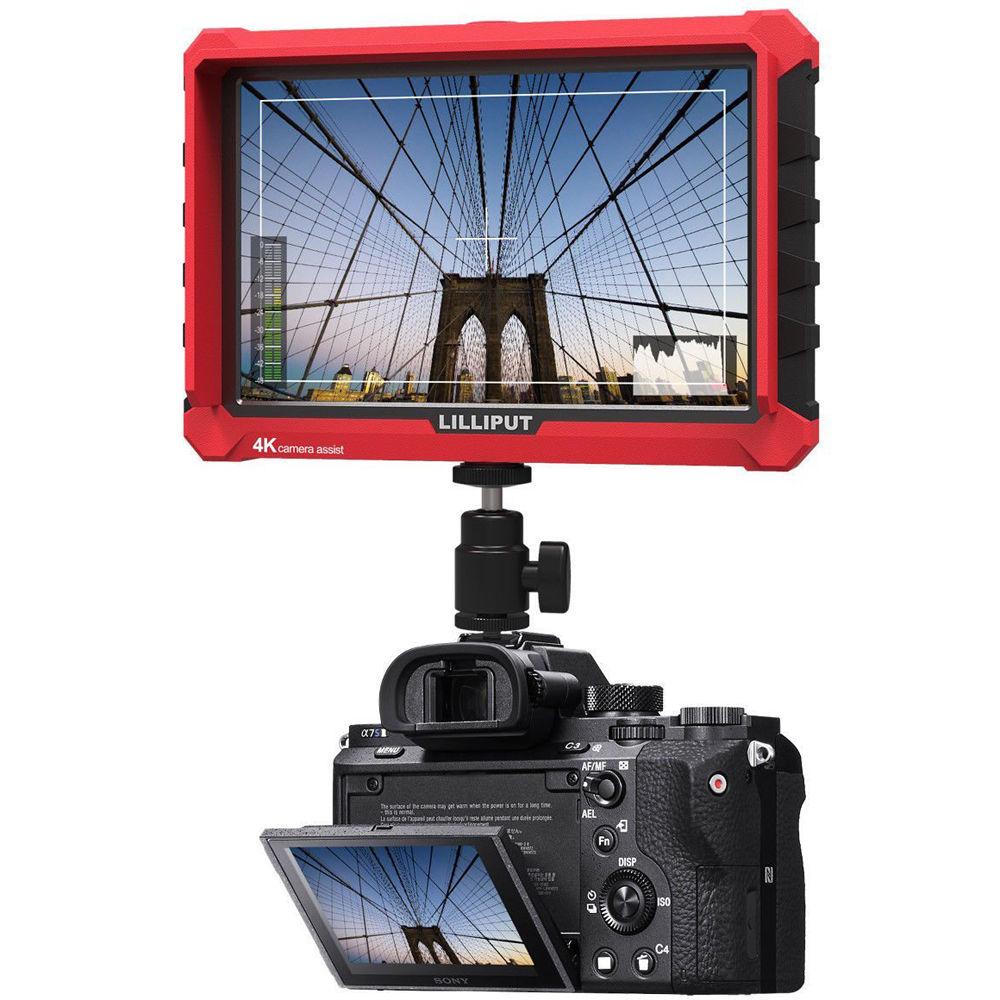

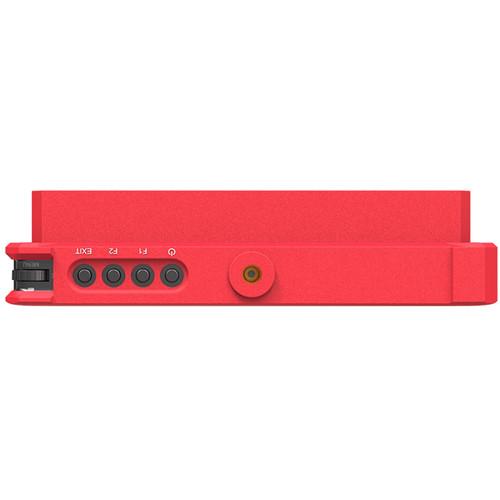

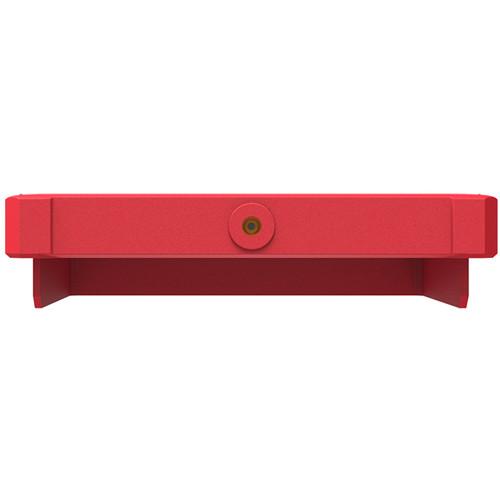

If you have upgraded to the 4K workspace, the A7S offers control over your shooting workflow both in the field and studio. You can create shortcuts to your favorite and most used monitor functions using the two customizable function keys. You can mount the monitor onto your camera by attaching the included shoe mount adapter to the 1/4"-20 threads at the bottom. You can also use the VESA 75 hole at the back to attach the A7S to other mounts. - Advanced functions such as timecode, columnar YRGB, pixel zoom, vectorscope, audio level meters, peaking, false color, histogram, exposure, check fields, color bars, pixel-to-pixel, and image flip
- Includes battery plates for Canon LP-E6 and Sony F-970
In the Box Lilliput A7S 7" Full HD Monitor with 4K Support (Red Case) Sony F-970 Type Battery Plate Canon LP-E6 Type Battery Plate Shoe Mount Adapter Mini-HDMI to HDMI Cable AC Adapter Sun Hood Red Silicone Rubber Case Limited 1-Year Warranty User Manual PDF 471.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput A7S 7" Full HD Monitor with 4K Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput A7S Specs | | | Panel Type | IPS-Type LCD | | Display Size | 7.0" / 17.8 cm | | Active Area | 5.94 x 3.74" / 15.1 x 9.5 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 170°

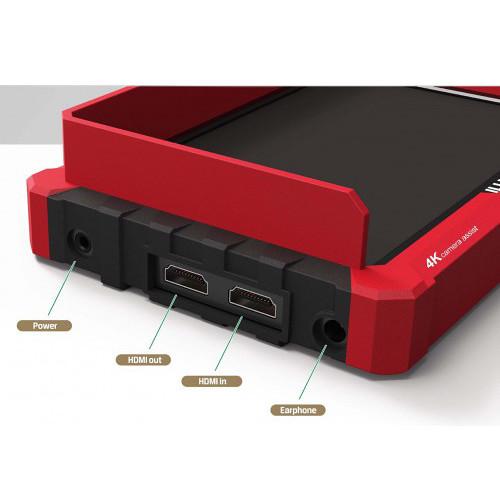

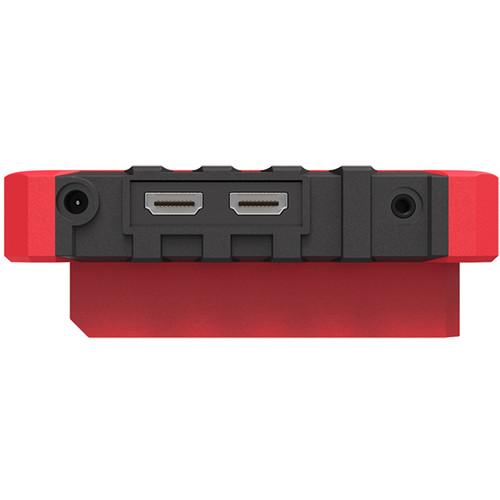

Vertical: 170° | | Touchscreen | No | | Maximum Brightness | 500 cd/m2 | | Contrast Ratio | 1000:1 | | Dot Pitch | 26.25 x 78.75 µm | | Pixels Per Inch (ppi) | 324 ppi | | Real-Time LUT Monitoring | No | | Image Controls | Color Temperature Selection, False Color, Histogram, Image Flip, Marker Color, Pixel-to-Pixel Zoom, Screen Markers, Underscan | | | | Video | 1 x HDMI Type A (HDMI 1.4) Input
1 x HDMI Type A (HDMI 1.4) Output | | Audio | 1 x 3.5 mm Headphone Input | | Built-In Speaker | 1 x 1 W | | Other I/O | None | | Card Slot | None | | | | Video Format | HDMIRGB
UHD 4K: 30 | | PC Resolutions | 3840 x 2160
4096 x 2160 | | | | DC Input Power | 7 to 24 VDC | | Battery Type | None | | Power Consumption | 12 W (Maximum) | | | | Mounting-Hole Pattern | 75 x 75 mm | | Mounting | 1 x 1/4"-20 Female | | | | Operating Humidity | 0 to 90% | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | | | Dimensions (W x H x D) | 7.2 x 0.8 x 4.9" / 18.29 x 2.03 x 12.45 cm | | Weight | 11.3 oz / 320 g | | | | Package Weight | 2.365 lb | | Box Dimensions (LxWxH) | 8.1 x 5.9 x 3.6" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
