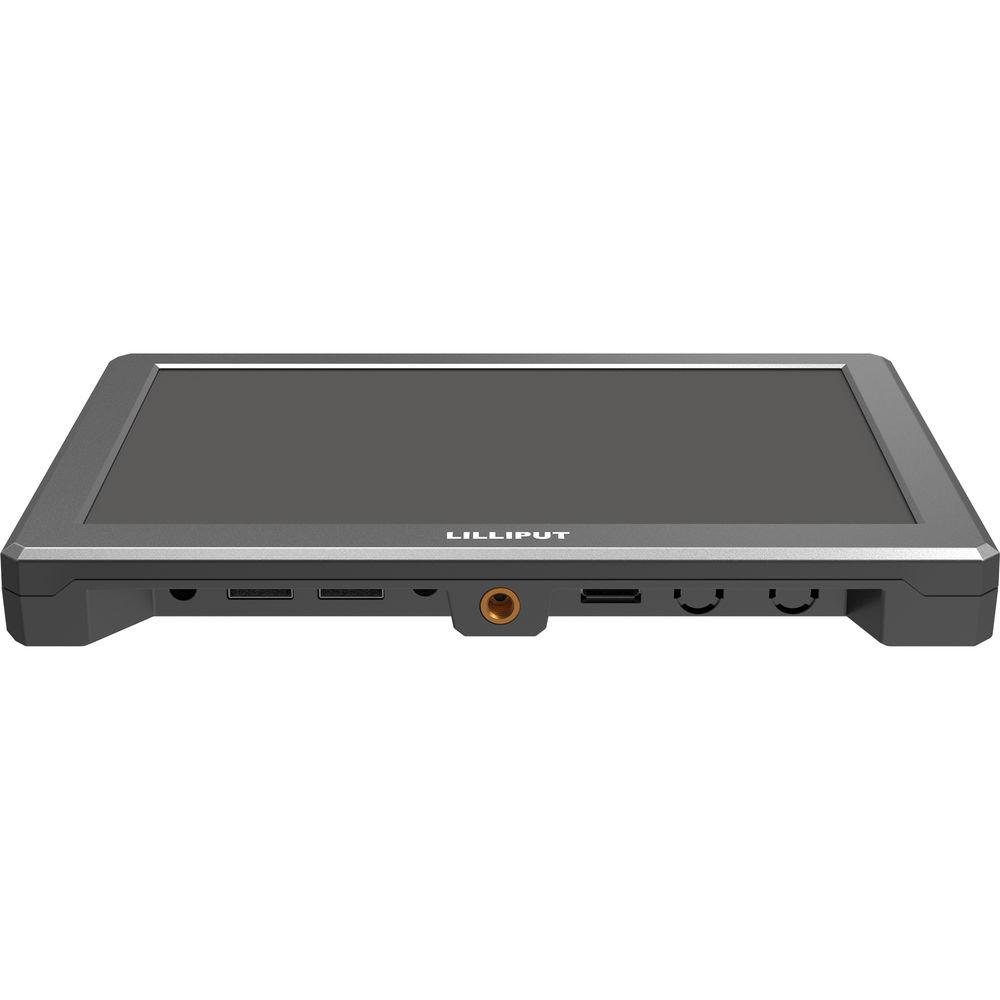

Product description This compact, lightweight, fully featured A8 4K 8.9" On-Camera HDMI Monitor from Lilliput is designed to take on almost any production. The 8.9" 1920 x 1200 LCD screen features 350 cd/m² brightness, 800:1 contrast ratio, and 170° viewing angle.
Its HDMI 1.4 input is compatible with DSLRs, mirrorless cameras, and professional camcorders and can input up to DCI and UHD 4K video at 30 fps. It features a loop-through HDMI output for additional displays. The A8 offers a wide color gamut, supporting eight default Rec. 709 logs and six user logs. It also supports loading custom 3D LUTs via its USB port.

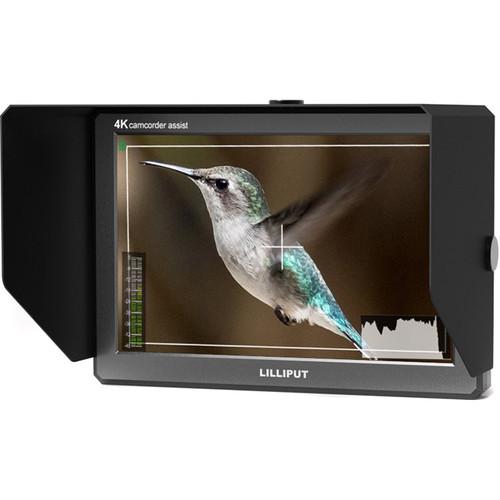

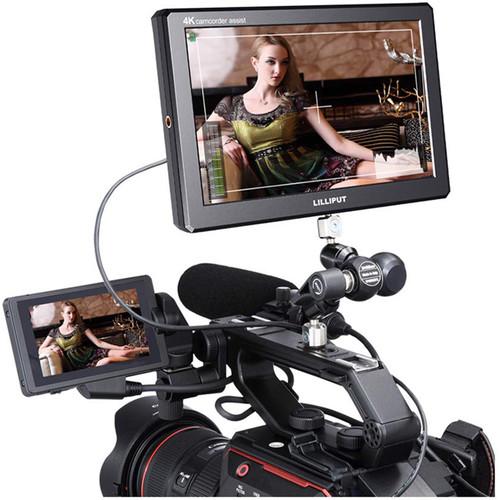

A power adapter is included as well as a built-in, dual-purpose L-Series/NP-F970 battery plate for when mains power is unavailable. When shooting outdoors, the included sun hood makes the screen easier to see by blocking any glare. An included articulating shoe mount attaches to the monitor's 1/4"-20 mounting thread and allows you to secure the A8 to your camera via a standard accessory shoe. Additionally, the back of the monitor features a set of VESA 75 mounting holes to attach an alternative mount. - Full HD Display
- The Full HD display supports up to DCI and UHD 4K30 input and features 1920 x 1200p resolution, 800:1 contrast ratio, and 350 cd/m² brightness
- Input and Loop Output
- The monitor features an HDMI 1.4 type A input and loop output
- Lightweight
- The compact, lightweight monitor weighs just over one pound
- Battery Plate

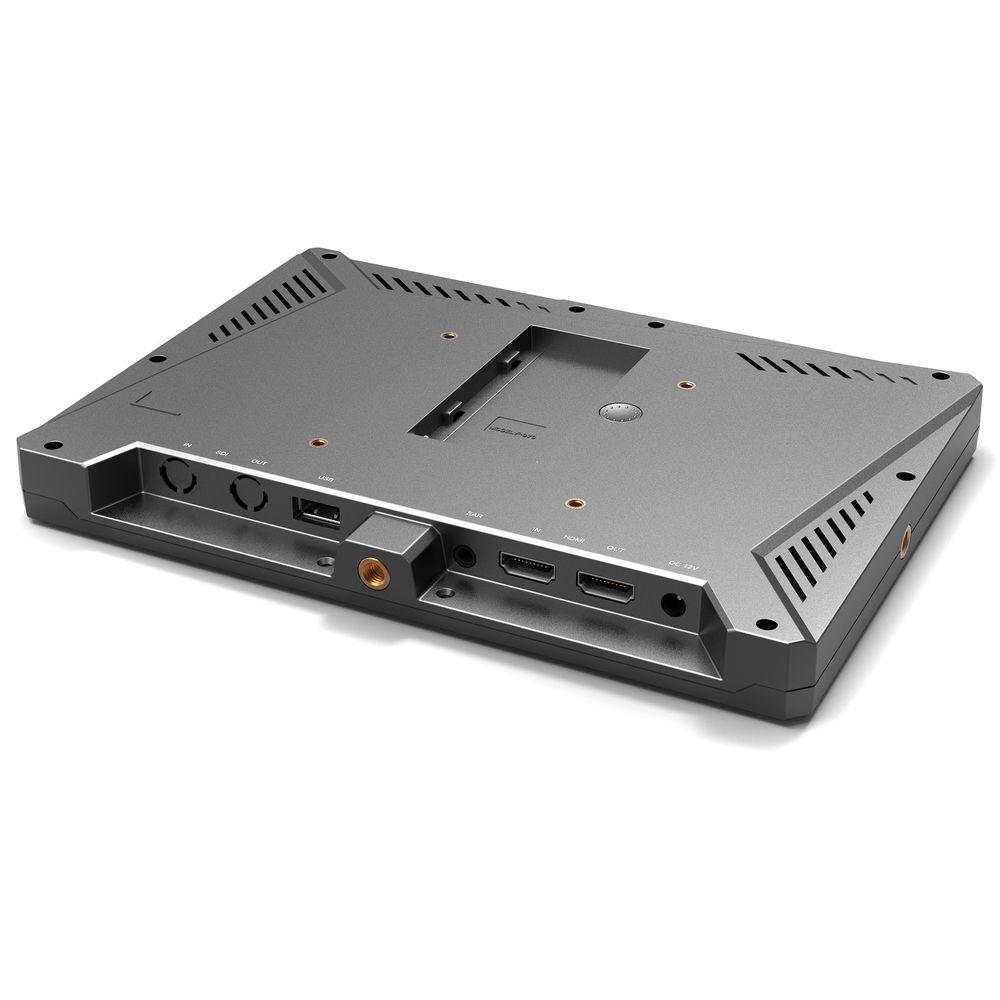

- The built-in battery plate supports L-Series/F-970-type batteries
- Mounting Options

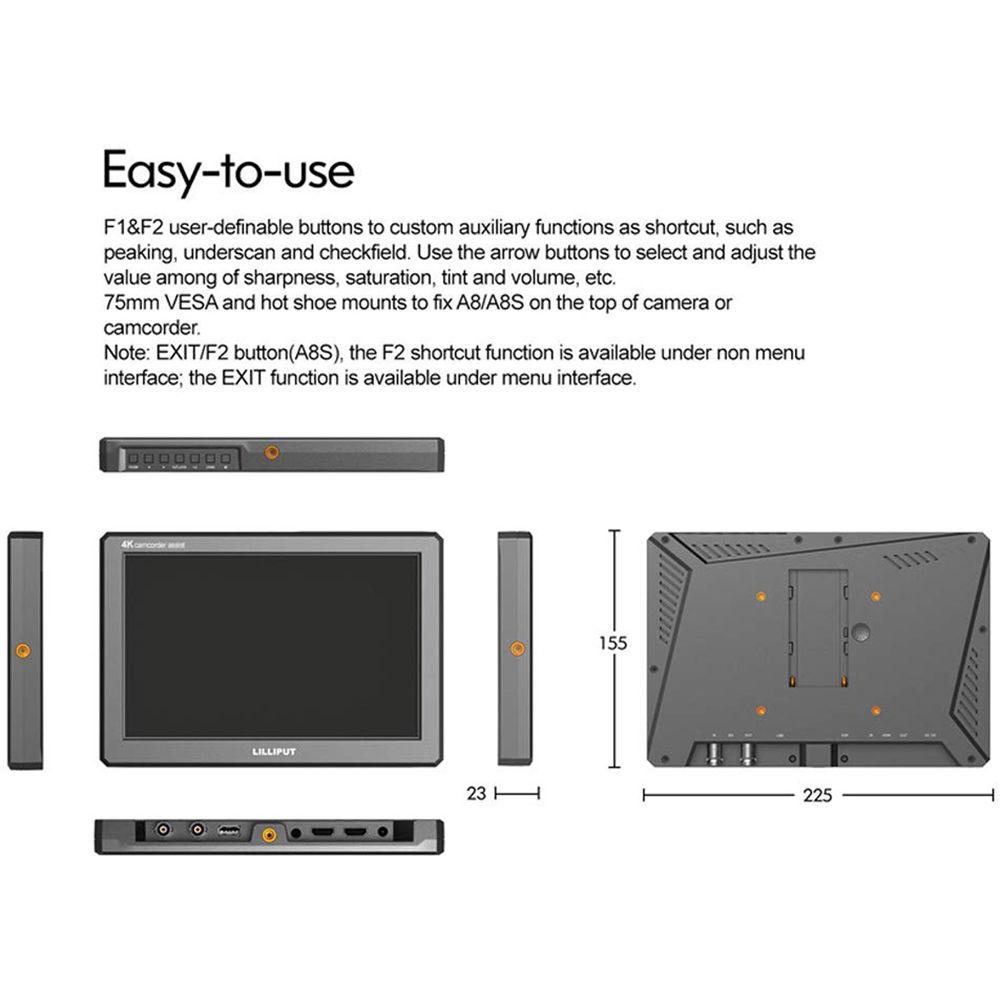

- The monitor features a 1/4"-20 mounting thread which accommodates the included ball shoe mount, as well as a VESA 75 mounting hole pattern on the back
- Monitoring Tools
- Analyze the incoming video signal with built-in video monitoring tools to achieve correct exposure, focus, and color balance. Built-in functions include:
- Timecode display
- Pixel zoom
- Pixel-to-pixel
- Waveform
- Audio level meters
- Check exposure
- Check field
- Focus peaking
- False color
- Histogram
- Zebra
- Color bars
- Image flip
In the Box Lilliput A8 4K 8.9" On-Camera HDMI Monitor Folding Sun Hood HDMI Type A to HDMI Type C Cable 12 VDC Power Adapter Mounting Plate Shoe Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput A8 4K 8.9" On-Camera HDMI Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput A8 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 8.9" / 22.6 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 170°
Vertical: 170° | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 800:1 | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Real-Time LUT Monitoring | SDR | | Image Controls | False Color, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform | | | | Video | 1 x HDMI Type A (HDMI 1.4) Input
1 x HDMI Type A (HDMI 1.4) Output | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 | | Power | 1 x Barrel Input | | Other I/O | 1 x USB 2.0 (USB Type-A) | | Card Slot | None | | | | Video Format | HDMI
DCI 4K: 30/29.97/25/24/23.98
UHD 4K: 30/29.97/25/24/23.98 | | | | DC Input Power | 7 to 24 VDC at 1 A | | Battery Type | 1 x L-Series | | Power Consumption | 10 W (Maximum) | | | | Mounting-Hole Pattern | 75 x 75 mm | | Mounting | 1 x 1/4"-20 Female | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | | | Dimensions (W x H x D) | 8.86 x 6.1 x 0.91" / 22.5 x 15.5 x 2.3 cm | | Weight | 18.87 oz / 535 g | | | | Package Weight | 3.235 lb | | Box Dimensions (LxWxH) | 11.2 x 10.4 x 3.1" |
