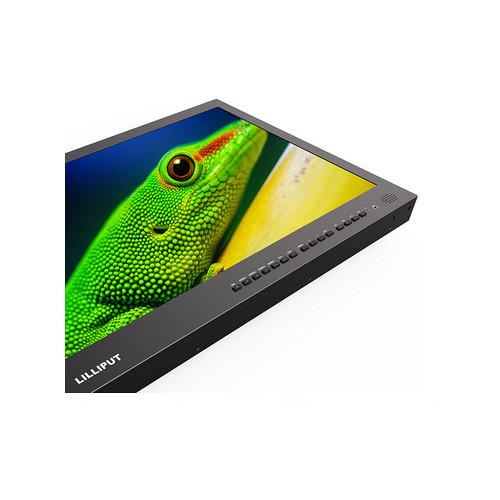

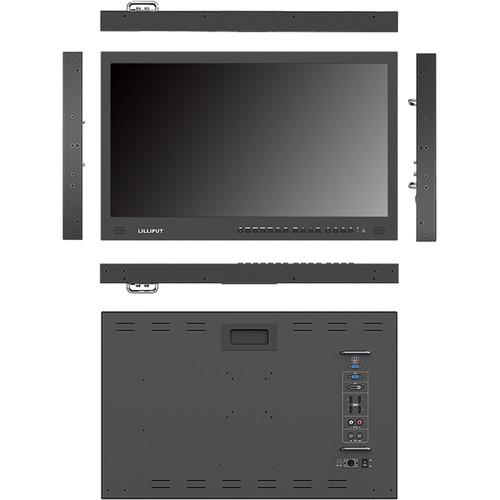

Product description Built into a hard case, the Lilliput BM280-4K is a 28" native UHD 4K monitor useful for both studio and field situations. The full capacity of the 3840 x 2160 UHD resolution 10-bit IPS panel can be driven at up to 30 fps by any of the three HDMI 1.4 inputs, or up to 60 fps by the single HDMI 2.0 input. Other inputs available on the back panel for HD and VESA sources include 3G-SDI (with a loop-through output), DVI, and VGA. Video signals input via any of these ports will be properly scaled to fit the entire screen. Analog audio from the RCA inputs or embedded digital audio from video inputs can be heard using the monitor's built-in speakers or the 3.5mm headphone output.
For power, this monitor accepts a wide range of voltages ranging from 12 to 24 VDC. In the studio, the included power supply plugs the BM280-4K into the wall, and the 75/100mm VESA mount can be utilized for mounting on a stand. The included tally connector passes tally information through to the monitor when connected to a switcher. While in the field, the monitor will accept battery power via the built-in Gold mount plate. It can be stood up vertically using the rubber feet built into the monitor's hard case, and a sunshade is included for increased visibility outdoors. Features - Monitoring Tools
-
- Peaking
- Blue-only
- Image rotation/flip
- Overscan
- Underscan
- Image freeze
- Aspect ratio selection
- Screen markers
- Color temperature adjustment
- Assignable Buttons
- Using the four assignable buttons on the front panel, you can quickly turn any four essential monitoring tools on and off without venturing into the monitor's menu system.

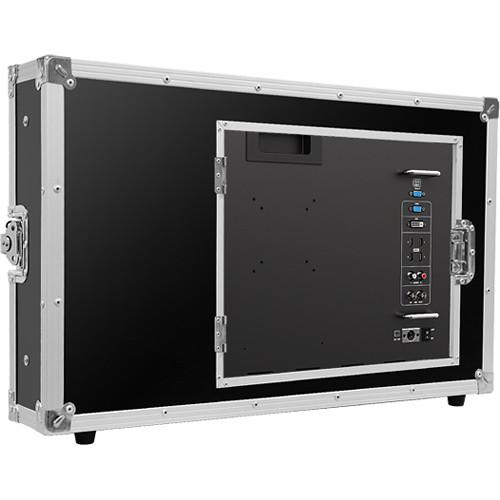

- Carry-On Enclosure
- The included hard case/enclosure improves the robustness of the monitor's metal chassis, useful when venturing outside controlled environments. A rear opening gives easy access to all the monitor's ports and accessory mounts.
- Supports Wireless HDMI (WHDI) Technology
- With a separately available WHDI receiver, the BM230-4K can accept wireless HDMI signals from up to 50' away for a hassle-free cordless connection. With the WHDI system in place one transmitter can broadcast to multiple receivers, so no splitter is required for multi-monitor viewing.
In the Box Lilliput BM280-4K Carry-On 4K Monitor (Gold Mount) Sunshade Power Cord 2 x Power Adapter Fixing Belt Tally Connector Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput BM280-4K Carry-On 4K Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput BM280-4K Specs | | | Panel Type | IPS-Type LCD | | Display Size | 28.0" / 71.1 cm | | Screen Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Touchscreen | No | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 1000:1 | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Real-Time LUT Monitoring | No | | Image Controls | Color Temperature Selection, Focus Peaking, Image Flip, R/G/B/Chroma Only, Screen Markers, Underscan | | | | Video | 1 x HDMI Type A (HDMI 2.0) Input
3 x HDMI Type A (HDMI 1.4) Input
1 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Output
1 x DVI-I (Dual-Link DVI) Input
1 x DE-15/DB-15 (VGA) Input | | Audio | 1 x 2RCA Line Input
1 x 3.5 mm Headphone Output | | Built-In Speaker | 2 | | Power | 1 x 4-Pin XLR Input | | Other I/O | 1 x Tally (DE-9/DB-9) | | Card Slot | None | | | | DC Input Power | 12 to 24 VDC | | Battery Type | 1 x Gold Mount | | | | Mounting-Hole Pattern | 100 x 100 mm, 75 x 75 mm | | Mounting | None | | | | Operating Temperature | 32 to 140°F / 0 to 60°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Dimensions (W x H x D) | 26.4 x 16.7 x 1.7" / 67.06 x 42.42 x 4.32 cm
30 x 18.7 x 6.8" / 76.2 x 47.5 x 17.27 cm, Including Case | | Weight | 20.7 lb / 9.39 kg
51.8 lb / 23.50 kg, Including Case | | | | Package Weight | 53.5 lb | | Box Dimensions (LxWxH) | 33.0 x 21.5 x 9.35" |
