User Manual for Lilliput Dual 7" 3U 3G-SDI Monitor Rackmount Click to enlarge the picture
Contents of the user manual for the Lilliput Dual 7" 3U 3G-SDI Monitor
- Product category: Production Monitors Lilliput
- Brand: Lilliput
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lilliput Production Monitors
 |
User manual for the Lilliput Dual 7" 3U 3G-SDI Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lilliput product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lilliput user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lilliput product will considerably shorten its lifespan!
|

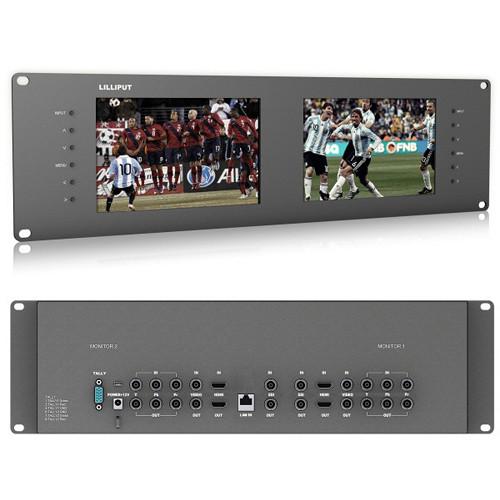

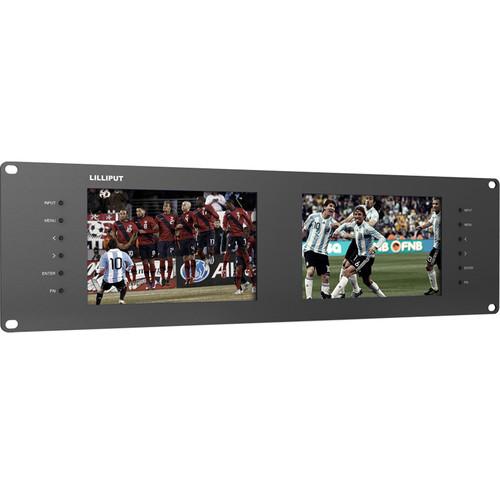

Product description The Dual 7" 3U 3G-SDI Monitor Rackmount from Lilliput features two 7" IPS panels with a native resolution of 1280 x 800. The monitors are equipped with a 3G-SDI connectivity and can be mounted in a 3U rack system or events managers board. They are fitted with a 2674 processing chip that gives a greater range of input frequencies. This DSLR optimized system is compatible with professional multimedia and video equipment. - Compatible with Black Magic Pocket Cinema camera
- Twin 7" IPS monitors with widescreen aspect
- 800:1 contrast ratio gives accurate color representation
- Sunlight readable with a 400 cd/m2 brightness output
- 3G SDI, HDMI, component (YPbPr), and composite connectivity
In the Box Lilliput Dual 7" 3U 3G-SDI Monitor Rackmount 12V/2A Power Adapter (UK,EU,US) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput Dual 7" 3U 3G-SDI Monitor Rackmount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

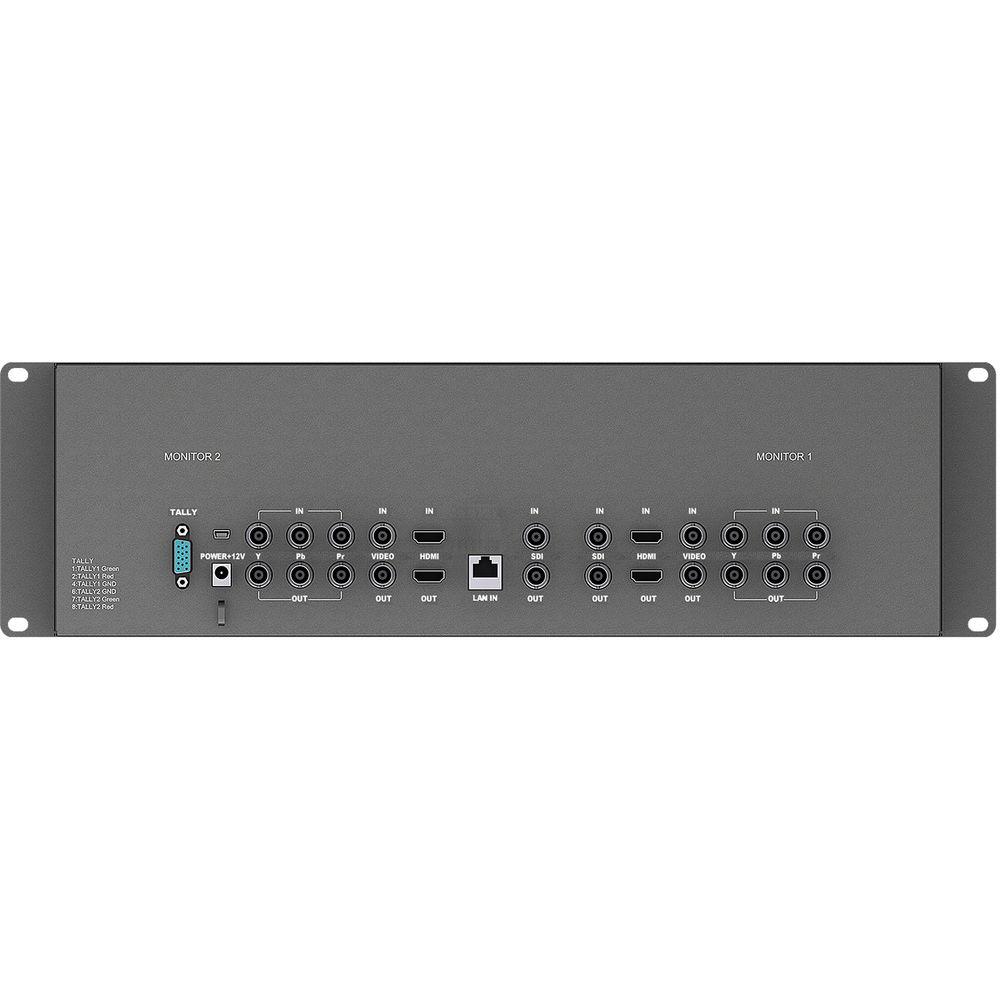

Technical parametersLilliput RM-7028S Specs | Screen Size (Diagonal) | 2 x 7" (17.8 cm) | | Screen Type | IPS LED screen | | Aspect Ratio | 16:9 | | Native Resolution | 1280 x 800 | | Maximum Resolution | 1920 x 1080 | | Viewing Angle | 178°/178° | | Brightness | 400 cd/m2 | | Contrast Ratio | 800:1 | | Video Inputs | 2 x 3G-SDI
2 x HDMI
2 x YPbPr
2 x Composite
2 x Tally connection
1 x USB mini | | Video Outputs | 2 x 3G-SDI
2 x HDMI
2 x YPbPr
2 x Composite | | Input Voltage | 12 VDC | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions | 5.3 x 19 x 1" (13.4 x 48.3 x 2.5 cm) | | Weight | 6.4 lb (2.9 kg) | | | | Package Weight | 6.85 lb | | Box Dimensions (LxWxH) | 23.4 x 7.0 x 3.8" |
