User Manual for Lilliput FA1011-NP C T 10.1"-Class WSVGA Touchscreen LCD Monitor Click to enlarge the picture
Contents of the user manual for the Lilliput FA1011-NP C T 10.1"-Class WSVGA
- Product category: Commercial Monitors Lilliput
- Brand: Lilliput
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lilliput Commercial Monitors
 |
User manual for the Lilliput FA1011-NP C T 10.1"-Class WSVGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lilliput product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lilliput user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lilliput product will considerably shorten its lifespan!
|

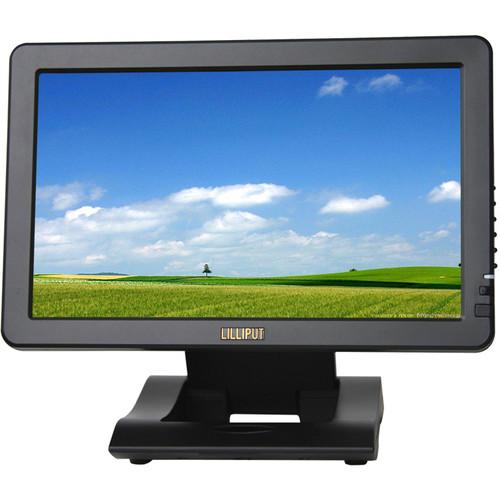

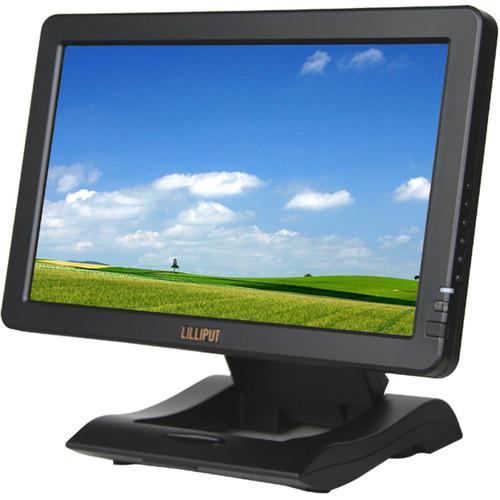

Product description Add touchscreen control to your system with the Lilliput FA1011-NP/C/T 10.1"-Class WSVGA Touchscreen LCD Monitor. It uses a 4-wire resistive touch panel and connects to your system via USB. Its native resolution is WSVGA 1024 x 600, but it accepts signals up to Full HD 1920 x 1080. With a brightness rating of 250 cd/m2, a contrast ratio of 500:1, and a matte display, colors should appear clear with virtually no reflection in most installation settings. The monitor is equipped with an HDMI input and a proprietary 14-pin SKS input, and includes an SKS breakout cable that accepts VGA, S-Video, RCA composite, and mono RCA audio. In addition, a DVI-to-HDMI adapter, HDMI cable, VGA cable, and touch pen are included - Widescreen 10.1" Monitor
- The 16:9 native aspect ratio makes the FA1011 well-suited for a variety of A/V applications, such as TV broadcast rooms, presentation installations, and recording/editing setups.
- Matte Display and 500:1 Contrast Ratio for Enhanced Image Quality
- The high contrast ratio, LED backlight, and matte display help produce well-represented colors with virtually no screen reflection. LED technology also provides low power consumption, an instant-on backlight, and consistent brightness.
- Native 1024 x 600 Resolution
- The FA1011 can display signals with resolutions up to 1920 x 1080 over HDMI, making it compatible with many HDMI and high-definition sources.
- Touchscreen Capability
- The FA1011 features a 4-wire resistive touchscreen for interactive media installations, including point-of-sale and digital signage applications.
- Enhanced Connectivity
- Thanks to the included SKS breakout cable, the FA1011 supports HDMI, DVI, VGA, and composite video inputs, allowing you to connect your computer, Blu-ray player, CCTV camera, DSLR, or other source.
- Two Mounting Options

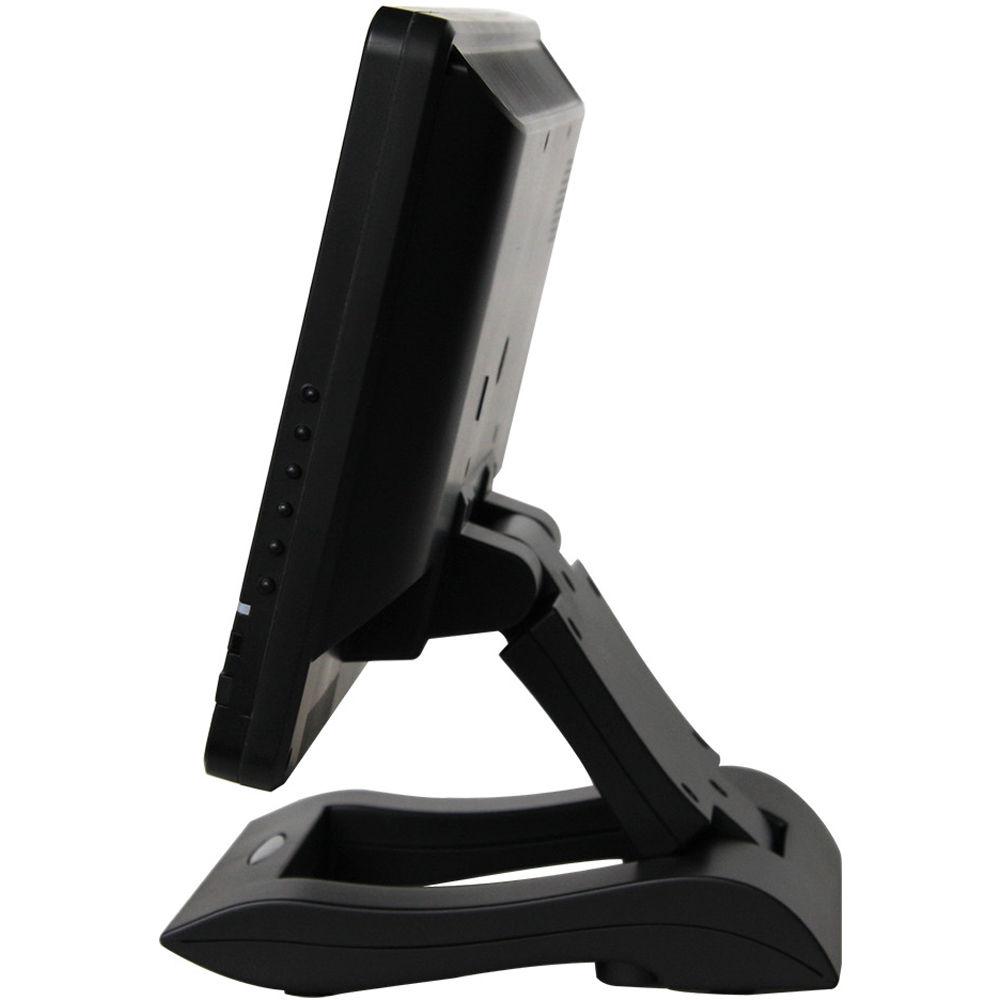

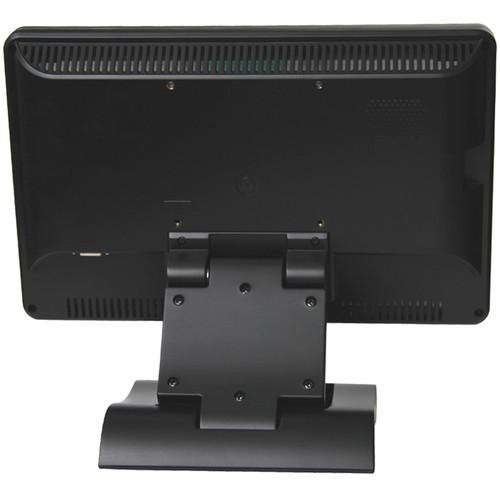

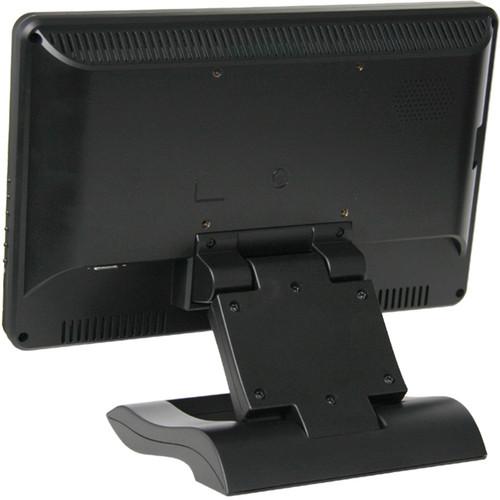

- You can either use the pre-installed desktop stand, or you can detach it and connect the monitor to a VESA 75-compatible mount.
In the Box Lilliput FA1011-NP/C/T 10.1"-Class WSVGA Touchscreen LCD Monitor Remote Control Touch Pen HDMI Cable DVI to HDMI Cable VGA Cable 14-Pin SKS Breakout Cable Software CD 12 VDC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput FA1011-NP C T 10.1"-Class WSVGA Touchscreen LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput FA1011 Specs | | | Screen Size (Diagonal) | 10.1" | | Native Resolution | 1024 x 600 | | Supported Display Resolutions | 1920 x 1080 | | Brightness | 250 cd/m
