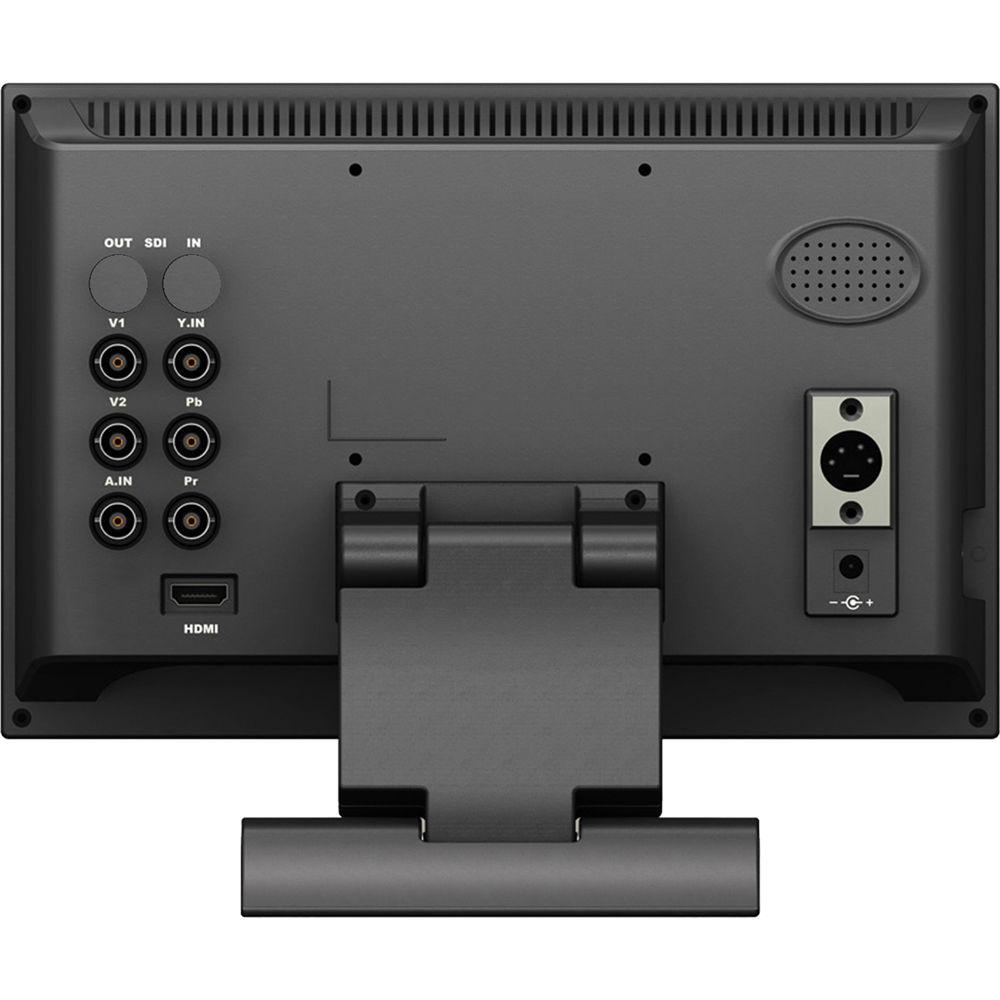

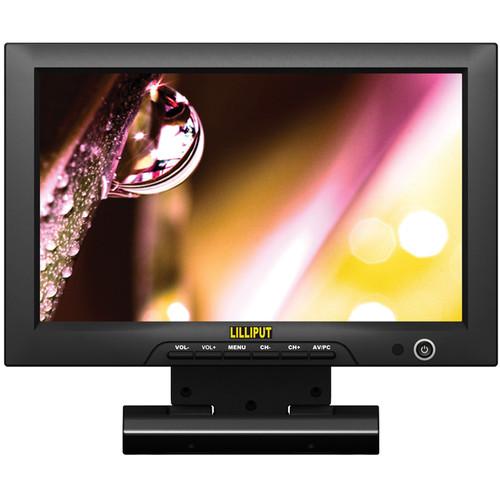

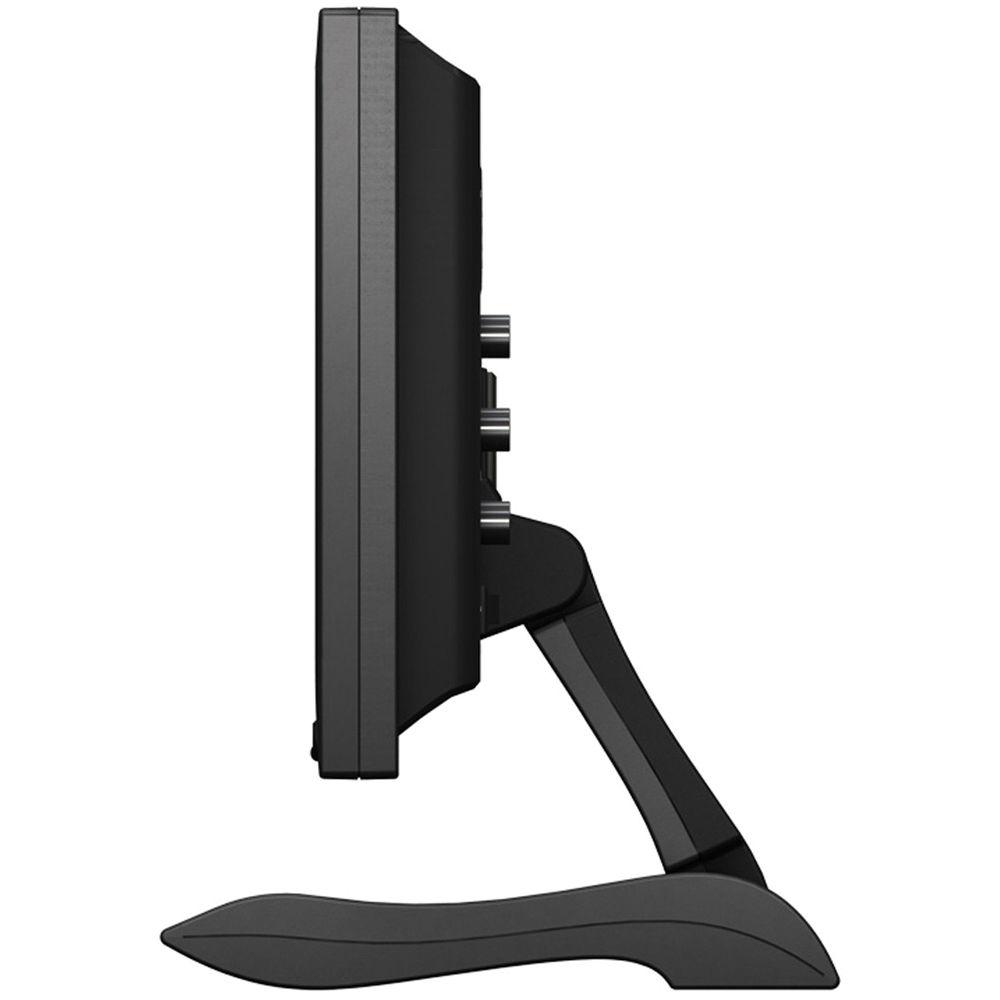

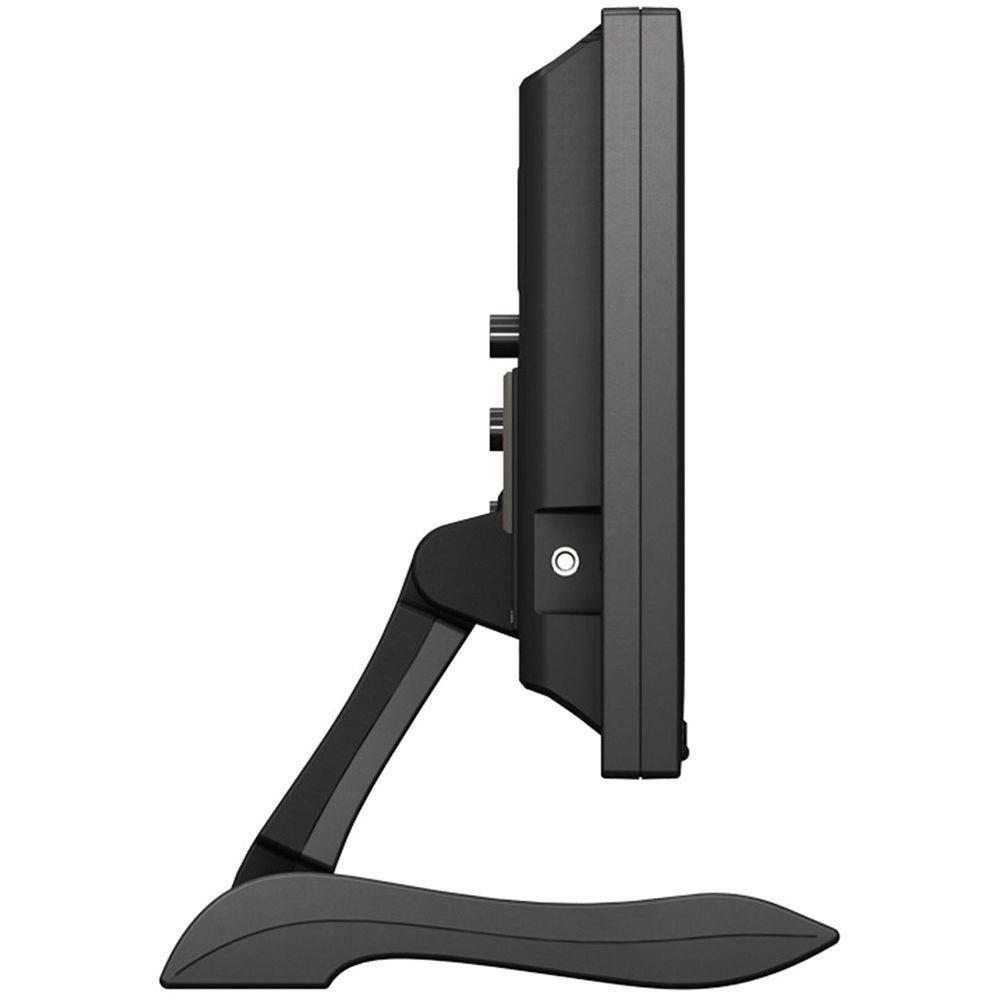

User Manual for Lilliput FA1013 10.1" Field Monitor Click to enlarge the picture
Contents of the user manual for the Lilliput FA1013 10.1" Field Monitor
- Product category: Production Monitors Lilliput
- Brand: Lilliput
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lilliput Production Monitors
 |
User manual for the Lilliput FA1013 10.1" Field Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lilliput product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lilliput user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lilliput product will considerably shorten its lifespan!
|
Product description Monitor Composite, Component, or HDMI sources with the Lilliput FA1013 10.1" Field Monitor. Featuring a sharp and bright 1024 x 600 LED LCD display, the FA1013 can display digital or analog SD and HD video signals, leveraging the 16:9 aspect ratio to avoid letterboxing HD video. The Component and Composite analog inputs have loop outputs for daisy-chaining other video equipment. Because of it's compact and portable design, the FA1013 can be implemented into studio, CCTV, A/V, and field production workflows. As a field monitor, the FA1013 can be mounted in various ways for different purposes. The integrated stand allows for straightforward desk mounting, while 75mm VESA securing points open up more flexible installation options. Additionally, a 1/4"-20 mouting point is available for securing the FA1013 to your camera rig with a separately available arm. Along with the monitor, you'll receive an HDMI to mini-HDMI cable for connecting most common DSLR cameras and a 12V power supply. In the Box Lilliput FA1013 10.1" Field Monitor HDMI Cable 12 VDC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput FA1013 10.1" Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput FA1013-NP/H/Y Specs | | | Panel Type | TFT LCD | | Display Size | 10.1" / 25.6 cm | | Screen Resolution | 1024 x 600 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 140°
Vertical: 110° | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 500:1 | | | | Video | 1 x 3BNC (Component) Input
1 x HDMI Type A Input
1 x BNC (Composite) Input | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 x 1.2 W | | Card Slot | None | | | | DC Input Power | 6 to 24 VDC | | Battery Type | None | | Operating Current | 500 mA | | | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | | | Dimensions (W x H x D) | 10.2 x 6.7 x 1.4" / 259 x 170 x 37 mm | | Weight | 2.5 lb / 1.1 kg | | | | Package Weight | 3.58 lb | | Box Dimensions (LxWxH) | 13.45 x 11.35 x 3.6" |
