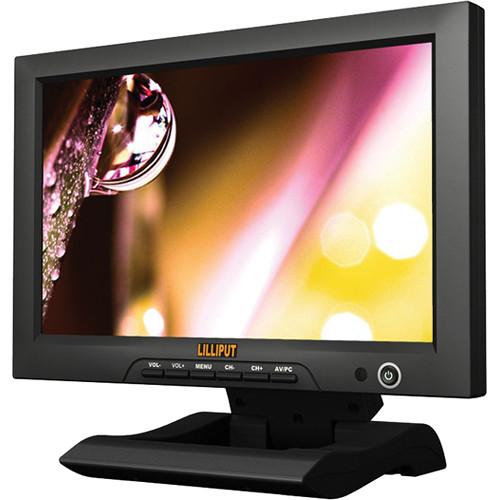

Product description This FA1013/S 10.1" Field Monitor with HDMI & 3G-SDI Inputs from LILLIPUT is a desktop field monitor that supports 1920 x 1080p, NTSC, and PAL video signals. It features a native resolution of 1024 x 600 and scales your video signal to display on its screen. The monitor supports Full HD video at 60p, and will also display footage shot at 23.98 (23.976) fps, making it suitable for use with any camera that outputs HD video at 23.98 over HDMI or SDI. Featuring an HDMI input and SDI in and out, the monitor can easily fit into most workflows.

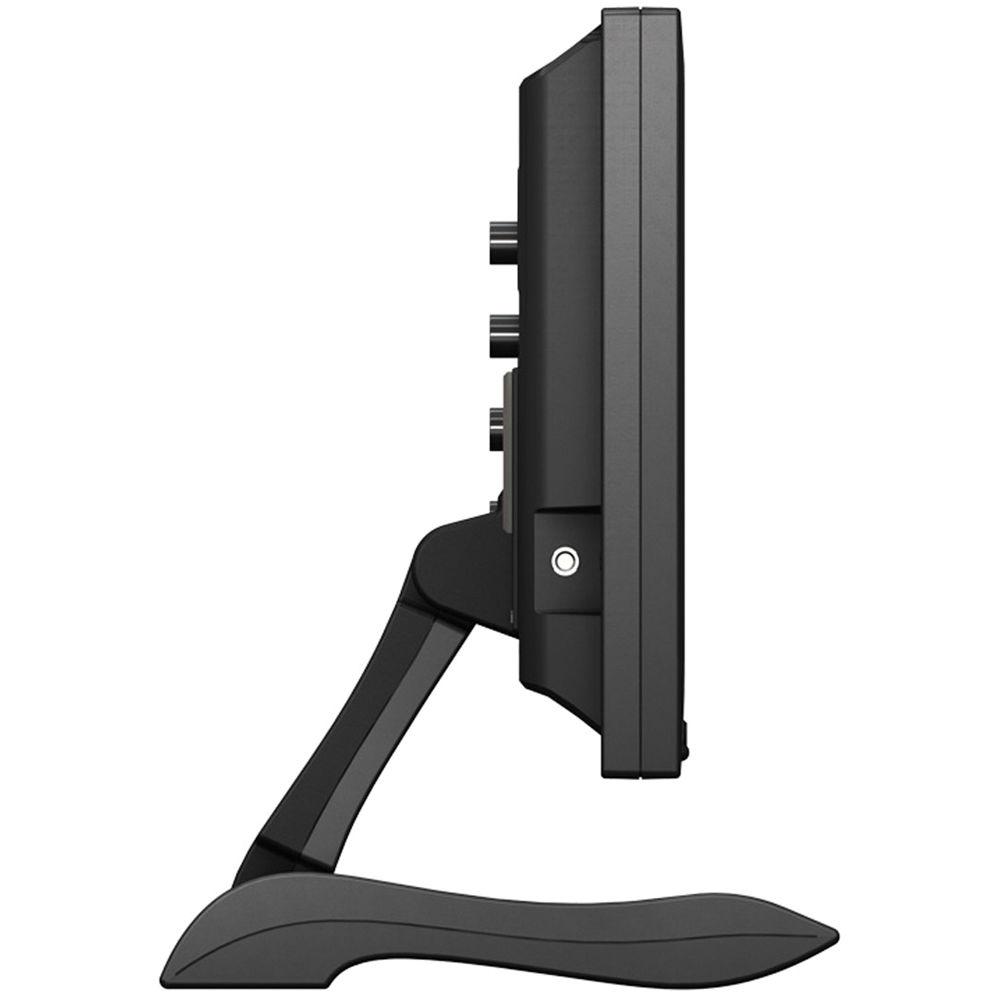

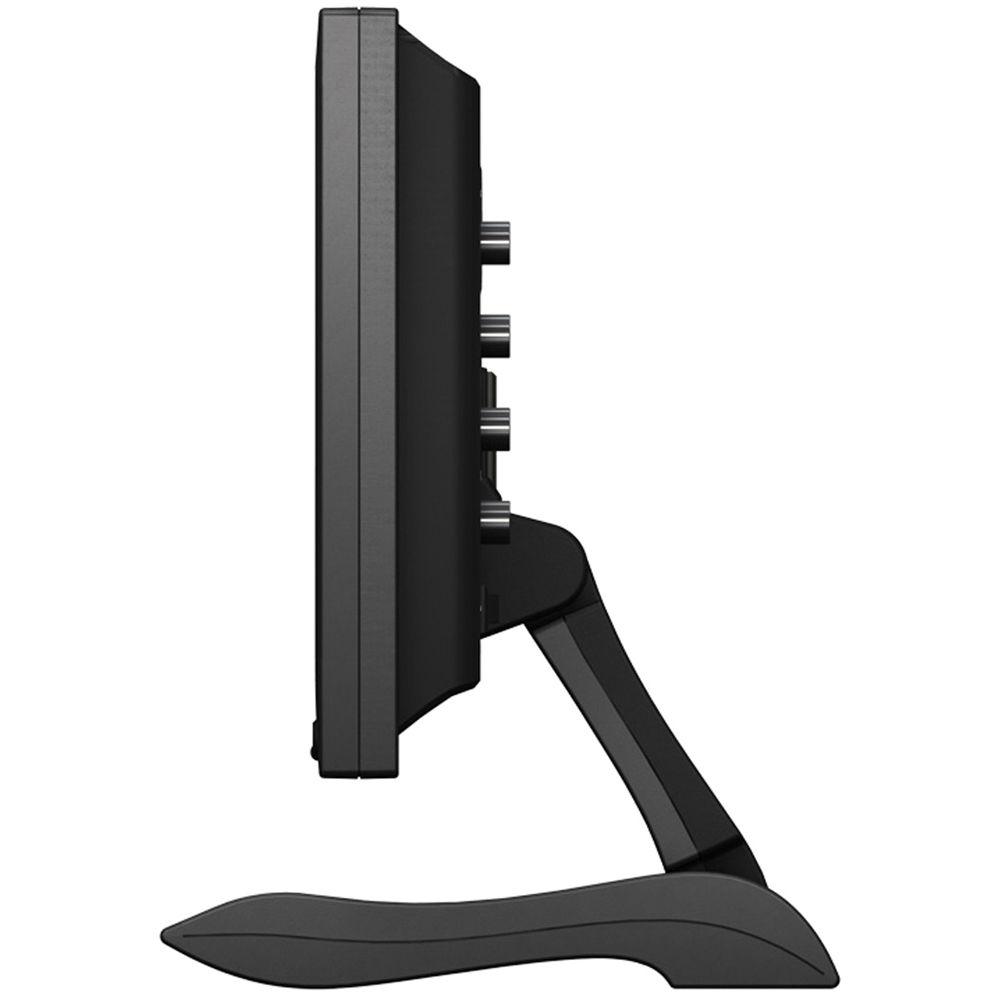

The monitor supports a 140° viewing angle left-to-right for good color and contrast reproduction when viewed slightly off-center. Six front panel buttons provide menu access and navigation. The monitor is powered by 12 VDC via a 4-pin XLR input, which makes it suitable for use in the field, and it is fitted with a desktop stand so you can mount it on a flat surface if you wish. An included remote control allows you to access the monitor's functions and an included shoe mount allows you to mount the monitor on your camera's accessory shoe if you wish. - 24 and 23.98 Frame Rate Support
- The monitor supports Full HD frame rates up to 60p in both NTSC and PAL compatible frame rates. The monitor also supports HD video at 24 fps to allow you to see video shot at cinema frame rates. 23.98 (AKA 23.976) is also supported, which is the video version of 24 fps. This allows you to use this monitor to view footage shot by cameras that record at cinema frame rates.
- Basic Display Controls
- Volume down
Volume up
MENU
2 x Selection key
Switch key
Power - Advanced Display Controls
- Brightness
Contrast
Color
Tone
Clarity
Color Temp - Functionality
- Check Field: provides a monochrome view of your image using only the red, green, blue signals, or a grayscale of your image.
Aspect Ratio: Adjust the monitor's aspect ratio from full screen, 4:3, or 16:9
Pixel-to-Pixel: 1:1 pixel-to-pixel mapping allows you to look at sections of your image without any scaling, so you can see the actual detail and not be fooled by scaling artifacts.
H/V delay: H/V delay allows you to check your video's vertical blanking interval. This monitor allows you to check the H/V delay or select either the horizontal delay or vertical delay individually.
Underscan: Shrinks the video image so that the edges are visible.
Language: English, Chinese
Freeze Input In the Box Lilliput FA1013/S 10.1" Field Monitor with HDMI & 3G-SDI Inputs DC Adapter HDMI Type-A to HDMI Type-C Cable Shoe Mount Remote Control 2 x BNC to RCA Adapters Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput FA1013 S 10.1" Field Monitor with HDMI & 3G-SDI Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput FA1013/S Specs | | | Panel Type | TFT LCD | | Display Size | 10.1" / 25.6 cm | | Screen Resolution | 1024 x 600 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 140°
Vertical: 110° | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 500:1 | | | | Video | 1 x BNC (SDI) Output

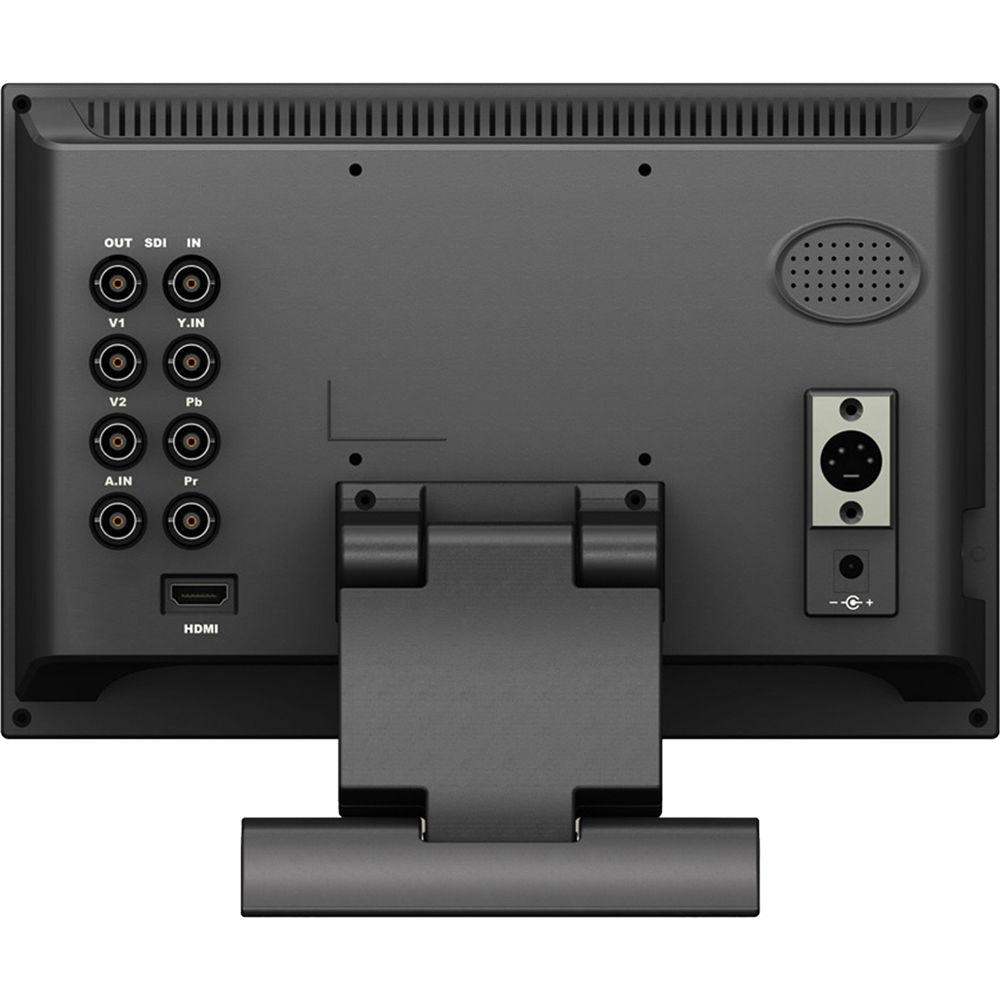

1 x BNC (SDI) Input
1 x 3BNC (Component) Input
1 x HDMI Type A Input | | Audio | 1 x BNC Output | | Built-In Speaker | None | | Power | 1 x Barrel Input
1 x 4-Pin XLR Input | | Card Slot | None | | | | Video Format | SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 24
1080i: 50/59.94/60
720p: 25/30/50/59.94/60
HDMI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 24
1080i: 50/59.94/60
720p: 25/30/50/59.94/60
576p: 50
PAL: 50
480p: 59.94/60
NTSC: 59.94/60
Component
576p: 50
PAL: 50
480p: 59.94/60
NTSC: 59.94/60
Composite
576p: 50
PAL: 50
480p: 59.94/60
NTSC: 59.94/60 | | | | Battery Type | None | | Power Consumption | 10 W (Maximum) | | | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | | | Dimensions (W x H x D) | 10.2 x 6.7 x 1.4" / 25.9 x 17 x 3.7 cm | | | | Package Weight | 4.1 lb | | Box Dimensions (LxWxH) | 12.9 x 11.3 x 3.6" |
