User Manual for Lilliput FA1014 S 10.1" IPS On-Camera 3G-SDI HDMI Monitor Click to enlarge the picture
Contents of the user manual for the Lilliput FA1014 S 10.1" IPS On-Camera
- Product category: Production Monitors Lilliput
- Brand: Lilliput
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lilliput Production Monitors
 |
User manual for the Lilliput FA1014 S 10.1" IPS On-Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lilliput product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lilliput user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lilliput product will considerably shorten its lifespan!
|

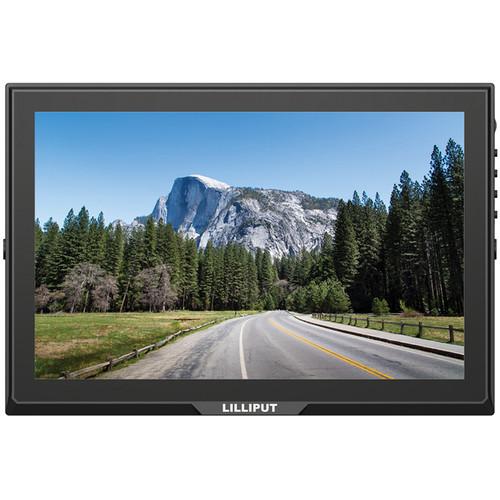

Product description This FA1014/S 10.1" IPS On-Camera 3G-SDI/HDMI Monitor from LILLIPUT is a field monitor that supports 1920 x 1080p, NTSC, and PAL video signals. It features a native resolution of 1280 x 800 and scales your video signal to display on its screen. The monitor supports Full HD video at 60p, and will also display footage shot at 23.98 (23.976), making it suitable for use with any camera that outputs HD video at 23.98. Featuring both HDMI and SDI in and out, the monitor can easily fit into most workflows. The monitor supports a 170° viewing angle for good color and contrast even when viewed from extremely off center. The monitor is powered by 12 VDC via a mini 4-pin XLR input, which makes it suitable for use in the field. the included 4-pin to mini-4-pin cable features pigtails that allow you to add Tally info. The integrated dustproof front panel protects the monitor's LCD screen from dust, moisture droplets and fingerprints. An included remote control allows you to access the monitor's functions and an included shoe mount allows you to mount the monitor on your camera's accessory shoe if you wish. - 24 and 23.98 Frame Rate Support
- The monitor supports Full HD frame rates up to 60p in both NTSC and PAL compatible frame rates. The monitor also supports HD video at 24 fps to allow you to see video shot at cinema frame rates. 23.98 is also supported, which is the video version of 24 fps. 23.98 is actually recorded at 23.976 fps, but referred to as 23.98. This allows you to use this monitor to view footage shot by cameras that record at cinema frame rates.

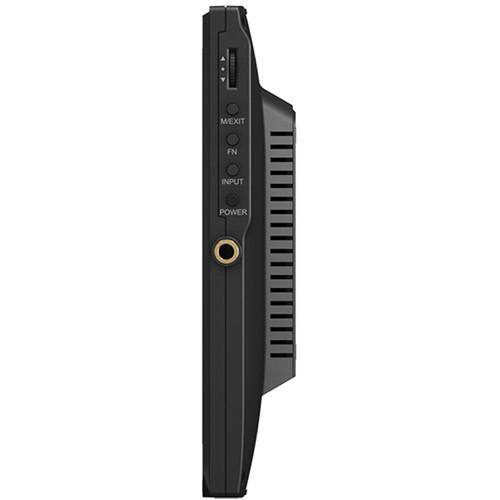

- Basic Display Controls
- Dial
MENU
FN
Input
Power - Advanced Display Controls
- Brightness
Contrast, Saturation
Tint
Sharpness
Volume
Color Temp
Center Marker
Safety Marker
Aspect Ratio
H/V delay
Check Field
Pixel-to-Pixel
Underscan
Zoom
Freeze Input
Auto
H-Position
V-Position
Phase
Clock
Language
Reset
Backlight
Auto Light
Image Flip
Upgrade - Functionality
- Check Field: provides a monochrome view of your image using only the red, green, blue signals, or a grayscale of your image.
Aspect Ratio: Adjust the monitor's aspect ratio from full screen, 4:3, or 16:9
Pixel-to-Pixel: 1:1 pixel-to-pixel mapping allows you to look at sections of your image without any scaling, so you can see the actual detail and not be fooled by scaling artifacts.
H/V delay: H/V delay allows you to check your video's vertical blanking interval. This monitor allows you to check the H/V delay, or select either the horizontal delay or vertical delay individually.
Underscan: Shrinks the video image so that the edges are visible.
Language: English, Chinese In the Box Lilliput FA1014/S 10.1" IPS On-Camera 3G-SDI/HDMI Monitor DC Adapter Mounting Bracket HDMI to mini HDMI Cable Mini XLR & Tally Cable 12 VDC Adapter Shoe Mount Video Output Cable Composite Cable VESA Battery Plate Mount Sony L-Series Battery Plate Canon LP-E6 Battery Plate Mount Plate Bracket Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput FA1014 S 10.1" IPS On-Camera 3G-SDI HDMI Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput FA1014/S Specs | | | Panel Type | IPS-Type LCD | | Display Size | 10.1" / 25.6 cm | | Screen Resolution | 1280 x 800 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 170°

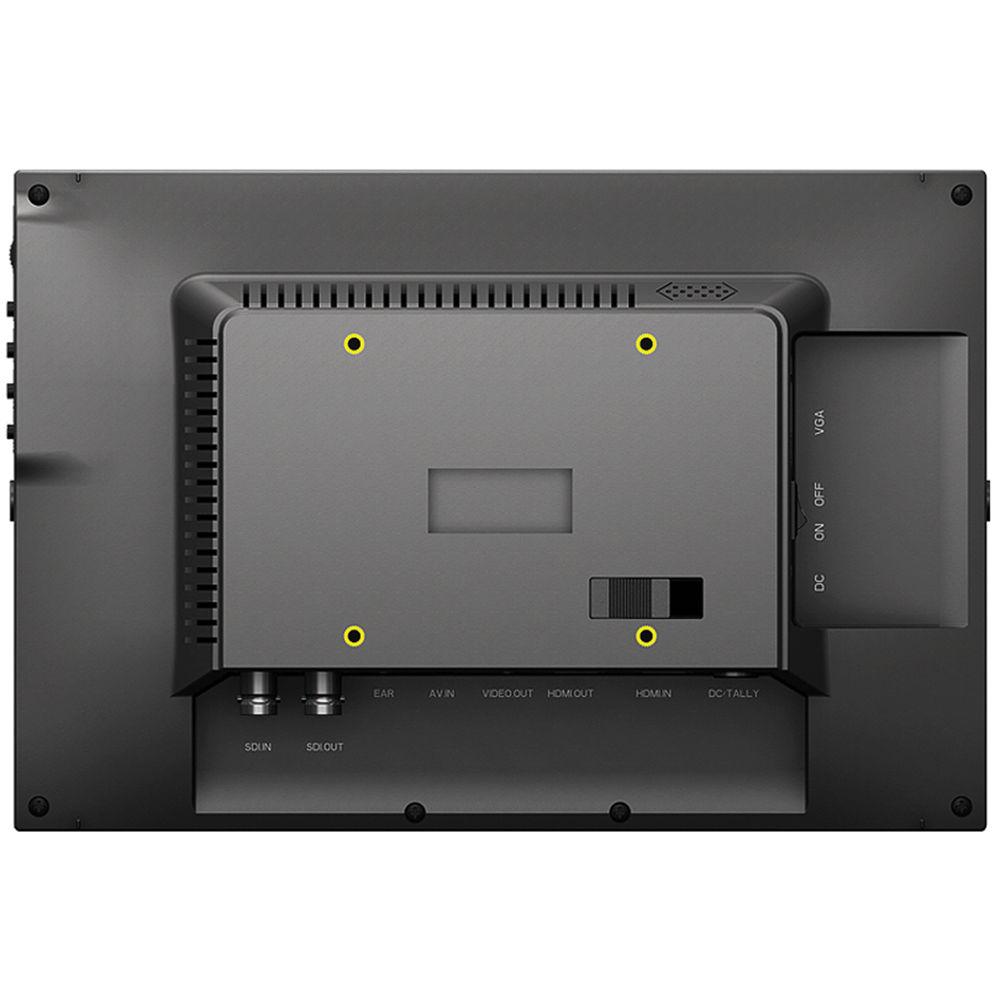

Vertical: 170° | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 800:1 | | | | Video | 1 x BNC (SDI) Output
1 x HDMI Type A Output
1 x BNC (SDI) Input
1 x HDMI Type A Input

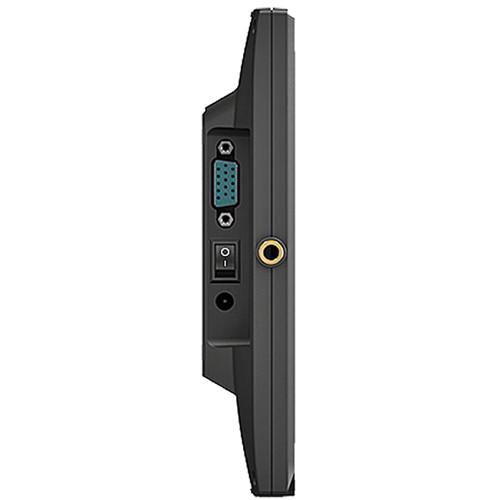

1 x DE-15/DB-15 (VGA) Input | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 x 1 W | | Card Slot | None | | | | Video Format | SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 24
1080i: 50/59.94/60
720p: 25/30/50/59.94/60
NTSC: 59.94/60
PAL: 50 | | | | DC Input Power | 7 to 24 VDC | | Battery Type | None | | Power Consumption | 12 W (Maximum) | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Dimensions (W x H x D) | 9.8 x 6.7 x 1.3" / 250 x 170 x 32.3 mm | | Weight | 23.3 oz / 660.0 g | | | | Package Weight | 4.56 lb | | Box Dimensions (LxWxH) | 12.15 x 10.65 x 4.55" |
