User Manual for Lilliput FS7 7" 4K HDMI 3G-SDI Monitor with L-Series Type Plate Click to enlarge the picture
Contents of the user manual for the Lilliput FS7 7" 4K HDMI 3G-SDI
- Product category: On Camera Monitors Lilliput
- Brand: Lilliput
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lilliput On Camera Monitors
 |
User manual for the Lilliput FS7 7" 4K HDMI 3G-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lilliput product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lilliput user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lilliput product will considerably shorten its lifespan!
|

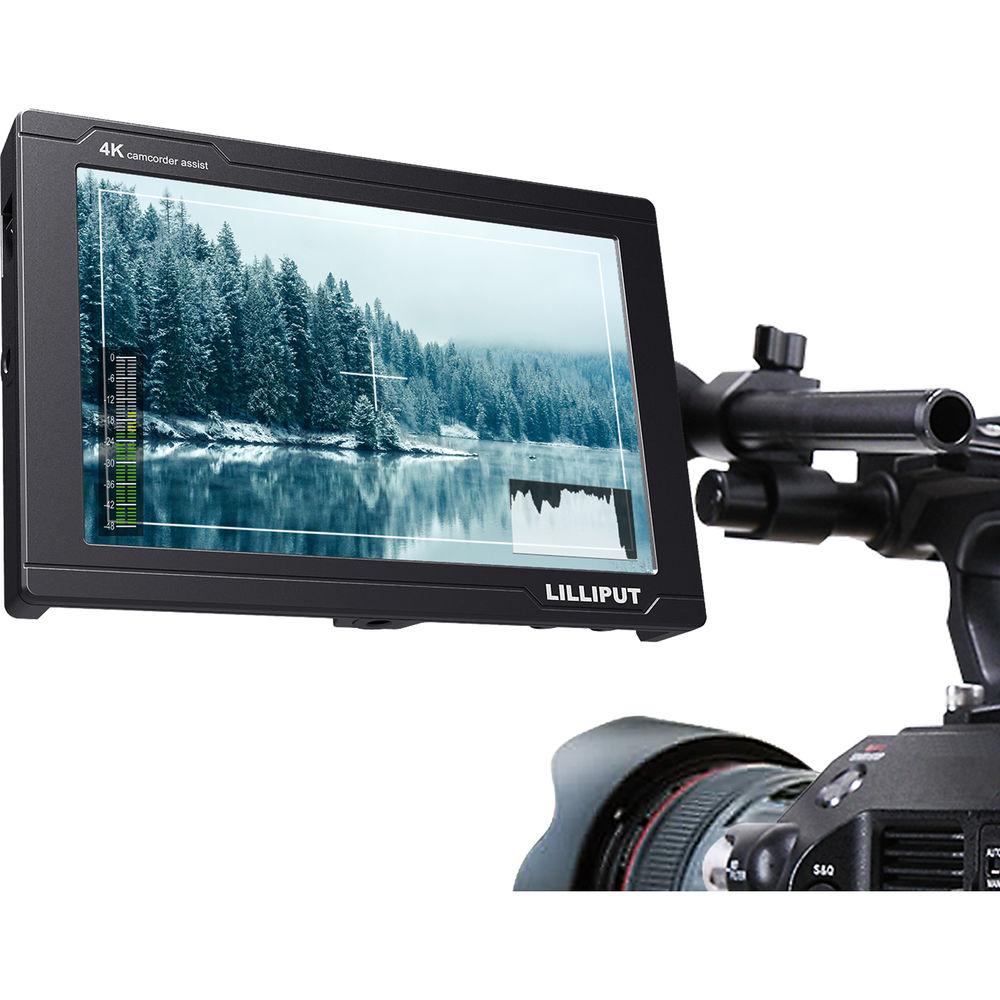

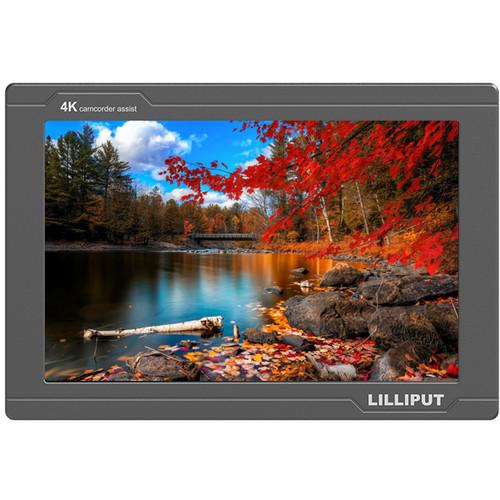

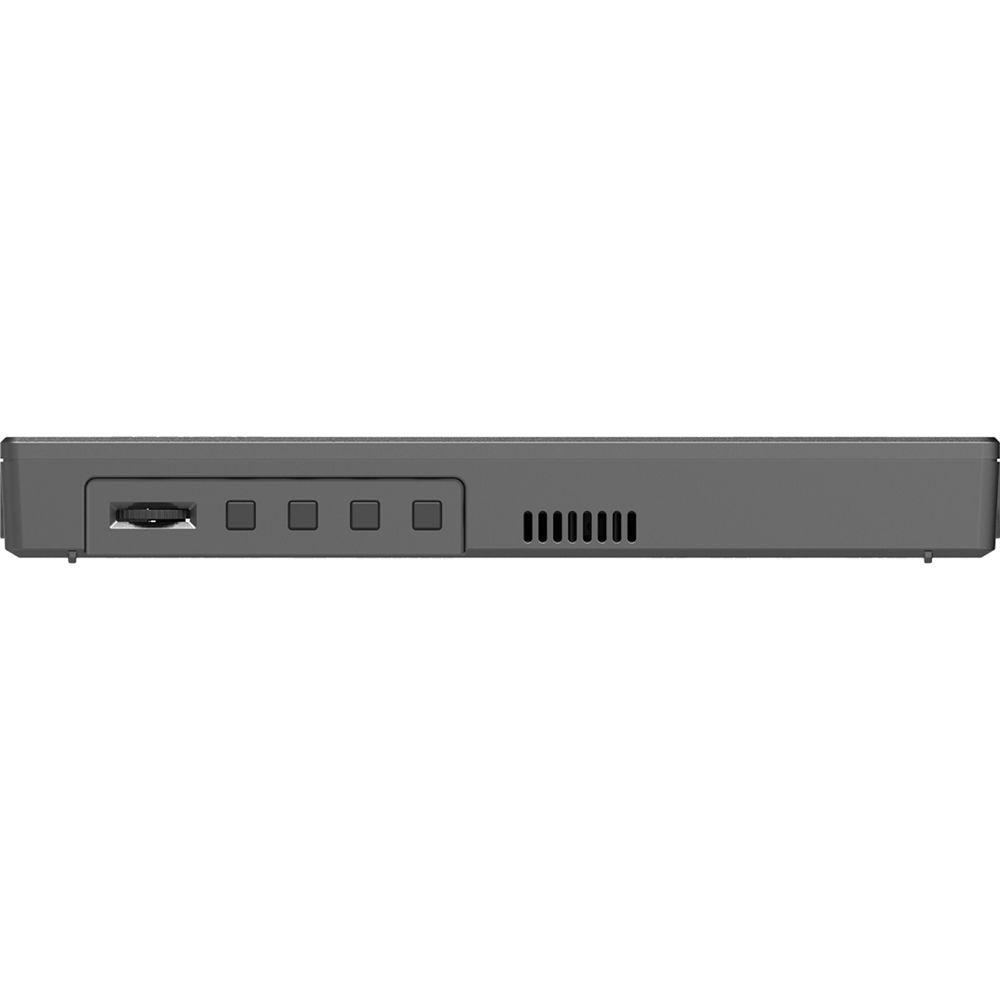

Product description The Lilliput FS7 7" 4K HDMI/3G-SDI Monitor is a high-contrast on-camera monitor with a native 1920 x 1200, 8-bit resolution display. View clear, sharp images up to DCI 4K 4096 x 2160 via HDMI, and up to 1080p60 via the 3G-SDI input. The FS7 features a 1000:1 contrast ratio, 500 cd/m² brightness, and a wide 170° viewing angle. Both the HDMI and 3G-SDI signals can be looped out to other devices.Two user-definable buttons may be used to create shortcuts to your favorite monitor functions. Display functions include false color, level meter, freeze, DSLR, exposure, and image flip modes. Mount the monitor to your camera rig using the included ball head shoe mount adapter.The Lilliput FS7 accepts a wide range of 7 to 24 VDC power, and includes a Sony L-series type battery plate. Housed in a durable metal body, the FS7 also comes with a folding sunshade, an HDMI cable, and an AC adapter. - Features
-
- DCI 4K and UHD 4K-compatible via HDMI input, 1080p60 input via 3G-SDI
- Native 1920 x 1200, 8-bit resolution display with a wide 170° viewing angle
- 1000:1 contrast ratio, 500 cd/m² brightness
- Functions include aspect markers, audio level meters, peaking, false color, histogram, exposure, and image flip

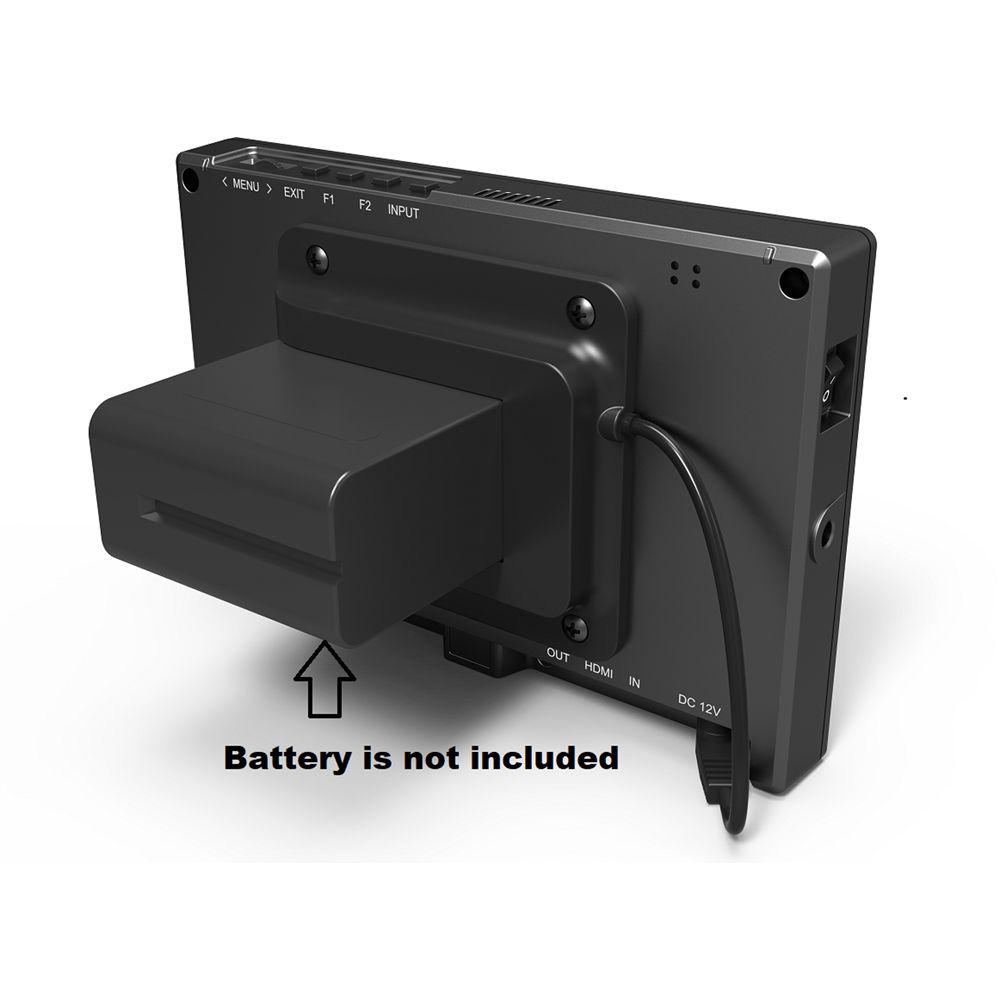

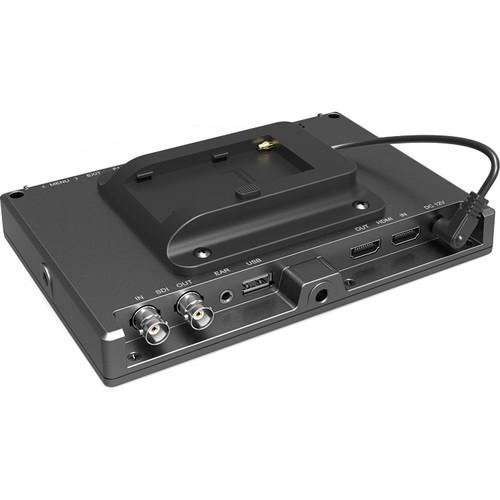

- Includes L-series type battery plate, compatible with a Sony F-970 battery
- Includes AC adapter, sunshade, ball head shoe mount adapter, and HDMI cable
In the Box Lilliput FS7 7" 4K HDMI/3G-SDI Monitor with L-Series Type Plate AC Adapter (12V) HDMI Type A to HDMI Type C Cable Shoe Mount Adapter Folding Sunshade L-Series Type Battery Plate Limited 1-Year Warranty User Manual PDF 143.8kbduetqbtywabqsrwyxusetzvssuufwwttbxaq Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput FS7 7" 4K HDMI 3G-SDI Monitor with L-Series Type Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput FS7 Specs | | | Screen Size (Diagonal) | 7" / 17.8 cm | | Native Resolution | 1920 x 1200 (324 PPI) | | Supported Video Resolutions | HDMI Format:
4096 x 2160: 24
3840 x 2160: 30/29/25/25/23.98
2048 x 1080: 60/59.94/50
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p: 50
576i: 50
480p: 60/59.94
480i: 60/59.94
SDI Format:
3G-SDI Level A & B:
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
HD:
1080p: 30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
SD:
525i
626i

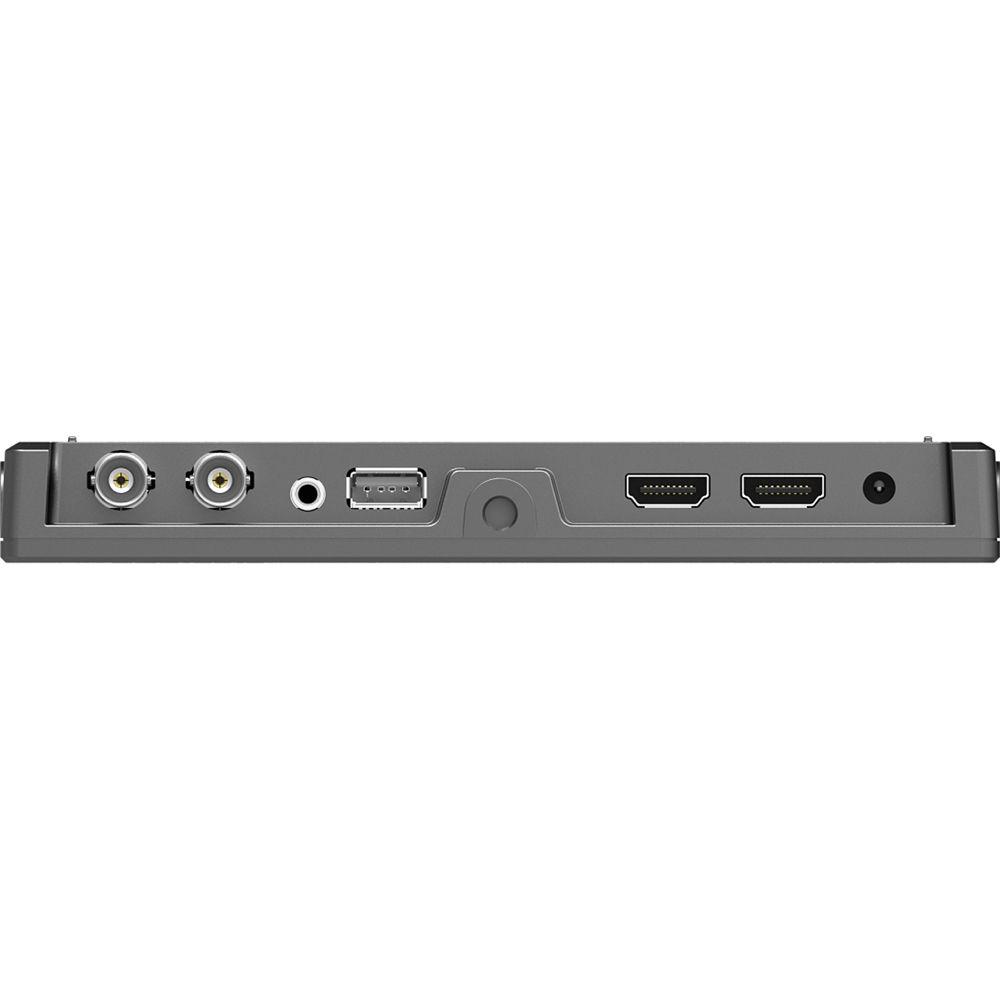

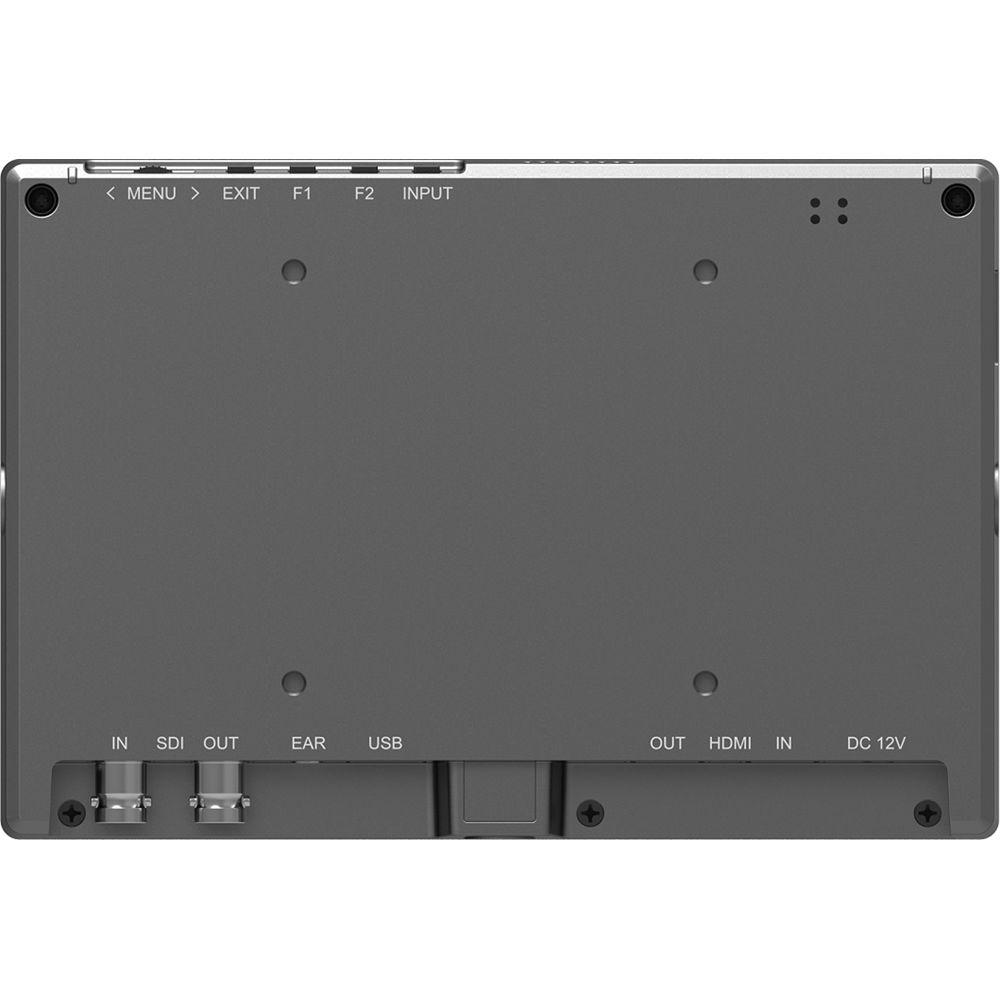

| | Active Area | 6 x 3.7" / 151.2 x 94.5 mm | | Dot Pitch | 26.25 × 78.75 μm | | Aspect Ratio | Full, 16:9, 1.85:1, 2.35:1, 4:3, 3:2 | | Aspect Display Marker | Off, 16:9, 1.85:1, 2.35:1, 4:3, 3:2 | | Markers | Off, 95%, 93%, 90%, 88%, 85%, 80% | | Brightness | 500 cd/m2 | | Contrast Ratio | 1000:1 | | Light Source | Single LED (side-light type) | | Viewing Angle | 170 x 170° | | Color Temperature Selection Modes | 6500K, 7500K, 9300K, User (RGB) | | Zoom | 1.5x, 2x, 3x, 4x | | | | SDI Audio | 16-channel (8 pairs) | | | | Video Input | HDMI: 1 x HDMI
SDI: 1 x BNC | | Video Output | HDMI: 1 x HDMI
SDI: 1 x BNC | | Audio Outputs | Built-in speaker, 1 W
3.5 mm headphone jack | | Other Connectors | USB: 1 x USB (updates only) | | | | Power Input | 7 to 24 VDC | | Power Consumption | ≤12 W | | Compatible Battery | Sony NP-F970 L-series type | | | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | Humidity | 90% | | Dimensions | 7.2 x 4.9 x 0.9" / 18.2 x 12.4 x 2.2 cm | | Weight | 15.3 oz / 435 g | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 8.15 x 5.9 x 3.6" |
