User Manual for Lilliput Mopro 7" X-Sports Camera Monitor for GoPro Hero 3 , 4 & DSLR Click to enlarge the picture
Contents of the user manual for the Lilliput Mopro 7" X-Sports Camera Monitor
- Product category: On Camera Monitors Lilliput
- Brand: Lilliput
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lilliput On Camera Monitors
 |
User manual for the Lilliput Mopro 7" X-Sports Camera Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lilliput product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lilliput user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lilliput product will considerably shorten its lifespan!
|

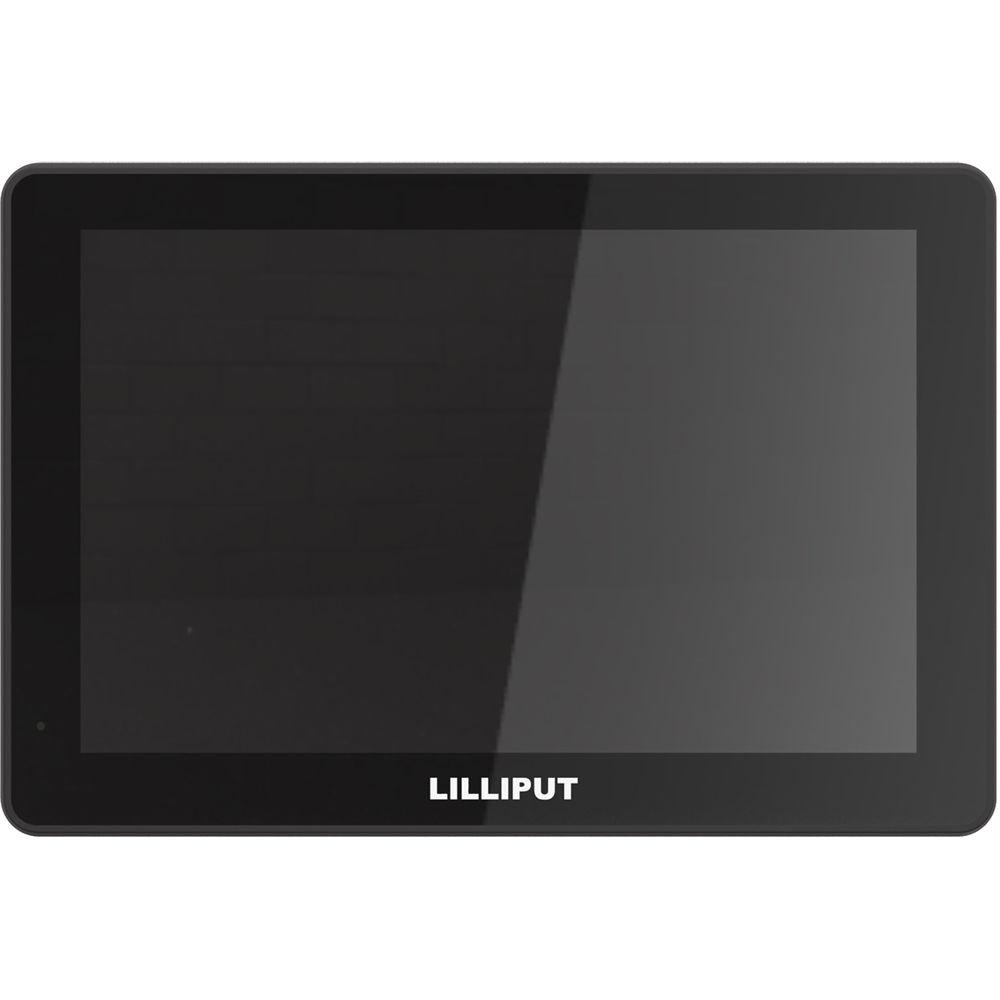

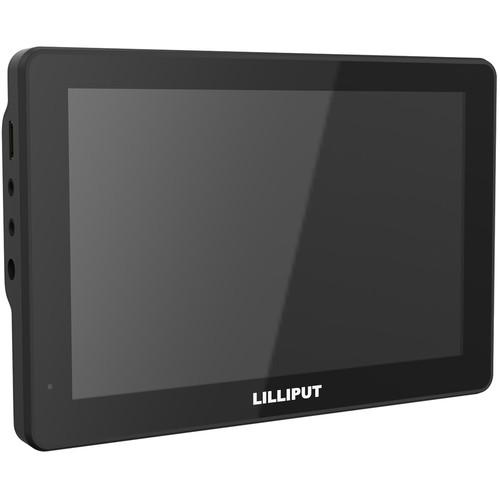

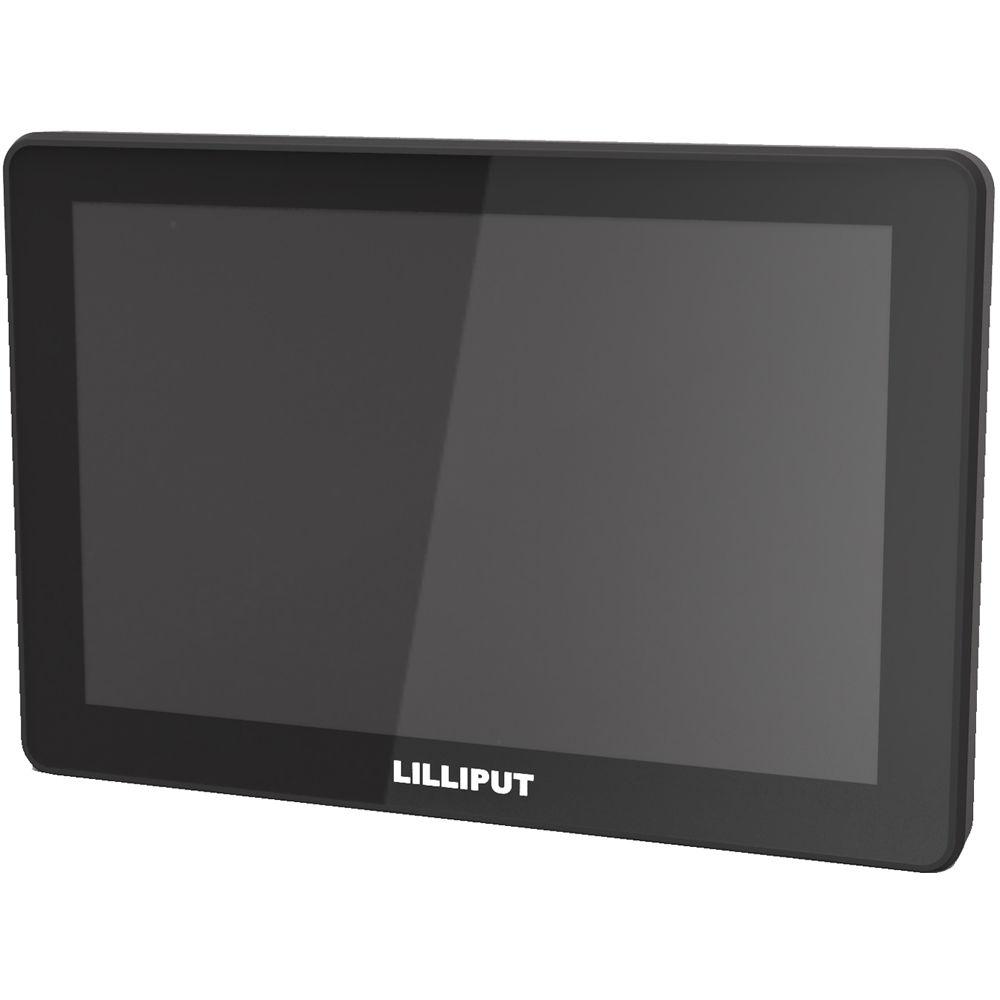

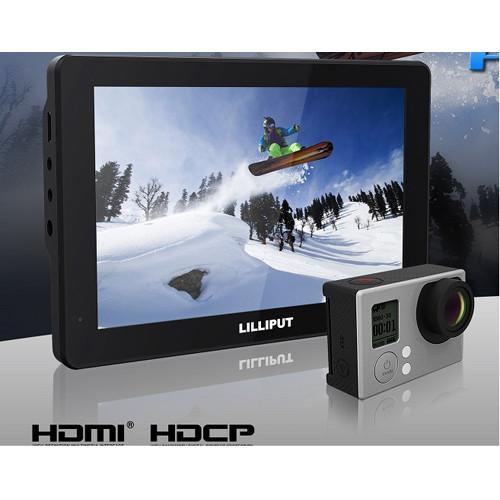

Product description The black Lilliput Mopro 7" X-Sports Camera Monitor for GoPro Hero 3+, 4 & DSLR features an interchangeable rear cover system that allows you to mount an optional GoPro 3+ or 4 camera within the monitor, or use the monitor as an on-camera field monitor. The interchangeable rear covers are what sets this monitor apart from other on-camera field monitors. The GoPro-compatible back allows you to mount your GoPro Hero 3+ or 4 into the monitor, providing you a 7" viewing screen with a fully functioning GoPro camera embedded in the monitor.
The monitor features a native resolution of 1280 x 800 supporting resolutions up to 1920 x 1080 via scaling. With a brightness of 400 cd/m2 and 800:1 contrast, the monitor provides a bright, sharp image with good contrast. You can view the monitor from off-angle and still see an image with good contrast and color reproduction owing to the IPS panel. - Rear Covers

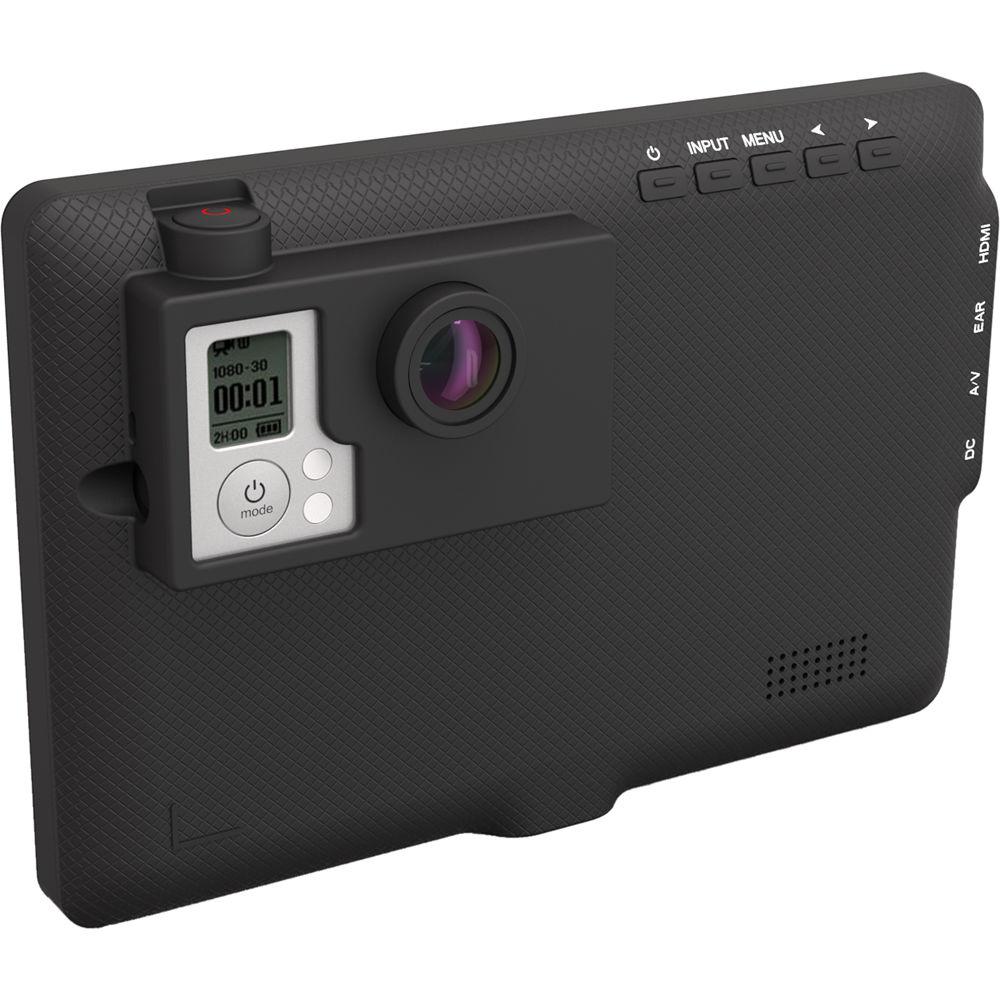

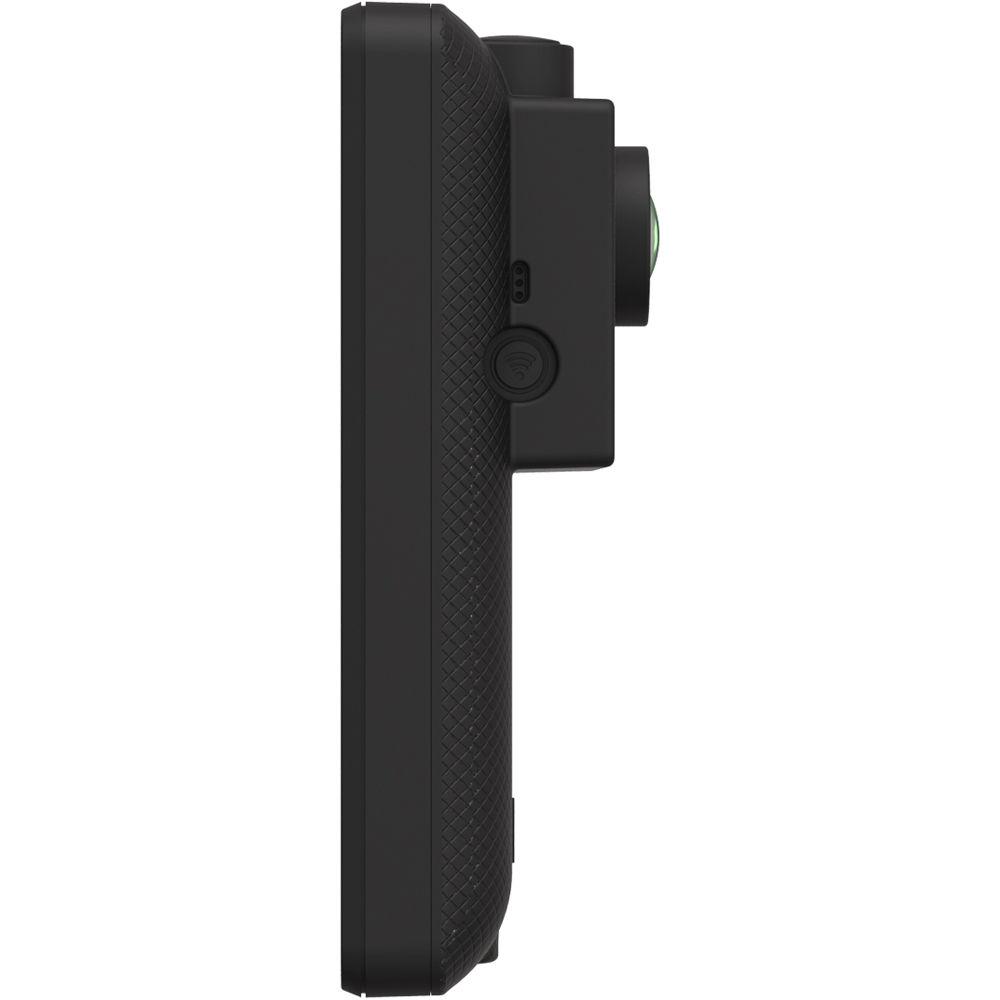

- The monitor features two interchangeable rear covers. Using the first cover, the monitor is a normal on-camera monitor with an HDMI and composite input. However, replacing the rear cover with the GoPro compatible cover allows you to embed your GoPro camera rearward facing so that you can hold the monitor, watch the footage, and have the camera shoot in the direction you are facing. An internal connector plugs into your GoPro and allows the monitor to display the camera's footage the footage, and the cover holds your camera securely and maintains the camera's functionality.
- Monitor
-
- 7" IPS panel 178° wide viewing angles
- 1280 x 800 resolution
- 400cd/m2 brightness
- 800:1 contrast ratio
- Internal Battery
- The built-in 2600 mAh battery can run the monitor for up to five hours under normal conditions.
In the Box Lilliput Mopro 7" X-Sports Camera Monitor for GoPro Hero 3+, 4 & DSLR (Black) 2 x Rear Covers HDMI C to D Cable HDMI A to C Cable AV Cable 12 VDC Adapter Shoe Mount Limited 1-Year Warranty User Manual PDF 822kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput Mopro 7" X-Sports Camera Monitor for GoPro Hero 3 , 4 & DSLR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput MOPRO7-B Specs | | | Type | 7" IPS LCD
LED backlit | | Resolution | Native: 1280 x 800
Supports: 1920x1080 | | Aspect Ratio | 16:10 | | Brightness | 400 cd/m2 | | Contrast Ratio | 800:1 | | Viewing Angle (H/V) | 178° / 178° | | | | Inputs | Internal
1 x HDMI type D for GoPro only)
External
1 x HDMI type C
1 x AV Connector (composite) | | Outputs | 1 x Earphone
1 x Speaker | | | | Mounting Thread | 1/4"-20 | | Current | 480 mA | | Input Voltage | 7 to 24 VDC | | Battery | Built-in 2600 mAh | | Power Consumption | ≤5.8 W | | Connector | 1 x mini-USB (for GoPro charging) | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | Dimensions (L x W x H) | GoPro Cover: 7.0 x 4.8 x 1.6" / 179.0 x 121.0 x 40.5 mm
DSLR Cover: 7.0 x 4.8 x 0.8" / 179.0 x 121.0 x 21.0 mm | | Weight | Including Battery: 14.8 oz / 420.0 g | | | | Package Weight | 2.165 lb | | Box Dimensions (LxWxH) | 10.05 x 5.55 x 2.85" |
