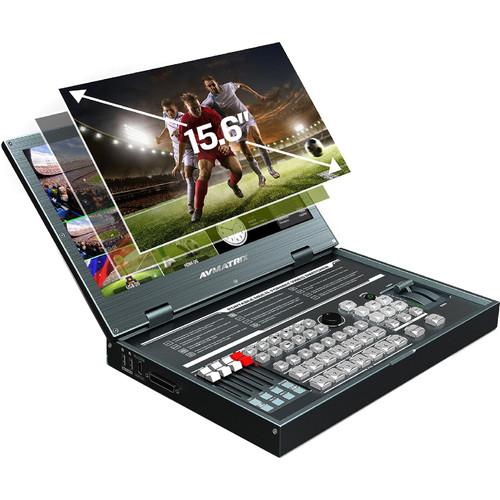

Product description This thin, compact PVS0615 Portable 6-Channel Video Switcher from Lilliput features a 15.6' FHD LCD monitor and can switch up to six different video inputs while recording the program feed. The multiview layout allows you to show preview, program, and input sources all on the same screen, PIP and POP screen positioning is adjustable. Effectively, this makes the PVS0615 a portable TV studio that you can take anywhere and set up with minimal effort or extra equipment.

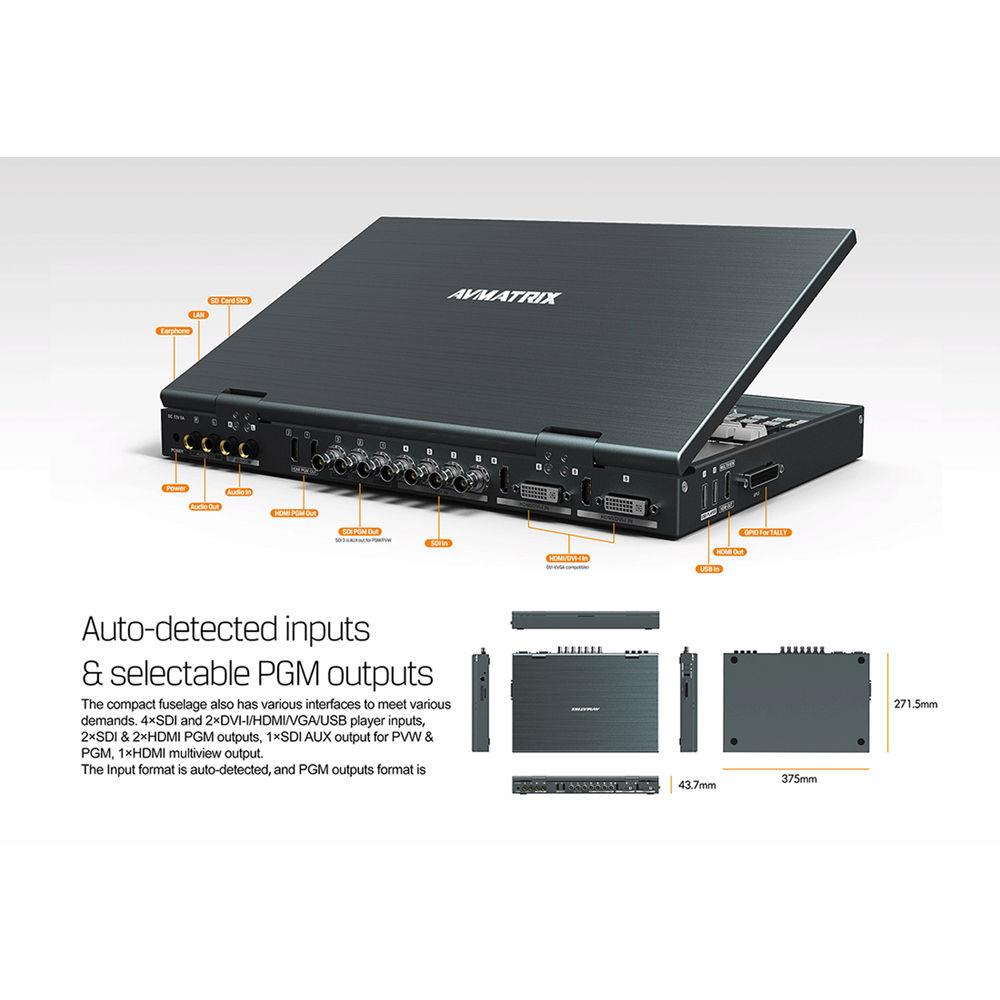

Four SDI, two HDMI, two VGA/DVI, and two USB inputs can be connected to cameras or other consumer or professional sources for switching up to 4K60 video over HDMI with embedded TRS audio. The input format will be auto-detected by the switcher, and the output format is selectable by the user. You can even record up to 1080p60 to separately available media in the built-in SD card slot. The switcher's numerous functions include real-time background mattes; chroma and luma keying; T-bar, auto, and cut transitions; wipe, mix, and fade effects; USB media source control; and an audio mixer with 3-channel and master control faders.
Concert productions, events, parties, competitions, virtual studio, and educational institutions, and live sports programming are some of the few use cases where the PVS0615 could be useful. When it's time to wrap production, close the 15.6" screen, unplug the video sources, and transport or store in its flat, portable state. - Six channel inputs chosen from four SDI and two DVI-I, two HDMI, and two USB
- Three SD/HD/3G-SDI PGM out (one AUX), two HDMI PGM out, and one HDMI multiview out
- Input format is auto-detected and PGM/AUX output format is selectable

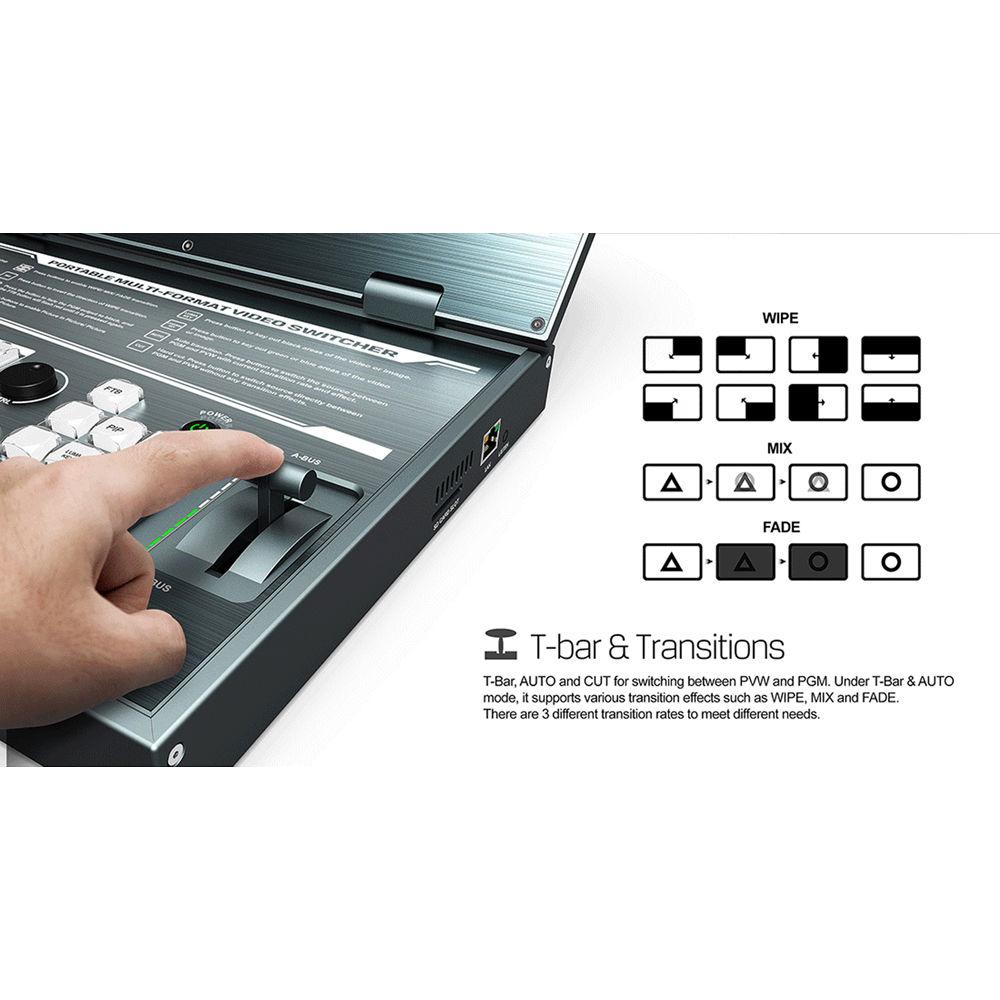

- T-Bar / AUTO / CUT transitions and MIX / FADE/ WIPE effects
- Luma Key and Chroma Key for virtual studio
- Adjustable PIP/POP window size and position

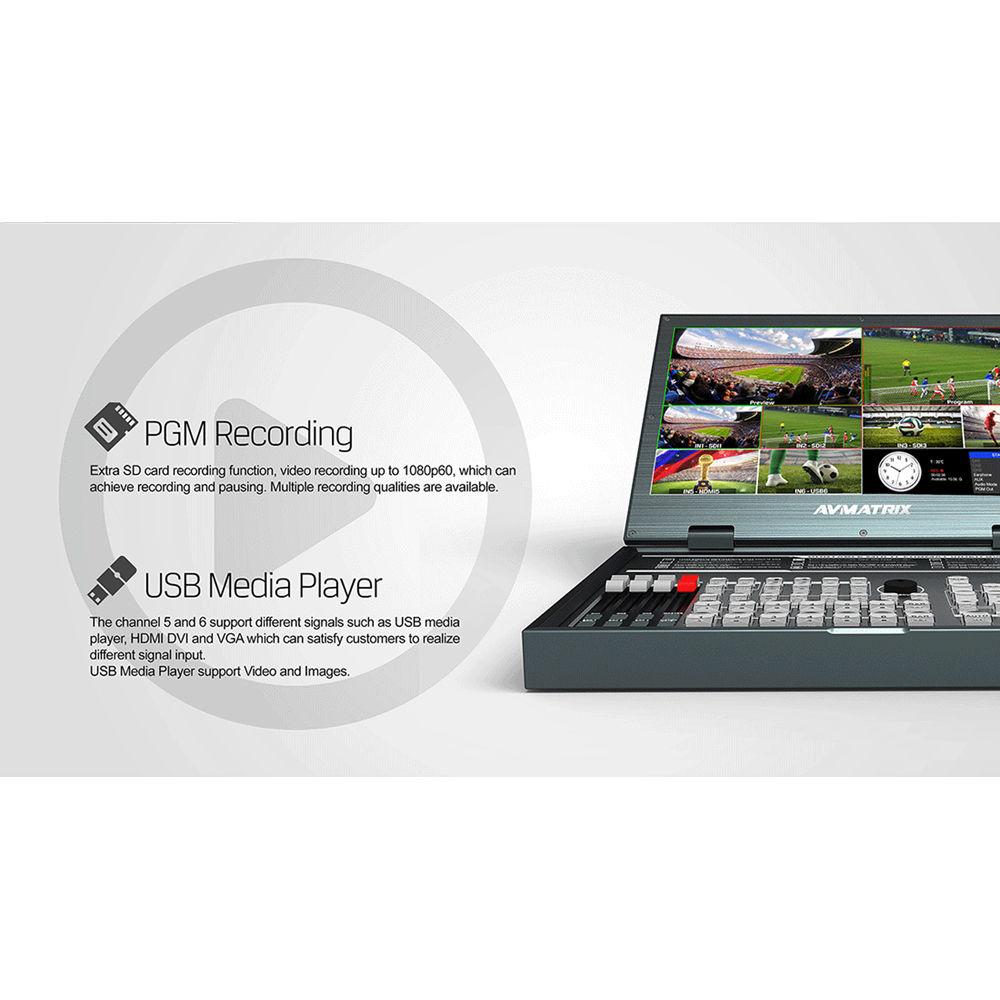

- Record up to 1080p60 PGM video to SD card
- Audio Mixer: TRS audio and SDI, HDMI, USB embedded audio
In the Box Lilliput PVS0615 Portable 6-Channel Video Switcher with 15.6" LCD Monitor Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput PVS0615 Portable 6-Channel Video Switcher with 15.6" LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput PVS 0615 Specs | LCD Display Size | 15.6" | | Resolution | 1920 x 1080 | | Video Inputs | 4 x BNC SDI
2 x HDMI
2 x DVI
2 x VGA
2 x USB Type-A | | SDI Video Rates | SD, HD, 3G-SDI | | SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 424M | | Bit Rate | 270 Mb/s to 3 Gb/s | | SDI Input Formats | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080psF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
625i: 50 PAL
525i: 59.94 NTSC | | HDMI Input Resolutions | 4K: 60/50/30
2K: 60/50/30
1080p: 60/59.94/50/30/29.97/25/24/23.98/23.976
1080i: 50/59.94/60
720p 60/59.94/50/30/29.97/25/24/23.98
576i: 50
576p: 50 | | VGA Input Resolutions | VGA/DVI at 60 Hz:
1920 x 1080
1680 x 1050
1600 x 1200
1600 x 900
1440 x 900
1366 x 768
1360 x 768
1280 x 1024
1280 x 960
1280 x 800
1280 x 768
1280 x 720
1152 x 864
1024 x 768
640 x 480 | | Color Space | SDI: 10-Bit YUV 4:2:2
HDMI: 8/10/12-Bit RGB 4:4:4, 8/10/12-Bit YUV 4:4:4, YUV 8/10/12-Bit 4:2:2 | | Video Outputs | 3 x HD/3G-SDI
2 x HDMI Type A
1 x Multiview HDMI Type A | | Output Resolutions | 1080p: 50/60/30/25/24
1080i: 50/60
1080p (Multiview): 60 | | Input/Output Return Loss | >15 dB, 5 MHz to 3 GHz | | Signal Amplitude | 800 mV
