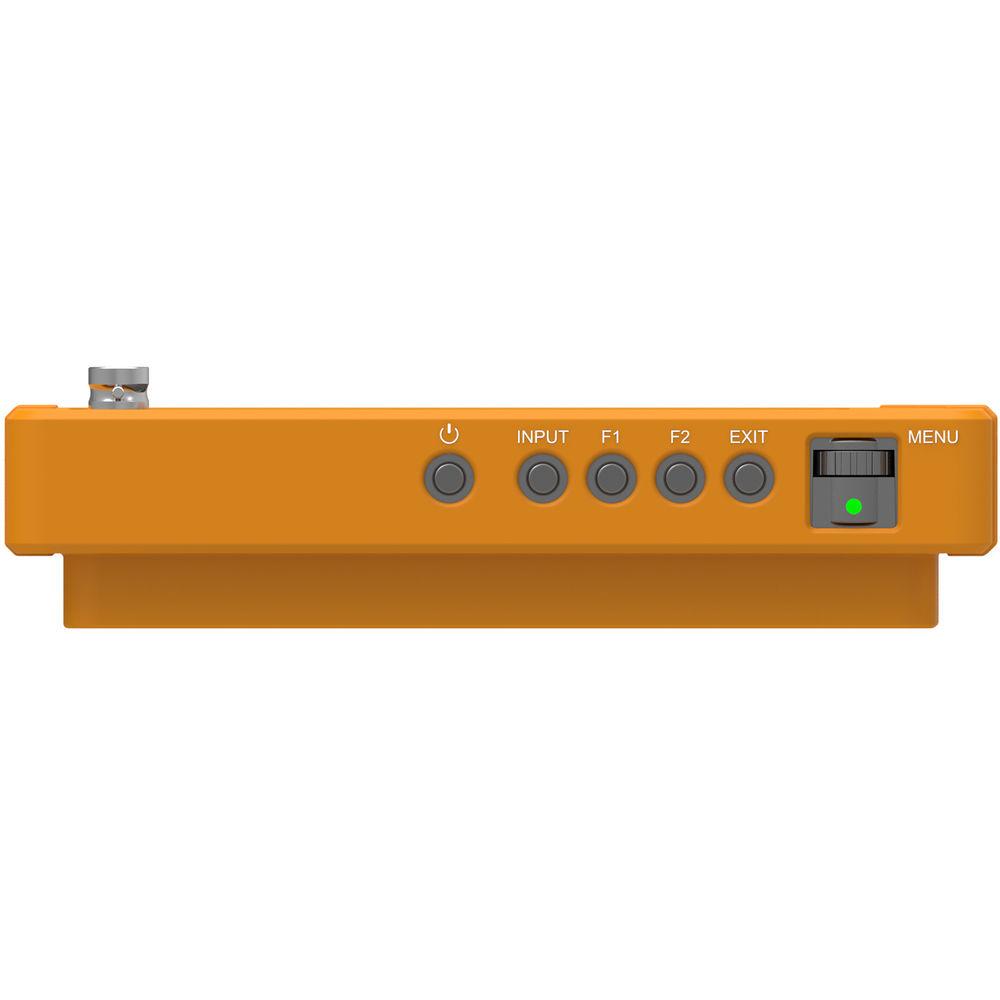

User Manual for Lilliput Q5 5.5" Full HD On-Camera Monitor Click to enlarge the picture
Contents of the user manual for the Lilliput Q5 5.5" Full HD On-Camera
- Product category: On Camera Monitors Lilliput
- Brand: Lilliput
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lilliput On Camera Monitors
 |
User manual for the Lilliput Q5 5.5" Full HD On-Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lilliput product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lilliput user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lilliput product will considerably shorten its lifespan!
|

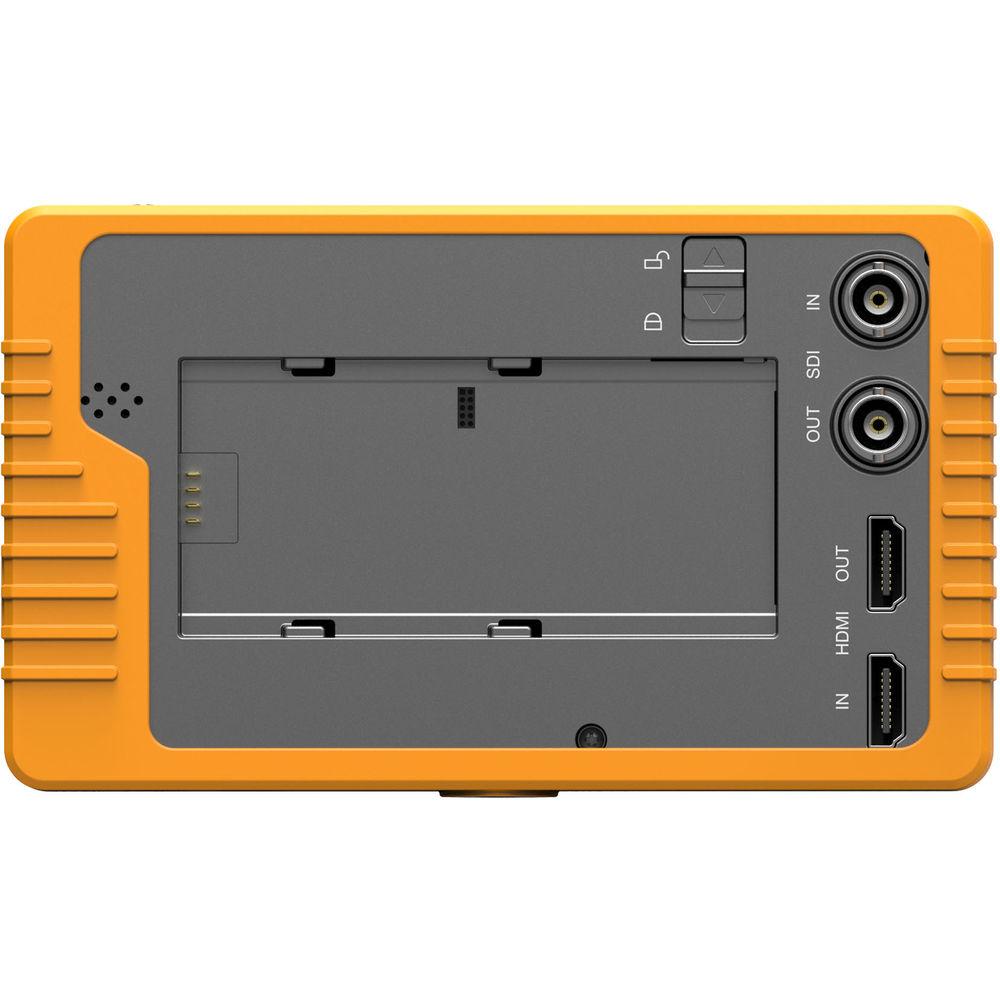

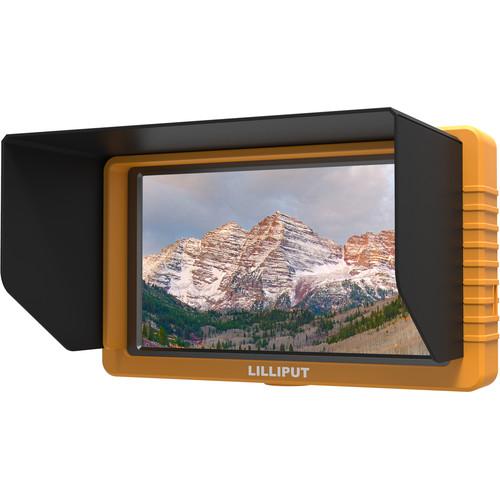

Product description Compact, yet fully featured, Lilliput's Q5 5.5" Full HD On-Camera Monitor is designed to take on almost any production. The 1920 x 1080 LCD screen packs 401 pixels-per-inch for seamless viewing of Full HD signals. HDMI and SDI inputs on the rear are compatible with DSLRs, mirrorless cameras, and professional camcorders. HDMI and SDI signals can even be cross converted to ensure compatibility with a wide range of workflows.NP-F and LP-E6 battery plates are included, and other types of plates are separately available. NP-F and LP-E6 batteries are widely available and are used on many cameras and camcorders, so you should never be without power. When shooting outdoors, the included sun hood makes the screen easier to see by blocking any glare. Lastly, an included articulating shoe mount allows you to secure the Q5 to your camera via a standard accessory shoe and position it after-the-fact. - Full HD Display
- The Full HD display on the Q5 enables a 1080p signal to be viewed natively. Monitoring for critical focus on HD productions is a straightforward process, with no "punching in" and losing your original framing. A 1000:1 contrast ratio, 8-bit color depth, and 450 cd/m² brightness offer a high-quality viewing experience.
- Durable Construction

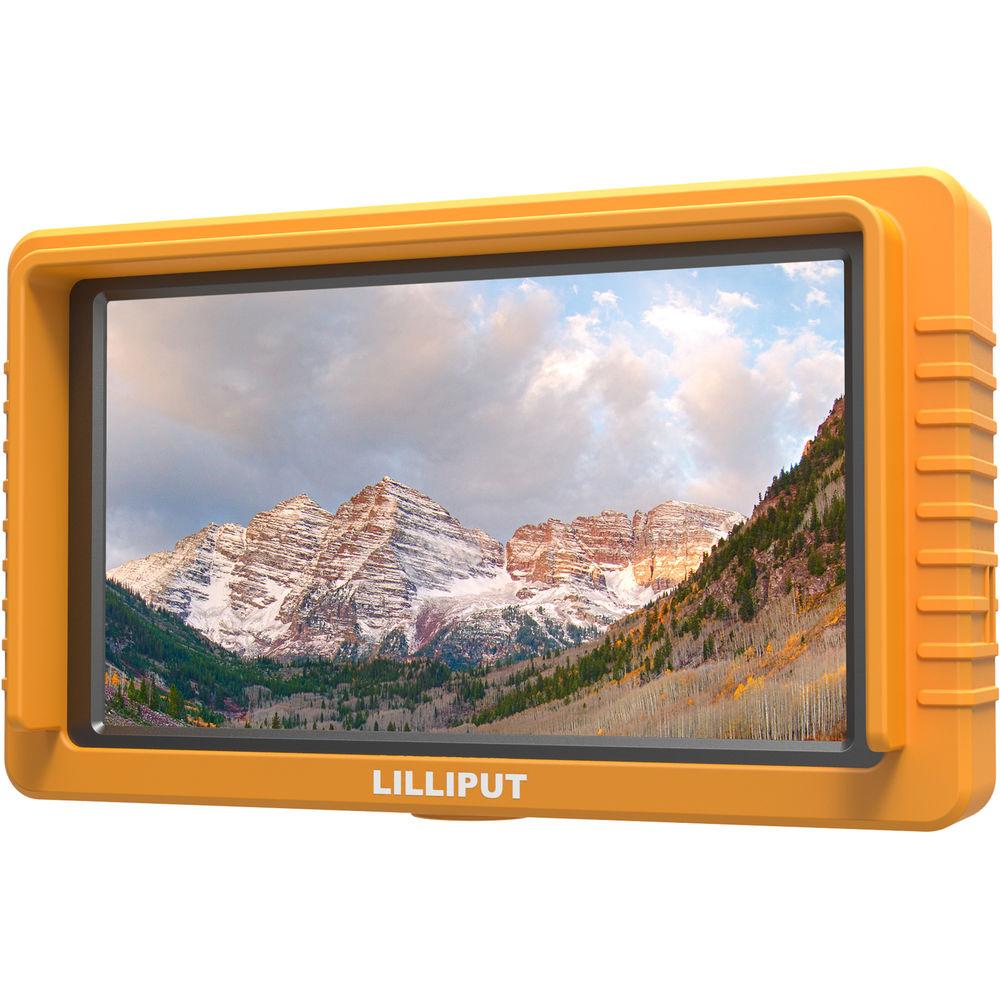

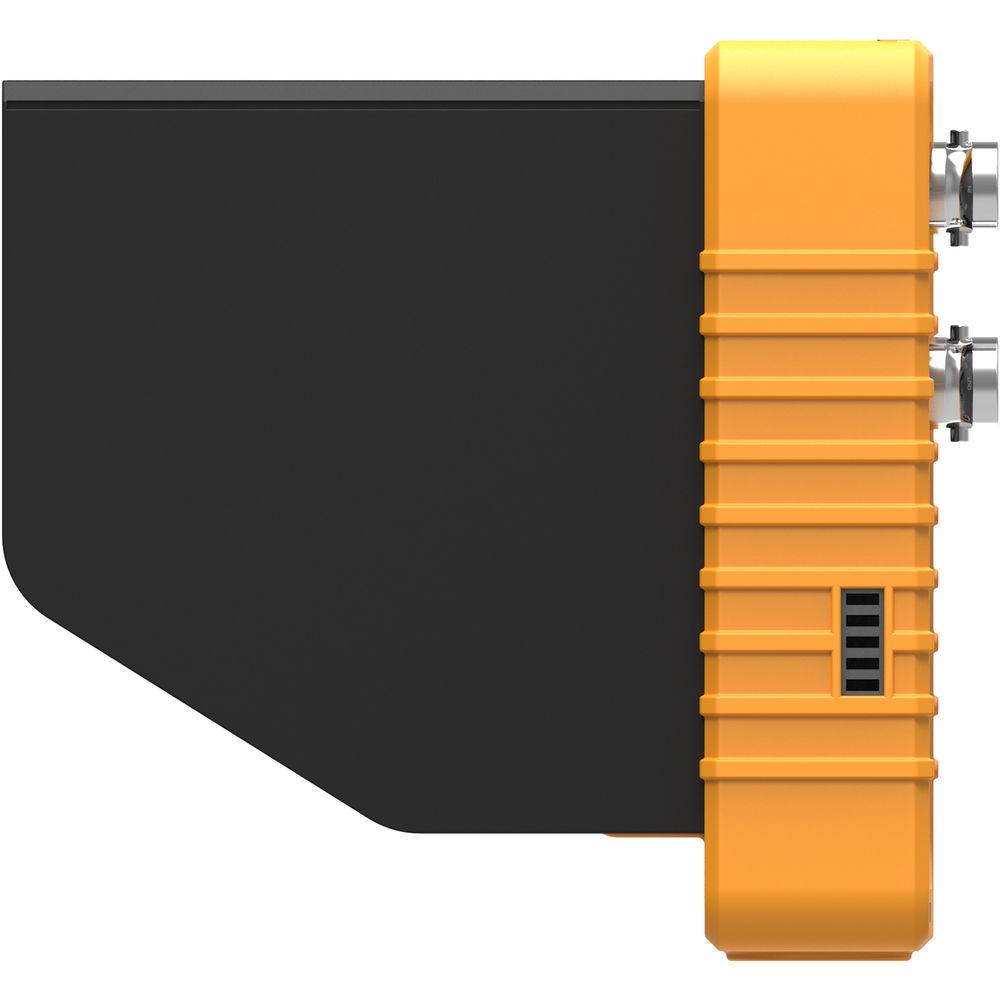

- While the unit itself is manufactured from metal, a silicone rubber bumper is included. The bumper prevents scuffing and other damage that may occur from drops or bumps that are too often known during life on set. It even has a small built-in, unobtrusive sun hood which can be mounted directly on top of the bumper in especially bright conditions.
- HDMI/SDI Cross Conversion
- Take the Q5 on nearly any gig, ranging from low-budget to professional with the built-in HDMI/SDI cross conversion. HDMI signals can be converted to SDI and vice versa, ensuring that the Q5 is compatible with almost any digital video equipment, from consumer to broadcast-grade.
- Monitoring Tools
- Analyze the incoming video signal with built-in video monitoring tools to achieve correct exposure, focus, and color balance. Built-in functions include:
- Timecode display
- YRGB column
- Pixel-to-pixel mapping
- Vectorscope
- Waveform
- Audio level meters
- Focus peaking
- False color
- Histogram
- Zebra
- R/G/B only
- Color bars
- Image flip
In the Box Lilliput Q5 5.5" Full HD On-Camera Monitor Silicone Rubber Bumper Folding Sun Hood Power Supply HDMI to Mini HDMI Cable Shoe Mount NP-F Battery Plate LP-E6 Battery Plate Limited 1-Year Warranty User Manual PDF 491.2kbrxsvtyfyewsxvzt Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput Q5 5.5" Full HD On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput Q5 Specs | | | Display Size | 5.5" / 14.0 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160°
Vertical: 160° | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 1000:1 | | Image Controls | False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Waveform | | | | Video | 1 x BNC (3G-SDI) Output
1 x HDMI Type A Output
1 x BNC (3G-SDI) Input
1 x HDMI Type A Input | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Card Slot | None | | | | Video Format | SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 23.98/24/25/29.97/30/50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
NTSC
PAL | | | | DC Input Power | 7 to 24 VDC at 1 A | | Battery Type | 1 x LP-E6 or L-Series | | Power Consumption | 12 W (Maximum) | | | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | | | Dimensions (W x H x D) | 6.1 x 3.5 x 0.8" / 15.4 x 9 x 2 cm | | Weight | 0.7 lb / 320 g | | | | Package Weight | 2.19 lb | | Box Dimensions (LxWxH) | 6.95 x 4.5 x 4.4" |
