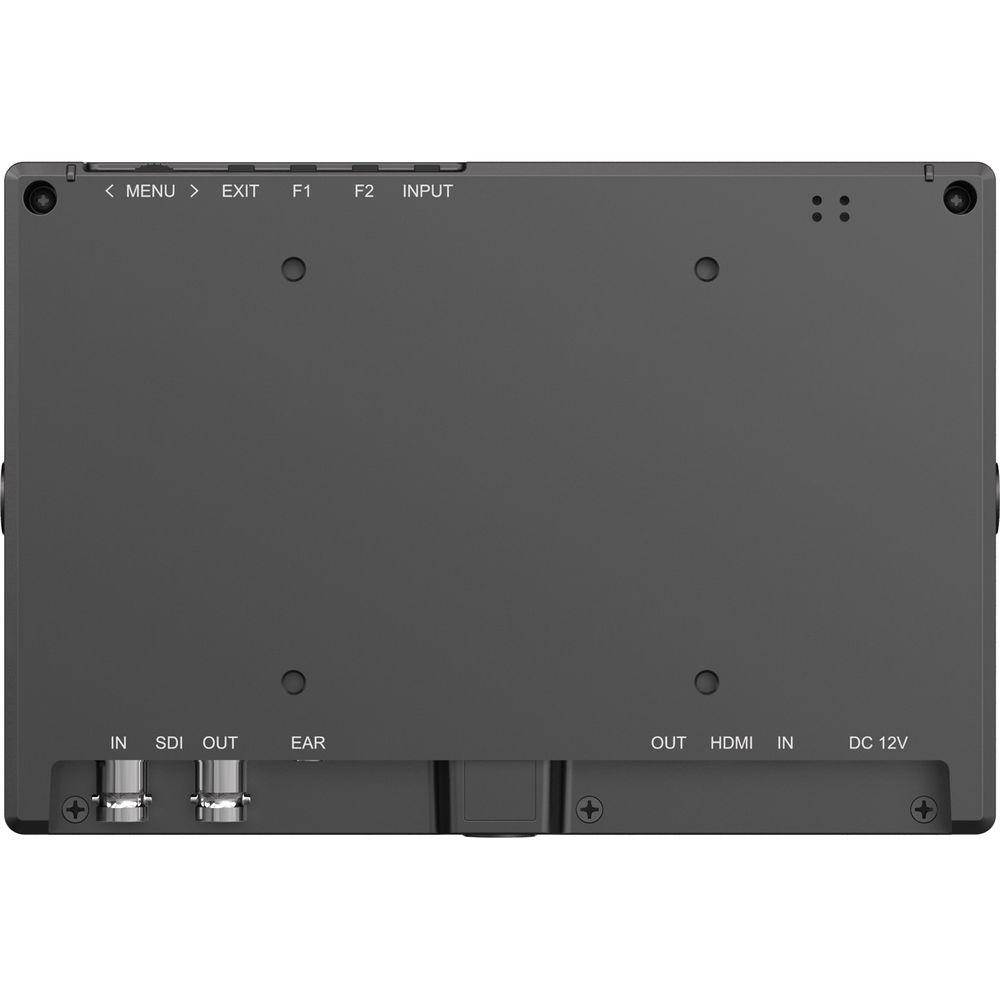

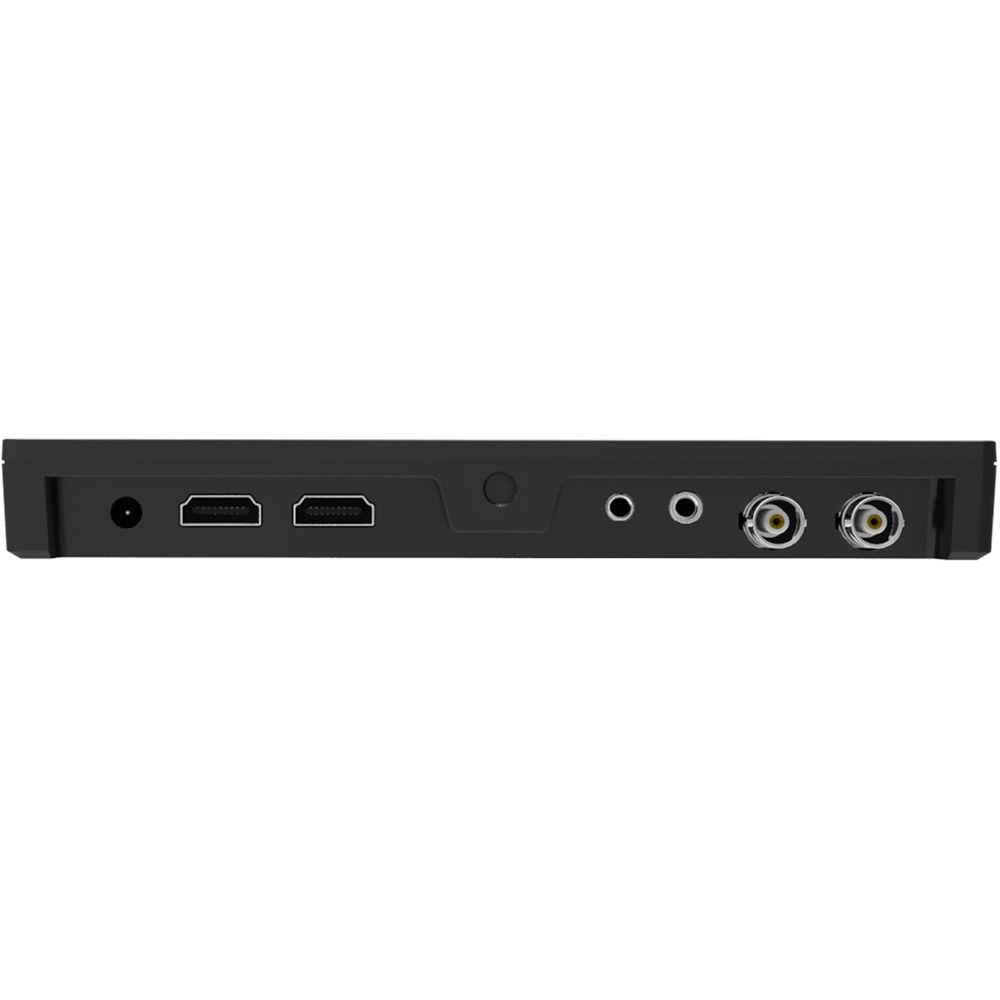

Product description The Q7 Full HD Monitor with SDI & HDMI Cross Conversion from Lilliput features a 7" LCD panel with 1920 x 1200 resolution, 1000:1 contrast ratio, and 500 cd/m² brightness. It has an aspect ratio of 16:10 and 170°/170° wide viewing angles.This field monitor comes integrated with advanced functions such as column YRGB (peak), timecode, waveform, vectorscope, and audio level meter. It also offers additional functions that can assist you in accurately monitoring while shooting video and playing back footage. These functions include pixel zoom, peaking, false color, histogram, exposure, check field, color bar, image flip, and pix-to-pix.The high-quality HDMI and 3G-SDI inputs ensure that the precise color can be conveniently controlled under multiple displays. It comes with SDI and HDMI cross conversion that allows signal transmission from SDI input to HDMI out, and from HDMI input to SDI out. The monitor features a 0.9" slim metal housing that protects it from vibration, drops, and adverse weather conditions. - Full HD 1920 x 1200 resolution
- Column (YRGB peak), time code
- Integrated recording information display
- SDI and HDMI cross conversion
- Slim metal housing 0.9" (22 mm)
In the Box Lilliput Q7 Full HD Monitor with SDI & HDMI Cross Conversion (7") Shoe Mount Battery Mount Plate for Sony Batteries Battery Mount Plate for Canon Batteries Mount Plate Bracket HDMI A/C Cable VESA Battery Bracket Sunshade 12 VDC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput Q7 Full HD Monitor with SDI & HDMI Cross Conversion in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput Q7 Specs | Display Screen | 7" (17.8 cm) | | Display Resolution | 1920 x 1200 (Dot) | | Active Area (WxH) | 151.2 x 94.5 mm | | Dot Pitch | W x H: 26.25 x 78.75 µm | | Aspect Ratio | 16:10 | | Contrast Ratio | 500:1 | | Brightness | 500 cd/m² | | Viewing Angle | 170° / 170° (H/V) | | Light Source | Single LED (side-light type) | | Surface Treatment | Hard coat on the polarizer (ATW) | | Response Time | Typical:
16 ms (Fall time)
Maximum:
27 ms (Rise time)
35 ms (Fall time) | | Input | 1 x 3G-SDI
1 x HDMI | | Output | 1 x 3G-SDI
1 x HDMI | | Audio | 1 x Speaker
1 x 3.5 mm Mini jack | | SDI Formats Supported | SMPTE-125M:
480i (59.94)
SMPTE-274M:
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98 sF)
SMPTE-292M:
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98 sF)
SMPTE-296M:
720p (60 / 59.94 / 50 / 30 / 29 / 25 / 24 / 23.98)
SMPTE-372M:
720p (60 / 59.94 / 50)
1080i (29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
SMPTE-425M-AB:
1080p (60 / 59.94 / 50)
Level A & Level B 720p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
Level B 2 x 1080i (60 / 59.94 / 50)
ITU-R BT.656:
576i (50) | | HDMI Format Support | 1080p, 1080i, 720p, 576p, 576i, 480p, 486i | | Current | 1 A | | Input Voltage | 7 to 24 VDC | | Power Consumption | ≤13 W | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Operation Temperature | -4 to 140°F (-20 to 60°C) | | Operation Time | 240 h at 140°F (60°C) and 90% RH | | Dimensions (L x W x D) | 7.2 x 4.9 x 0.9" (182 x 124 x 22 mm) | | Weight | 14 oz (405 g) | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 8.6 x 6.7 x 3.8" |
