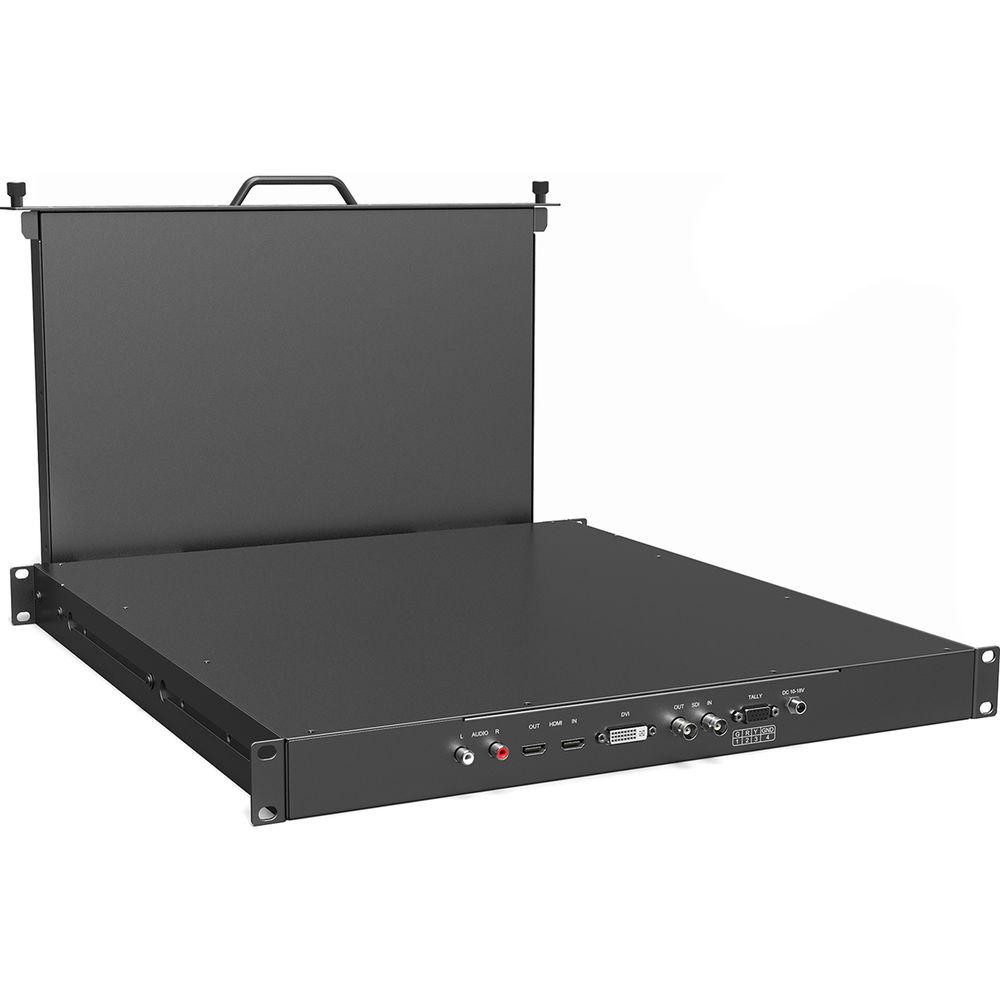

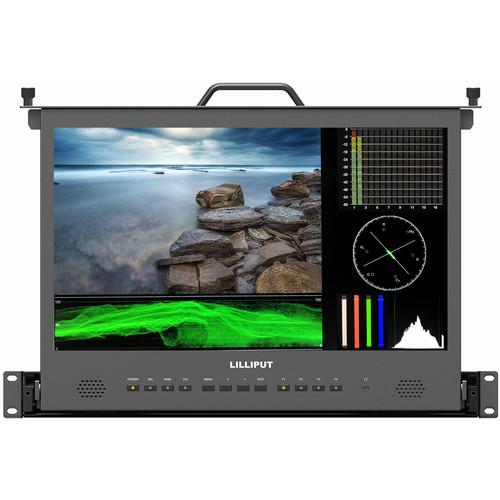

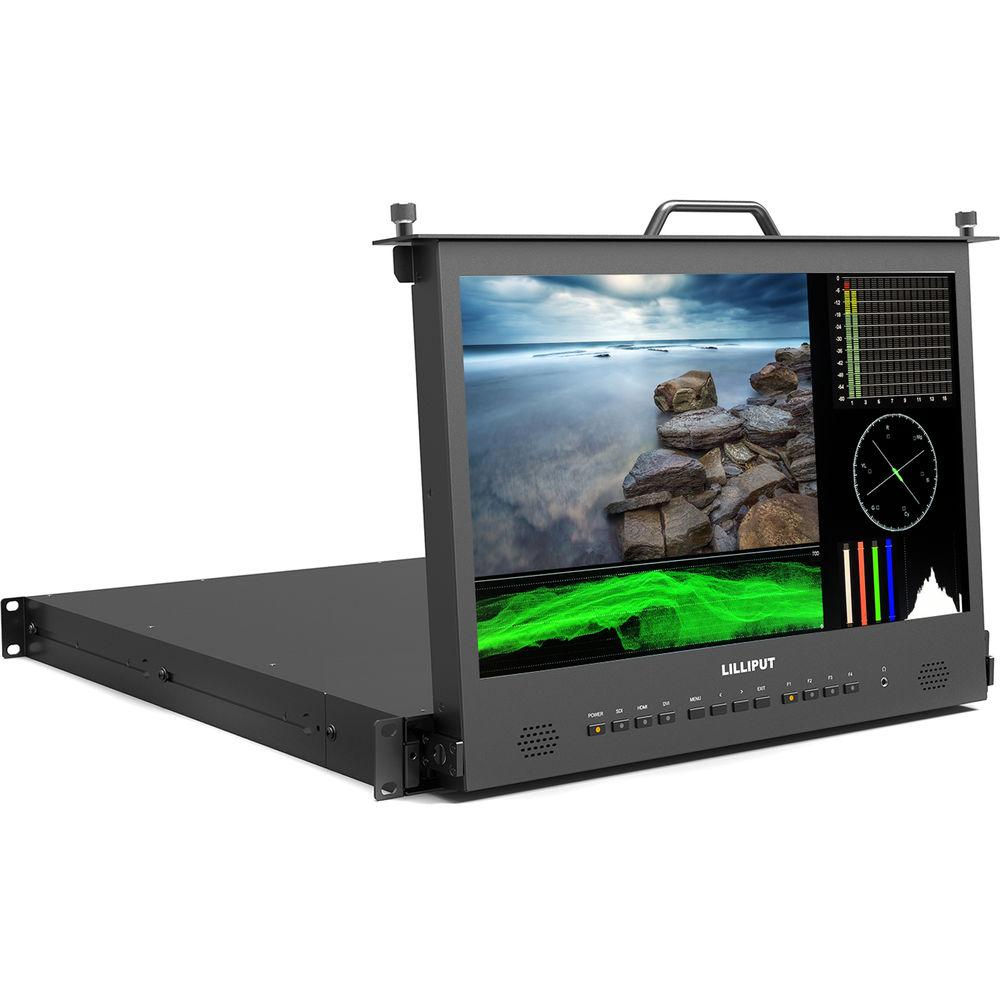

Product description The LILLIPUT RM-1730S 17.3" Full HD 3G-SDI/HDMI Pullout Rackmount Monitor features a 16:9 IPS panel and offers a maximum resolution of 1920 x 1080p60. It offers a brightness rating of 300 cd/m2, contrast ratio of 700:1, and viewing angles of 178°. The monitor comes with a host of functions including cross conversion, timecode, pixel zoom, vectorscope, waveform, level meter, peaking, false color, histogram, exposure, check field, color bars, and Image flip. Its 1 RU design allows it to be easily integrated into a studio or post-production rackmount setup. - Metal housing with pullout drawer for protection from shocks and drops

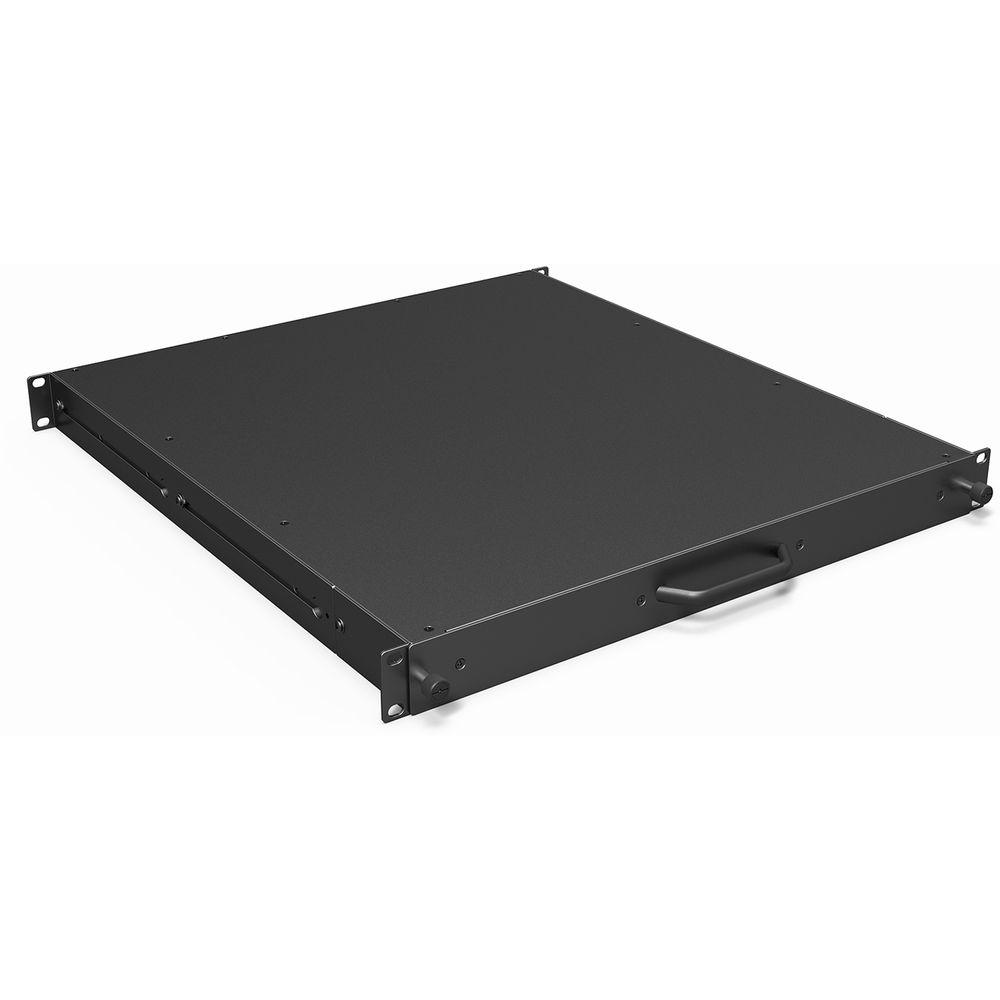

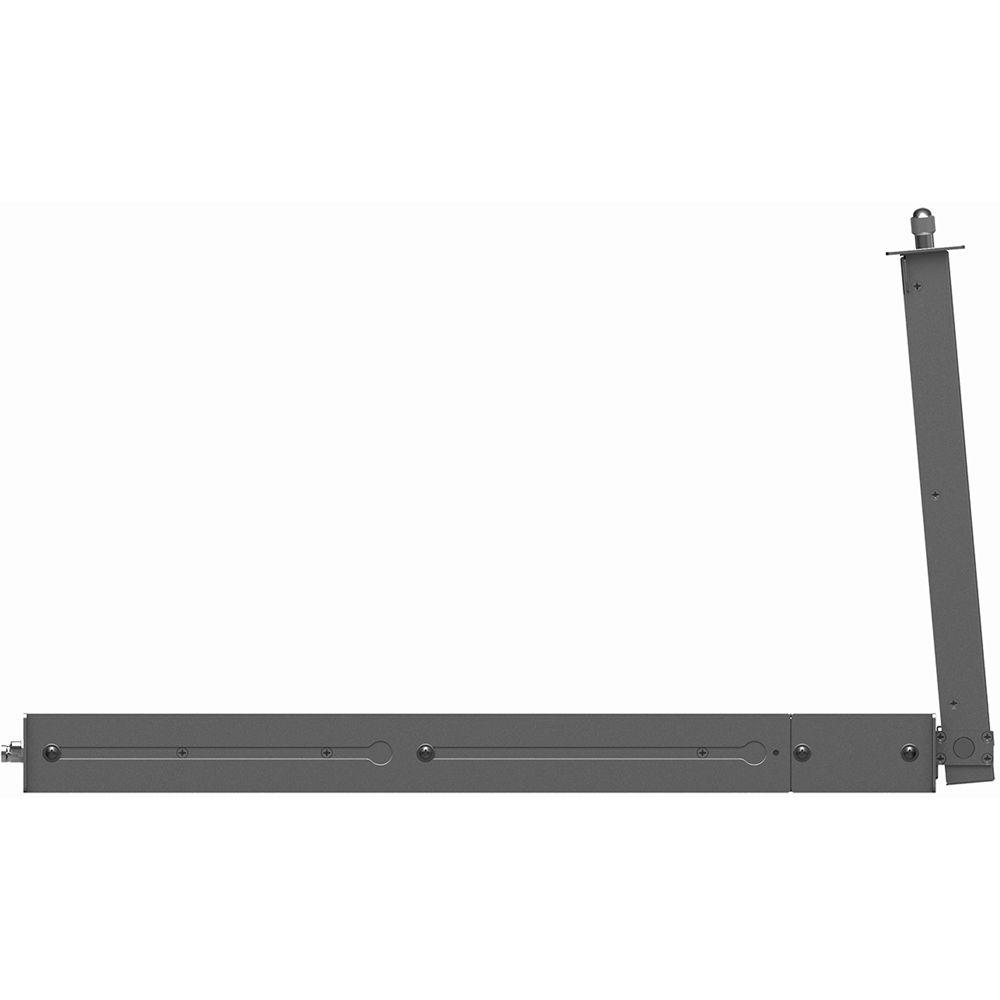

- Monitor powers off automatically when screen is down and pushed in
- Signal cross conversion from SDI to HDMI, and from HDMI to SDI out
- Supports various methods of mounting for use in broadcast, on-site monitoring, and live broadcast vans
In the Box Lilliput RM-1730S 17.3" Full HD 3G-SDI/HDMI Pullout Rackmount Monitor (1 RU) Tally Connector 15 VDC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput RM-1730S 17.3" Full HD 3G-SDI HDMI Pullout Rackmount Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput RM-1730/S Specs | LCD Size | 17.3" (43.9 cm) | | Display Resolution | 1920 x 1080 (RGB) | | Active Area | H x V: 15 x 8.45" (381.89 x 214.81 mm) | | Dot Pitch | H x V: 0.1989 x 0.1989 mm | | Aspect Ratio | 16:9 | | Brightness | 300 cd/m2 | | Contrast | 700:1 | | Light Source | LED | | Surface Treatment | Hard coating (3H)
High-resolution adaptable AG | | Response Time | Rising: 14 ms (typical), 19 ms (maximum)
Falling: 11 ms (typical), 16 ms (maximum) | | Formats Supported | SDI
SMPTE-425M-AB: 1080p 60/59.94/50, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98
SMPTE-372M: 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 29.97/25/24/23.98, 720p 60/59.94/50
SMPTE-296M: 720p 60/59.94/50/30/29/25/24/23.98
SMPTE-292M: 1080p 30/29.97/25/24/24PsF/23.98/23.98PsF
SMPTE-125M: 1080p 30/29.97/25/24/24PsF/23.98/23.98PsF, 1080i 60/59.94/50, 480i 59.94
ITU-R BT.656: 576i 50
HDMI
1080p Full HD
1080i
720p
576p
576i
480p

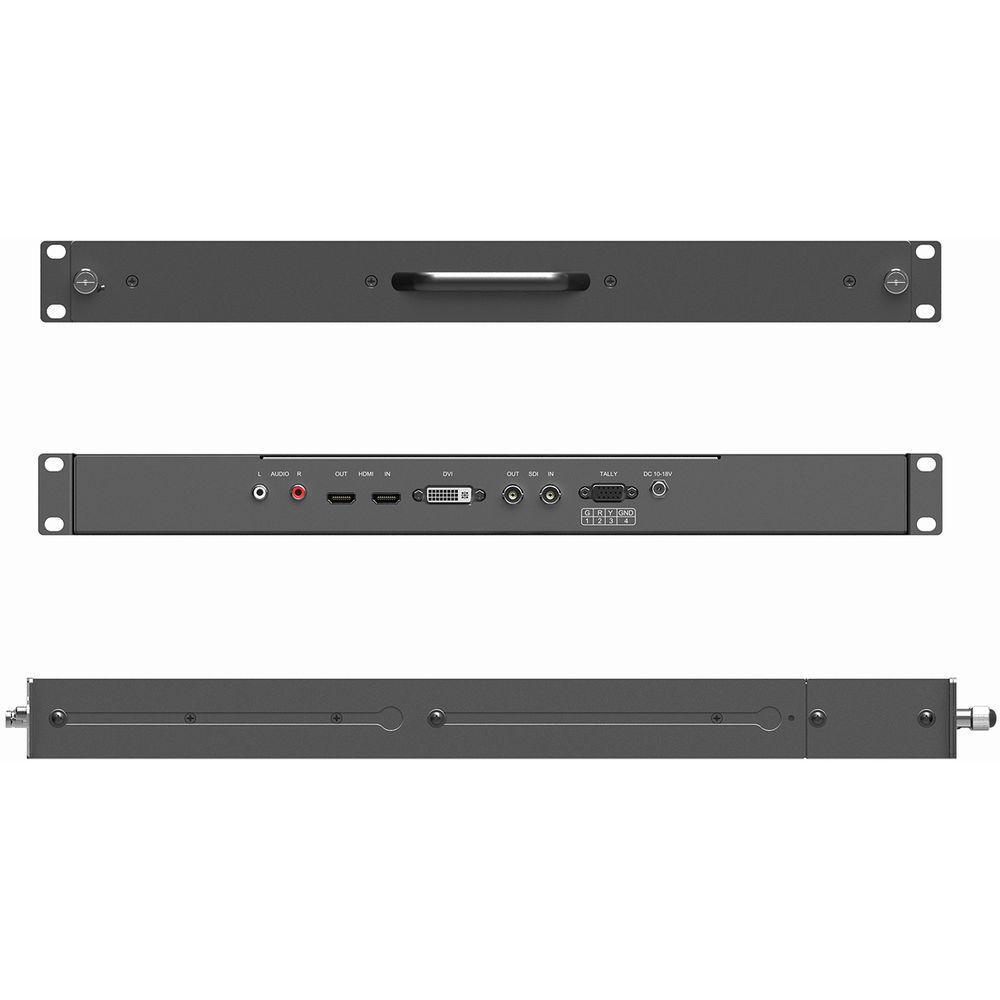

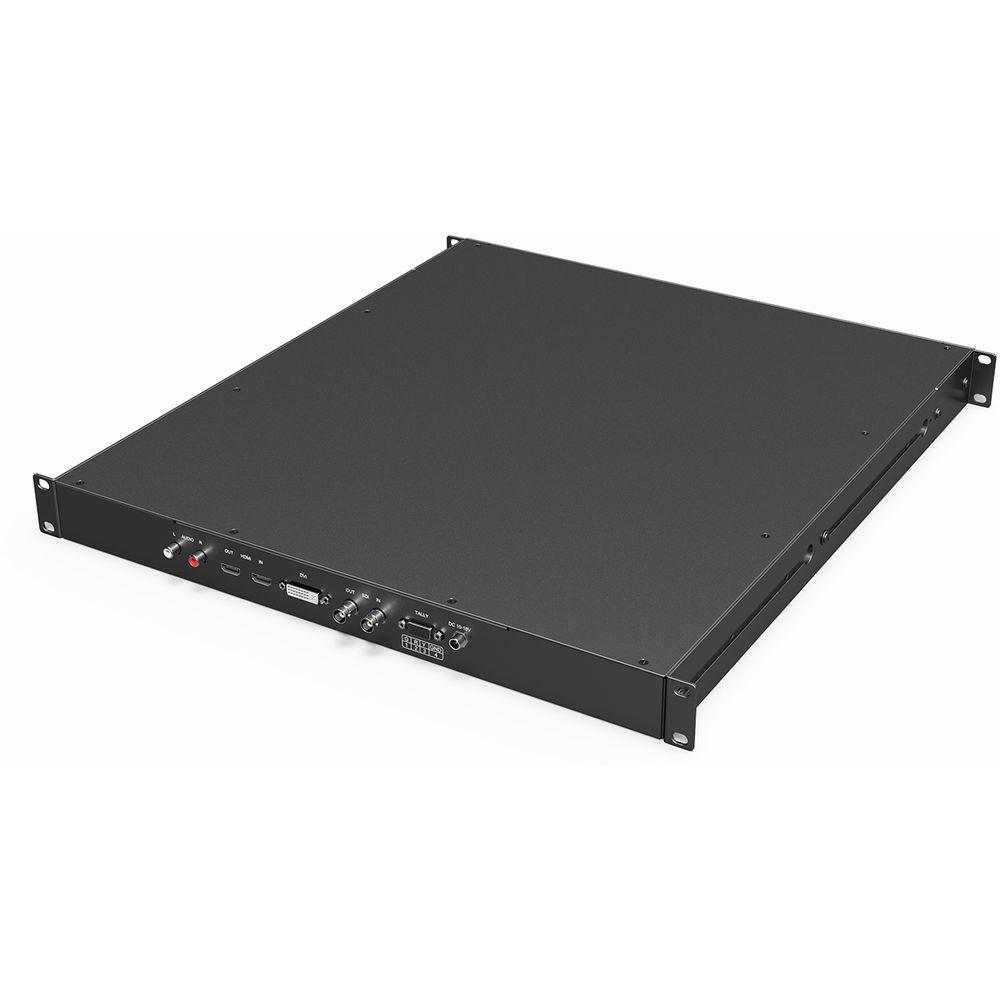

486i | | Viewing Angle | 178°/178° (H/V) | | Input and Output Connectors | Inputs
1 x 3G-SDI
1 x HDMI
2 x Audio (L/R)
1 x TALLY
1 x DVI
Output
1 x 3G-SDI
1 x HDMI
1 x Earphone jack | | Audio | 2 x Speakers
1 x Earphone | | Power Requirements | Current: 2.5 A
Input Voltage: 15 VDC | | Controls | Basic
Power, SDI, HDMI, DVI
Menu, < > button, exit, user-definable buttons
Advanced
Brightness, contrast, saturation, tint, sharpness, color temp
Markers (center/aspect/safety), marker color, marker mat
Thickness, scan, aspect, underscan, H/V delay, check field
Zoom, freeze, DSLR, waveform, peaking (color/level), false color
Exposure, exposure level, histogram
Volume, level meter, audio ch, language
HDMI-SDI convert, color bar, OSD time, back light, fan, reset | | Power Consumption | ≤32 W | | Speaker | 1 W, built-in | | Menu Language | English/Chinese | | Temperature & Humidity | Operation: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C)
Humidity: 80% RH
240 hours of operation at high temperature/humidity | | Dimensions (L x W x D) | 19 x 1.7 x 19.9" (48.25 x 4.4 x 50.75 cm) | | Weight | 18.95 lb (8.6 kg) | | | | Package Weight | 28.0 lb | | Box Dimensions (LxWxH) | 26.1 x 23.0 x 5.2" |
