User Manual for Lilliput RM-7024-VD Dual 7" Rackmount Monitors Click to enlarge the picture
Contents of the user manual for the Lilliput RM-7024-VD Dual 7" Rackmount Monitors
- Product category: Production Monitors Lilliput
- Brand: Lilliput
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lilliput Production Monitors
 |
User manual for the Lilliput RM-7024-VD Dual 7" Rackmount Monitors contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lilliput product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lilliput user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lilliput product will considerably shorten its lifespan!
|

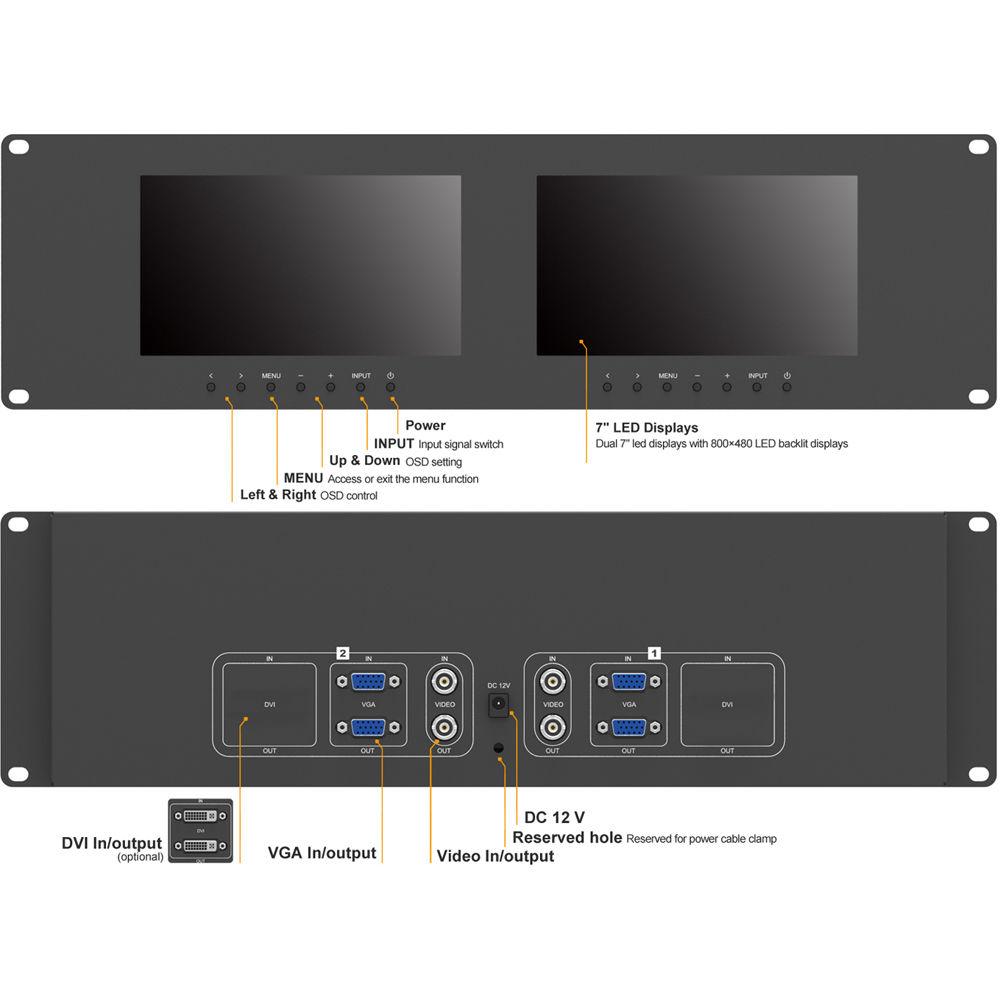

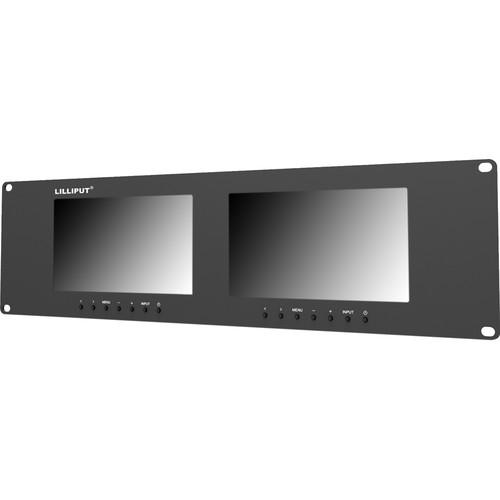

Product description Outfit your production setup with the RM-7024-VD Dual 7" Rackmount Monitor from Lilliput for added monitoring options in a small space. The 3 RU chassis contains two 7" monitors that can be driven by Component, VGA, or DVI inputs found on the rear panel. Each monitor is independent of the other and has its own control set and power switch. The LDC panels featured on this model are 800x480 in resolution, and able to display most common formats including 16:9 and 4:3 with minimal negative space. Because of its compact size and panel features, this monitor will fit well in broadcast workflows, studio production, surveillance, and A/V integration setups. A power supply and remote control are included for easy setup and operation right out of the box. - Two 7" LED-backlit IPS monitors with 800 x 480 resolution
- 400 cd/m² brightness and 500:1 contrast ratio
- 140° / 120° (H/V) viewing angle
- Aspect ratio settings among 15:9 (full screen), 16:9, and 4:3
- Dual VGA, Composite, and DVI inputs and loop through outputs
- Multi-format compatibility
- Image flip (up / down / left / right)
- Easy-to-navigate on-screen menus with 5-button control
- Adjustable color temperature in VGA & DVI mode
- Independent power switches
In the Box Lilliput RM-7024-VD Dual 7" Rackmount Monitors 12V Power Supply Power Supply Cable Clamp Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput RM-7024-VD Dual 7" Rackmount Monitors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput RM-7024-VD Specs | | | Panel Type | TFT LCD | | Display Size | 7.0" / 17.8 cm | | Active Area | 6.1 x 3.4" / 154.08 x 85.92 mm | | Screen Resolution | 800 x 480 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 140°
Vertical: 120° | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 500:1 | | Dot Pitch | 0.0642 x 0.1790 mm | | Response Time | 10 / 15 ms (Rise / Fall) | | Finish | Matte | | | | Video | 2 x BNC (Composite) Output
2 x DE-15/DB-15 (VGA) Output
2 x DVI-I Output
2 x BNC (Composite) Input
2 x DE-15/DB-15 (VGA) Input
2 x DVI-I (Dual-Link DVI) Input | | Audio | None | | Built-In Speaker | 1 x 1 W | | Card Slot | None | | | | DC Input Power | 7 to 24 VDC | | Battery Type | None | | Operating Current | 1100 mA | | Power Consumption | 14 W (Maximum) | | | | Operating Humidity | 90% | | Operating Temperature | -22 to 158°F / -30 to 70°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Dimensions (W x H x D) | 19 x 5.3 x 1" / 482.5 x 133.5 x 25.3 mm | | Weight | 5.60 lb / 2.54 kg | | | | Package Weight | 7.15 lb | | Box Dimensions (LxWxH) | 23.7 x 6.9 x 3.9" |
