User Manual for Lilliput TM-1018 O P 10.1" Touchscreen LED Backlit Camera Monitor Click to enlarge the picture
Contents of the user manual for the Lilliput TM-1018 O P 10.1" Touchscreen
- Product category: On Camera Monitors Lilliput
- Brand: Lilliput
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lilliput On Camera Monitors
 |
User manual for the Lilliput TM-1018 O P 10.1" Touchscreen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lilliput product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lilliput user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lilliput product will considerably shorten its lifespan!
|

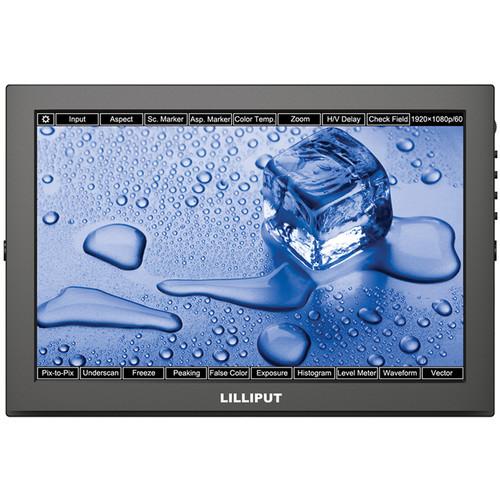

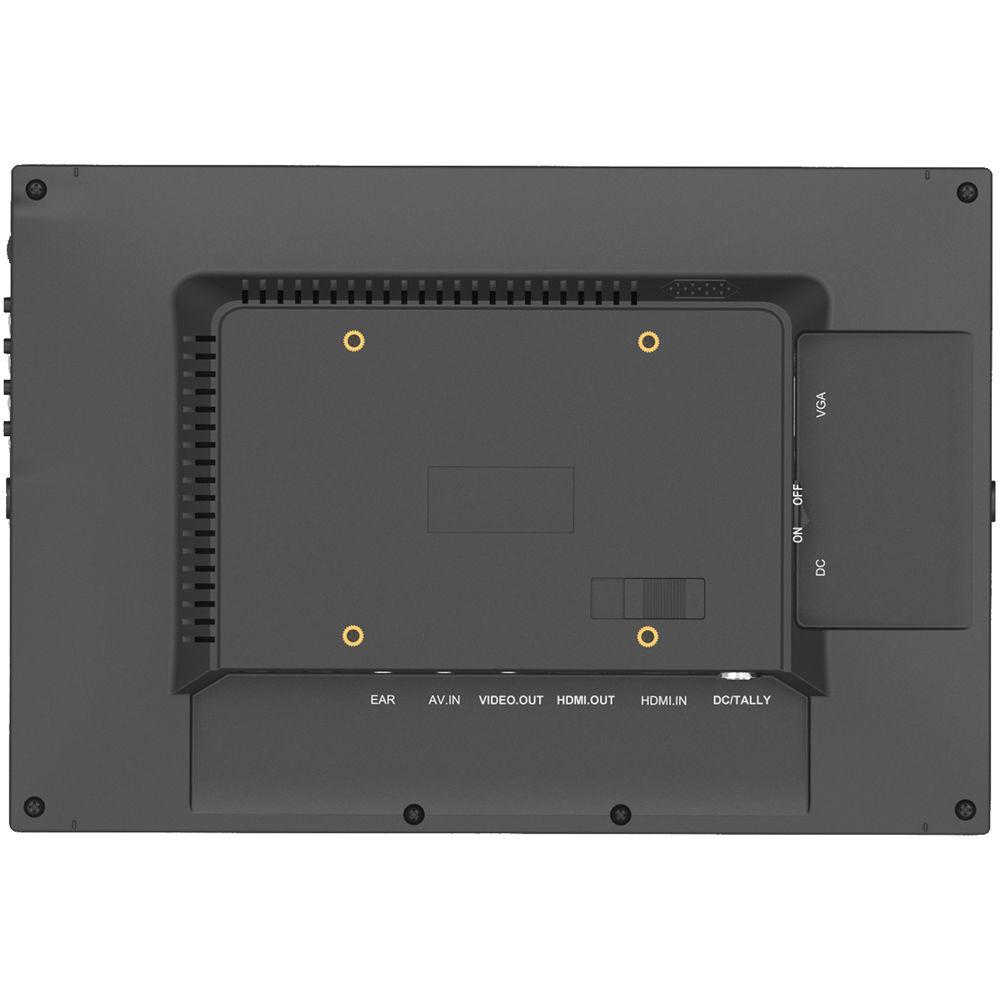

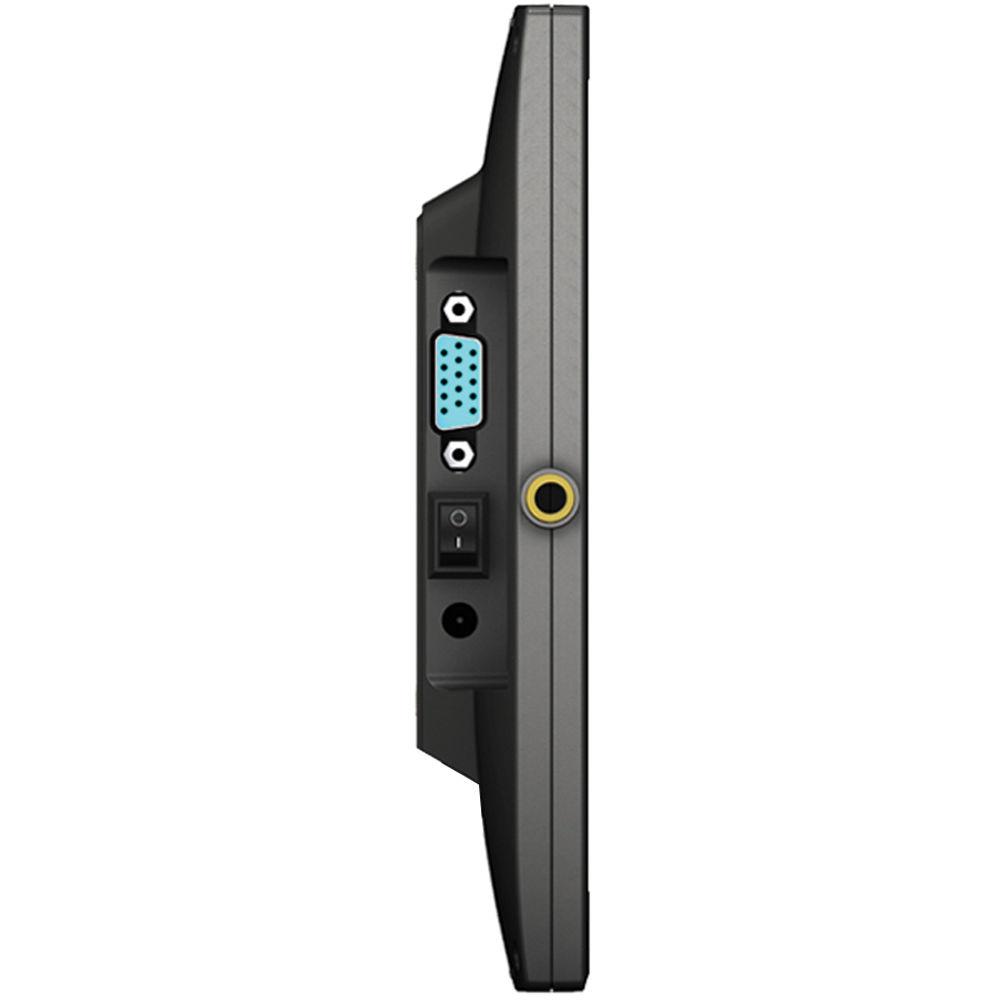

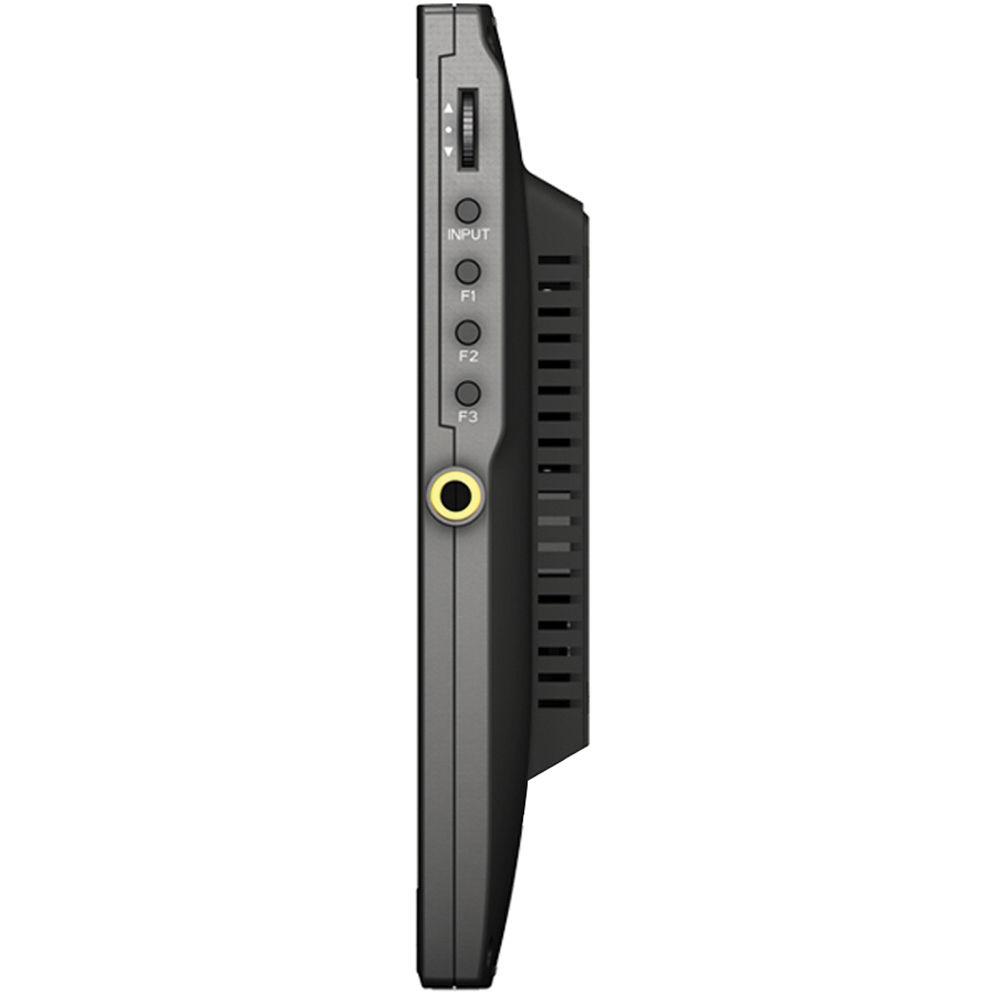

Product description The TM-1018/O/P 10.1” Touchscreen LED Backlit Camera Monitor from Lilliput is a field monitor with HDMI input & output, designed for use with DSLR and higher standard cameras. With a high-quality panel, the monitor features a capacitive touchscreen function to access and operate the internal settings functions. The monitor also features a 3G-SDI connection for professional broadcasting.The monitor’s integrated waveform, vectorscope, video analyzer, luminance/color/RGB histograms, luminance/RGB parade/YCbCr parade waveforms, and other waveform modes and measurement modes such as peaking, exposure, and audio level meter. These assist users to accurately monitor when shooting, making, and playing movies/videos.Level meter, histogram, waveform, and vectorscope can be displayed horizontally at the same time, while professional waveform measurement and color control helps the user realize and record natural color. Composite and component through BNC connectors and HDMI inputs cover all the bases for common broadcast applications. Also included is an HDMI output, avoiding the need of HDMI splitters. - Histogram
-
- RGB histogram shows the red, green, and blue channels in overlay histogram
- Color histogram shows histograms for each of the red, green, and blue channels
- Luminance histogram shows the distribution of brightness in an image as a graph of luminance
- Waveform
-
- Waveform monitoring consists of Luminance, YCbCr parade & RGB parade Waveforms, which are used for measuring the brightness, luminance or chroma values from a video input signal
- It not only can warn the user for out-of-range conditions such as overexposure errors, but also assist with color correction & camera white and black balance
- Vector
-
- Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum
- It can also be displayed in various sizes & positions, that allow users to monitor color gamut range in real time
- Audio Level Meter
-
- The Audio Level meters provide numerical indicators and headroom levels
- They can generate accurate audio level displays to prevent errors during monitoring
- Widescreen Panel
-
- The 16:9 widescreen aspect ratio makes the TM-1018/S ideal for a variety of audio/video applications
- It can be used in TV broadcast rooms, audio-visual installations, and as a preview monitor with professional camera crews for both on-camera and Video Village installations
- IPS LED Screen
-
- The TM-1018/S Monitor uses IPS screen panels that allow for high pixel pitch, which gives wide viewing angles and base resolutions of 1280 x 800, allowing upscaling to a full 1080p HD signal
- 800:1 Contrast Ratio for Crisp Sharp Colors
-
- The TM-1018/s Monitor boasts a rich clear and sharp picture, thanks to a high contrast ratio and LED backlight
- The onboard matt LCD display means that all colors are well represented, and that there are no reflections evident on the screen
- The LED technology brings great benefits in terms of low power consumption, "instant-on" backlighting, and consistent brightness over years and years of use
- Made for DSLR Cameras
-
- The TM-1018/S Monitor has a large range of compatibility, with all major DSLR camera types supported using HDMI input
- It allows for convenient shot-taking, letting you to see the shot clearly before taking
- Advanced Camera Functions on the Fly
-
- Packed with advanced features such as Peaking, Histograms, False Color Filtering, Exposure, and many more
- HDMI Pass-Through
-
- The TM-1018/S Monitor includes an HDMI output which allows the user to duplicate the video content onto a second monitor, without the need of HDMI splitters
- The second monitor can be any size and picture quality will not be affected
- Optional Battery Plates
-
- Battery plate options allow for battery compatibility with 90% of major battery types, including a choice of 2 from Sony, Panasonic, and 2 types of Canon, with an extra charge Anton Bauer, and V-Type plates
- Audio Monitoring on Device
-
- TM-1018/S Monitor features an on-screen volume level for monitoring any excessive background noise or volume peaks whilst filming video and connecting via HDMI
In the Box Lilliput TM-1018/O/P 10.1" Touchscreen LED Backlit Camera Monitor Suitcase Mount Plate Battery Plate 12 VDC Adapter Mini XLR Composite Cable HDMI AC Cable Shoe Mount Gimbal Bracket VESA Battery Bracket Folding Sunshade Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput TM-1018 O P 10.1" Touchscreen LED Backlit Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput TM-1018/O/P Specs | | | Panel | 10.1" (25.6 cm) LED IPS | | Resolution | 1280 x 800, supports up to 1920 x 1080 | | Aspect Ratio | 16:9 | | Brightness | 350cd/m2 | | Contrast | 800:1 | | Viewing Angle | 170°/170°(H/V) | | Backlight | LED | | | | Video | 1 x HDMI, 1 x VGA, 1 x Composite (RCA) | | | | Video | 1 x HDMI, 1 x Composite (RCA) | | Audio | 3.5 mm jack output, 1 x built-in speaker (< 1 W) | | | | Current | 1200 mA | | Input Voltage | 7 to 24 VDC | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions (L x W x D) | 9.8 x 6.7 x 1.1" (25.0 x 17.0 x 2.9 cm) | | Weight | 22.2 oz (630 g) | | | | Package Weight | 7.815 lb | | Box Dimensions (LxWxH) | 16.6 x 13.55 x 5.25" |
