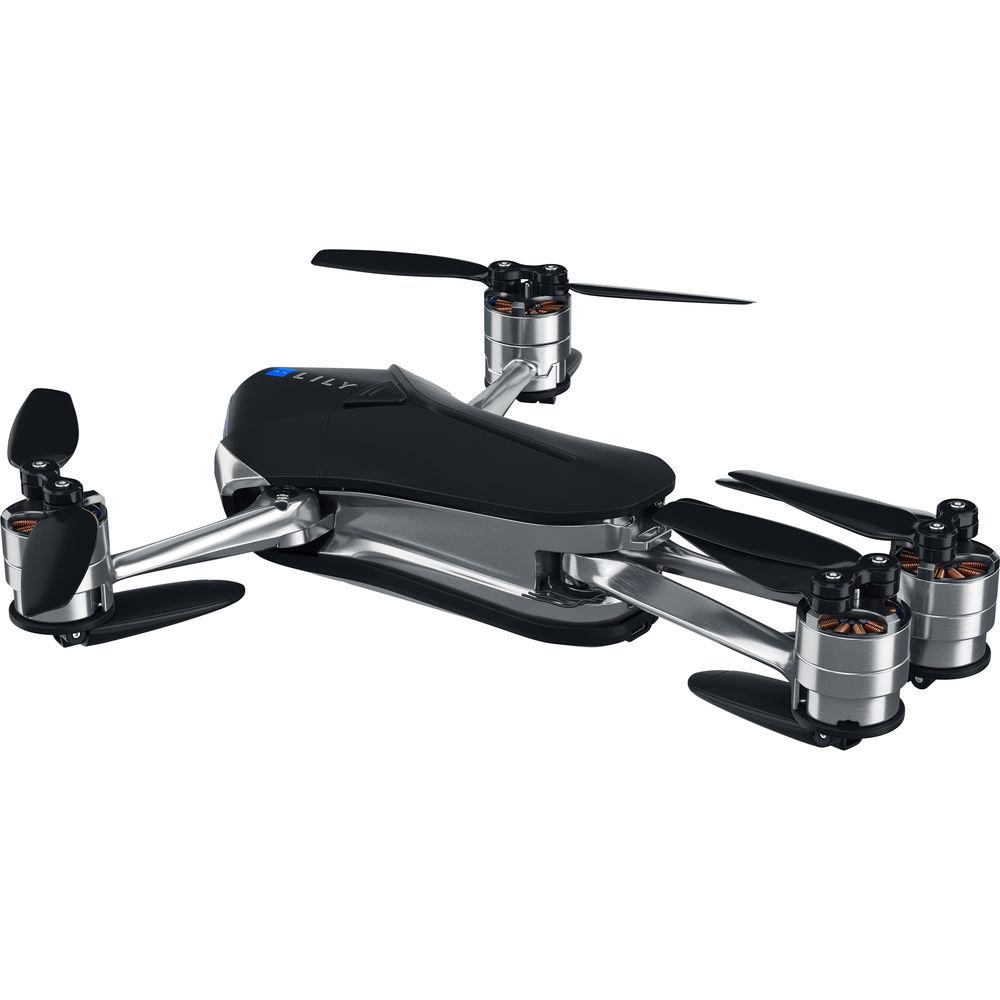

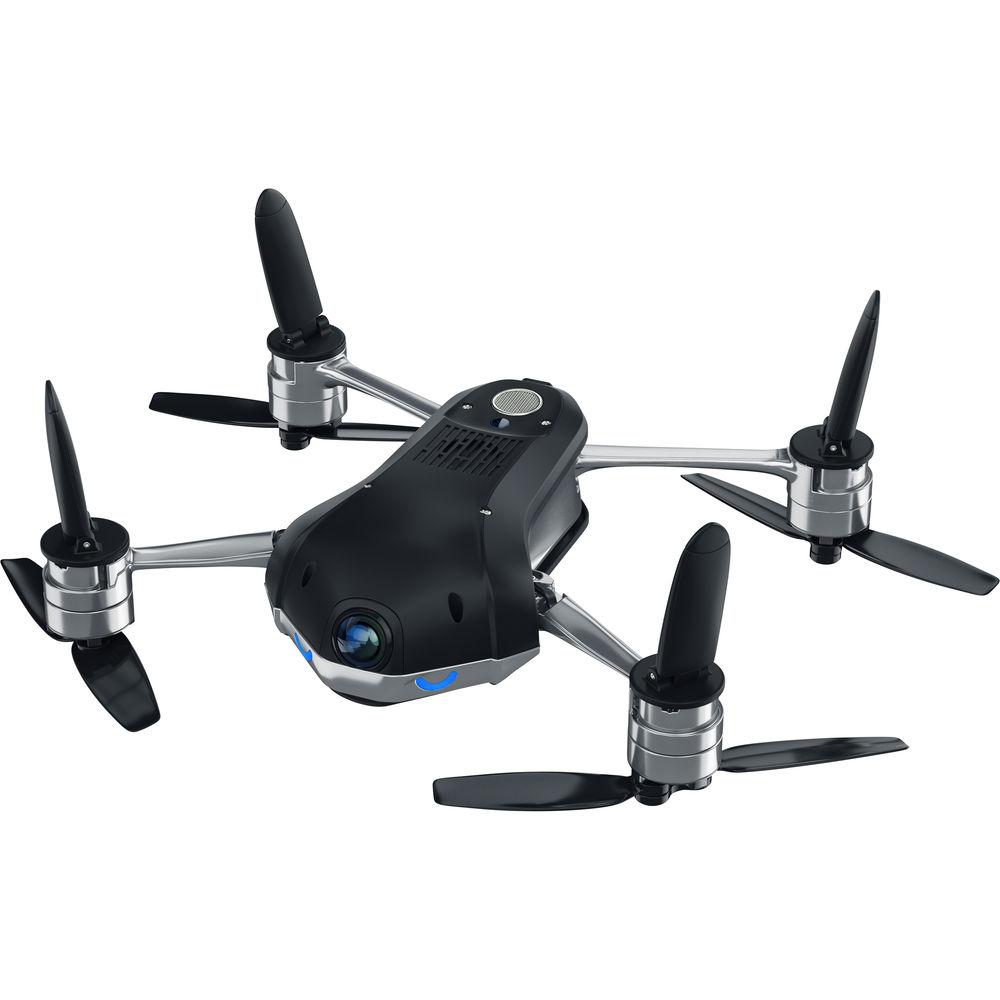

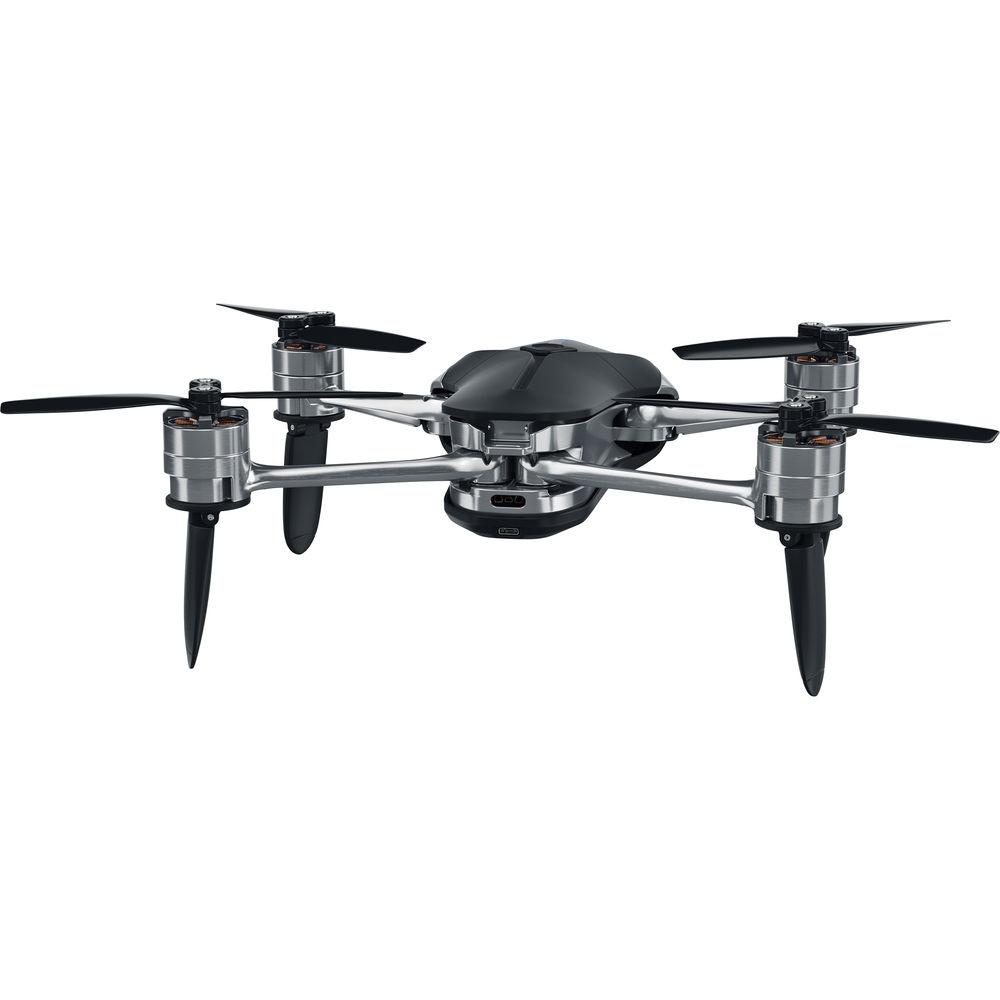

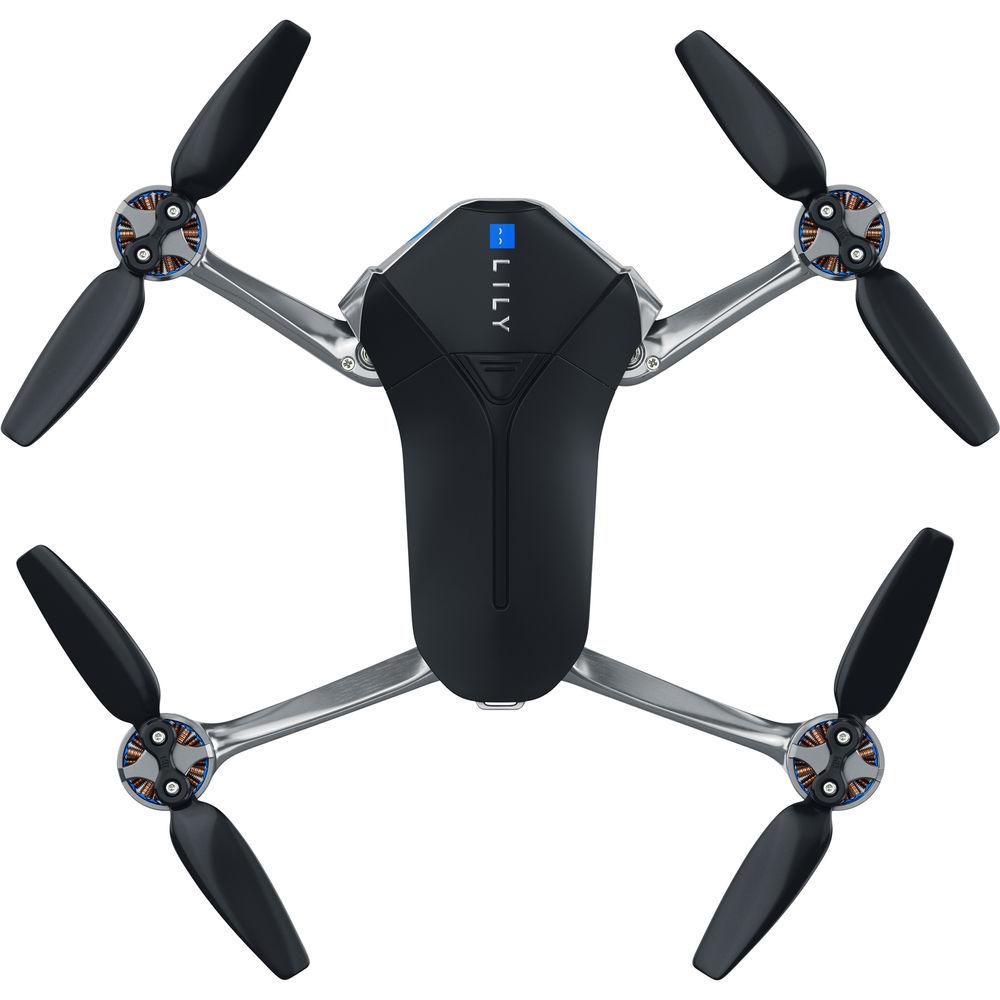

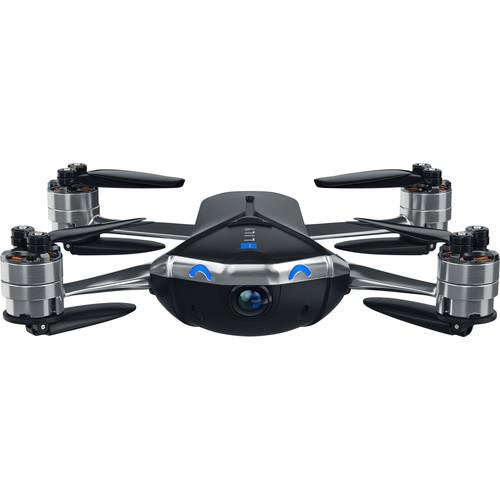

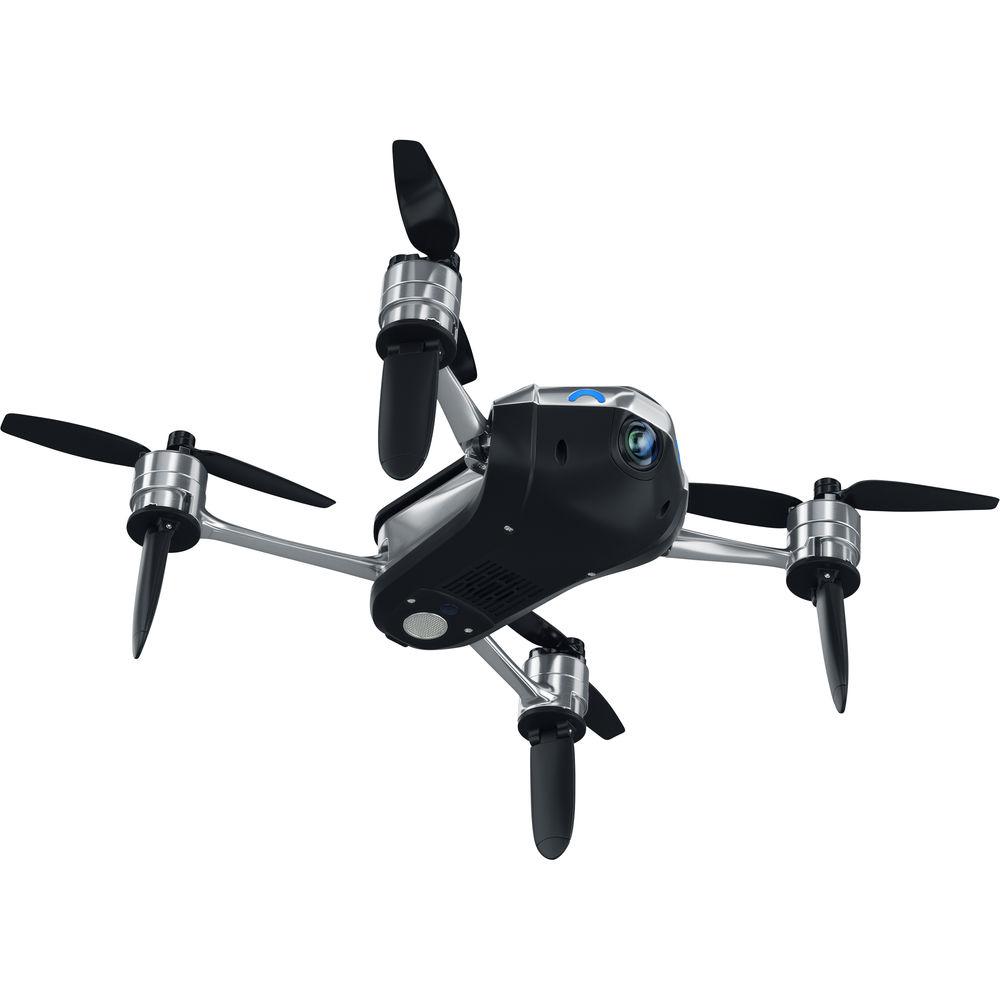

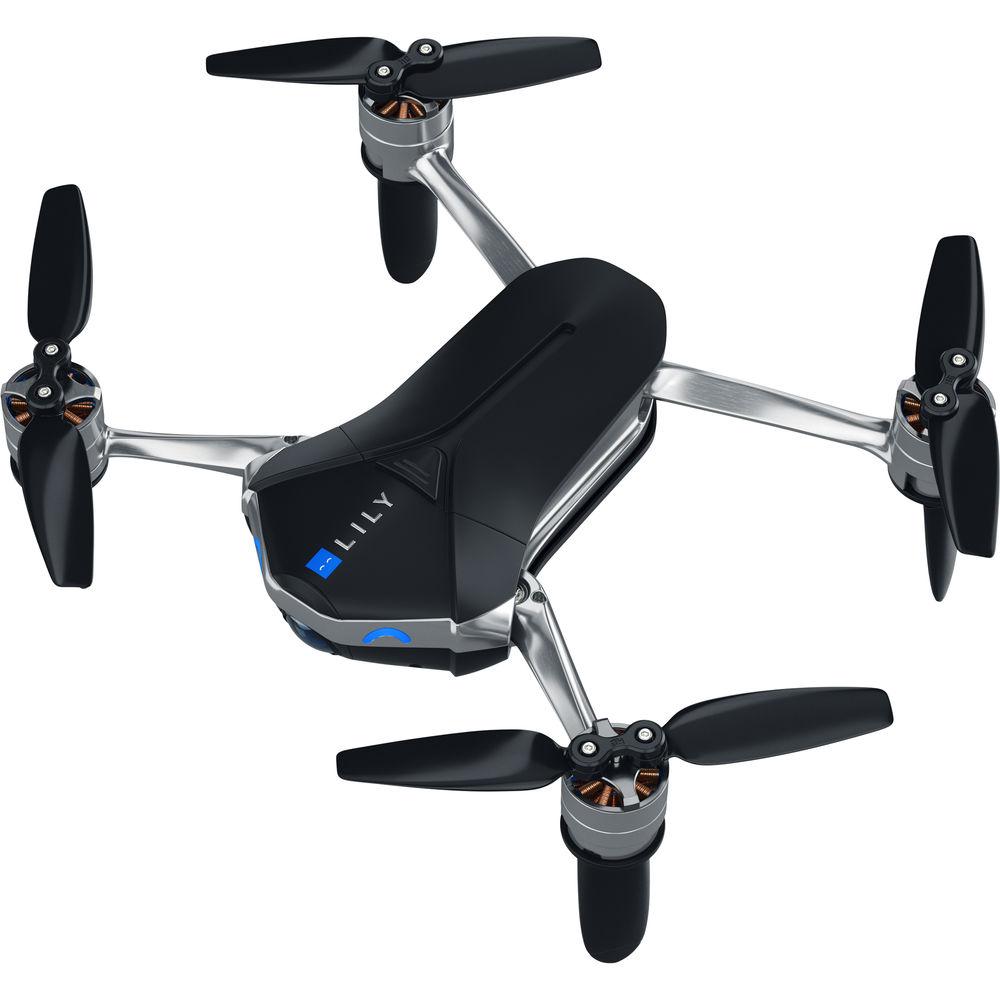

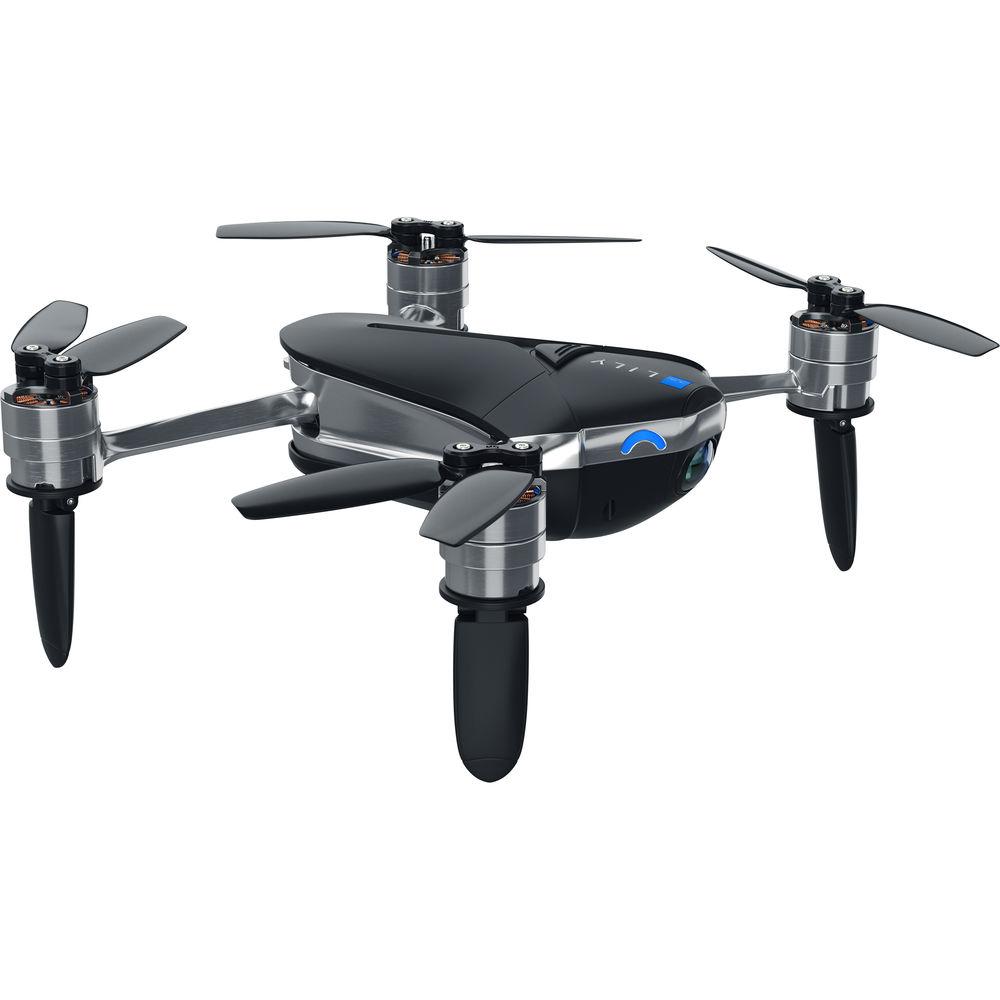

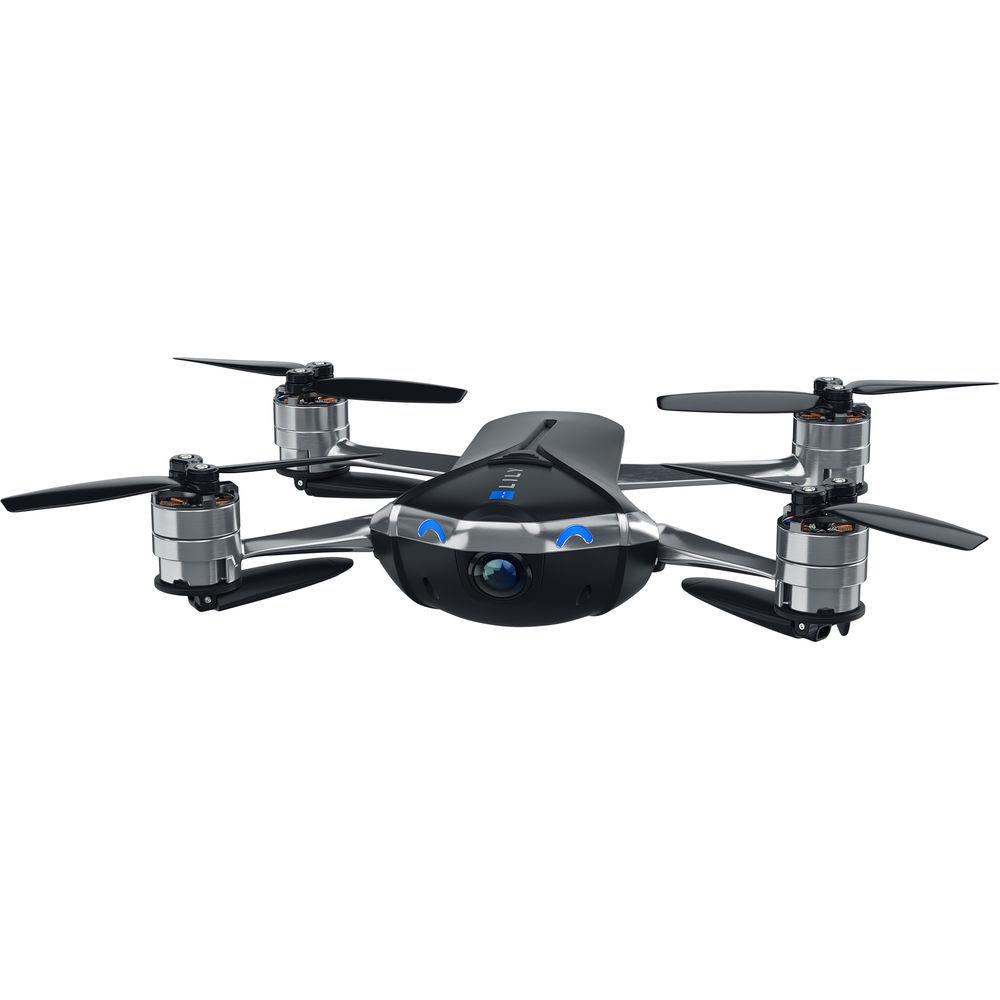

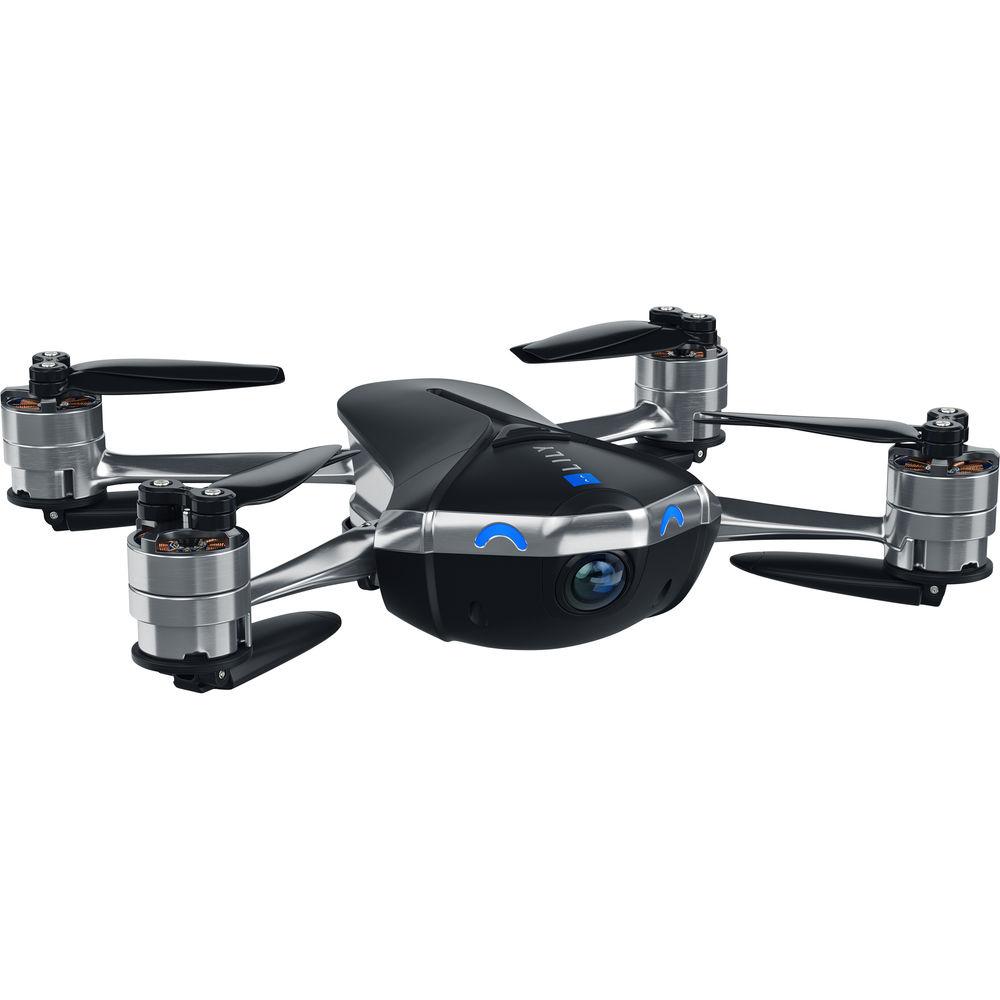

User Manual for LILY Next-Gen Camera Drone Click to enlarge the picture
Contents of the user manual for the LILY Next-Gen Camera Drone
- Product category: See All Drones LILY
- Brand: LILY
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LILY See All Drones
 |
User manual for the LILY Next-Gen Camera Drone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LILY product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LILY user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LILY product will considerably shorten its lifespan!
|
Product description Aerial Photography and Drone Glossary Read More With no assembly required, the LILY Next-Gen Camera Drone takes off with a simple one-touch command on your iOS or Android phone and captures up to 18 minutes of Ultra HD 4K video in your choice of multiple modes of operation. The LILY is very small — you can place it on your palm and have it lift off from there or as far as half a mile away. A one-touch command on the included app will bring LILY right back, and you can swap in another battery (two are included) and fly off for another 18 minutes.
When you send LILY off, you can control it with your phone or assign it a Follow Me mode or Object Tracking mode. These two are similar. One will have LILY follow you as you go about an activity, such as running or boating; and the other will have LILY follow someone else or a vehicle or other object. Object Tracking uses GPS and works by analyzing captured video images, but it is not an autopilot feature and does require you to watch out for obstacles as well as sharp changes in the tracked object's conditions, such as speed, direction, and sunlight illumination. If LILY loses the object being tracked, it will hover and await your next command.
LILY's camera features a Sony IMX 214 image sensor and is capable of capturing 1080p HD video and 13MP stills in addition to 4K video. It stores everything to an SD card, which can be offloaded to your computer from the LILY via a micro-USB cable. LILY is also capable of streaming live video to applications such as Facebook Live using the LILY app. In addition to the main functions, the app also provides video editing tools and allows you to create custom shots and adjust camera settings. LILY uses the free 5.8 GHz radio frequency to communicate with your phone.
Other features include Smart Hover, which keeps you stabilized in the air by helping maintain the drone's position in the wind, Geofencing, which prevents flight into restricted areas, Return Home, which brings LILY to its last known position and auto-lands it if the Wi-Fi signal is lost or the battery is critically low, and a 360° Orbit Mode that will have LILY circling the skies right above you and capturing your choice of video or stills.
LILY is designed with a midnight-black, high-strength, polycarbonate body, high tensile strength propellers, and brushed aluminum accents. It uses an optic flow and ultrasonic-positioning accelerometer and three-axis gyro magnetometer for digital stabilization in 1080p30. When you're done for the day, LILY folds up to an even smaller size for convenient transport.
An optional physical controller is also available for purchase for LILY. - Pro Package Key Features
-
- Ultra HD 4K / 1080p video
- 13MP photos
- Can be used indoors and outdoors
- Includes two batteries (one a spare), each providing up to 18 minutes of flight time
- Dual GPS - GPS/GLONASS
- SmartHover technology
- Follow Me mode
- Object Tracking mode
- Orbit (360°) mode (automatically fly and record video around a stationary point at a specified altitude and radius)
- Geofencing
- Downward obstacle avoidance
- Automatic return to home
- Video stabilization in 1080p30 (switchable)
- One-touch take-off/return/landing
- 5.8 GHz connection to smartphones
- Video format: MP4 (MPEG-4 AVC/H.264)
- Live video transmission range up to 400'
UPC: 799665748623 In the Box LILY Next-Gen Camera Drone (2017) Rapid Charger 2 x Batteries Charging Cable and Wall Adapter Set of Spare Propellers Propeller Guards Protective Zipper Pouch Carrying Case for Drone & Accessories 16 GB SD Card Limited 6-Month Warranty on Motors Limited 90-Day Warranty on Batteries Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 User Manual PDF 3.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LILY Next-Gen Camera Drone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLILY Next Generation Specs | | | Maximum Takeoff Weight | 14.6 oz / 414 g | | Maximum Horizontal Speed | 25 mph / 40.2 km/h | | Flight Ceiling | 50' / 15 m | | Maximum Flight Time | 18 Minutes | | Hovering Accuracy | ±1.6' / 0.49 m Vertical with Vision Positioning
±8.2' / 2.50 m Horizontal with Vision Positioning When Outdoors | | | | GNSS Support | GPS, GLONASS | | Vision System | None | | | | Operating Frequency | 5.8 GHz | | Maximum Operating Distance | .62 mi / 1 km at 5.8 G | | App Operating System Requirements | iOS 8.4 and later
Android 4.3 and later | | | | Sensor | 1/3" CMOS | | Effective Pixels | 13 MP | | Focal Length | 1.8mm / 15.6mm (35mm Equivalent) | | Lens Field of View | Horizontal: 190.6° | | Aperture | f/2.2 | | Photo ISO Range | 100 - 3200 (Auto) | | Photo Resolution | 16:9: 2880 x 1620 | | Photo Format | JPEG | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Capacity | 1650 mAh / 18.8 Wh | | Battery Configuration | 3 S / 11.4 V | | Operating Temperature | 41 to 104°F / 5 to 40°C | | | | Model | Qualcomm Quick Charge 3.0 Hub | | Output Voltage | 13 V, 1.3 A | | Power Rating | 17 W | | | | Number of Rotors | 4 | | Overall Dimensions | 12.2 x 3.0 x 10.7" / 31.0 x 7.6 x 27.2 cm (Unfolded)
4.0 x 8.7 x 2.0" / 10.2 x 22.1 x 5.1 cm (Folded) | | Weight | 0.85 lb / 0.39 kg | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 11.5 x 5.7 x 5.0" |
