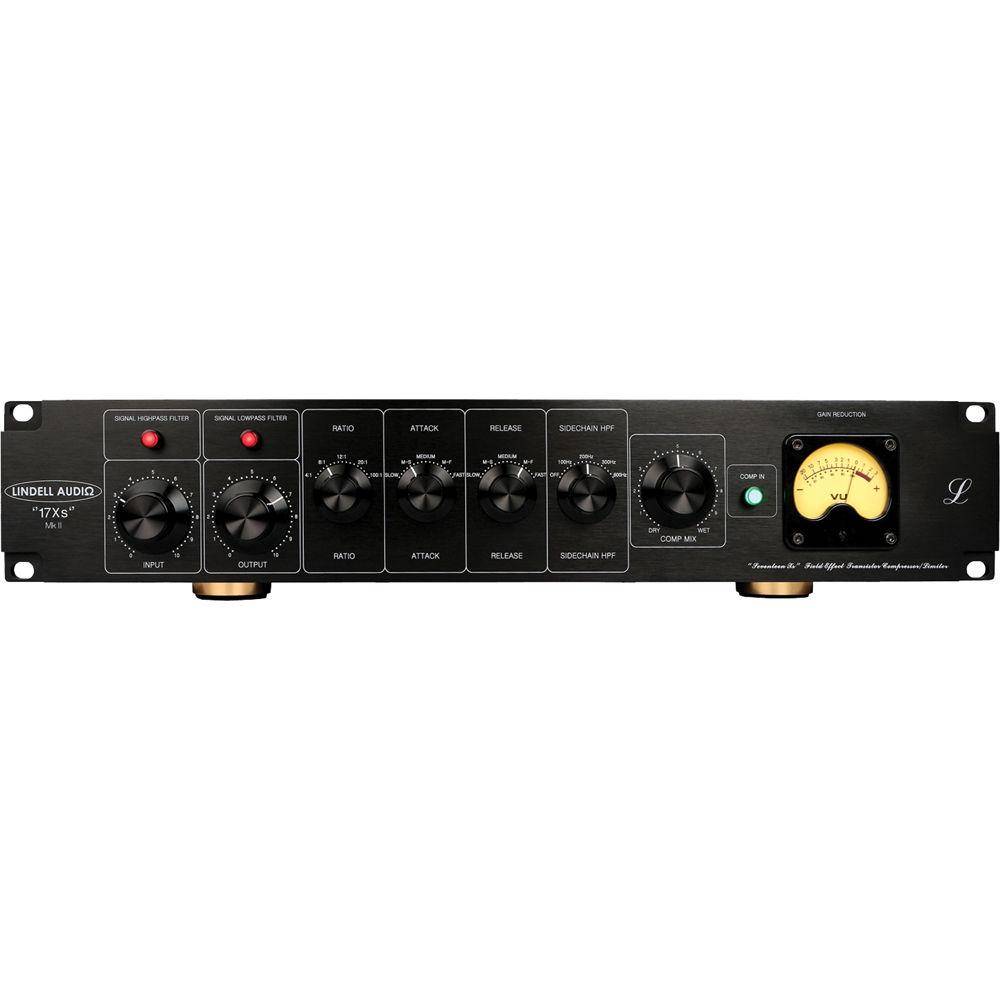

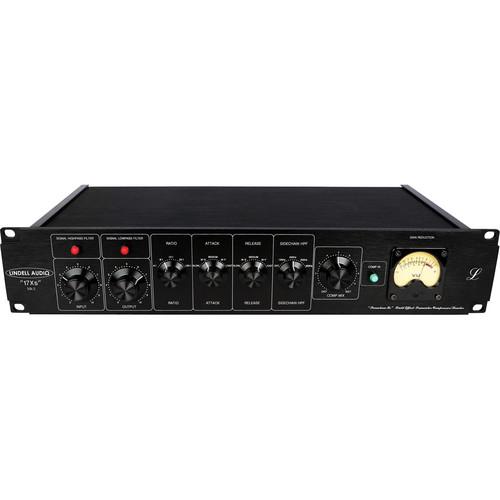

User Manual for Lindell Audio 17XS MkII FET Style Compressor Limiter Click to enlarge the picture
Contents of the user manual for the Lindell Audio 17XS MkII FET Style
- Product category: Dynamics Processors Lindell Audio
- Brand: Lindell Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lindell Audio Dynamics Processors
 |
User manual for the Lindell Audio 17XS MkII FET Style contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lindell Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lindell Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lindell Audio product will considerably shorten its lifespan!
|
Product description The 17XS MkII FET Style Compressor/Limiter from Lindell Audio is a single-channel 1176-style FET compressor and limiter. It has 5 step switched selectable ratio ranging from 4:1 to 100:1, for compression from mild to squashed. A selectable high-pass filter at 80Hz and low-pass filter at 8kHz act as normal filters, removing those frequencies from your audio. The high-pass sidechain filter ranges between 100 and 600Hz and leaves those frequencies in your audio signal, but prevents them from compressing.

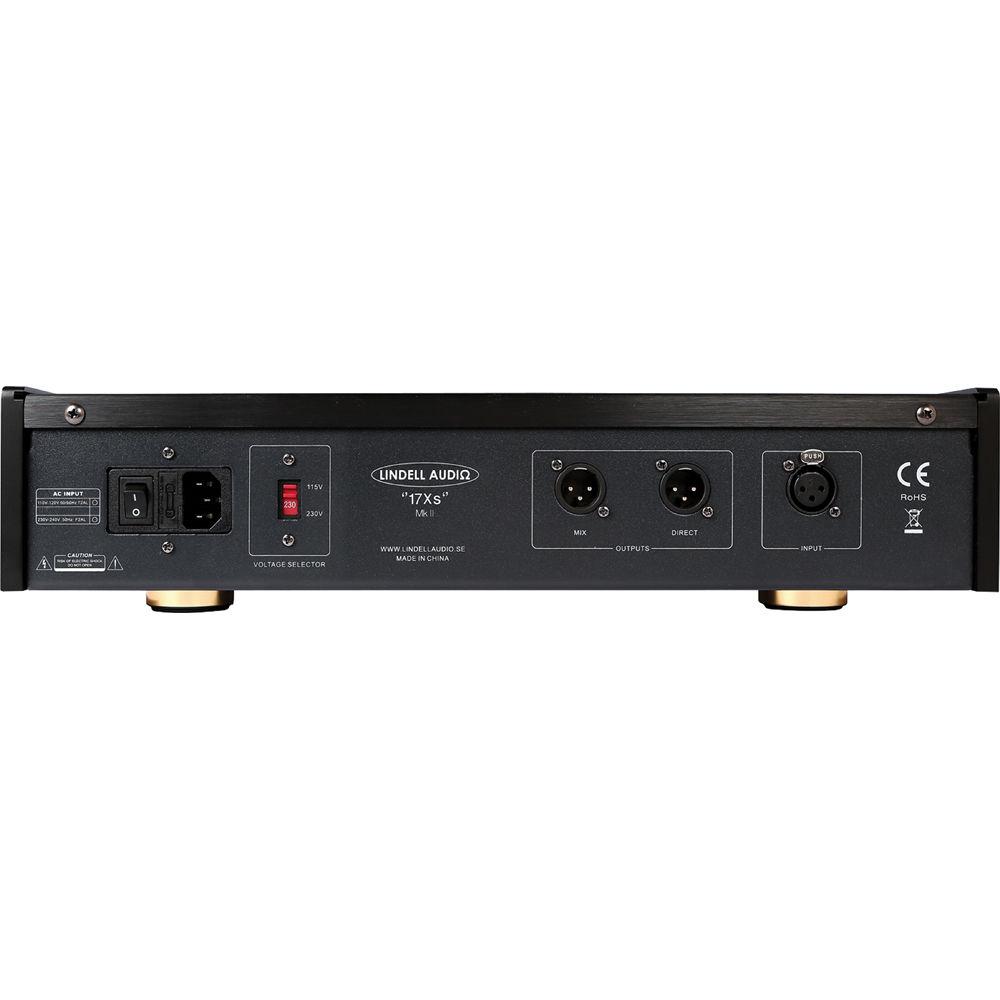

The unit's Wet/Dry knob allows you to create a mix based upon how much compressed and dry signal you desire for parallel-style compression effects. The 17XS MkII has both mix and direct outputs, allowing you to mix your compressed and uncompressed signals separately on your mixer or in your DAW. In the Box Lindell Audio 17XS MkII FET Style Compressor/Limiter AC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lindell Audio 17XS MkII FET Style Compressor Limiter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLindell Audio 17XSMK2 Specs | Type | FET Style | | Attack Time | 5 Step switched attack time:
20 µs to 800 µs | | Release Time | 5 Step switched release time:
50 ms to 0.8 s | | Filters | 5 Step switched high-pass sidechain filter:
Off, 100, 200, 300, 600 Hz
High-pass filter @ 80 Hz, 6 dB/octave
Low-pass filter @ 8 kHz, 6 dB/octave | | Ratio | 5 Step switched ratio:
4:1, 8:1, 12:1, 20:1, 100:1 | | Bypass | True hardware bypass | | Voltage | 115 V / 230 V (Switchable on the back) | | Input Impedance | 10 kΩ | | Output Impedance | Line Level: 70 Ω | | Frequency Response | 20 Hz to 20 kHz | | Dimensions (L x H x W) | 19 x 3 x 10" (483 x 88 x 250 mm) | | Weight | 17.6 lb (8 kg) | | | | Box Dimensions (LxWxH) | 22.0 x 14.5 x 8.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
