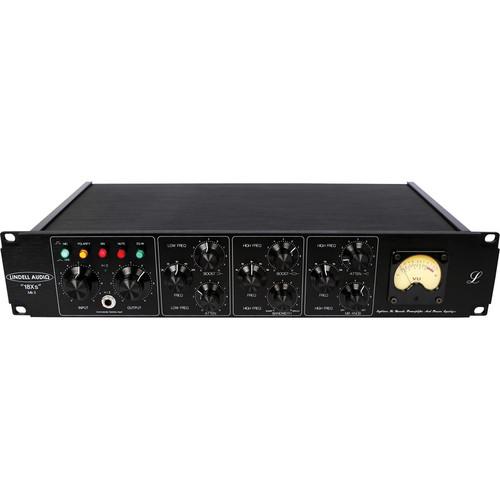

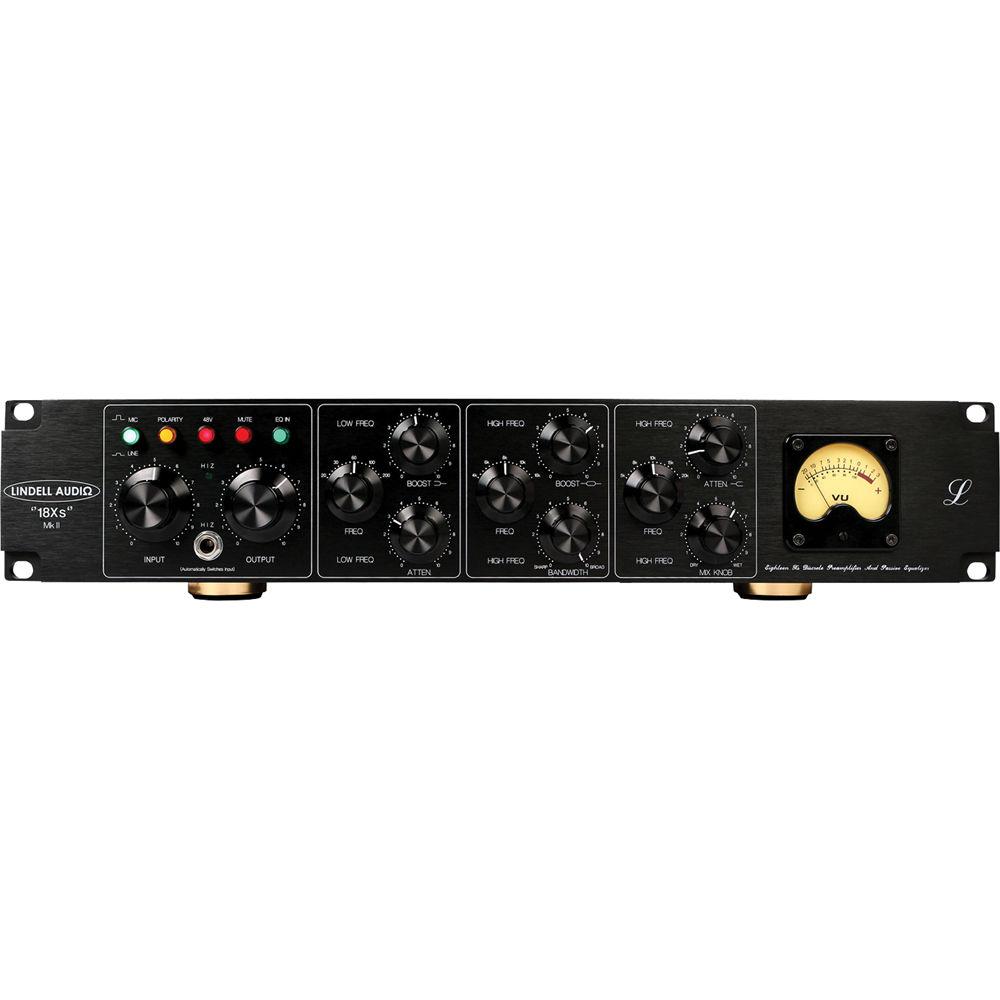

Product description The 18Xs MkII Channel Strip from Lindell Audio is a single-channel microphone preamp, DI, line amplifier, and Pultec-inspired equalizer. It features separate mic and line level transformer coupled balanced XLR inputs as well as a 1/4" Hi-Z instrument input located on the front-panel. The 18Xs can provide up to 65 dB of input gain and also has a polarity switch, a mute button, and selectable 48-volt phantom power.
The EQ section features 3 bands each with a 5-step switched frequency selector. The EQ is comprised of a low shelf that can be boosted and attenuated, a high-frequency bell-style band with adjustable bandwidth, and a high shelf that can be boosted or attenuated. The Mix Knob allows you to blend your dry and wet signals to create parallel-style equalization. The unit features a direct output XLR that can be set pre or post the EQ stage. The front-panel analog VU meter displays your output level. UPC: 610370624630 In the Box Lindell Audio 18Xs MkII Channel Strip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lindell Audio 18Xs MkII Channel Strip in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

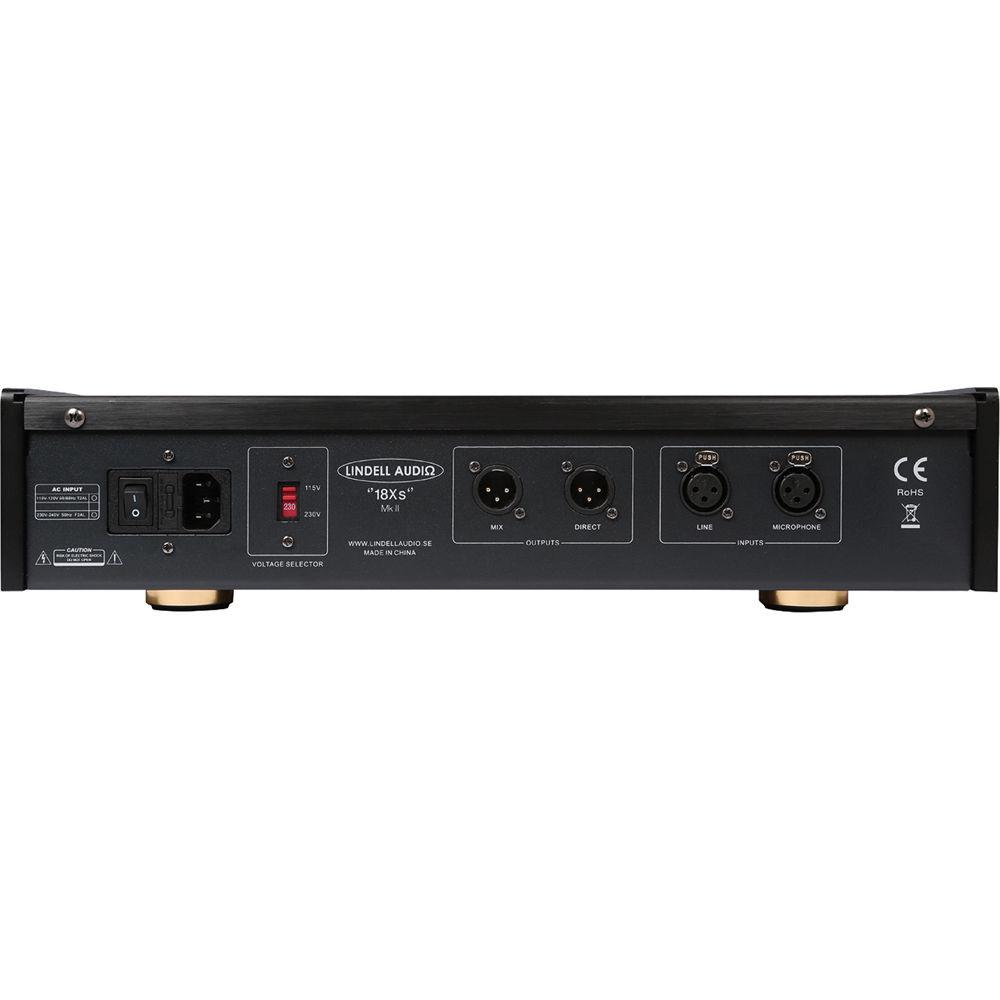

Technical parametersLindell Audio 18XSMK2 Specs | Input | 1x Mic level XLR
1x Line level XLR
1x 1/4" (6.35 mm) Hi-Z | | Output | 1x XLR mix output
1x XLR direct output | | Input Gain | Up to 65 dB | | Equalizer | +/-10%, Low Frequency Boost/Attenuate Step Switched @ 20, 30, 60, 100, or 200 Hz
+/-10%, High Frequency Boost Step Switched @ 4, 6, 8, 10, or 16 kHz
+/-10%, High Frequency Attenuation Step Switched @ 5, 8, 10, 15, 20 kHz | | Input Impedance | Mic: 2.4 kΩ | | Output Impedance | Line: 70 Ω | | Frequency Response | 20 Hz to 20 kHz | | Power Supply | 115/230 V, switchable | | Dimensions (L x W x H) | 17.2 x 3.4 x 9.8" (483 x 88 x 250 mm) | | Weight | 17 lb (8 kg) | | | | Package Weight | 20.4 lb | | Box Dimensions (LxWxH) | 21.9 x 14.6 x 8.7" |
