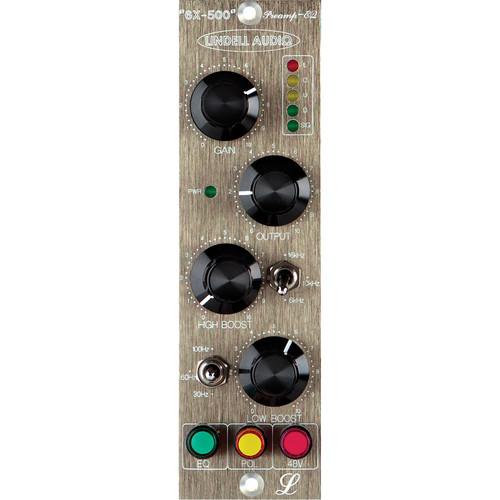

Product description The 6X-500 from Lindell Audio is a single channel microphone preamp mated with a two channel Pultec style EQ, and housed in a 500 series enclosure. It features an all discrete design based upon the 990 amplifier. The preamp delivers up to 65 dB of gain and has switchable 48V phantom power and a polarity switch.

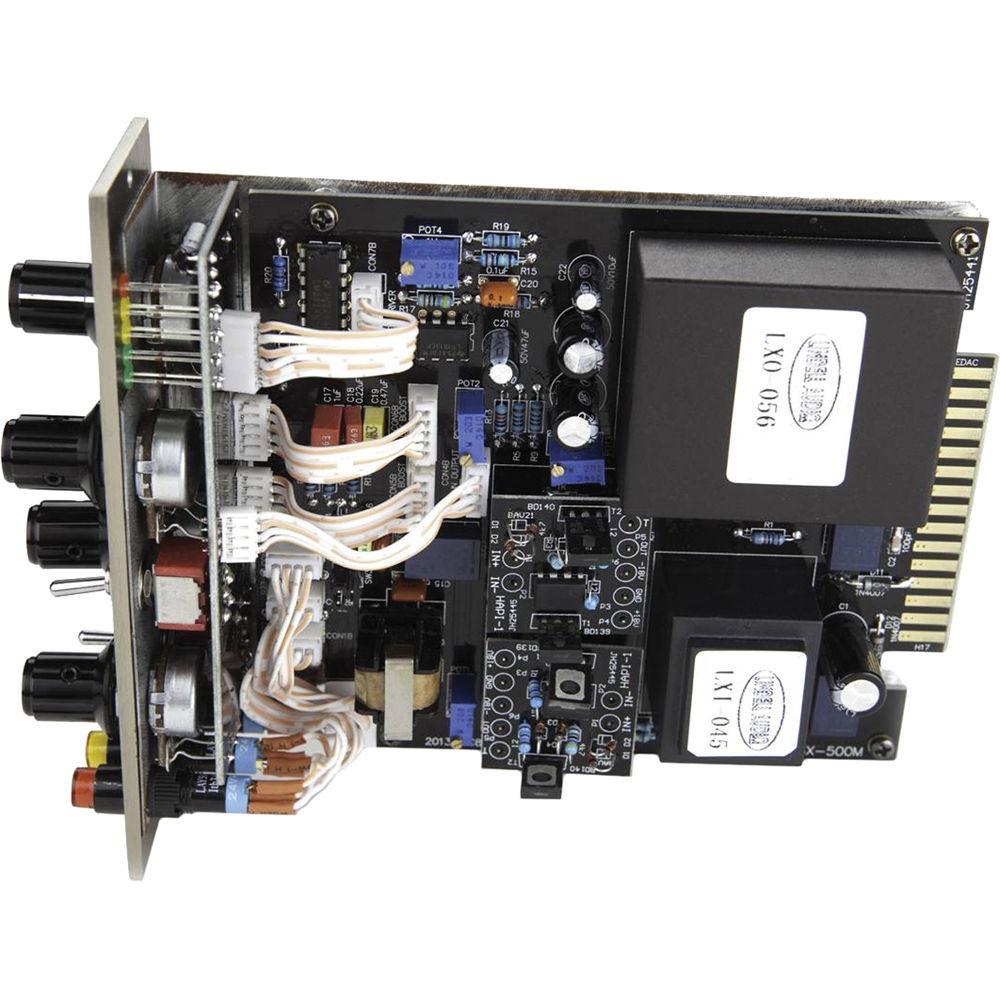

The EQ features low- and high-frequency boost with up to 15 dB of boost in the high end. The 6X-500 fits in all 500 series compatible power supplies (required and sold separately). - Transformer coupled balanced input and output
- Passive Pultec Equalizer using inductor plus 990 gain make-up amplifier
- Switched three step low frequency boost
- Switched three step high frequency boost
- Switchable 48V phantom power
- Selectable high boost bandwidth on PCB
- Pin compatible with 990 and 2520 type op-amps
UPC: 713757334013 In the Box Lindell Audio 6X-500 - Microphone Preamplifer / Pultec-Style EQ (500 Series Module) One (1) Year Warranty User Manual PDF 932.9kbabtvqrvf Table of Contents
|
Upload User Manual
Have you got an user manual for the Lindell Audio 6X-500 - Microphone Preamplifer Pultec-Style EQ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLindell Audio Six X Five Hundred Specs | Number of Channels | Single | | Gain | 65 dB | | Phantom Power | 48V | | Filter Type | Passive Pultec style | | Inputs | On 500 series chassis | | Outputs | On 500 series chassis | | Frequency Bands | 30, 60 and 100 Hz, +/-10%
6, 10 and 16 kHz, +/-10% | | Range (Boost/Cut) | 15 dB high end boost | | Power Requirements | From 500 series chassis | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 6.85 x 4.5 x 1.7" |
