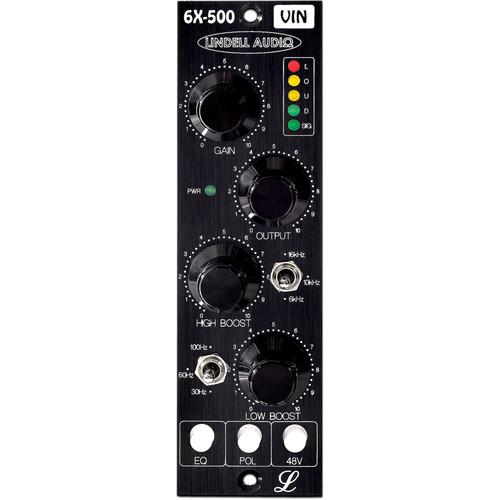

The 6X-500VIN Vintage Edition Mic Preamp and Equalizer from Lindell Audio is a single-channel transformer-coupled mic preamp along with a passive 2-band Pultec-style equalizer. This all-discrete design, based upon the vintage 1731 amplifier, gives you an EQ section with the sound of a classic Pultec. With a 15 dB boost of the high end and punchy low end, the preamp produces clear and accurate output.
    • Transformer coupled balanced inputs and balanced outputs
    • Up to 65 dB of gain
    • Passive Pultec equalizer; inductor plus Vintage OPA gain make-up amplifier
    • 3-step switched EQ low frequency boost: 30, 60, 100 Hz (±10%)
    • 3-step switched EQ high frequency boost: 6, 10, 16 kHz (±10%)
    • Selectable high-boost bandwidth on PCB
    • Polarity reverse
    • All discrete Vintage OPA1731
    • Pin compatible with 990 & 2520 type op-amps
    • 48V phantom power
    • 5-LED VU meters
    • Gold-plated PCB
    • Compatible with all 500-series power chassis
