Lindell Audio 7X-500VIN Single-Channel Vintage Edition

Search your instruction manual in PDF to download

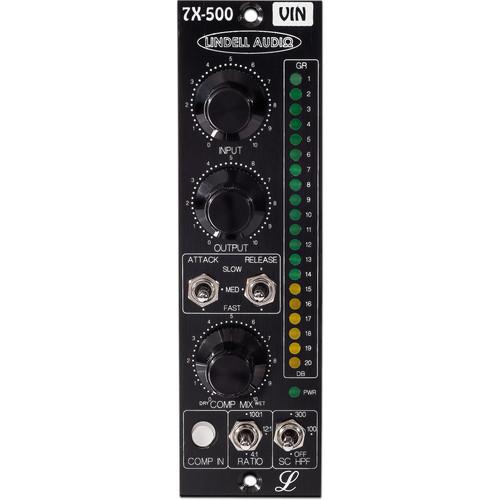

User Manual for Lindell Audio 7X-500VIN Single-Channel Vintage Edition Compressor Limiter

Click to enlarge the picture
Lindell Audio 7X-500VIN Single-Channel Vintage Edition Compressor Limiter Contents of the user manual for the Lindell Audio 7X-500VIN Single-Channel Vintage Edition
  • Product category: Dynamics Processors Lindell Audio
  • Brand: Lindell Audio
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Lindell Audio Dynamics Processors

User manual for the Lindell Audio 7X-500VIN Single-Channel Vintage Edition contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Lindell Audio product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Lindell Audio user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Lindell Audio product will considerably shorten its lifespan!



Product description

The 7X-500VIN Single-Channel Vintage Edition Compressor/Limiter from Lindell Audio fits all 500 series compatible power supplies. It features a high-pass sidechain filter that allows you to focus the unit's response. It features 3-way switches that allow you to set the compressor's attack, release, and ratio. With Mix Knob, you can mix dry and wet signals (parallel compression).
    • 500 Series format compressor
    • FET-based technology
    • Variable mix control lets you blend compressed and uncompressed signals in parallel for maximum compression without losing transients
    • 3-step switched attack and release times make for accurate dynamics
    • 3-mode (off, 100 Hz, and 300 Hz) high-pass sidechain filter lets you focus your dynamics
    • Choose from mild 4:1, heavy 12:1, and "all-in" 100:1 compression ratios
    • True-bypass hardware preserves your sound when bypassed
    • 20-LED gain-reduction metering lets you keep an eye on the mix
    • Dual OPA1731 amplifiers
UPC: 019962192531 In the Box Lindell Audio 7X-500VIN Single-Channel Vintage Edition Compressor/Limiter
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Lindell Audio 7X-500VIN Single-Channel Vintage Edition Compressor Limiter in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Lindell Audio 7X-500VIN Specs

    Compressor 1176 style
    Compression Type Parallel
    Attack Time 2 ms, 0.5 ms, 20 µs
    Release Time 0.7 sec, 80 ms, 50 ms
    Indicators Power on
    Ratio 100:1 all in
    12:1
    4:1
    High Pass Filter Sidechain: 300 Hz, 100 Hz, Off
    Power ±16 V
    Power Consumption 100 mA
    Input Impedance 25 kOhms
    Output Impedance 70 Ohms
    Maximum Output +26 dBu
    Frequency Response 20 Hz to 20 kHz
    Compliant Standards CE, RoHs
    Dimensions 1.5 x 5.25 x 7.0" (3.8 x 13.3 x 17.7 cm)
    Weight Not specified by the manufacturer
