User Manual for Lindell Audio AMPX Studio Power Amplifier Click to enlarge the picture
Contents of the user manual for the Lindell Audio AMPX Studio Power Amplifier
- Product category: Power Amplifiers Lindell Audio
- Brand: Lindell Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lindell Audio Power Amplifiers
 |
User manual for the Lindell Audio AMPX Studio Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lindell Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lindell Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lindell Audio product will considerably shorten its lifespan!
|

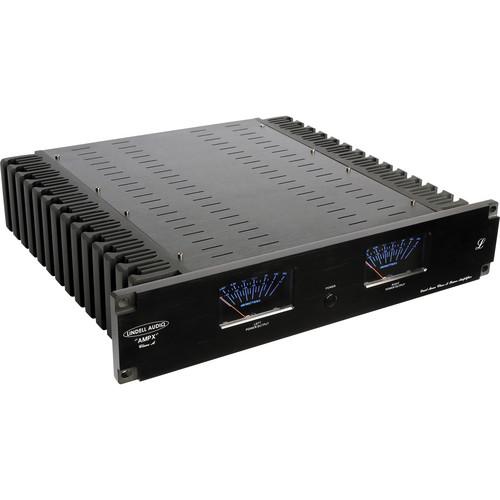

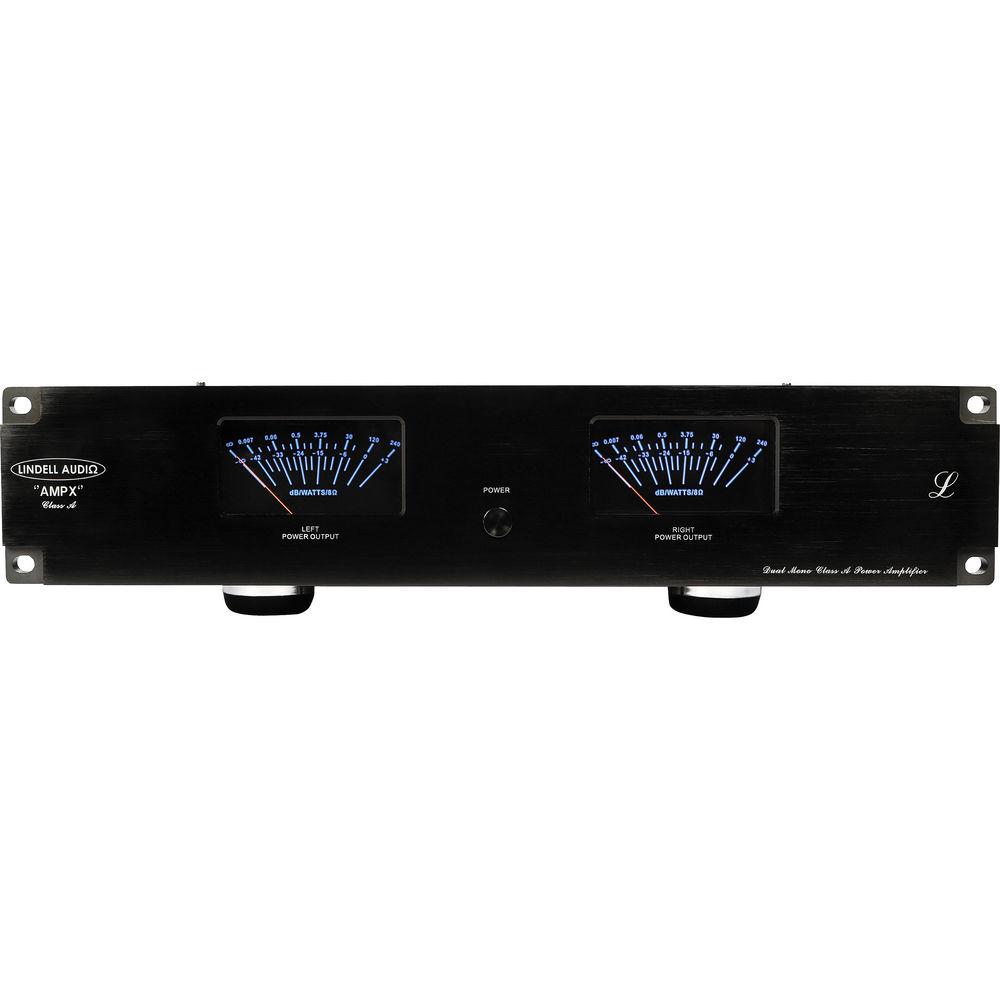

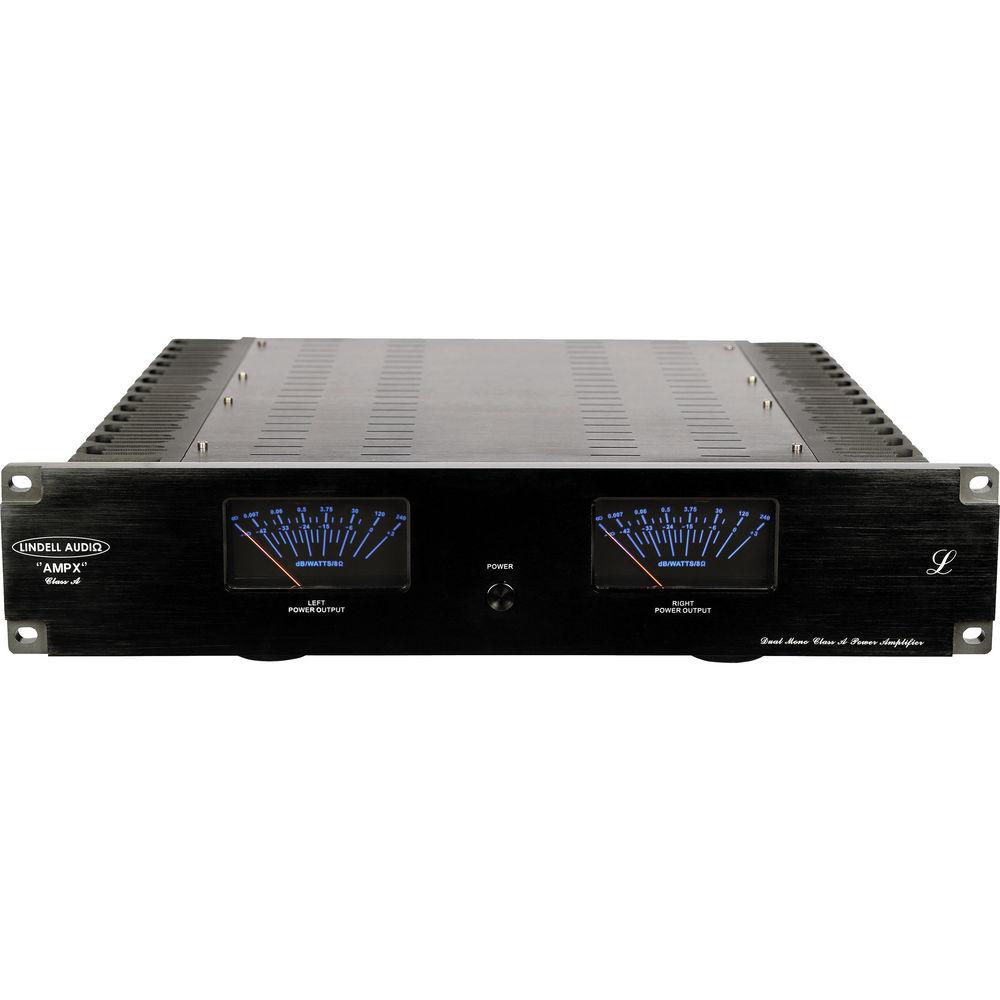

Product description The Lindell Audio AMPX Studio Power Amplifier is a dual mono amplifier with separated power supplies and is designed to be used to power passive studio monitors. It has a Class A amplifier design with 20-watts per channel for a total of 40-watts of output. Its internal construction features Sanken 2SA1695/2SC4468 transistors and 2mm thick gold-plated printed circuit boards designed to provide clear output. The AMPX has two XLR inputs and outs as well as two banana plug inputs and outputs. In the Box Lindell Audio AMPX Studio Power Amplifier Limited 1-Year Warranty User Manual PDF 1.1mbyqbrvftsyqzxrv Table of Contents
|
Upload User Manual
Have you got an user manual for the Lindell Audio AMPX Studio Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLindell Audio AMPX Specs | Design | Dual Mono | | Inputs | 2x XLR
2x Banana Plugs | | Outputs | 2x XLR
2x Banana Plugs | | Power Rating | 20W @ 8 Ω Per Channel
40 W Total | | Power Consumption | 130 W (static state) | | Input Sensitivity | 1.2 V | | Input Impedance | 47 kΩ | | Frequency Response | 10 Hz to 100 kHz (± 1.5dB) | | Signal to Noise Ratio | ≥ 100 dB | | THD | ≤ 0.03% | | Dimensions (WxHxD) | 19.0 x 3.5 x 17.5" (48.3 x 9.0 x 44.5 cm) | | | | Package Weight | 51.3 lb | | Box Dimensions (LxWxH) | 22.0 x 22.0 x 10.0" |
