User Manual for Lindell Audio DACX - Digital To Analog Converter Click to enlarge the picture
Contents of the user manual for the Lindell Audio DACX - Digital To
- Product category: AD/DA Converters Lindell Audio
- Brand: Lindell Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lindell Audio AD/DA Converters
 |
User manual for the Lindell Audio DACX - Digital To contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lindell Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lindell Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lindell Audio product will considerably shorten its lifespan!
|

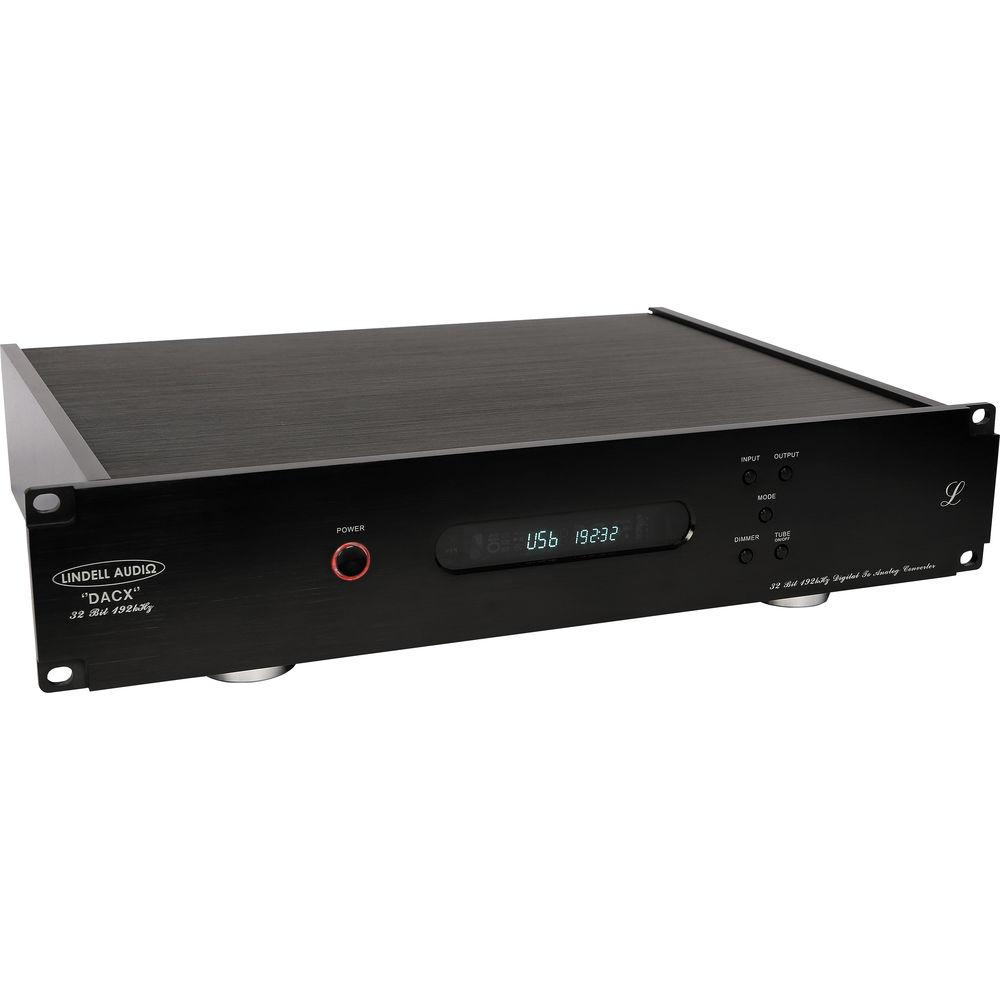

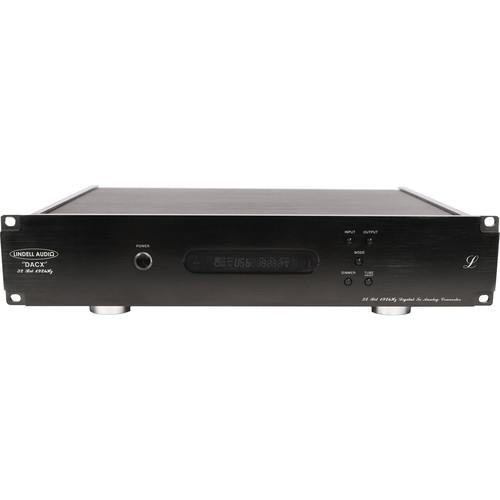

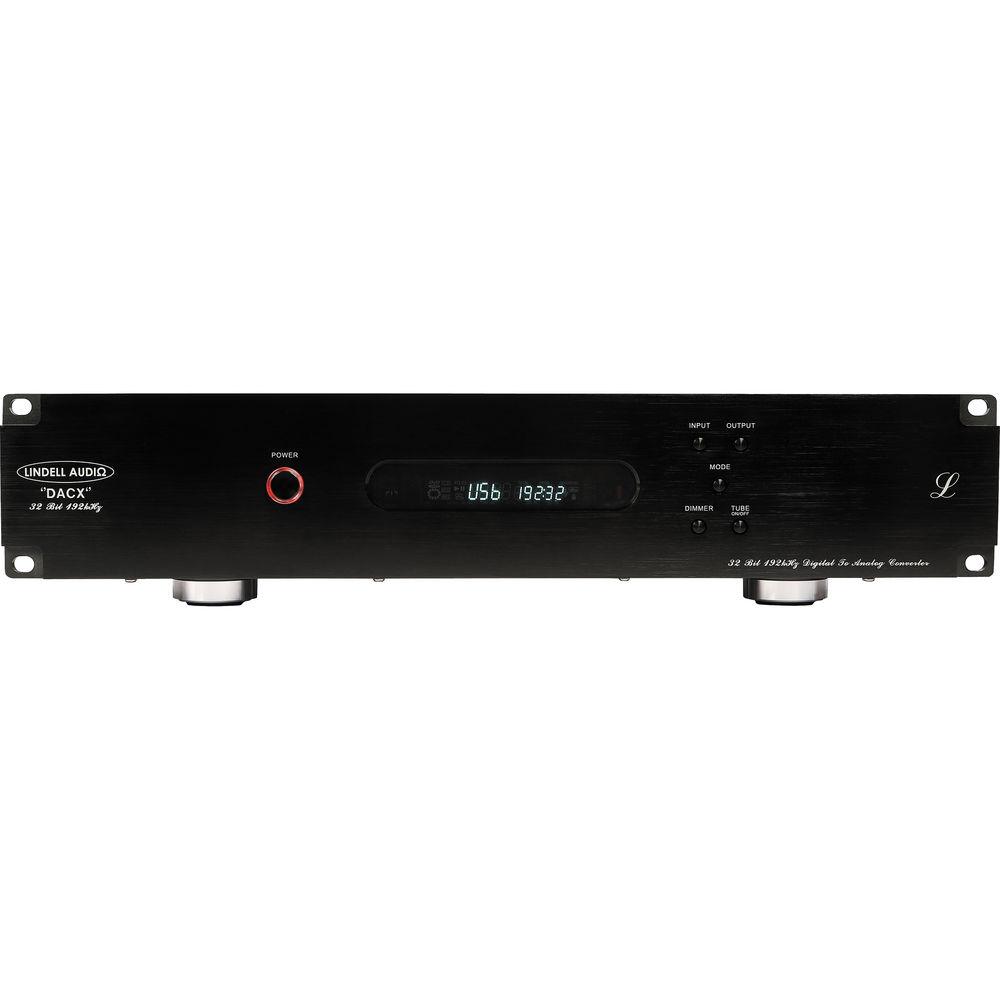

Product description The DACX from Lindell Audio is a two channel (stereo) digital to analog converter that features an over-engineered power supply for delivering high resolution digital audio conversion. Utilizing an AKM AK4397 DA-chip, the converter features four, low magnetic-flux-leakage power transformers for a total of twenty-four power supply cells. This assures a decrease in crossover distortion and mitigates any interference from different system circuits.
A dual output stage allows for selecting either "Tube" or "Opamp" flavoring. The clean op amp stage is best used for a monitoring chain, while the tube output stage can be of used in a mastering chain. The DACX features dual AES/EBU inputs, coaxial and optical S/PDIF, and USB audio input. The selectable up-sampling feature allows for setting multiple output sample rates. - Accepts AES/EBU from two sources, coaxial or optical S/PDIF, and USB audio
- Features AKM AK4397 Delta-Sigma digital to analog converter
- Up-sampling available to 32-bit/192kHz, 24-bit/192kHz, 32-bit/96kHz and 24-bit/96kHz
- Four, low magnetic-flux-leakage power transformers
- Balanced and unbalanced outputs
- Output switchable between tube and op amp circuits for colored or clean output
In the Box Lindell Audio DACX - Digital To Analog Converter AC Power Cable One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lindell Audio DACX - Digital To Analog Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

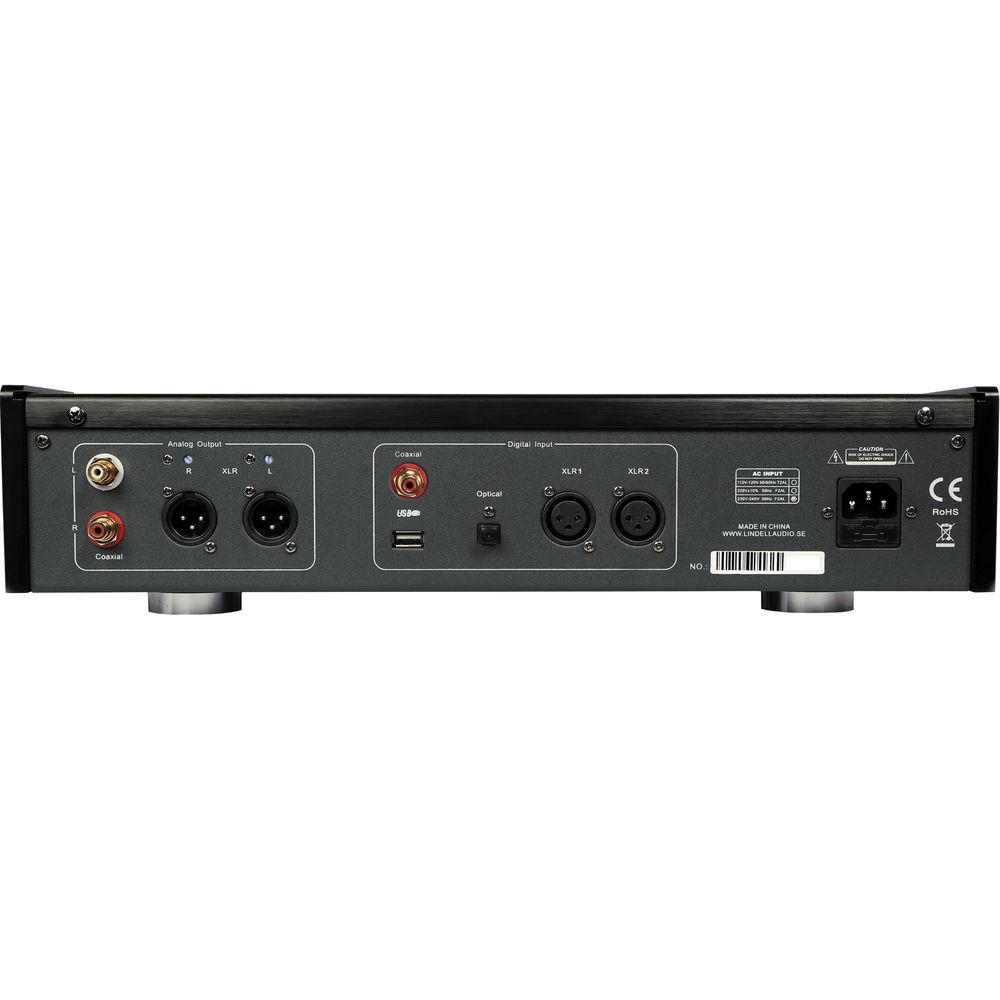

Technical parametersLindell Audio DACX Specs | Sample Rates | 44.1, 48, 88.2, 96, 176.4 and 192 kHz | | Connectors | 2 x XLR AES/EBU digital input
1 x RCA coaxial S/PDIF digital input
1 x TOSLink optical S/PDIF digital input
1 x USB Type A digital input
2 x XLR analog output (balanced)
2 x RCA phono analog output (unbalanced) | | SNR | <114 dB | | THD | <0.002% | | Power Requirements | 110~240V AC, 50/60 Hz, switchable | | Dimensions (WxDxH) | 19 x 14.8 x 3.5" (483 x 375 x 90 mm) | | Weight | 26 lb (12 kg) | | | | Package Weight | 33.0 lb | | Box Dimensions (LxWxH) | 22.0 x 21.0 x 9.0" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
