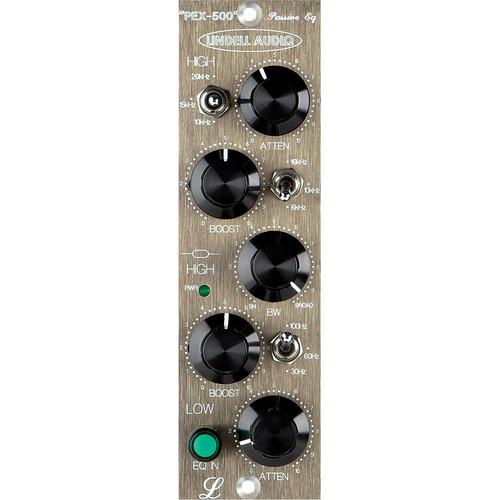

Product description The 500 Series Guide to Equalizers Read More yeebwuvtvudwzvuc The PEX-500 from Lindell Audio is a single channel, Pultec style passive EQ housed in a 500 series enclosure. It features an all discrete design based upon the 990 amplifier. The basic Pultec design is renowned for its unique ability to boost and cut the same frequencies simultaneously, in the process creating a resonant shelf.

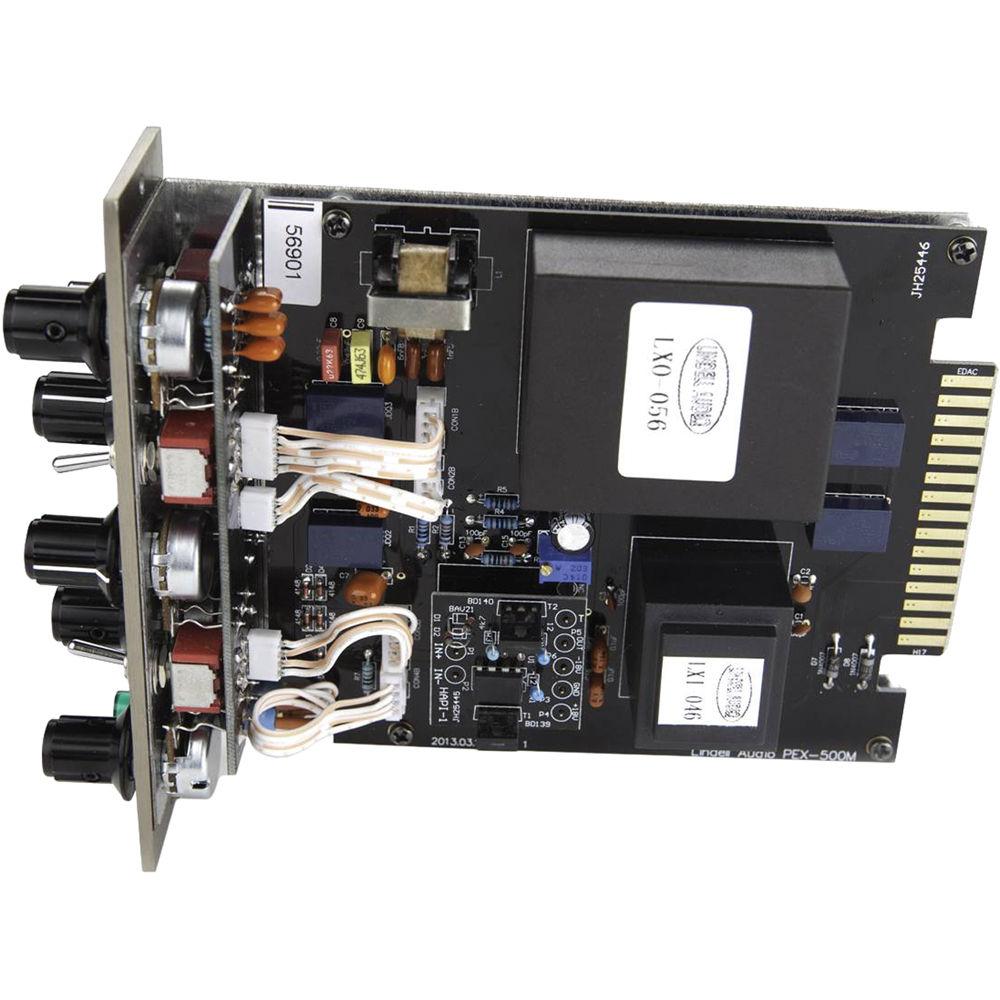

The EQ features three stepped center frequencies in the low end and three stepped frequencies in the high end with up to 15 dB of boost in the high end. The PEX-500 fits in all 500 series compatible power supplies (required and sold separately). - Transformer coupled passive Pultec style equalizer with balanced input and output
- 990 discrete gain make-up amplifier
- Switched three step low frequency boost
- Switched three step high frequency boost
- Switched three step high frequency attenuation
- Pin compatible with 990 and 2520 type op-amps
UPC: 713757334211 In the Box Lindell Audio PEX-500 - Pultec Style Passive EQ (500 Series Module) One (1) Year Warranty User Manual PDF 1011.6kbyeebwuvtvudwzvuc Table of Contents
|
Upload User Manual
Have you got an user manual for the Lindell Audio PEX-500 - Pultec Style Passive EQ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLindell Audio PEX Five Hundred Specs | Filter Type | Passive Pultec style | | Number of Channels | Single | | Inputs | On 500 series chassis | | Outputs | On 500 series chassis | | Frequency Bands | 30, 60 and 100 Hz, +/-10%
6, 10 and 16 kHz, +/-10%
10, 15 and 20 kHz, +/-10% | | Range (Boost/Cut) | 15 dB high end boost | | Power Requirements | From 500 series chassis | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 7.8 x 5.7 x 2.0" |
