User manual
Lindsay Adler's Profoto Professional Starter Kit

User Manual for Lindsay Adler's Profoto Professional Starter Kit

• Product category: Monolights Others
• Brand: Others
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Others Monolights

Product description

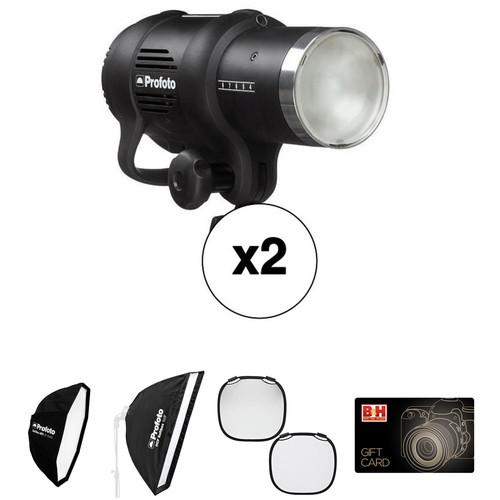

• 2 x Profoto D1 Air 500W/s Monolight The D1 Air 500W/s Monolight is a significant refinement of the ComPact monolight series from the company which having become synonymous with professional strobe lighting, is now celebrating its 40th anniversary. No stone has been left unturned in the provision of tech and convenience features that seem to derive from professional photographers' wish lists. The sleek matte-black, high-impact polycarbonate finish encases strobe design that goes beyond the highly visible LED readout and is digital from the ground up. The 7 stop power range breaks down to 1/10 stop increments providing flexibility, precision and consistency, made possible by dual mode SMPS capacitor charging.A new built-in 77 degree reflector (5.12" diameter) maximizes case space and is ideal for umbrella and softbox use. Features that we've come to expect from Profoto over the years: short flash duration, rapid recycling, a bright 300W modeling lamp and heavy-duty cabling are all on-board. Profoto Air System technology replaces the sync cord, allowing the head to be remotely triggered from as much as 300 meters (1000 feet) away using a Profoto Air Remote or Air Sync transceiver (sold separately). The Air Sync provides wireless triggering (8 channels) via hot shoe or mini plug, while the Air Remote provides wireless triggering as well as full-function head control over 8 channels in 6 distinct groups. Additionally, the D1 Air's syncing and complete functionality can be wirelessly controlled via your PC or Mac by using Profoto's optional Air USB with the included Studio software. Modeling lamp operation is user-selectable: On/Off/Proportional and Free (manual). There is also a selectable flash confirmation (dimming) feature in addition to an audible, fully-recycled tone. The D1 is compatible with the full line of widely-acclaimed Profoto light-shaping tools. Finally, the self-sensing multi-voltage circuitry allows you to take the D1 anywhere in the world.
  • High-visibility LED readout with 7 stop range in precise 1/10th stop increments
  • Rapid recycling (0.2 - 0.95 sec @ 120V, 0.2 - 0.95 sec. @ 230V) insures that fleeting gestures and defining moments are caught, not lost
  • The 300W modeling lamp meets the challenge posed by a high ambient light level on set provides easy pre-visualization of the final shot
  • Air System technology makes the sync cord obsolete, allowing remote triggering of your D1 from as much as 1,000' (300 m) away. Alternately, the D1 Air's syncing and complete functionality can be wirelessly controlled via your PC or Mac by using Profoto's optional Air USB and the included Studio software
  • Lightweight design with durable polycarbonate shell and built-in 77 degree umbrella reflector
  • Self-sensing multi-voltage capability allows you to take the renowned Profoto quality of light anywhere in the world
  • Super-short flash duration (1/1,000 - 1/2,600 Sec. t0.5) provides crisp, action-stopping images, and is especially valuable for dance, sports and other highly kinetic subjects
  • Connect the D1 to the optional Profoto Air USB for PC and Mac for full control of your entire studio flash system via wireless communication
  • Highly consistent shot-to-shot performance within a +/- 0.05 stop range via dual-mode SMPS capacitor technology
  • Safety features include auto-diagnostic start-up circuitry, DDP (Deep Discharge Protection), pulse-charging capacitor circuitry temperature control and overload protection
  • Fully compatible with the extensive line of renowned Profoto light shaping tools
  Note:D1 Air models require use of a Profoto Air remote or Profoto Air Sync for triggering of the strobe from the camera
• Profoto 3' RFi Octa Softbox The Profoto RFi 3' Octa Softbox is an octagonal light-shaping tool that is ideally suited to groups, portraiture, fashion work, or any field that requires the unique wrap-around qualities of an 8-sided light source. This size makes it a good choice for location work and other work where lightness and compactness are of benefit. The RFi softboxes are compatible with more than 20 different flash brands through a wide range of speedring adapters. Note: Speedring is not included.
  • High-quality fabrics and reinforced seams, edges, and corners guarantee a long life time
  • Color-codes and touch-fastener attachments result in hassle-free assembly and disassembly
  • Soft grid is available as an optional accessory
  • Possible to use as a reflector by removing diffusers
• Profoto OCF Softbox (1 x 3') This 1 x 3' Profoto OCF Softbox is part of the Off Camera Flash accessory system intended for the B2 and B1 OCF flash heads. Light weight and speed are evident throughout its construction. The fixed front diffuser saves on setup time, as do the color-coded support rods that mount quickly to the separately-purchased, patent-pending speedring. This 1 x 3' strip softbox is ideal for use as a hairlight or rimlight on a stand or overhead on a boom. It also produces a long, elegant highlight in reflective objects in product or tabletop work. An optional fabric grid is available to narrow the softbox's beam and add directional control.
  Benefits
  • Works exclusively with B2 and B1 flash heads and OCF speedring
  • Creates a soft and flattering light
  • Color-coded rods and fixed diffusers for fast and easy setup
  • Compact and lightweight
  • Made with premium-quality fabrics
  • Can be used with a Softgrid for even more precise light shaping
• Profoto Collapsible Reflector - Silver/White - 33" The 33" silver and white Collapsible Reflector from Profoto provides the ability to bounce and shape sunlight and studio lights to place light where you need it and improve the overall light quality on a subject. The silver side of the reflector increases overall light output and contrast, while the white side provides softer, more natural fill. The reflectors feature two ergonomically shaped handles for comfort and better directional control. Sturdy fabrics and a strong, yet easily folded frame provide long-lasting durability.

• 2 x Profoto - D1 Air 500W/s Monolight ayzbrwbdusbxwvuyftc
• Flashtube for D1 Monolight - 1000Ws Maximum
• 300W Modeling Lamp
• Power Cable
• Glass Plate for D1 and B1 Monolights (Frosted)
• Plastic Transport Cap for D1 and B1 Heads
• Limited 2-Year Warranty

• Profoto - 3' RFi Octa Softbox

• Profoto - OCF Softbox (1 x 3')

• Profoto - Collapsible Reflector - Silver/White - 33"

Includes Free

• B&H Photo Video - $200 Gift Card

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Profoto D1 Air 500W/s Monolight

  Maximum Power	7.8 to 500 Ws
  Power Control	7 Stops in 1/10-Stop Increments
  Guide Number	301' / 92 m at 6.56' / 2 m, ISO100
  Flash Duration	t.5: 1/2600 to 1/1000 Sec
  Recycle Time	0.2 to 0.95 Sec ()
  Color Temperature	5600K ± 30K
  Flash Ready Indicator	Audio, Visual
  Reflector	77° Fixed
  Accessory Fitting Type	Profoto

  Type	Tungsten
  Wattage	300 W
  Control Modes	Free Set, Off, Proportional

  Sync Type	Cable, Optical, Radio

  AC Input Voltage	100to240 VAC, 50 / 60 Hz
  Circuit Protection	Adaptive Thermal Control
  Fuse	10 A (US) 6 A (International)

  Display	None
  Auto Dump	Yes
  Fan Cooled	Yes
  Dimensions	Rating 70% users recommend this product to others. And what about you? This product has already been rated by 38 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
