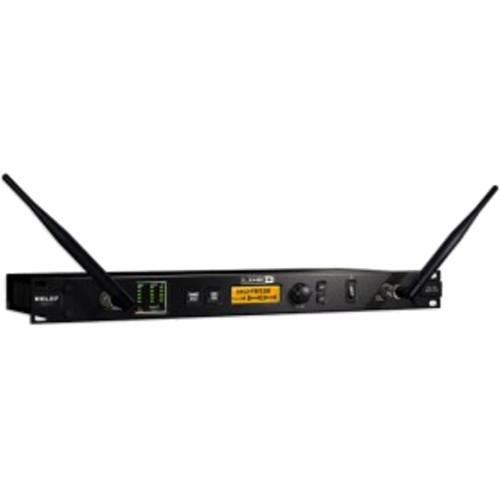

User Manual for Line 6 G90 RXR12 Digital Wireless Receiver Click to enlarge the picture
Contents of the user manual for the Line 6 G90 RXR12 Digital Wireless
- Product category: Guitar Wireless Line 6
- Brand: Line 6
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Line 6 Guitar Wireless
|
User manual for the Line 6 G90 RXR12 Digital Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Line 6 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Line 6 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Line 6 product will considerably shorten its lifespan!
|
Product description The G90 RXR12 from Line 6 is a 14-channel rack-mountable receiver. It is one of the units which comprise the Relay G90 system in general, but is available for separate purchase here, as it is also compatible with V75-HHTX, V70-HHTX, V55-HHTX, V35-HHTX, V30-HHTX, V75-BP, V70-BP, V55-BP, V35-BP, V30-BP, Relay G90, G50, and G30 bodypack transmitters. Its intended use is to facilitate the setups of guitar players who wish to free themselves from cabling, doing so by connecting their guitar to a transmitter which would, in theory and practice, communicate their signal to the receiver while mitigating any tonal problems that wireless communication throughout the airwaves might impart upon the sound.
The device utilizes an LCD screen which plainly displays battery life data, active channel numbers, transmitter names, and antenna signal strength. LEDs on the front of the device illustrate the level of incoming audio signal, as well as the duration of battery life. LEDs also provide an accurate meter for RF, showing differing colors to indicate signal interference. A combination of a channel-select button and an edit knob allow you to switch between channels of incoming signal, while a cable-tone button offers you the ability to simulate the capacitance properties of differing guitar-cable lengths.
The unit comes with G90-series 2.4 GHz rubber antennas, which connect to the RXR12 via BNC connections. Additional BNC outputs can be used to daisy-chain the RXR12 to additional RXR12s, if that is your wish. A 1/4" output can be used to connect the receiver to amplifiers and effects, while a balanced XLR output allows you to route signal into mixing consoles, PAs, and more. A separate tuner output allows you to hook into outboard tuning units. The unit will take up 1 RU of space in any standard rack. - Key Features
-
- 2 x BNC terminator caps, rated at 50 Ohms
- 2 x 2.4 GHz rubber antennas (walf wavelength antenna pair)
- RF channel scan and RF performance monitoring
- A/B transmitter switching
- Rugged metal construction
- Can be used with V75-HHTX, V70-HHTX, V55-HHTX, V35-HHTX, V30-HHTX, V75-BP, V70-BP, V55-BP, V35-BP, V30-BP, Relay G90, G50, and G30 bodypack transmitters
UPC: 614252025119 In the Box Line 6 G90 RXR12 Digital Wireless Receiver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Line 6 G90 RXR12 Digital Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLine 6 G90 RXR12 Specs | Power Requirements | IEC 90~250 V 50~60 Hz 10 W Maximum | | Input Impedance | Guitar: 1.3 MOhms | | Output Impedance | 1/4" Jack: 1500 Ohms
XLR: 600 Ohms | | Input Connector | TA4 female | | Battery Life (approx.) | 8 hours on high power & 10 hours on low power | | Dynamic Range | >120 dB, A-weighted | | Frequency Response | 10 to 20 kHz, -2.5 dB | | Frequency (Operating) | 1 model, usable throughout North America and worldwide | | Antenna | 2 x BNC connection points | | Distortion | 0.03% THD | | RF Range | 24 GHz, license-free ISM band | | Selectable Channels | 14, always and simultaneously available | | Display | Battery life meter, channel display | | FCC Compliance | License free | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
