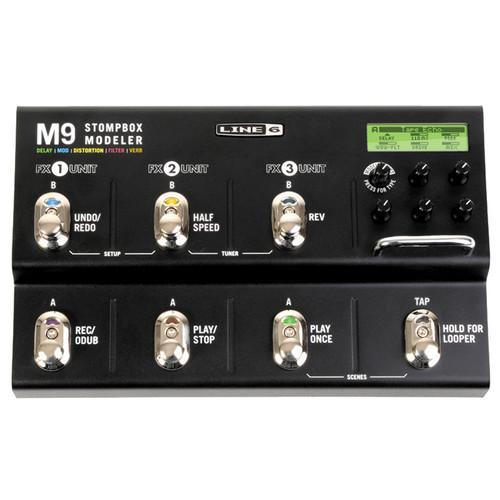

User Manual for Line 6 M9 Stompbox Modeler - Delay, Modulation, Distortion, Filter & Reverb Click to enlarge the picture
Contents of the user manual for the Line 6 M9 Stompbox Modeler -
- Product category: Effects Pedals Line 6
- Brand: Line 6
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Line 6 Effects Pedals
|
User manual for the Line 6 M9 Stompbox Modeler - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Line 6 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Line 6 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Line 6 product will considerably shorten its lifespan!
|
Product description The M9 Stompbox Modeler from Line 6 is an effects pedal that models vintage and modern effects, and lets you engage three separate effects at a time. There are over 100 effects available to you, and their settings can be adjusted with 5 dedicated knobs. You can save two completely separate effects in each of the three banks, combine them with the other two banks of effects in any order, or bypass any of them in an instant. A fully functional 28 second looper and a chromatic guitar tuner are both built-in. The effects are split into 5 categories (delay, modulation, distortion, filter, and reverb) and each is represented by a color (yellow, green, blue, purple, and orange). When an effect is assigned to a switch on the M9 Stompbox Modeler, an LED above that switch will dimly glow in the color of the effect. When that switch is selected, the LED will glow brightly, and the backlit LCD display will also change to the selected color. A dedicated tap tempo switch will universally sync any time-based effects you may be using. The effects range from digital and analog delays, modulation effects like tremolos, choruses, and ring modulators, all kinds of distortions from fuzz to "Colordrive," studio quality compression and EQ, filter effects like wahs, synths, and pitch gliders, and velvety reverb models with everything from spring reverbs to large halls. The looper mode can be quickly engaged and disengaged, and the switches become dedicated controls for recording loops while activated. You can save up to 24 groups of effects that can be quickly recalled and ready for action. Sounds - Over 100 stompbox effects
- Run up to 3 effects simultaneously (with 3 more on deck)
- Dedicated knobs control each effect parameter
- Create up to 24 pedal board scenes. (It's like having 24 fully tricked-out pedal boards available at any time!)
- Universal tap tempo syncs all your time-based effects
Hardware - 28-second looper with dedicated footswitches (Record/Overdub, Play/Stop, Play Once, Undo/Redo, Half Speed, Reverse)
- Heavy-duty all-metal chassis and footswitches
- Included AC power adapter
UPC: 614252009614 In the Box Line 6 M9 Stompbox Modeler - Delay, Modulation, Distortion, Filter & Reverb AC Adapter 1 Year Warranty User Manual PDF 963.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Line 6 M9 Stompbox Modeler - Delay, Modulation, Distortion, Filter & Reverb in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLine 6 M9 Specs | Inputs | 2 x 1/4" Inputs
2 x 1/4" Expression Pedal Inputs | | Outputs | 2 x 1/4" Outputs | | MIDI | In & Out Ports | | Presets | Delays: 19
Modulation Effects: 23
Distortions: 17
Compressors & EQs: 12
Filters: 26
Reverbs: 12 | | Power | AC (Adpater Included) | | Dimensions | 10.5 x 2.4 x 6.5" (266.7 x 60.96 x 165.1mm) | | Weight | 3 lbs (1.36 kg) | | | | Package Weight | 6.7 lb | | Box Dimensions (LxWxH) | 16.2 x 9.3 x 4.4" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
