User Manual for Line 6 Relay G10 Digital Wireless Guitar System Click to enlarge the picture
Contents of the user manual for the Line 6 Relay G10 Digital Wireless
- Product category: Guitar Wireless Line 6
- Brand: Line 6
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Line 6 Guitar Wireless
 |
User manual for the Line 6 Relay G10 Digital Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Line 6 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Line 6 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Line 6 product will considerably shorten its lifespan!
|
Product description The Relay G10 Digital Wireless Guitar System from Line 6 lets you cut the cord between your instrument and your amp by combining uncompressed digital transmission, plug-and-play simplicity, and protection from interference, in a simple and intuitive amp-top package. It is ideal for electric and acoustic guitar, bass, and any other instrument with a high-impedance output. The 1/4" transmitter plugs directly into your guitar, eliminating the need for a bodypack and its associated cable. The system will automatically find the cleanest frequency. No set up or scrolling through complicated menus is required. The G10 utilizes 24-bit uncompressed digital transmission to provide full frequency response, wide dynamic range, and pure signal quality from input to output (better than 110 dB dynamic range). The system operates in the 2.4 GHz range to minimize interference from TV broadcasts and other radio frequencies. Keeping the unit charged and ready is easy. Just plug the receiver directly into the amp's input jack and dock the transmitter on the receiver. The transmitter's internal rechargeable battery gives you up to 8 hours of playing time per charge. When you're not playing, the transmitter enters Sleep Mode which extends the battery's life up to 200 hours. Other features include automatic activation when your transmitter is fully connected, and Cable Tone technology for matching the character and feel of a regular guitar cable. The receiver is equipped with 1/4" unbalanced and XLR balanced outputs, and an LED display which indicates sync and battery status. The G10 is FCC compliant and can operate license-free worldwide. Included is a universal USB power supply with international AC adapter kit. - Simple and intuitive amp-top design – ideal for guitar, bass, and any other instrument with a high-impedance output

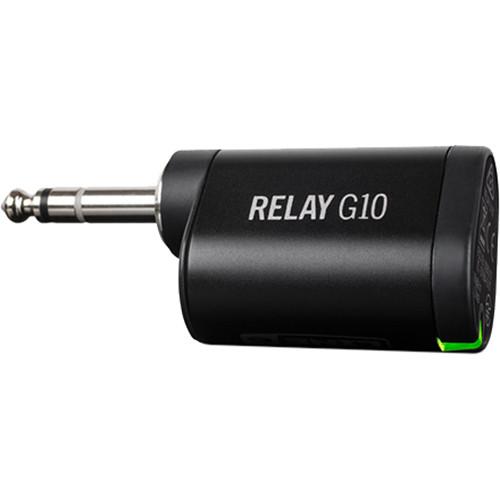

- Transmitter plugs directly into instrument – no bodypack, no cable
- 24-bit uncompressed digital transmission provides full frequency response, wide dynamic range, and pure signal quality from input to output – better than 110 dB dynamic range
- 2.4 GHz RF carrier frequency for low interference – transmission range up to 50'
- Frequency-agile system automatically selects the best channel when the transmitter is docked in the receiver – up to 14 compatible channels
- Proprietary Digital Channel Lock (DCL) technology protects your signal by distinguishing it from third party signals such as Wi-Fi
- Cable Tone technology matches the character and feel of a regular guitar cable
- System automatically activates when your transmitter is fully connected, eliminating annoying pops when you plug in your instrument
- Receiver LED lights up, making it easy to see sync and battery status

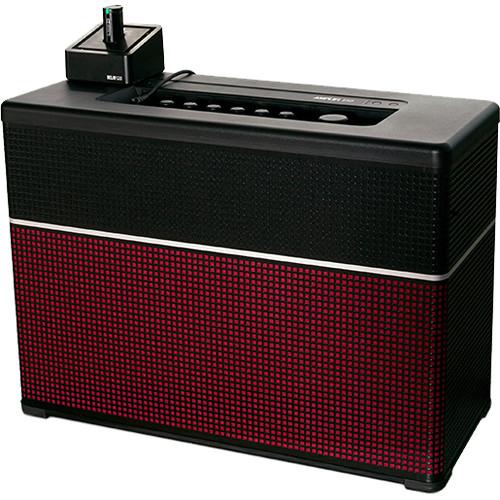

- Easy recharging – plug receiver into the amp's input jack and dock the transmitter on the receiver
- Rechargeable internal transmitter battery gives you up to 8 hours of playing time per charge – sleep mode extends battery life up to 200 hours
- Convenient USB recharging (universal USB power supply and USB cable included)
- Compatible with built-in wireless receivers in Spider V 60, 120, and 240
- FCC compliant, no user license required worldwide
UPC: 614252304825 In the Box Line 6 Relay G10 Digital Wireless Guitar System Relay G10T Guitar Transmitter Relay G10R Receiver USB Type-A to Micro-USB Cable Universal USB Power Supply with International AC Adapter Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Line 6 Relay G10 Digital Wireless Guitar System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLine 6 991230605 Specs | | | Construction | Polycarbonate, amp-top system | | Antennas | Internal antennas | | Transmission Format | 4th generation Line 6 proprietary digital audio transmission | | Latency | < 2.9 ms, RF2 mode | | Frequency Response | 10 Hz to 20 kHz | | Dynamic Range | > 110 dB | | RF Carrier Frequency | 2.4 GHz, ISM band | | Operating Mode | RF2 | | Compatible Channels | Up to 14 | | Frequency Scanning | Yes | | Scenes | No | | Support for Multiple Transmitters | No | | Support for Multiple Instruments | No | | Transmission Range | Up to 50.0' (15.2 m) line-of-sight, may vary due to local conditions | | FCC Compliance | Part 15 approved, no user license required | | Cable Tone | Factory set for 10' (3 m) Length

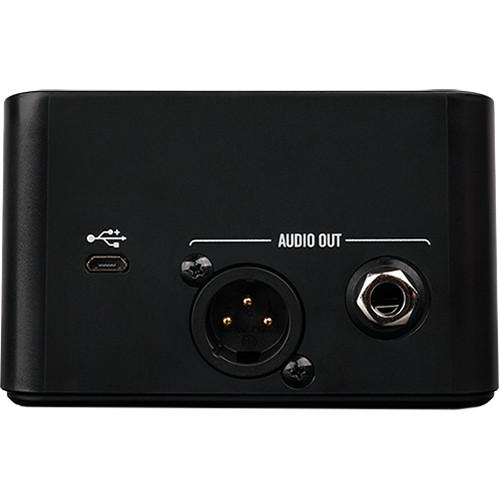

XLR output has no cable tone applied | | | | Model | G10T transmitter | | A/D Conversion | 24-bit Delta Sigma, 128 times oversampling | | Input Impedance | 1.3 MOhms | | Connectors | 1 x 1/4" male, unbalanced input plug | | Controls | N/A | | LED Display | Power, Status | | LCD Display | N/A | | Battery Life | Approximately 8 hours (internal rechargeable battery) | | Sleep Mode | Automatic, activated after 4 minutes without any audio input (extends standby time up to 200 hours) | | | | Model | G10R receiver | | D/A Conversion | 24-bit Delta Sigma, 128 times oversampling | | Connections | 1 x 1/4" output (unbalanced)
1 x XLR output (balanced) | | LED Display | Connection status
Transmitter battery life | | LCD Display | N/A | | Controls | N/A | | Power | 5 VDC, 1 A
Micro USB | | Power Supply | Universal USB power supply included | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 14.3 x 8.9 x 3.5" |
