User Manual for Line 6 Relay G10S Digital Guitar Wireless System with Rechargeable Transmitter Click to enlarge the picture
Contents of the user manual for the Line 6 Relay G10S Digital Guitar
- Product category: Guitar Wireless Line 6
- Brand: Line 6
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Line 6 Guitar Wireless
 |
User manual for the Line 6 Relay G10S Digital Guitar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Line 6 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Line 6 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Line 6 product will considerably shorten its lifespan!
|

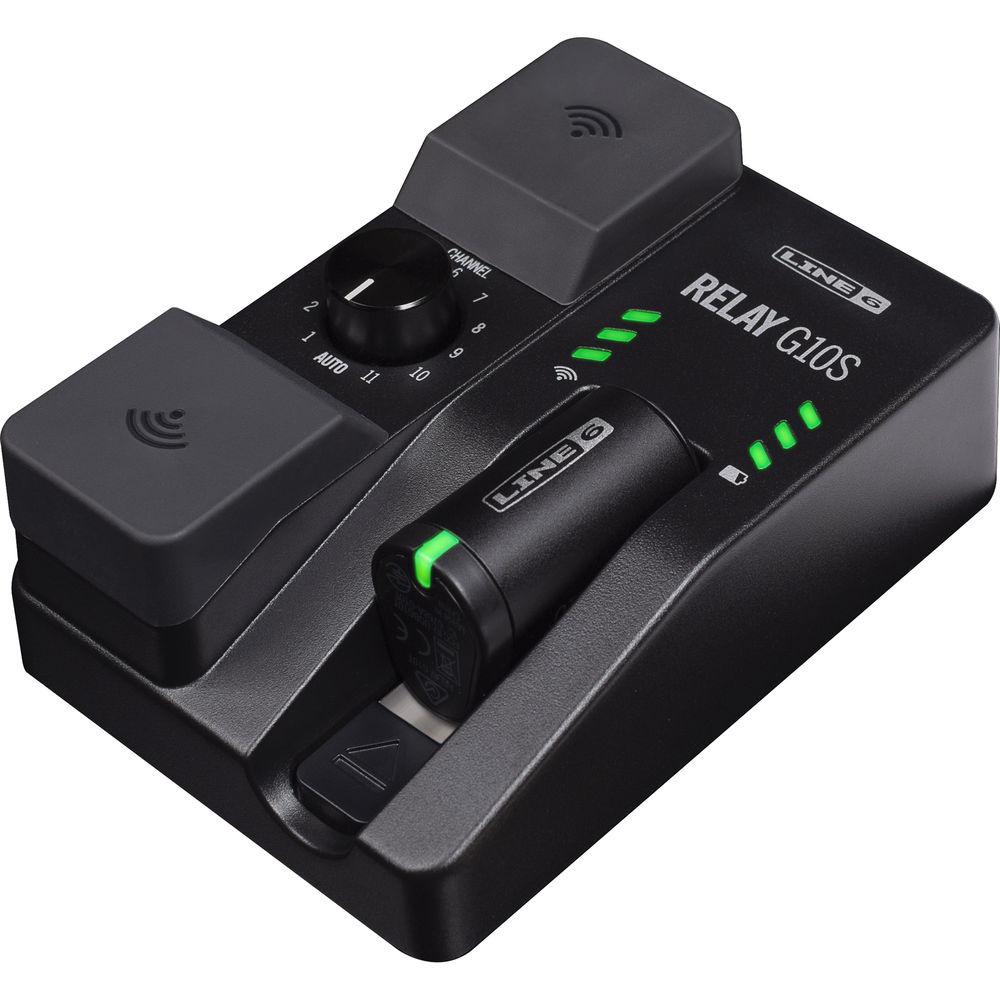

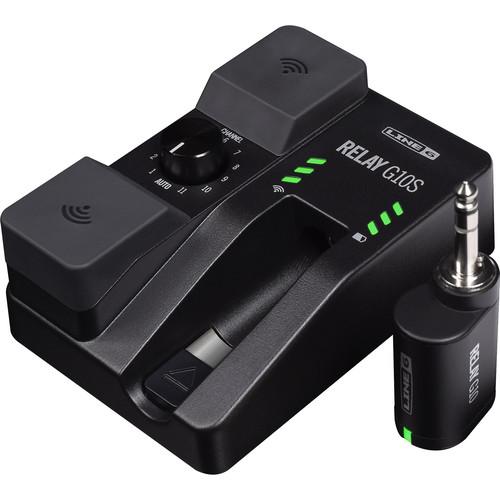

Product description The Line Relay G10S Digital Guitar Wireless System with Rechargeable Transmitter allows guitar players to move freely about the stage while they play. It is a wireless system offered in a form factor with which most electric guitarists would feel comfortable: a stompbox.
This metal, durable stompbox is a receiver that easily integrates with your existing pedalboard. Corresponding with the receiver is a transmitter that you simply plug into your guitar's input as you would a conventional guitar cable. This transmitter sports its own rechargeable battery and lasts up to eight hours on a single charge.
The system offers wireless communication of guitar signal over a 24-bit connection, one not prone to drop-outs or interference. Intelligent setup features ensure that the receiver looks for the strongest available wireless frequency, and immediately locks onto it.

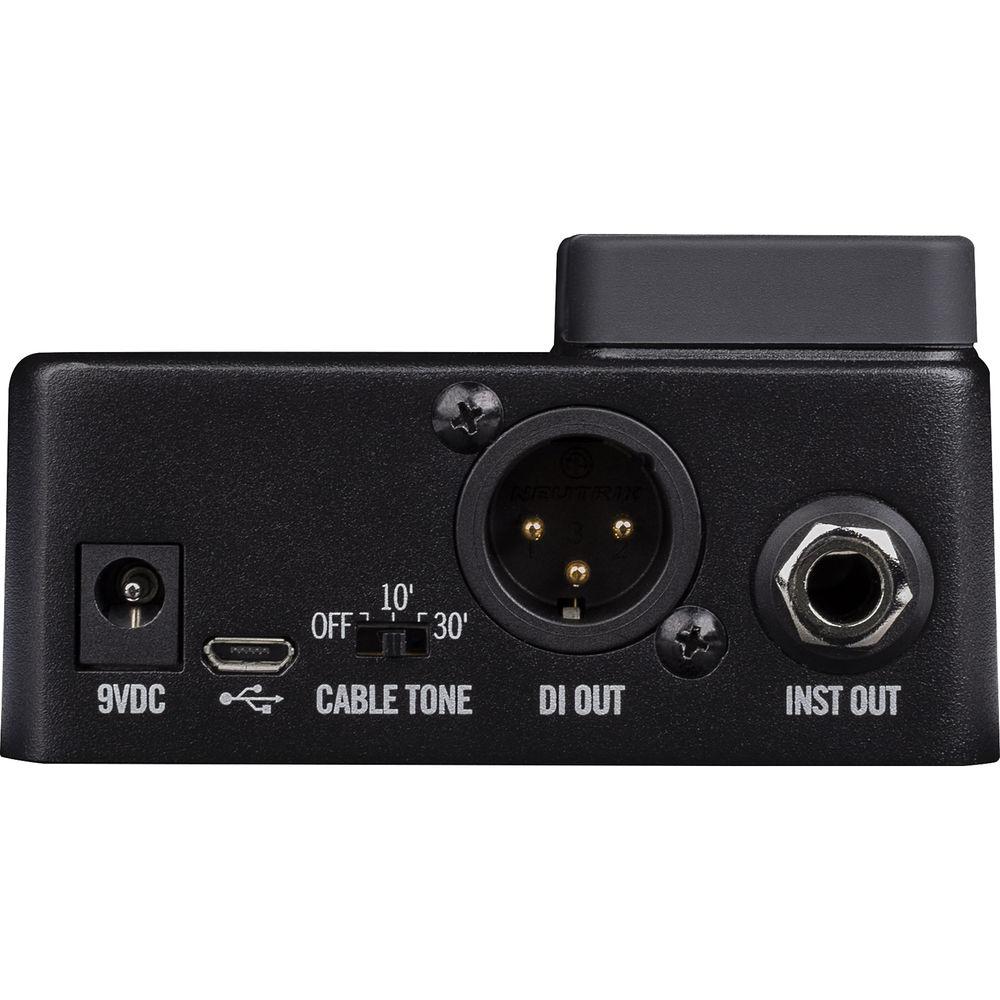

The system offers a 130' range by line of sight. Indicators are provided for battery status and RF integrity. A 1/4" output allows you to connect the receiver to your amplifier, while the XLR DI output lets you route signal from the G10 straight into the house's PA system. UPC: 614252307284 In the Box Line 6 Relay G10S Digital Guitar Wireless System with Rechargeable Transmitter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Line 6 Relay G10S Digital Guitar Wireless System with Rechargeable Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLine 6 Relay G10S Specs | Transmission Range | Up to 130.0' / 39.6 m Line of Sight (May Vary Due to Local Conditions) | | Battery Life (approx.) | Approximately 8 Hours (Internal Rechargeable Battery) | | Frequency Scanning | Yes | | Support for Multiple Transmitters | No | | Support for Multiple Instruments | Auto/Manual Channel Switch | | Connections | Transmitter: 1/4" Male Unbalanced Input Plug
Receiver: 1/4" Output and Balanced XLR DI Output | | Power | 9 VDC Barrel 500 mA 5 VDC 1 A, MicroUSB | | Sleep Mode | Automatically Activated after 4 Minutes Without Any Audio InputAutomatic Wake-Up when Signal is DetectedExtends Standby Time up to 200 Hours | | Controls | Channel Selector: Auto and 1-11Cable Tone: Off/10'/30' | | System Latency | <2.9 ms (RF2 Mode) | | Antennas | Internal Antennas | | Frequency Response | 10 Hz to 20 kHz | | Dynamic Range | >112 dB | | RF Carrier Frequency | 2.4 GHz | | Operating Modes | RF2 | | Compatible Channels | Up to 11 (Manual), Up to 14 (Automatic) | | LED Display | Transmitter: Power, StatusReceiver: Connection Status, Transmitter Battery Life | | Power Supply | DC-1g Power Supply (9 VDC) | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | | | Package Weight | 2.36 lb | | Box Dimensions (LxWxH) | 14.0 x 9.0 x 3.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 07 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Line 6 Relay G10S Digital Guitar Wireless System with Rechargeable Transmitter
| Subject: lost my line 6 relay g10s transmitter in the living room where the recevier is | | Date: 17.02.2023 02:11:38 | Name: Wilson E Lane | | can my receiver find it | | Post reply |
