User Manual for Line 6 Relay G30 Wireless Guitar System Click to enlarge the picture
Contents of the user manual for the Line 6 Relay G30 Wireless Guitar
- Product category: Guitar Wireless Line 6
- Brand: Line 6
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Line 6 Guitar Wireless
 |
User manual for the Line 6 Relay G30 Wireless Guitar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Line 6 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Line 6 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Line 6 product will considerably shorten its lifespan!
|

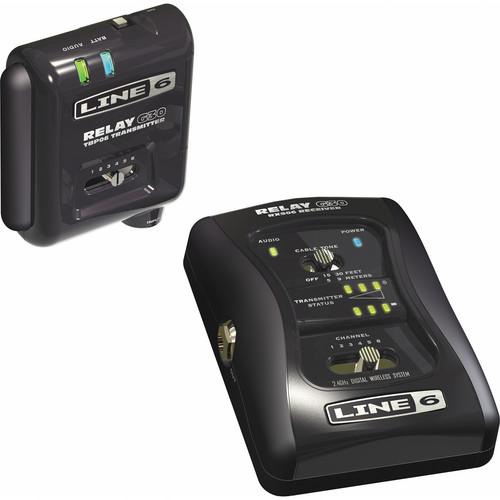

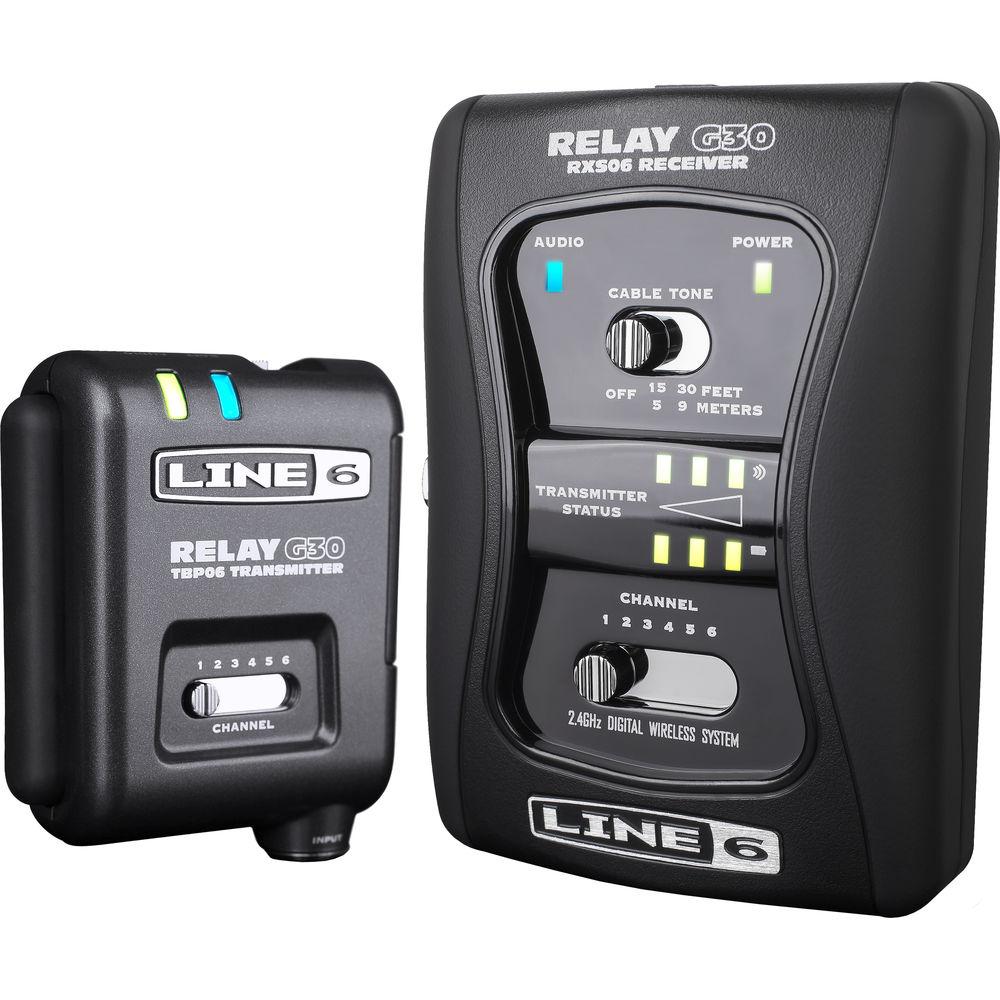

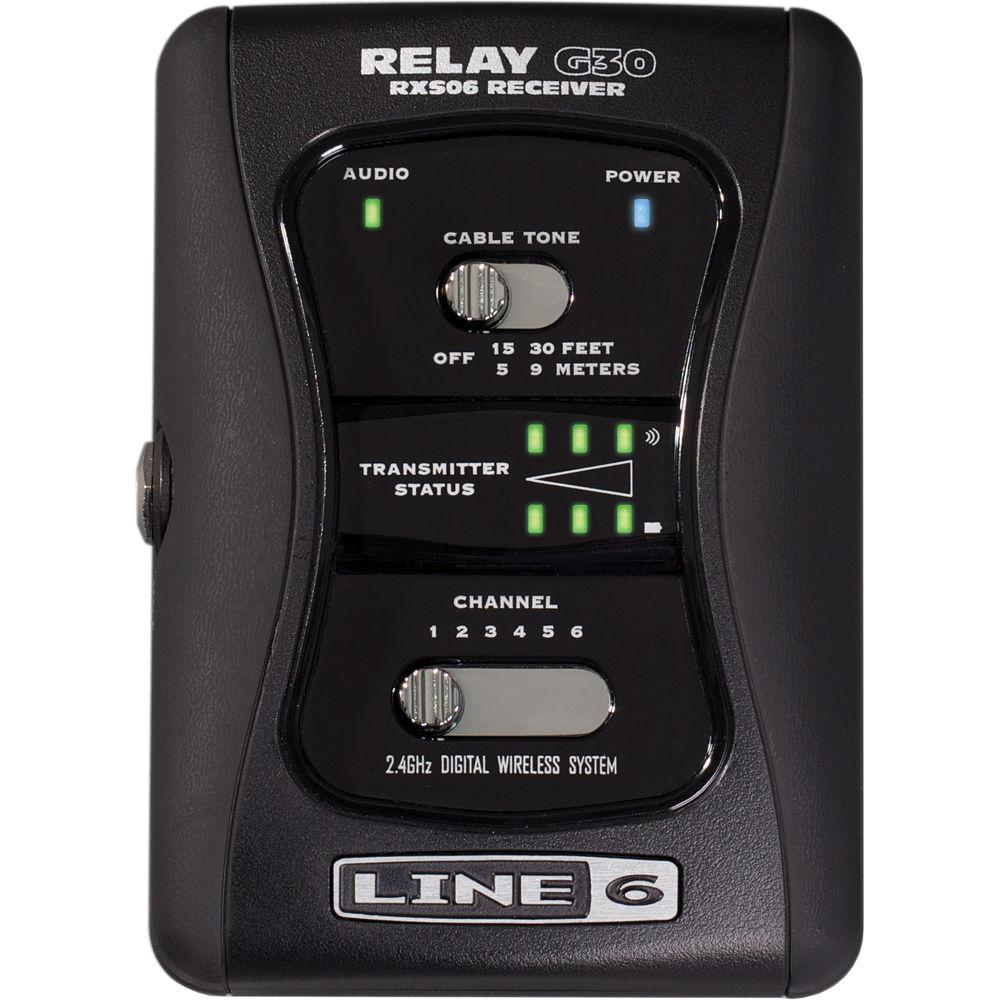

Product description The Line 6 Relay G30 Wireless Guitar System delivers professional wireless transmission and tone for stage performances and recording. The G30 features the TBP06 transmitter and RXS06 receiver. Line 6's VWT™ Digital Technology eliminates extraneous RF interference, delivering pure guitar tone without noise and interference from radio frequencies, PDA's and other digital devices. - VWT™
- Exclusive VWT (Virtual Wire Transmission) technology ensures full-range frequency response, excellent transient response, and wide dynamic range - just like a high-quality guitar cable.
- Superior Specs
- Relay digital wireless systems produce full-range tones with 10Hz-20kHz frequency response, exceedingly low noise with up to 120dB dynamic range, and studio-quality resolution with 24-bit A/D conversion. (Comparably priced analog wireless systems offer 50Hz-15kHz frequency response and >90dB dynamic range. This wreaks havoc on your tone, especially if you use a high-gain amp.)
- Cable Tone Simulation
- Using a cable and a wireless system? Now you can switch back and forth without having to adjust the tone settings on your amplifier. Relay digital wireless systems feature a Cable Tone Simulator, which lets you match the sound of your Relay to the sound of your cable.
- Compander Free
- Companders squash your signal and ruin your tone. Analog wireless systems require companders but Relay wireless systems do not. Remaining compander-free enables Relay to deliver a beautiful high-end sparkle, thunderous low-end punch, and touch response that analog wireless systems simply cannot deliver.
UPC: 614252007818 In the Box Line 6 Relay G30 Wireless Guitar System TBP06 Transmitter RXS06 Receiver AC Power Supply 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Line 6 Relay G30 Wireless Guitar System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLine 6 G30 Specs | | | Type of System | Digital Portable Wireless Guitar | | RF Carrier Frequency Range | 2.4GHz | | Approx. Working Range | 100' (30.48m) Line of Sight | | Overall Frequency Response | 10Hz - 20kHz | | # Of Channels | 6 | | # Of Simultaneous Systems | Not Specified By Manufacturer | | | | Type of Receiver | RXS06 Receiver 24-Bit Digital Diversity | | Type of Outputs | 1/4" Unbalanced | | Headphone Monitoring | No | | Power Requirements | DC-1G power supply (9VDC) | | Display | LED Display | | Antenna Type | BNC | | | | Type of Transmitter | TBP06 Transmitter | | Type of Input Connector | 1/4" Phone | | Battery Type/Approx. Life | Approx. 8 hours (2x AA alkaline batteries) | | Mute Switch | Power On/Off | | Level Control | No | | Antenna Type | 1/4" Wave | | Display | LED Display | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 12.0 x 10.0 x 3.0" |
