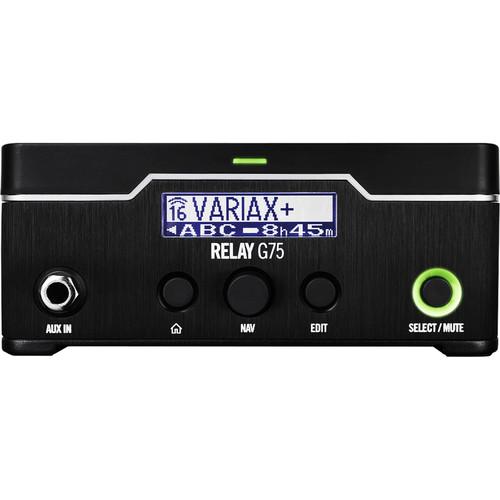

Product description The Relay G75 Digital Wireless Guitar System from Line 6 is designed to untether you from your amp by combining industry-leading audio specs, low latency, and reliable transmission. Featuring a compact amp-top receiver, a bodypack transmitter with 8 hours of battery life, rugged metal construction, and a 200' range, the system is ideal for electric and acoustic guitar, bass, and any other instrument with a high-impedance output. It can be used while performing live or playing in the studio. The G75 uses 24-bit/48 kHz uncompressed digital transmission to provide noise-free signal, full frequency response, wide dynamic range (better than 120 dB), and less than 1.5 ms of latency from analog input to analog output. To minimize dropouts due to TV broadcasts and other radio frequencies, the system operates in the 2.4 GHz range and is equipped with a quad-antenna array and Digital Channel Lock technology. Plug in the locking 1/4" on the transmitter (no special cable required) and let the auto-scan automatically find the cleanest frequency. The receiver is designed to accommodate multiple transmitters, letting you instantly switch between instruments at the press of a button. You can program settings and save them in Scenes, allowing you to easily recall different gains, cable tone settings, signal routing, and more. An LCD display on the receiver gives you clear visual status for various parameters, without having to dig through menus. Other features include a 1/4" auxiliary input jack on the receiver for plugging in a wired guitar, an "always on" 1/4" output for connecting an external tuner, and a balanced XLR output for connecting to a mixer or PA. Furthermore, the unit offers Cable Tone technology for simulating the character and feel of a regular guitar cable. The G75 is FCC compliant and can operate license-free worldwide. Included is a universal USB power supply. - 24-bit/48 kHz uncompressed digital transmission provides full frequency response, wide dynamic range, and pure signal quality with low noise – better than 120 dB dynamic range
- Low latency (< 1.5 ms from analog input to analog output) – nearly instant response between your fingers and your ears
- 2.4 GHz RF carrier frequency for low interference – transmission range of up to 200'
- Proprietary Digital Channel Lock (DCL) technology protects your signal by distinguishing it from third-party signals such as Wi-Fi
- Built-in calibrated, quad-antenna array with advanced dual-receiver topology for full diversity
- Manual and Auto-Scan channel selection – 16 channels available
- Cable Tone technology matches the character and feel of a regular guitar cable
- Create and save settings in "Scenes" – instantly recall scenes to easily change to a different instrument and/or transmitter, route your instrument signal to different destinations or recall different gain and Cable Tone settings
- 1/4" locking jack input on bodypack – uses the locking plug provided or any 1/4" guitar plug you like
- Receiver designed to accommodate multiple guitar transmitters – switching is as simple as pressing a front panel button or stepping on a footswitch (remote footswitch is available separately)
- Two selectable 1/4" guitar outputs with configurable on/off, gain, and Cable Tone – per guitar or scene
- Dedicated 1/4" "always on" output jack for direct connection to an external tuner
- Configurable XLR balanced output with ground lift – perfect for connecting to PA or other XLR inputs
- 1/4" auxiliary input jack on the receiver lets you connect a wired guitar
- Transmitter uses 2 x AA alkaline batteries (included) or 2 x rechargeable AA batteries (available separately)
- Up to 8 hours of playing time per charge – Sleep mode extends battery life up to 60 hours
- Clear, easy-to-read monochrome LCD display shows Scene settings, including active transmitter channel or input, active output routing, battery life, and more
- Rugged metal transmitter and receiver construction
- FCC compliant, no user license required worldwide
UPC: 614252304221 In the Box Line 6 Relay G75 Digital Wireless Guitar System with Amp-Top Receiver TB516G Transmitter for Relay G70/75 Wireless Guitar Systems G75 Amp-Top Receiver 24" Guitar Cable with 1/4" to 1/4" Straight TS and Collar Lock USB Type-A to Micro-USB Cable Universal USB Power Supply with International AC Adapter Kit Pack of 6 Color-Coded Transmitter ID Hex Nuts (1 x Green, 1 x Blue, 1 x Orange, 1 x Purple, 1 x Aqua, 1 x White) 2 x AA Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Line 6 Relay G75 Digital Wireless Guitar System with Amp-Top Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLine 6 991300715 Specs | | | Construction | Metal, amp-top system | | Antennas | Quad calibrated internal antenna array | | Transmission Format | 5th generation Line 6 proprietary digital audio transmission | | RF Carrier Frequency | 2.4 GHz, ISM band | | Operating Mode | RF3, frequency hopping | | Compatible Channels | Up to 16 | | Frequency Scanning | Yes | | Latency | < 1.5 ms, transmitter input to receiver output | | Lock Time | < 1 second | | Frequency Response | 10 Hz to 20 kHz, +1 dB / -3 dB | | Dynamic Range | > 120 dB | | THD + Noise | < 0.04%, 1 kHz at -10 dBFS | | System Gain | 0 dB nominal, variable -18 to +12 dB per user setting | | Scenes | Footswitch-selectable scenes store levels (footswitch available separately)
Cable Tone and output selection for each instrument | | Support for Multiple Transmitters | Support for up to 16 transmitters | | Support for Multiple Instruments | Yes, via footswitch-selected Scenes (footswitch available separately) | | Transmission Range | Up to 200' (60.96 m) line-of-sight, may vary due to local conditions | | FCC Compliance | Part 15 approved, no user license required | | Cable Tone | Off, 3' (1 m), 5' (1.5 m), 10' (3 m), 15' (5 m), 20' (6 m), 25' (8 m), 30' (9 m), 40' (12 m), 50' (15 m), 60' (18 m), 70' (21 m), 80' (24 m), 90' (27 m), 100' (30 m) | | Temperature | Operating Temperature: 32 to 122°F (0 to 50°C) Storage Temperature: 14 to 122°F (-10° to 50°C) | | | | Model | TB516G transmitter | | A/D Conversion | 24-bit Delta Sigma, 128 times oversampling | | RF Output Power | 10 mW, E.I.R.P. maximum | | Input Impedance | 1 MOhms | | Input Level | 5.5 Vpp, maximum before distortion | | Connectors | 1 x 1/4", locking | | Controls | Power On/Off, Channel Select, Sleep | | LED Display | Power, Channel | | Battery Life | > 8 hours playing time and up to 60 hours in Sleep mode with 2 x AA batteries | | Sleep Mode | User-selectable, accelerometer-triggered Sleep mode extends standby time up to 10 times | | | | Model | G75 receiver | | D/A Conversion | 24-bit Delta Sigma, 128 times oversampling | | Connections | 1 x 1/4" output (unbalanced)
2 x 1/4" outputs (unbalanced)
1 x XLR output (balanced)
1 x 1/4" tuner output
1 x Micro-USB input
1 x remote footswitch input
1 x 9 VDC input | | Aux Input | Input Maximum Level Before Distortion: 5.5 Vpp
Impedance: 1.3 MOhms | | Signal to Noise Ratio (SNR) | Aux input to output: > 120 dB | | Output Impedance | Outputs A and B: 100 Ohms
Output C (XLR): 300 Ohms | | LED Display | Connection status
Transmitter battery life | | LCD Display | Scene name (up to 32 Scenes)
Input
Transmitter channel
Output routing
Built-in tuner
Edit info for all parameters
RF status
Transmitter battery life
Mute
Firmware version | | Controls | Scene Select
Channel Select
Cable Tone
Level Adjust
Output Select
LED Color Selection | | USB | Micro-USB 2 | | Power Requirements | 5 VDC, 1A
Micro-USB 9 VDC, 350 mA, barrel connection (available separately) | | Power Supply | 3 W, 585 mA, Universal USB power supply (included)
9 VDC (center negative): 3 W, 350 mA, power supply (available separately) | | | | Package Weight | 3.92 lb | | Box Dimensions (LxWxH) | 14.1 x 9.7 x 3.4" |
