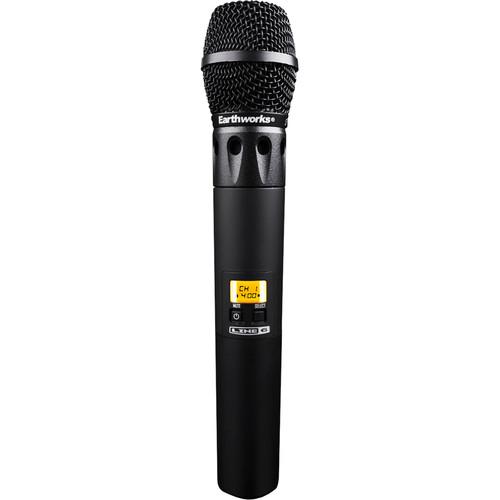

User Manual for Line 6 V75-40V Digital Wireless Microphone with Earthworks WL40V Hypercardioid Capsule Click to enlarge the picture
Contents of the user manual for the Line 6 V75-40V Digital Wireless Microphone
- Product category: Wireless Transmitters Line 6
- Brand: Line 6
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Line 6 Wireless Transmitters
|
User manual for the Line 6 V75-40V Digital Wireless Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Line 6 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Line 6 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Line 6 product will considerably shorten its lifespan!
|
Product description The Line 6 V75-40V Digital Wireless Microphone expands upon the handheld transmitters usually found in their XD-V series wireless system. It differs in one handy and notable regard: It employs an Earthworks WL40V—a hypercardioid wireless microphone capsule renowned for its fast impulse response, high SPL handling, and even frequency response across the entire polar pattern. As such, it’s a suitable tool for capturing a natural-sounding vocal on stage, doing so for even the loudest concerts.This capsule integrates with Line 6’s true-diversity XD-V system, giving you compander-free, 24-bit digital transmission over the 2.4 GHz frequency band at ranges of up to 300’. No, you won’t get the XD-V’s customary DSP modeling with the V75-40V, but you shouldn’t have to: With an Earthworks capsule on the transmitter, you’ll be utilizing a diaphragm that often requires little to no processing on stage to secure the natural sound of your voice.The V75-40V runs on two AA batteries, and will give you up to eight hours of battery life. For distinguishing microphones on stage, black and chrome grilles are provided. You’ll also note the handy hardshell touring case, useful for protecting your V75-40V on the road. - Key Features at a Glance
-
- Earthworks WL40V capsule
- Hypercardioid polar pattern for clarity and off-axis rejection on stage
- Commander-free, 24-bit digital transmission
- 118 dB dynamic range
- Rugged metal body
- Up to 14 available channels
- Backlit LCD display for simple operation
- 8 hours of battery life with 2 AA batteries
- Lockout switch to prevent changes during performance
- Transmitter Naming for identifying transmitters in a multi-system application
- Included chrome and black grilles
- Included custom hardshell touring case with soft inner padding
In the Box Line 6 V75-40V Digital Wireless Microphone with Earthworks WL40V Hypercardioid Capsule Hardshell Touring Case Set of Grilles for Identification Purposes (Black and Chrome) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Line 6 V75-40V Digital Wireless Microphone with Earthworks WL40V Hypercardioid Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLine 6 Not Applicable Specs | | | Frequency Band | 2.4 GHz ISM Band | | Range | 300.0' / 91.4 m | | Compatible Channels | 14x | | Design | True diversity system
Frequency diversity with 2 frequencies per channel
Compander free | | THD | 0.03% typical at 10 Hz (-0.5 dB) to 20 kHz (-2.5 dB) | | Latency | < 2.9 ms (audio input to output) | | | | Transmission | 24-bit digital | | RF Power | 10 mW (high), 3.3 mW (low) | | Dynamic Range | 118 dB | | Channels | 4x | | Frequency Response | 10 Hz to 20 kHz | | Display | Backlit LCD | | Power | 2 x AA batteries | | Battery Life (approx.) | 8 hours | | | | Capsule Type | Earthworks WL40V | | Frequency Response | 50 Hz to 40 kHz | | Polar Pattern | Hypercardioid | | Sensitivity | 3 mV/Pa | | Max Acoustic Input | 136 dB SPL at 5 V | | Output Impedance | 300 Ohms, unbalanced (center and outer ring) | | Noise | 22 dB SPL equivalent (A weighted) | | Threads | 1.25"-28 thread pitch (31.3 mm / pitch 1 mm threading) | | Power Requirements | 3 V at 1.15 mA to 12 V at 4.27 mA using second and outer ring on 3-ring concentric connector | | Dimensions (Ø x L) | 1.9 x 3.7" / 49 x 94 mm | | Weight | 0.2 lb / 90 g |
