User Manual for Linedock 1TB SSD Docking Station Click to enlarge the picture
Contents of the user manual for the Linedock 1TB SSD Docking Station
- Product category: Docking Stations & Port Replicators Linedock
- Brand: Linedock
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Linedock Docking Stations & Port Replicators
 |
User manual for the Linedock 1TB SSD Docking Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Linedock product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Linedock user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Linedock product will considerably shorten its lifespan!
|

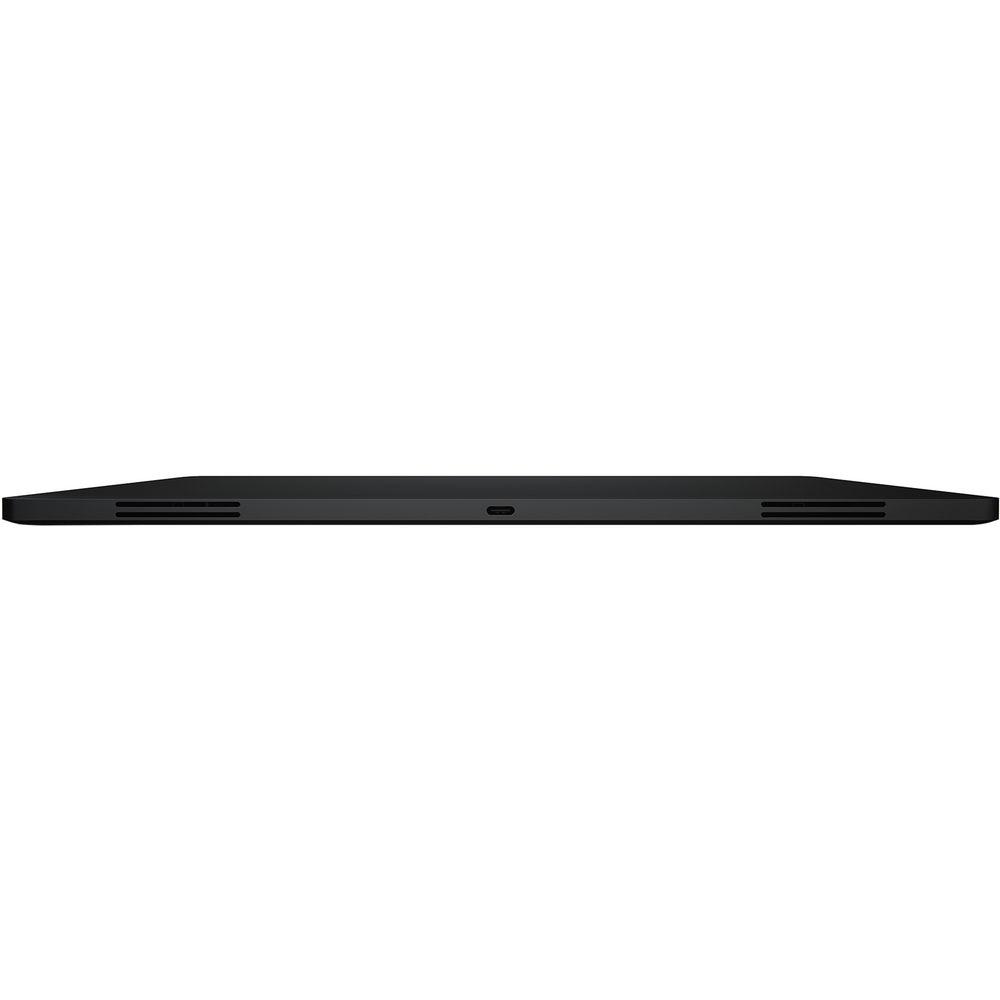

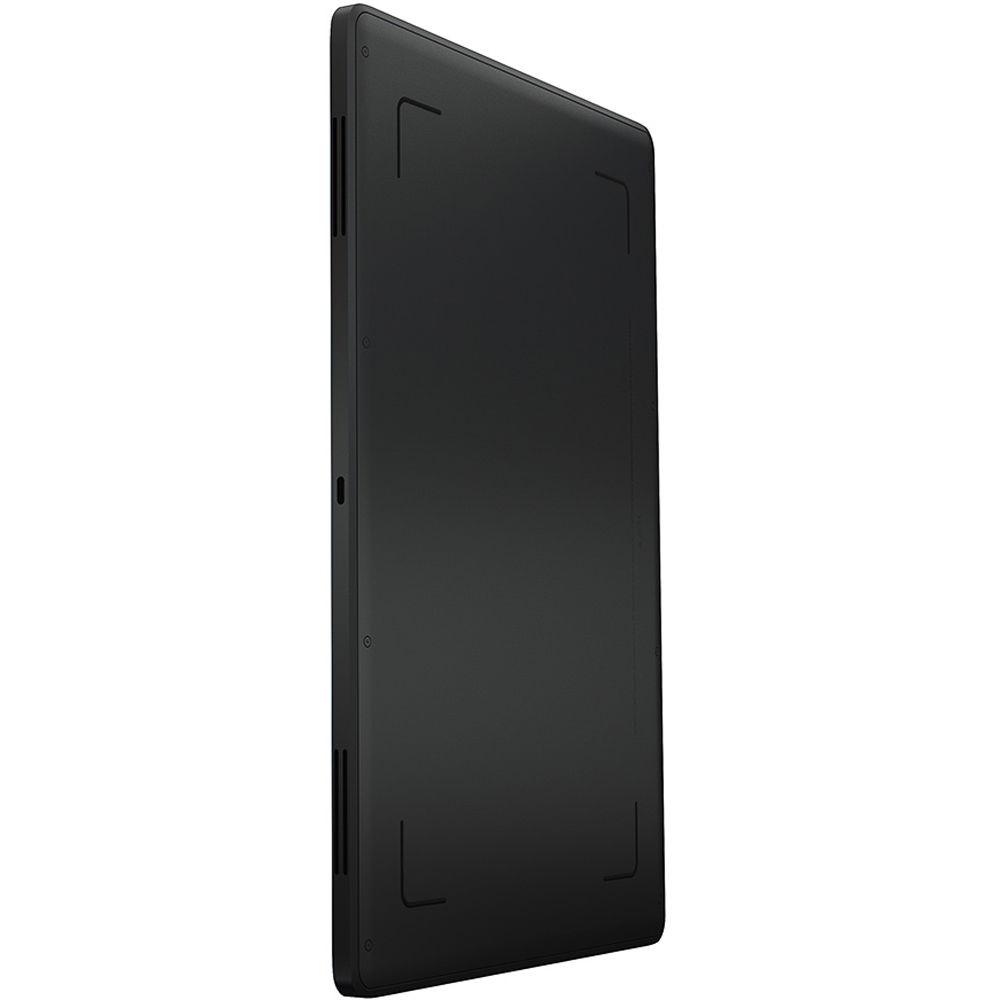

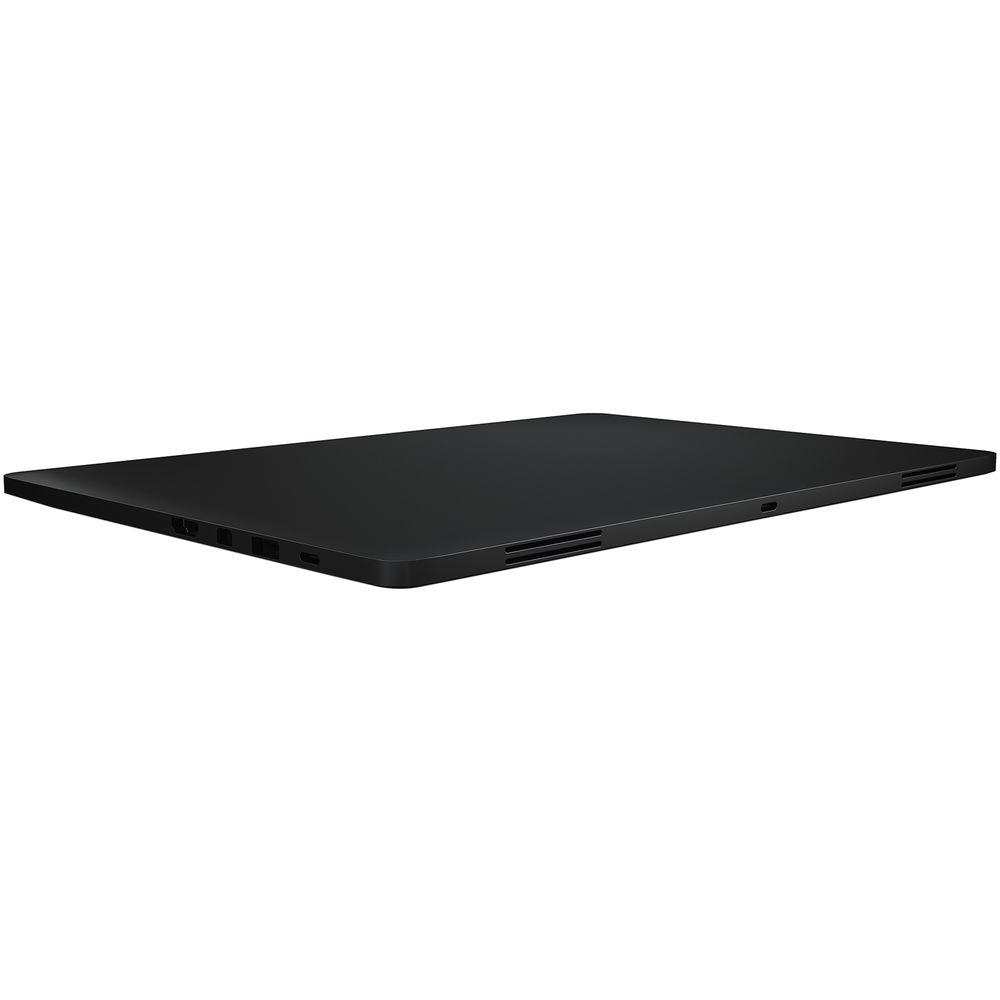

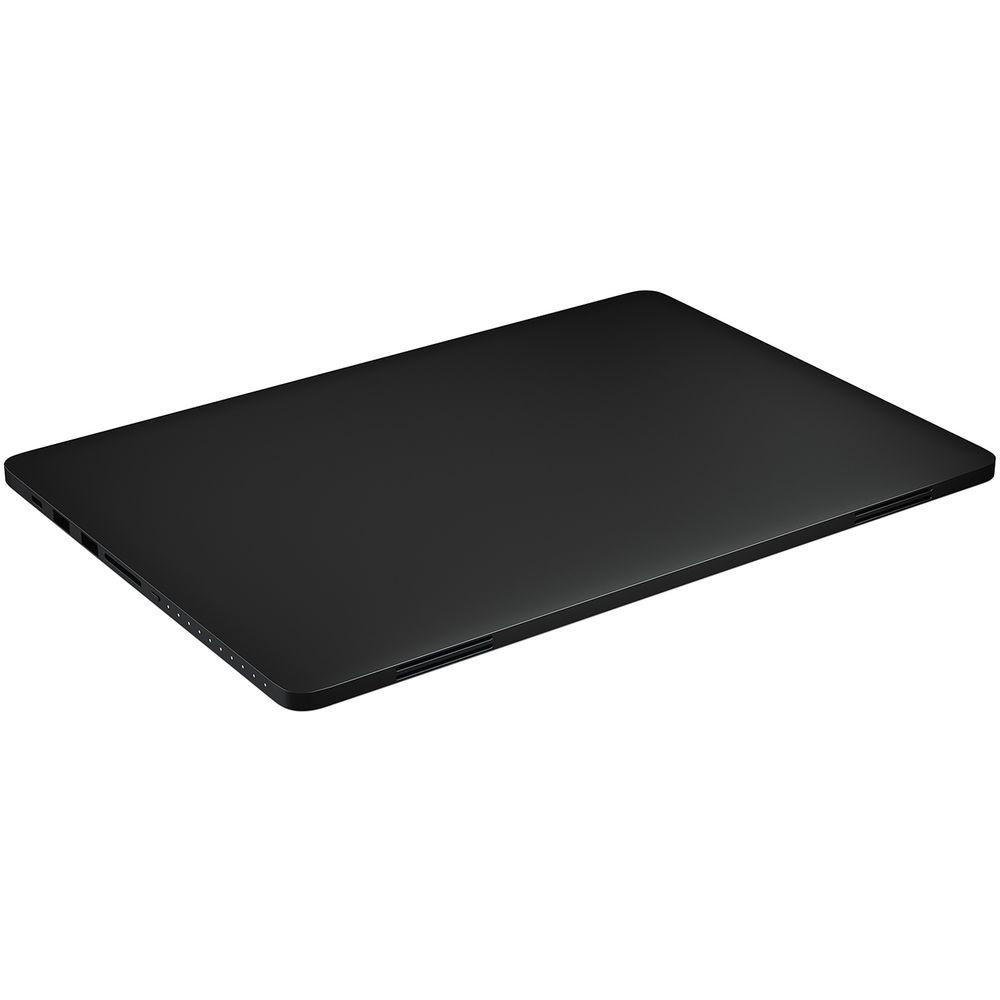

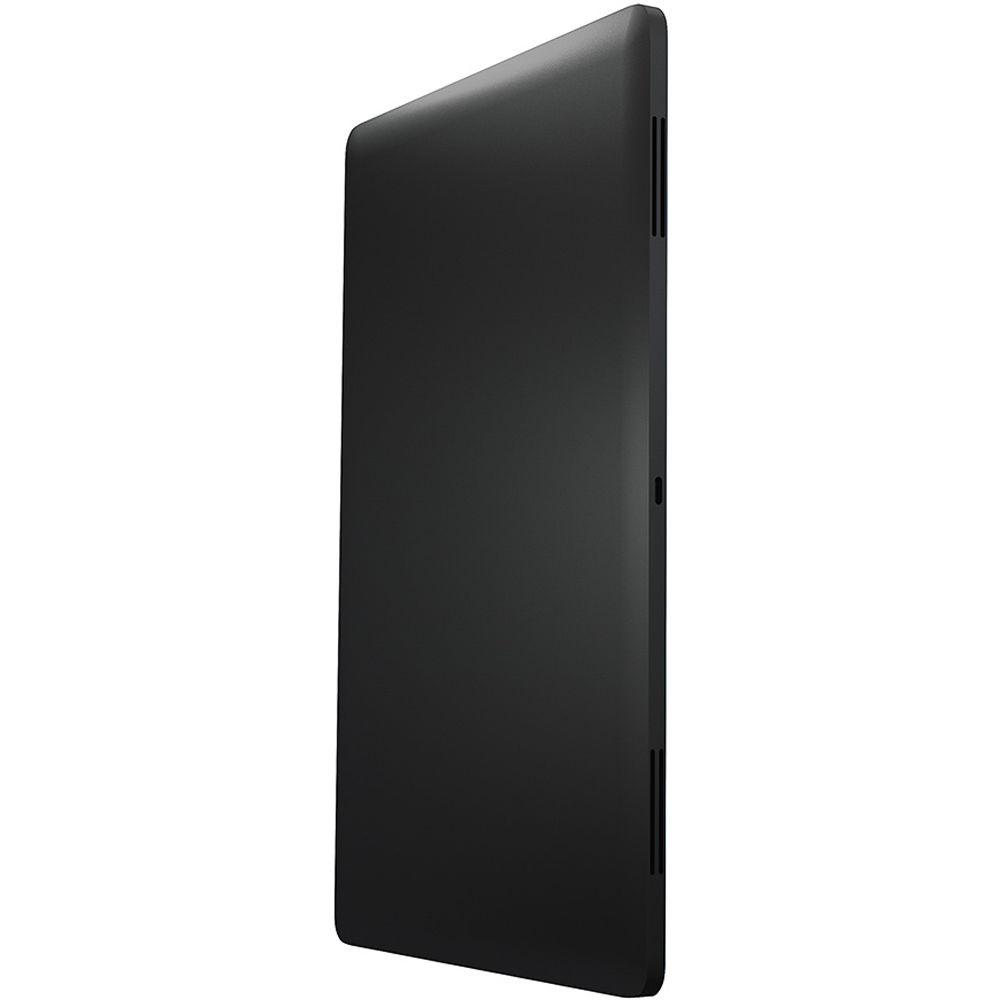

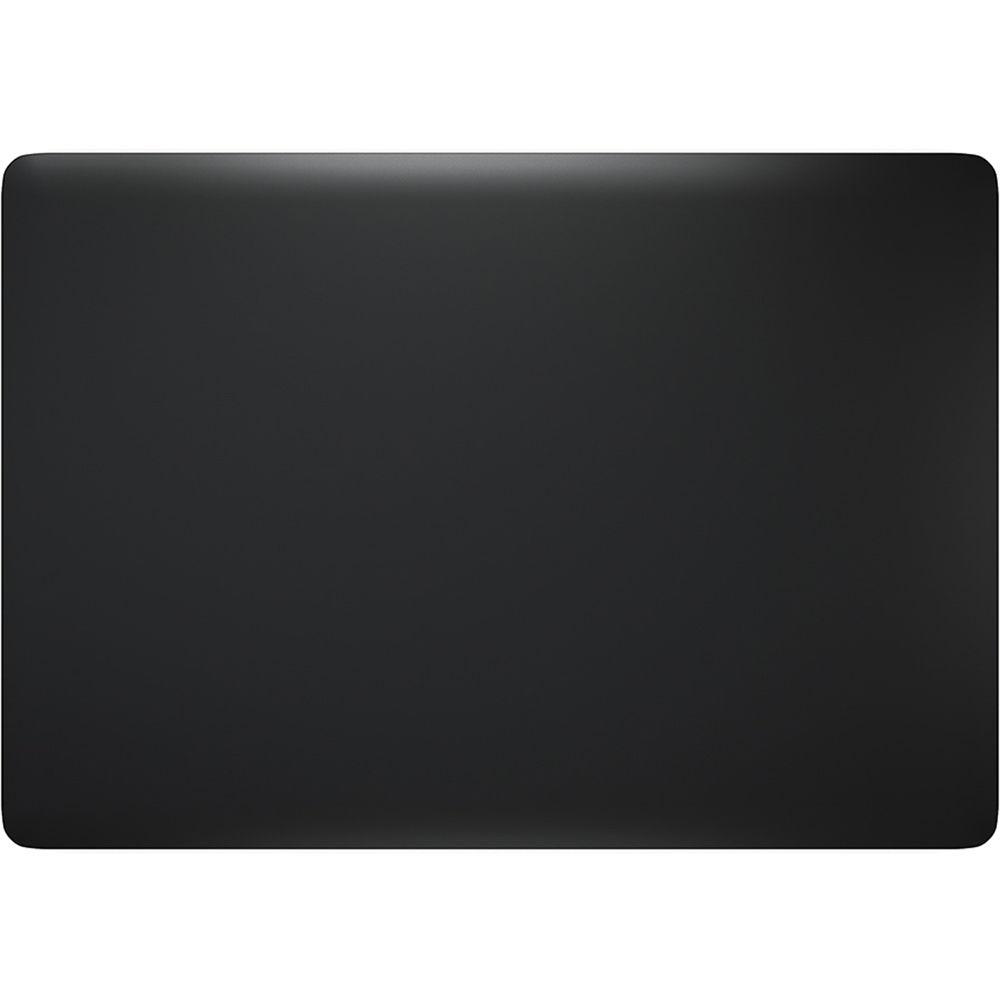

Product description The matte black linedock 1TB SSD Docking Station adds a variety of functions to your 13" MacBook with a total of nine built-in ports, 1TB of SSD storage, and a 20,000mAh battery. This multi-functional docking station is equipped with three USB 3.1 Gen 1 Type-A ports that support Qualcomm Quick Charge 3.0 technology and can transfer data up to 5 Gb/s. If you require additional connections, it houses three USB 3.1 Gen 1 Type-C ports that support simultaneous data transfer and power delivery. There's also an SD card slot reader.

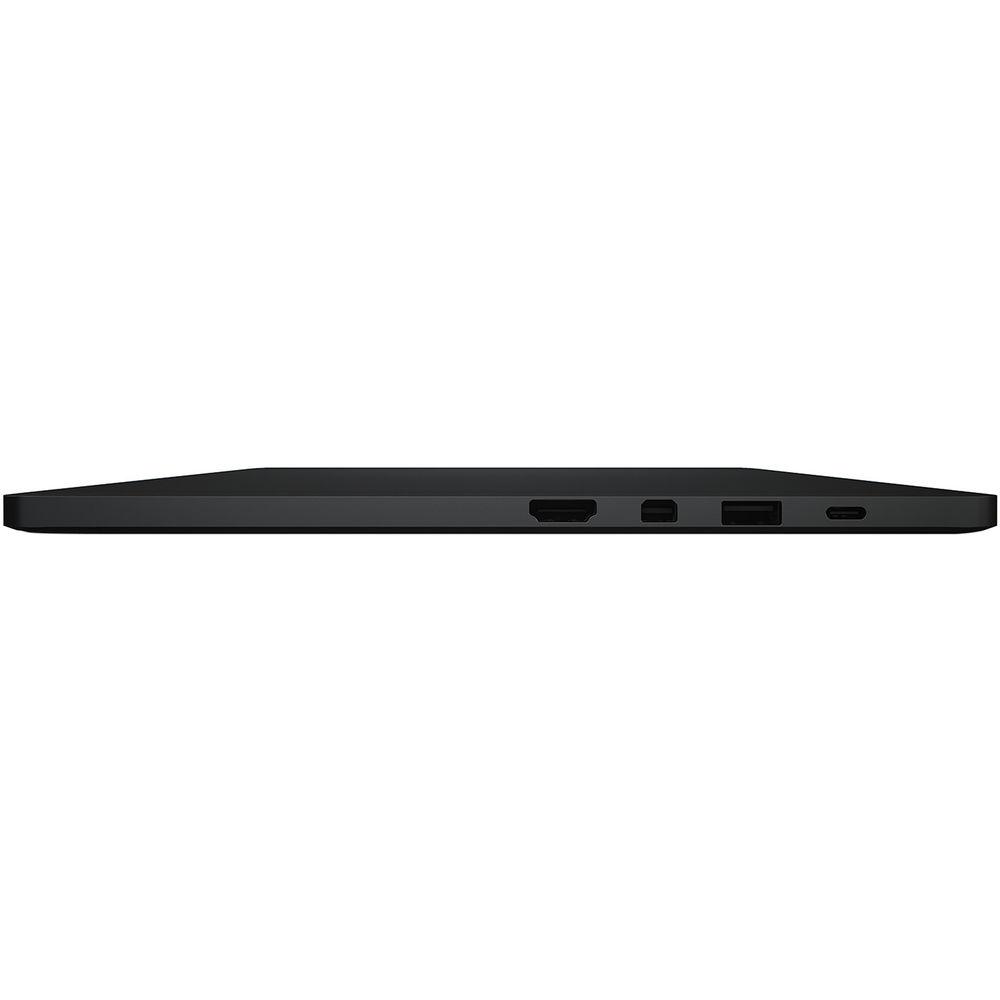

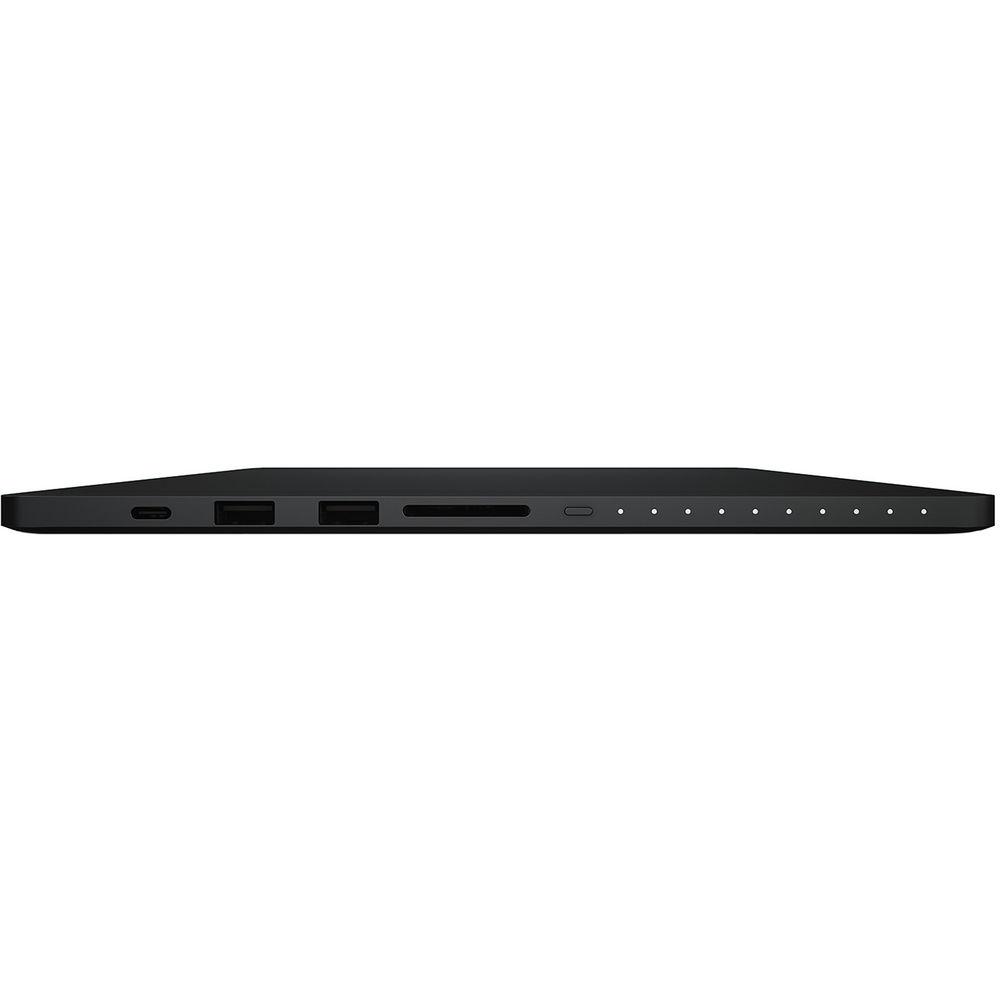

Other integrated outputs include HDMI 2.0 and Mini DisplayPort, which both support 4K content at 60 Hz. Aside from being loaded with a plethora of ports, the linedock can support up to seven connections simultaneously. In addition to its numerous ports, the linedock Docking Station features 100W of pass-through charging, which is designed to recharge your MacBook Air or Pro within three hours, even when the dock is in use or charging itself. The dock also has LED power indicator lights, so you can know the status of your machine's power at all times. - Speedy Charging
- The linedock Docking Station is designed to turbo charge your MacBook with Power Delivery 2.0 or Qualcomm QuickCharge 3.0 for efficient fast charging. Additionally, it's built to provide a full charge in up to three hours.
- Plethora of Ports

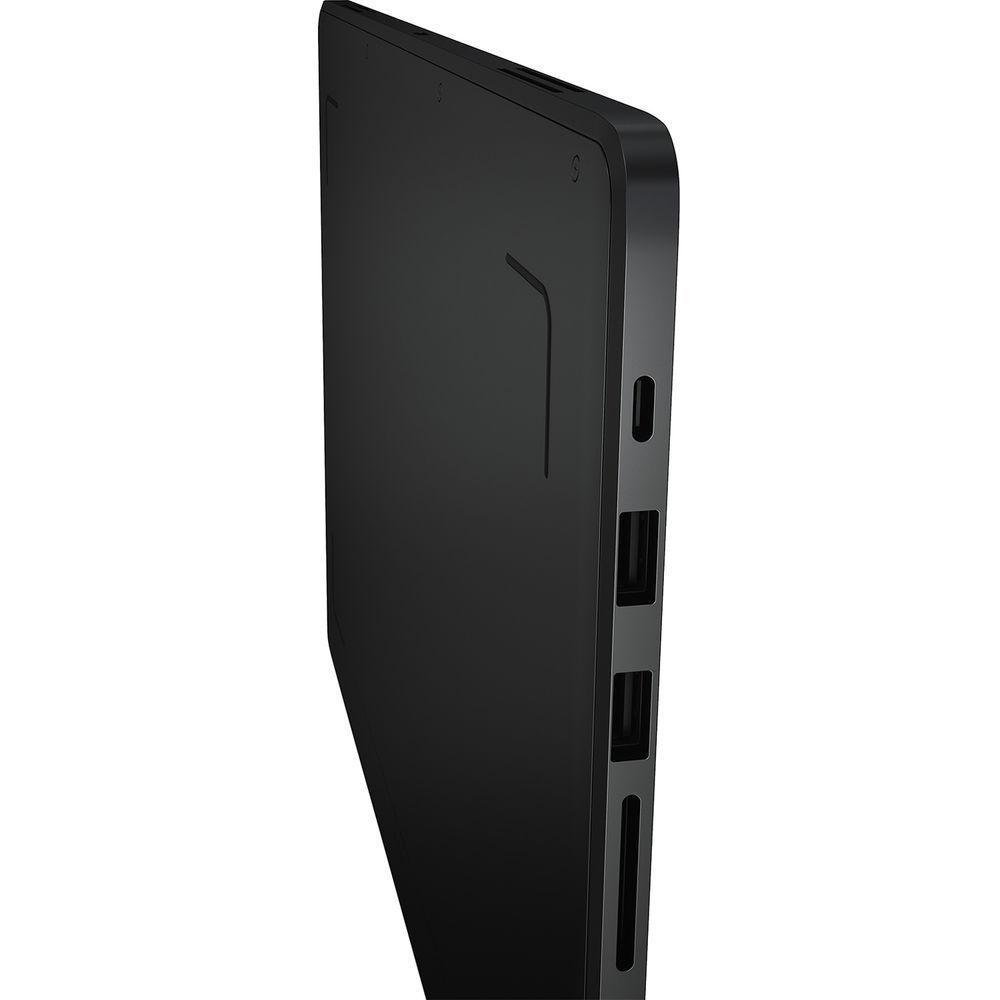

- This docking station comes with three USB 3.1 Gen 1 Type-A ports, three USB 3.1 Gen 1 Type-C ports, an SD card reader slot, HDMI, and Mini DisplayPort. Furthermore, the USB Type-C ports support DisplayPort.
- SSD Storage
- The linedock Docking Station is equipped with a 1TB SSD.
UPC: 860000692533 In the Box Linedock 1TB SSD Docking Station (Matte Black) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Linedock 1TB SSD Docking Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLinedock LD-13-1TB-MBK-18-23-1.0 Specs | | | USB | 3 x USB 3.1 Gen 1 Type-A (12 W)
3 x USB 3.1 Gen 1 Type-C (5 A) | | Thunderbolt | None | | Ethernet | None | | FireWire | None | | Display | 1 x HDMI 2.0 (Female)
1 x Mini DisplayPort 1.2 (Female) | | Audio | None | | Memory Card Slots | 1 x SD (Unspecified Type) | | | | System Connection | 3 x USB 3.1 Gen 2 Type-C Female
3 x USB 3.1 Gen 1 Type-A Female | | | | Number of Displays Supported | 1 | | Maximum Resolution Supported | 3840 x 2160 at 60 Hz | | Data Transfer Rate | 5 Gb/s USB 3.0/USB 3.1 Gen 1 | | Compatibility | Apple MacBook Air
Apple MacBook Pro | | Operating System Support | macOS/OS X | | UASP Support | No | | | | Lock Slot | No | | Dimensions | 12 x 8.4 x 0.4" / 30.48 x 21.34 x 1.02 cm | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 6.795 lb | | Box Dimensions (LxWxH) | 14.7 x 14.6 x 4.5" |
